LED790-66-60
epoxy lens type Infrared illuminator
LED790-66-60 is a wide viewing and extremely high output power illuminator assembled with a
total of 60 high efficiency AlGaAs diode chips, mounted on a metal stem TO-66 with AlN ceramics
and covered with double coated clear silicone and epoxy resin. These devices are designed for
high current operation with proper heat sinking to improve thermal conductive efficiency.
●
Features
1) High reliability
2) Compact (TO-66) package
3) High output power at 790nm
●
Applications
1) For IR search light
2) For CCD lighting
●
Specifications
1) Product Name
2) Type No.
3) Chip
•
Chip Material
•
Peak Wavelength
4) Package
•
Stem
•
Lens
IR illuminator
LED790-66-60
AlGaAs
790nm
TO-66 stem with AlN
Clear silicone and epoxy lens
●

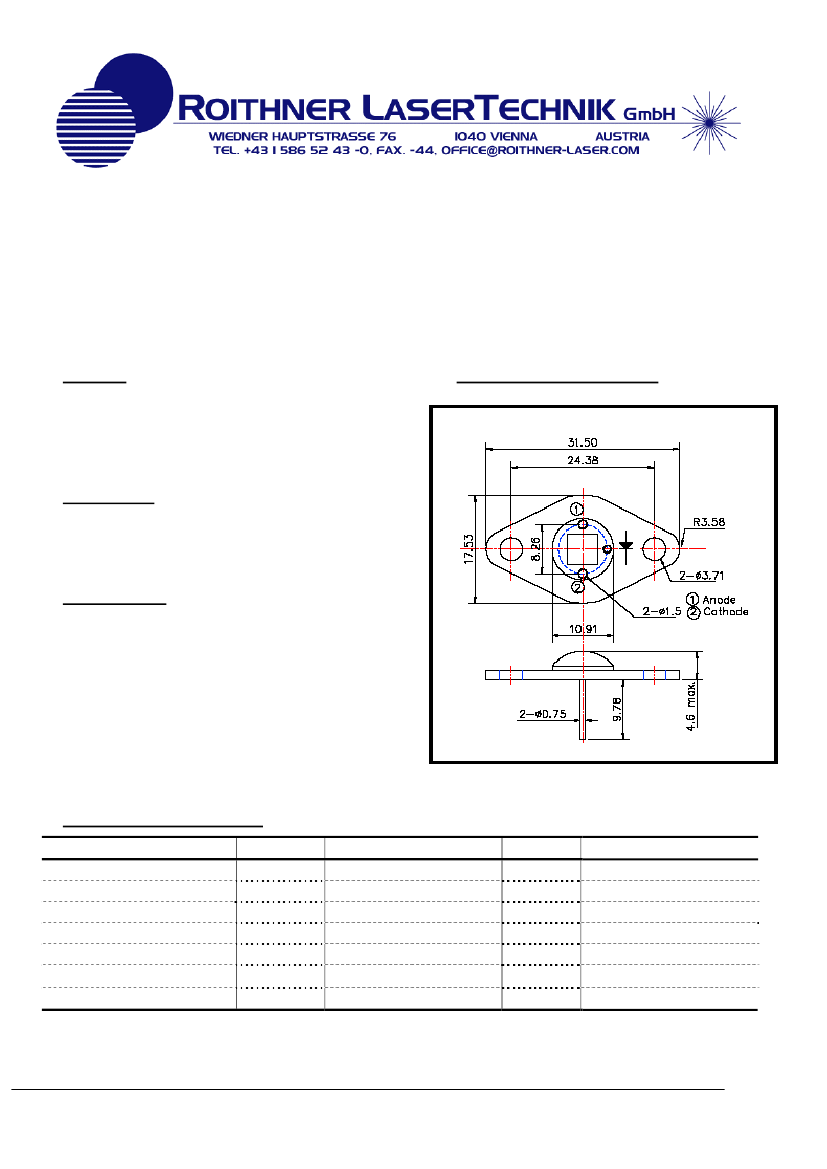

Outer dimension (Unit: mm)
●
Absolute Maximum Ratings
Item
Power Dissipation
Forward Current
Pulse Forward Current
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
P
D
I
F
I
FP
V
R
T
OPR
Maximum Rated Value
7.8
750
3
50
-30 ~ +80
-30 ~ +110
265
Unit
W
mA
A
V
°C
°C
°C
Ambient Temperature
Ta=25°C
Ta=25°C
Ta=25°C
Ta=25°C
T
STG
T
SOL
►
Pulse Forward Current condition: Duty=1% and Pulse Width=1us.
►
Soldering condition: Soldering condition must be completed within 3 seconds at 265°C
Bankverbindung: Bank~Austria Creditanstalt AG - Bankleitzahl: 12000 - EURO Kontonummer: 608 547 402 – USD Kontonummer: 570 347 781
EUR Konto IBAN: AT1212 00000 608 547 402 - SWIFT: BKAUATWW
USD Konto IBAN: AT3112 00000 570 347 781 -
SWIFT: BKAUATWW
UID: ATU61938489 - FN: 266954 f - Handelsgericht Wien
●
Electro-Optical Characteristics
Item
Total Radiated Power
Total Radiated Power
Radiant Intensity
Forward Voltage
Reverse Current
Peak Wavelength
Half Width
Viewing Half Angle
Rise Time
Fall Time
Symbol
P
O
P
O
I
E
V
F
V
R
λ
P
∆λ
θ
1/2
tr
tf
Condition
I
F
=600mA
I
FP
=3A
I
F
=600mA
I
F
=600mA
I
R
=10µA
I
F
=600mA
I
F
=600mA
I
F
=600mA
I
F
=600mA
I
F
=600mA
Minimum
Typical
1000
4000
450
9.0
790
40
±60
100
100
Maximum
Unit
MW
mW
MW/sr
V
V
nm
nm
deg.
ns
ns
50
►
Heat sink is required to protect LED at 60°C or less
