85003-1653: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size507KB，11 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

85003-1653 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle

85003-1653 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41612; IEC 603-2
body width	0.437 inch
subject depth	0.461 inch
body length	2.126 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (24) OVER NICKEL
Contact completed and terminated	GOLD (24) OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
maximum insertion force	.9452 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	85003
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,C
PCB row number	3
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	39u inch
polarization key	ENDS
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0

85003-1653 Preview

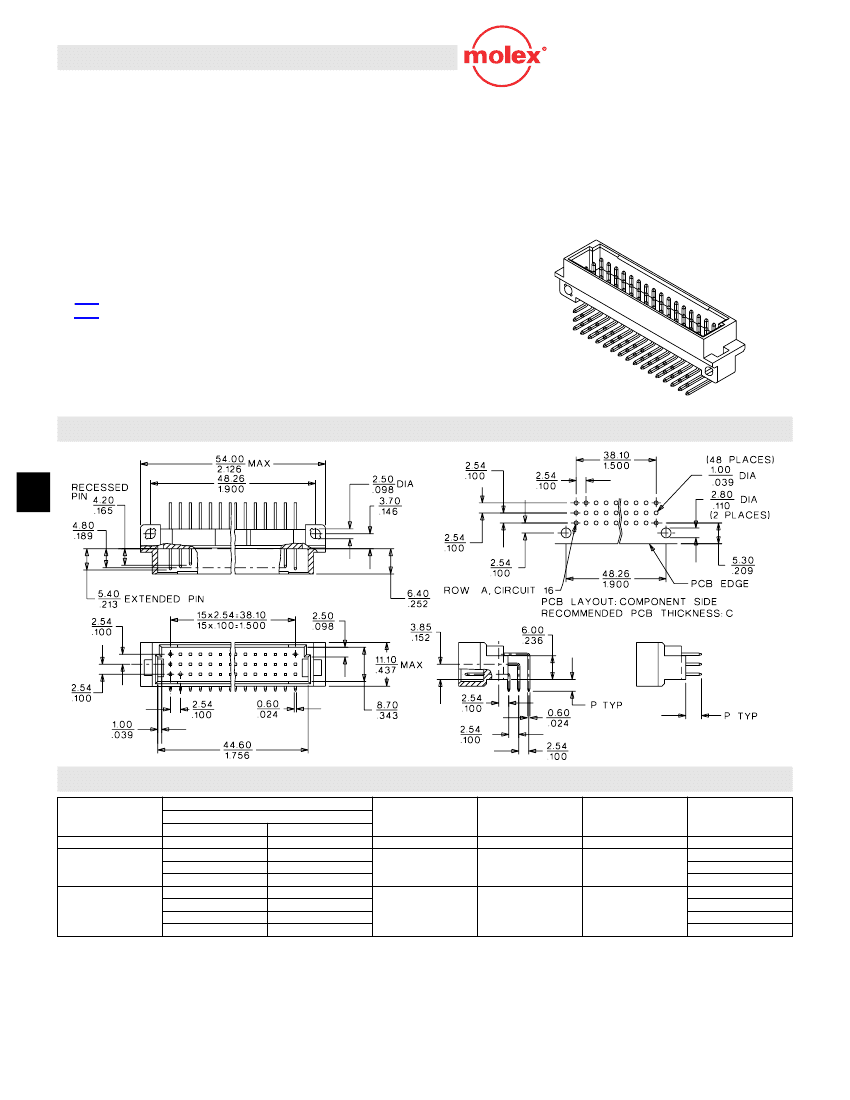

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Performance levels 1 and 2

Flux proof option

FMLB/LMFB pins (extended/recessed) available

Board lock option

Solder tails for 1.6mm (.062") PCBs

(for 2.4mm (.094") PCBs on request)

s

High temperature version on request

s

Electrical

Current: 1.5A

Physical

Housing: Glass-ﬁlled polyester, UL 94V-0

Contact: Brass

Operating Temperature: -55 to +125˚C

2.54mm (.100") Pitch

DIN 41612/IEC 603-2

Connector

85003

Male

Style C/2

Backplane Connector Systems

Reference Information

Product Speciﬁcation: PS-85003-0001

Packaging: Tray

UL File No.: E29179

CSA File No.: LR19980-390

Mates With:

85042—Straight

female style C/2

85052—Right

angle female style R/2

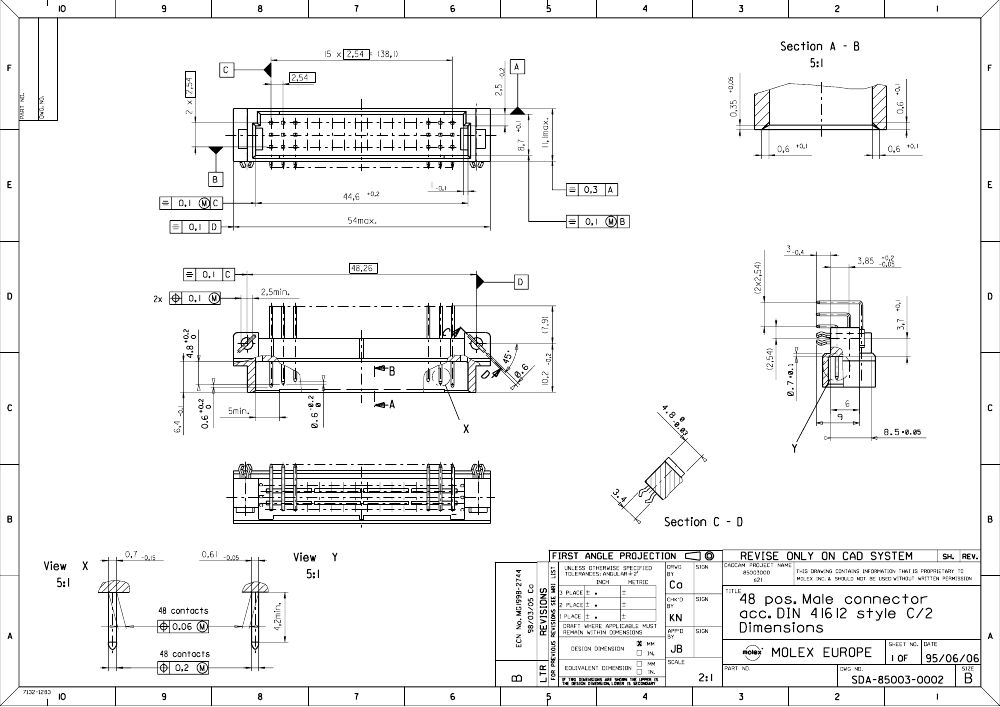

CATALOG DRAWING (FOR REFERENCE ONLY)

J

ORDERING INFORMATION AND DIMENSIONS

Circuits

1

16

85003-1653

32

85003-0701

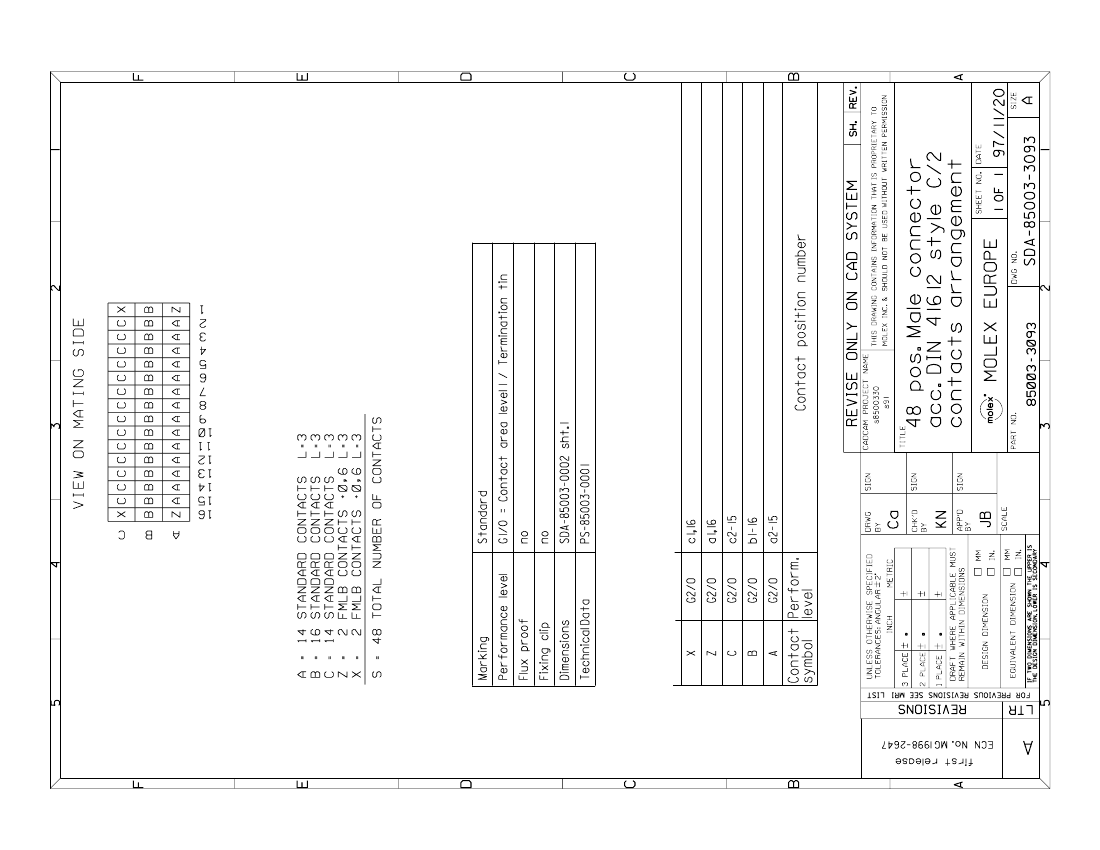

85003-3093

85003-1859

Order No.

Performance Level*

2

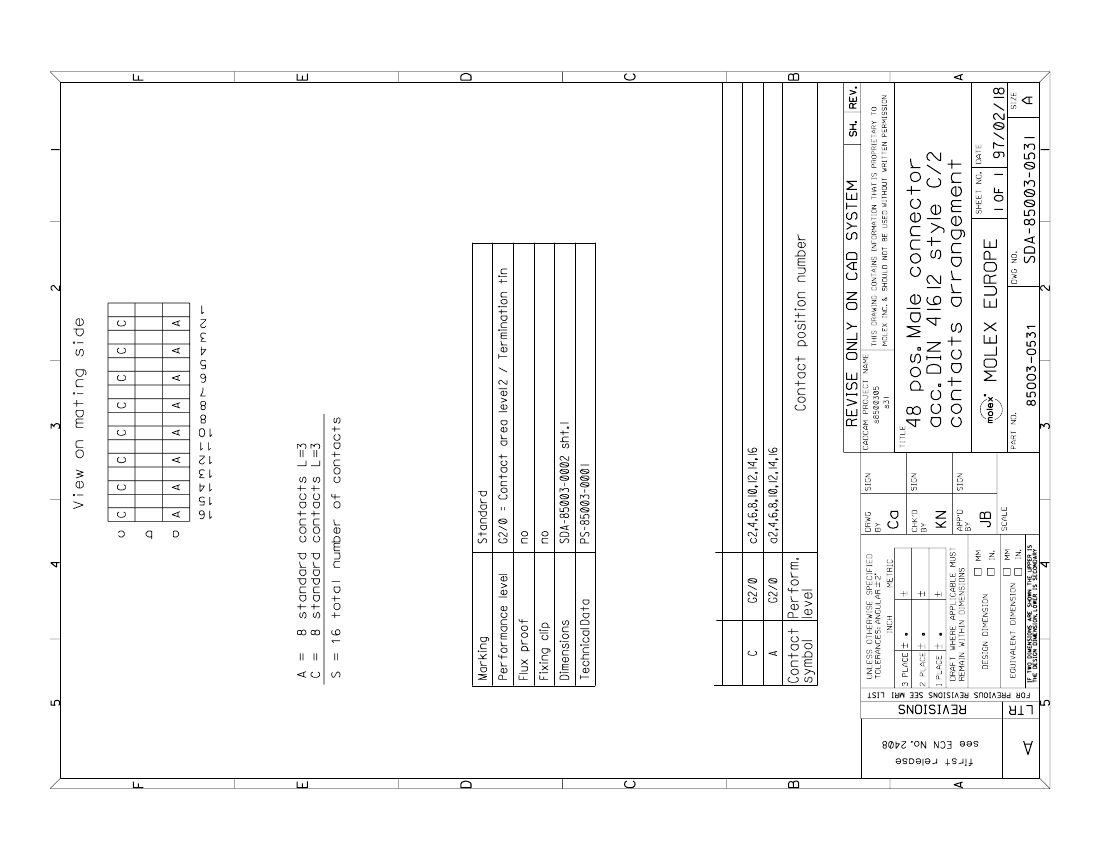

85003-0531

85003-0048

85003-0050

85003-1782

85003-0062

85003-0074

85003-1794

85003-3067

Contact

Loading

Even only

Full

Rows

a, c

Solder Tail Dimension P

3.0 (.118)

FMLB-4 pins: 1,16 a, c

Board locks

FMLB-4 pins: 1, 16 a, c

Board locks

FMLB-6 pins: 1, 16 a, b, c

Option(s)

48

Full

a, b, c

3.0 (.118)

For other versions contact Molex

* Performance levels based on test conditions per DIN 41612, part 5:

1: >500 mating cycles. 10 day industrial environment (S02)

2: >400 mating cycles. 4 day industrial environment (S02)

J-142

MX01

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
