LTKA01CH datasheet, PDF - EEWORLD Datasheet

LTKA01CH: DescriptionIC THERMOCOUPLE AMPLIFIER TO-5; CategoryAnalog mixed-signal IC Amplifier circuit; File Size286KB，4 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

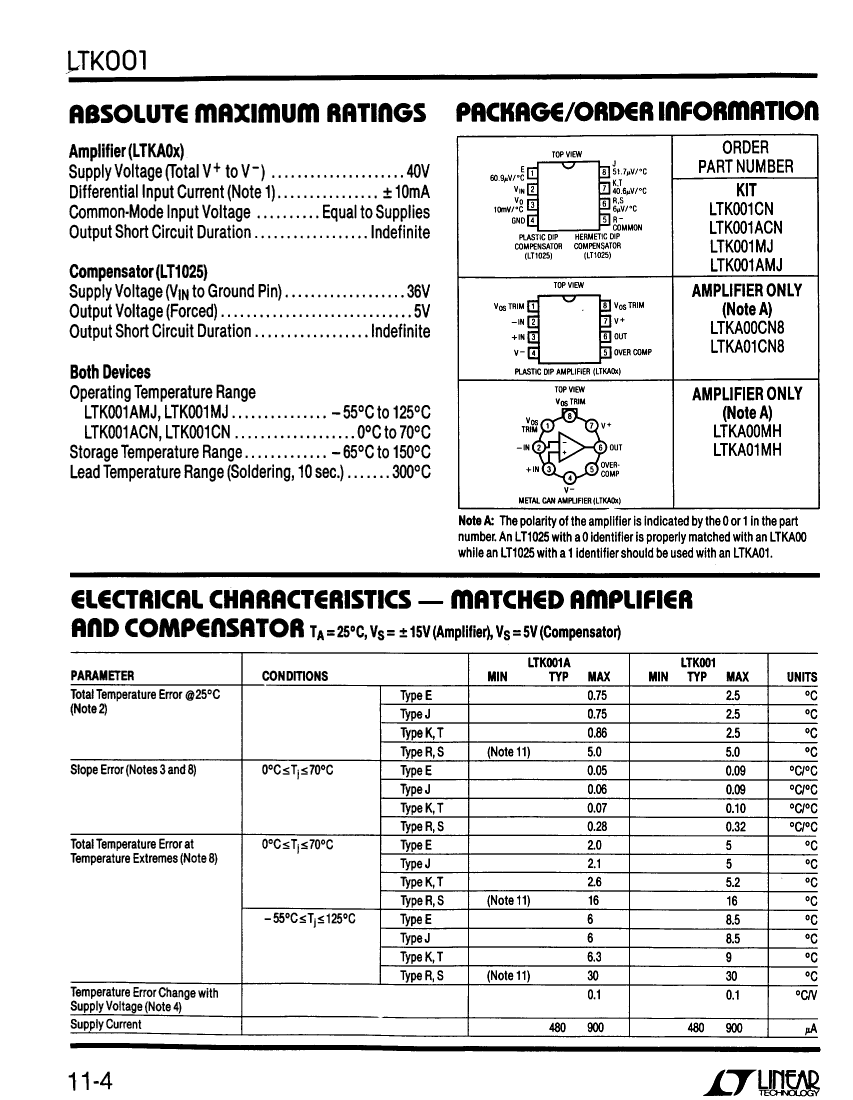

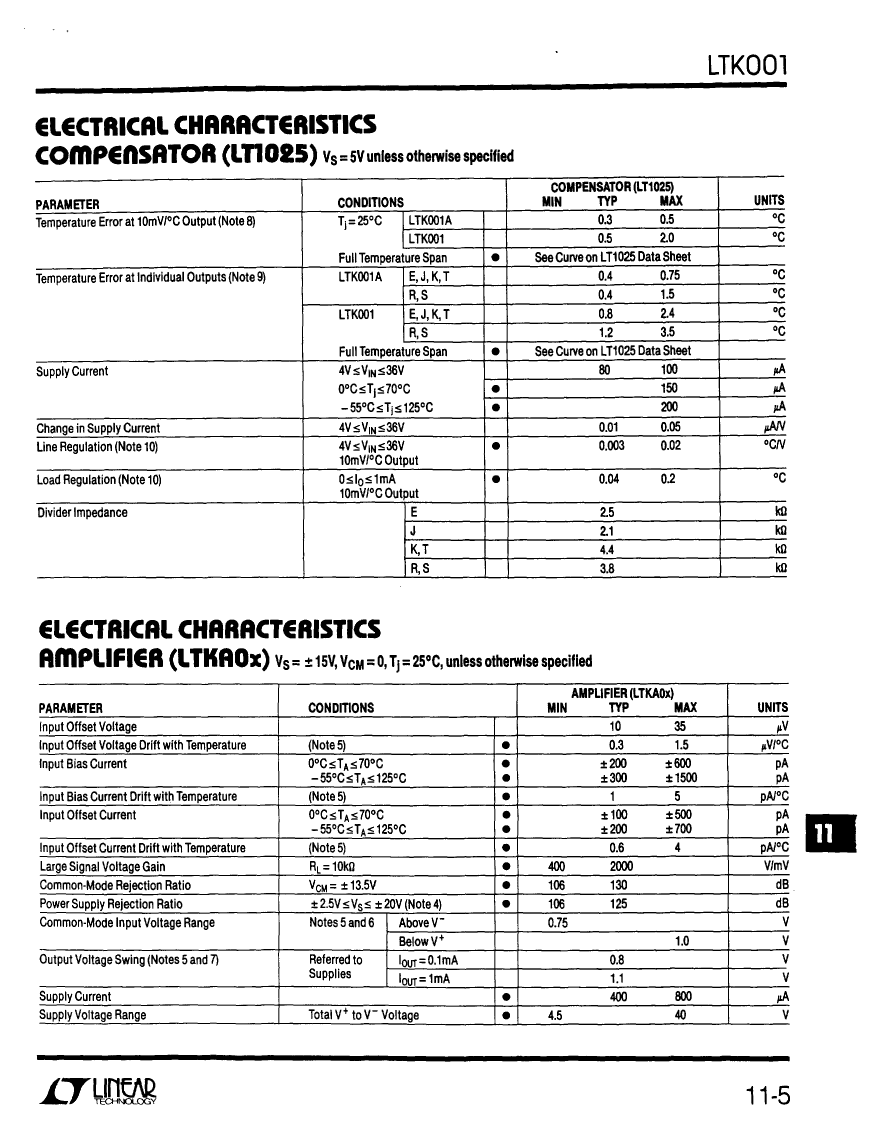

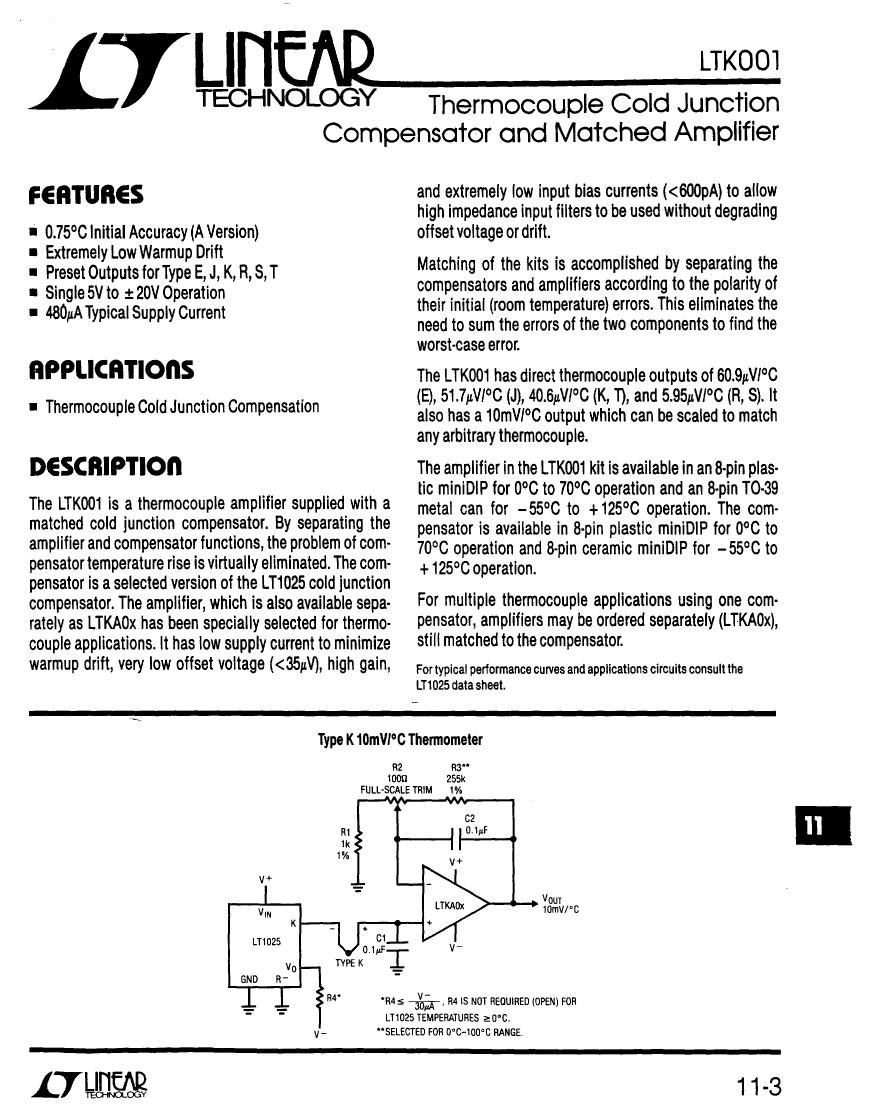

LTKA01CH Overview

IC THERMOCOUPLE AMPLIFIER TO-5

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
package instruction	, CAN8,.2
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
frequency compensation	NO
Maximum input offset voltage	35 µV
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
low-bias	YES
low-dissonance	YES
micropower	YES
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature

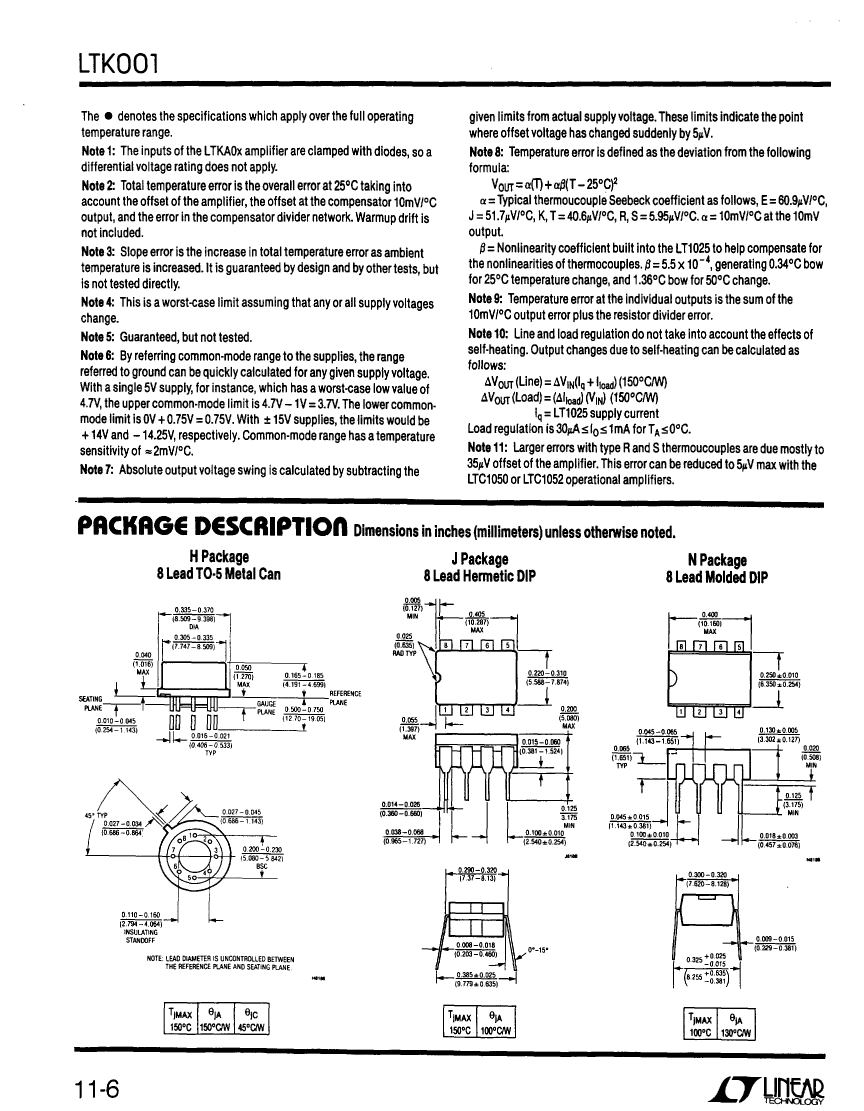

Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
power supply	+-15 V
Certification status	Not Qualified
Maximum slew rate	0.8 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
technology	HYBRID
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Minimum voltage gain	400000

	LTKA01CH	LTKA00CH
Description	IC THERMOCOUPLE AMPLIFIER TO-5	IC THERMOCOUPLE AMPLIFIER TO-5
Is it Rohs certified?	incompatible	incompatible
Maker	Linear ( ADI )	Linear ( ADI )
package instruction	, CAN8,.2	, CAN8,.2
Reach Compliance Code	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
frequency compensation	NO	NO
Maximum input offset voltage	35 µV	35 µV
JESD-30 code	O-MBCY-W8	O-MBCY-W8
JESD-609 code	e0	e0
low-bias	YES	YES
low-dissonance	YES	YES
micropower	YES	YES
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	1	1
Number of terminals	8	8
Maximum operating temperature	70 °C	70 °C
Package body material	METAL	METAL
Encapsulate equivalent code	CAN8,.2	CAN8,.2
Package shape	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL
power supply	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified
Maximum slew rate	0.8 mA	0.8 mA
Supply voltage upper limit	20 V	20 V
Nominal supply voltage (Vsup)	15 V	15 V
technology	HYBRID	HYBRID
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM
Minimum voltage gain	400000	400000
