MV-R66V2CGFREQ2 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> MV-R66V2CGFREQ2

Preview

MV-R66V2CGFREQ2: DescriptionHCMOS Output Clock Oscillator, 55MHz Min, 160MHz Max, GULL WING, 4 PIN; CategoryPassive components oscillator; File Size264KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

MV-R66V2CGFREQ2 Overview

HCMOS Output Clock Oscillator, 55MHz Min, 160MHz Max, GULL WING, 4 PIN

MV-R66V2CGFREQ2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MtronPTI
Reach Compliance Code	unknown
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	25%
JESD-609 code	e1
linearity	10%
Manufacturer's serial number	MV
Installation features	SURFACE MOUNT
Maximum operating frequency	160 MHz
Minimum operating frequency	55 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS
Output load	5 TTL, 15 PF
physical size	20.8mm x 13.2mm x 5.08mm
longest rise time	5 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)

Preview

Download Datasheet

View All

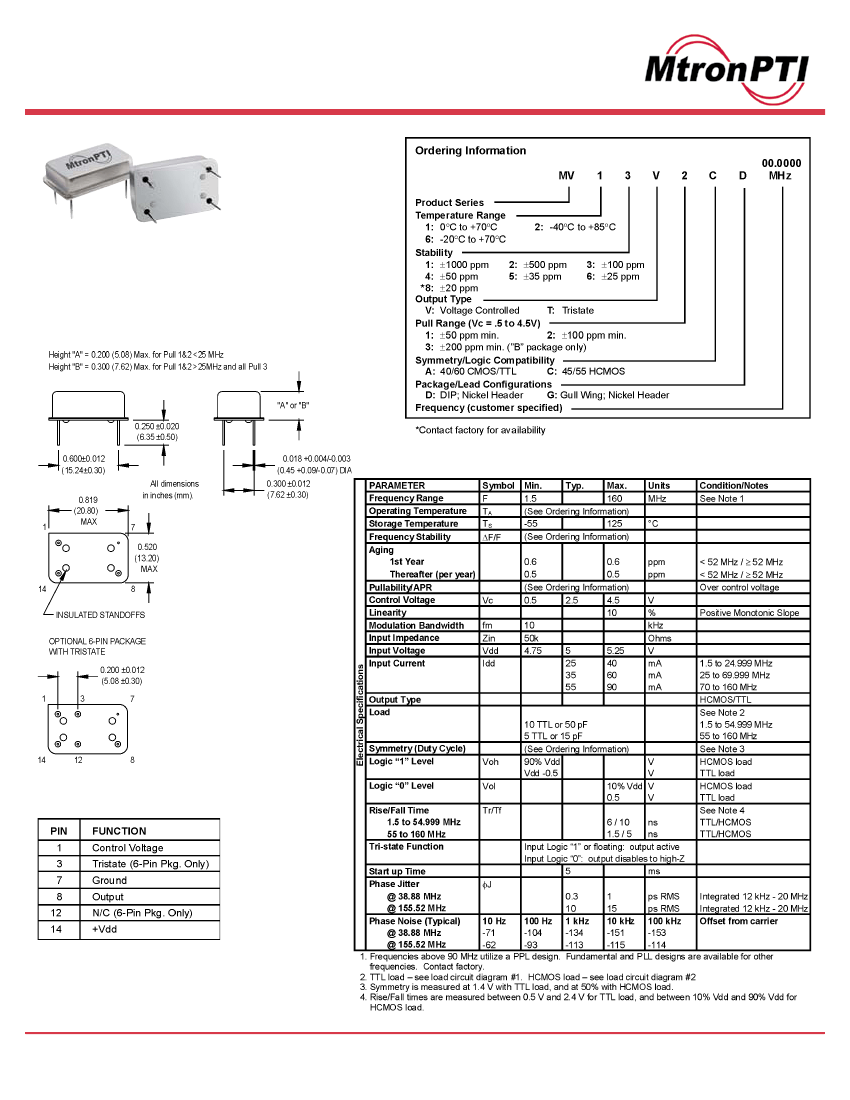

MV Series

14 DIP, 5.0 Volt, HCMOS/TTL, VCXO

•

General purpose VCXO for Phase Lock Loops

(PLLs), Clock Recovery, Reference Signal Trakcing,

and Synthesizers

Frequencies up to 160 MHz

Tri-state Option Available

Pin Connections

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 2-10-06
