TC544000F-12(TP1) datasheet, PDF

Datasheet> All Categories > storage> storage> TC544000F-12(TP1)

TC544000F-12(TP1): DescriptionIC 512K X 8 OTPROM, 120 ns, PDSO32, 0.525 INCH, PLASTIC, SOP-32, Programmable ROM; Categorystorage storage; File Size324KB，12 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC544000F-12(TP1) Overview

IC 512K X 8 OTPROM, 120 ns, PDSO32, 0.525 INCH, PLASTIC, SOP-32, Programmable ROM

TC544000F-12(TP1) Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP,
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99

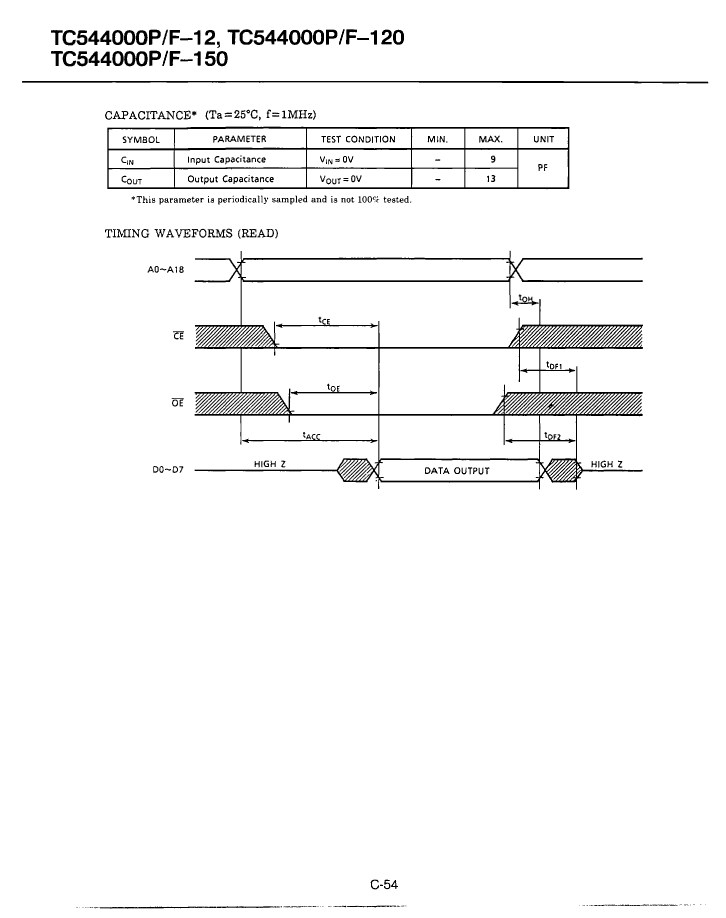

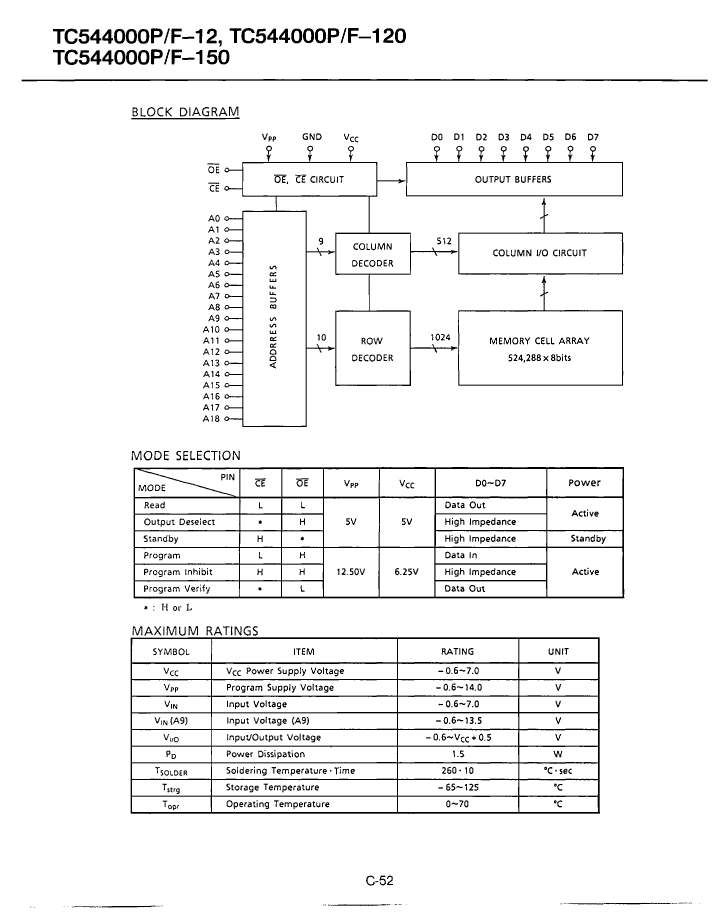

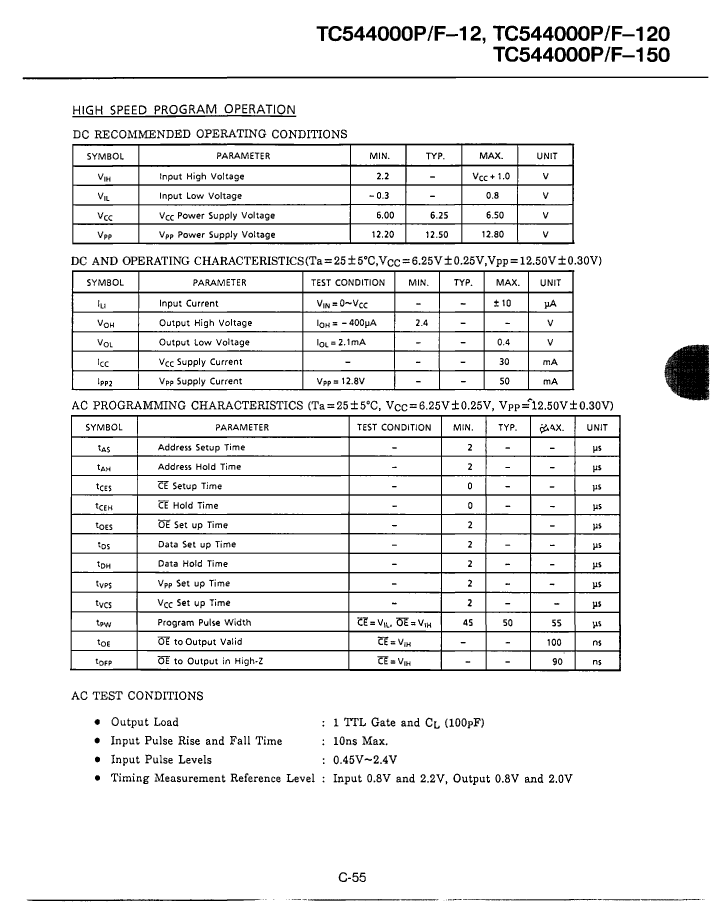

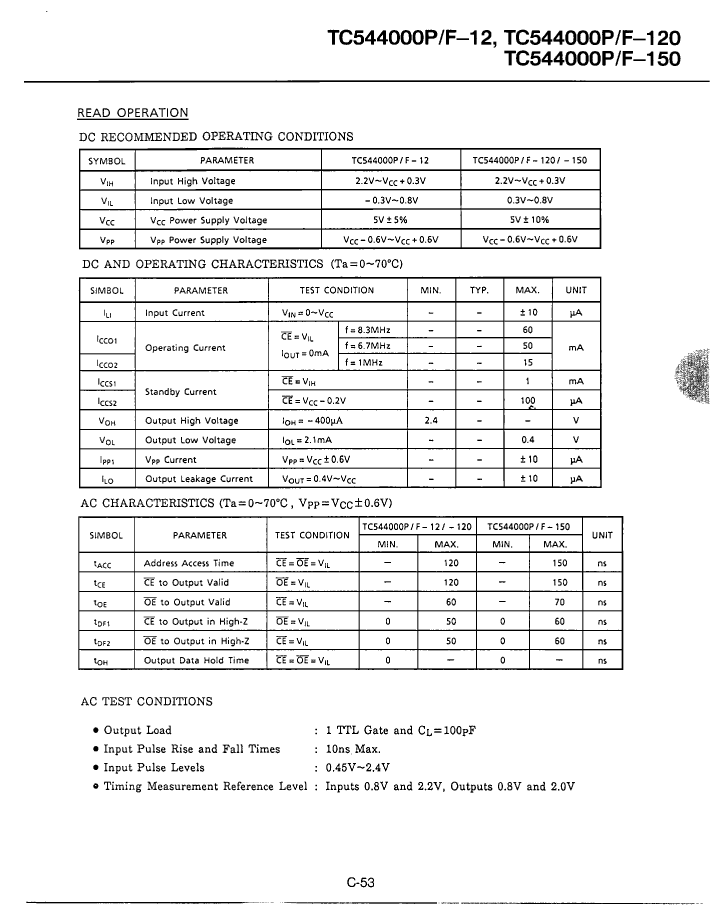

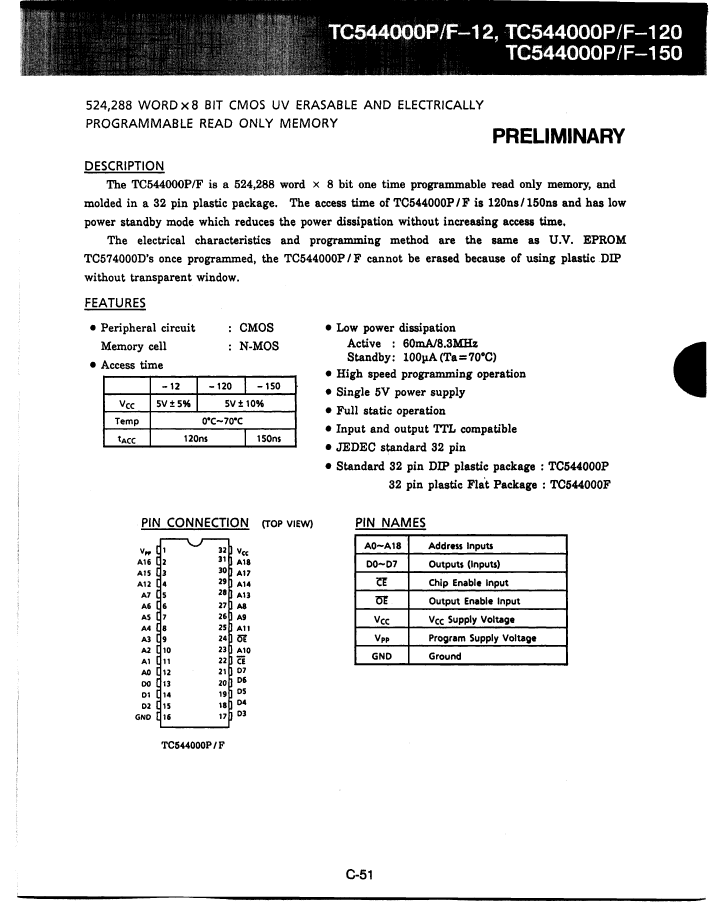

Preview

Download Datasheet

View All

TC544000F-12(TP1) Related Products

	TC544000F-12(TP1)	TC544000F-12(EL)	TC544000F-120(EL)	TC544000F-150(TP1)	TC544000F-150(EL)	TC544000F-12(TP2)	TC544000F-120(TP1)	TC544000F-120(TP2)	TC544000F-150(TP2)
Description	IC 512K X 8 OTPROM, 120 ns, PDSO32, 0.525 INCH, PLASTIC, SOP-32, Programmable ROM	IC 512K X 8 OTPROM, 120 ns, PDSO32, 0.525 INCH, PLASTIC, SOP-32, Programmable ROM	IC 512K X 8 OTPROM, 120 ns, PDSO32, 0.525 INCH, PLASTIC, SOP-32, Programmable ROM	IC 512K X 8 OTPROM, 150 ns, PDSO32, 0.525 INCH, PLASTIC, SOP-32, Programmable ROM	IC 512K X 8 OTPROM, 150 ns, PDSO32, 0.525 INCH, PLASTIC, SOP-32, Programmable ROM	IC 512K X 8 OTPROM, 120 ns, PDSO32, 0.525 INCH, PLASTIC, SOP-32, Programmable ROM	IC 512K X 8 OTPROM, 120 ns, PDSO32, 0.525 INCH, PLASTIC, SOP-32, Programmable ROM	IC 512K X 8 OTPROM, 120 ns, PDSO32, 0.525 INCH, PLASTIC, SOP-32, Programmable ROM	IC 512K X 8 OTPROM, 150 ns, PDSO32, 0.525 INCH, PLASTIC, SOP-32, Programmable ROM
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	SOP,	SOP,	SOP,	SOP,	SOP,	SOP,	SOP,	SOP,	SOP,
Contacts	32	32	32	32	32	32	32	32	32
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maker	Toshiba Semiconductor	-	-	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Maximum access time	-	120 ns	120 ns	150 ns	-	120 ns	120 ns	-	-
JESD-30 code	-	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	-	R-PDSO-G32	R-PDSO-G32	-	-
JESD-609 code	-	e0	e0	e0	-	e0	e0	-	-
length	-	20.6 mm	20.6 mm	20.6 mm	-	20.6 mm	20.6 mm	-	-
memory density	-	4194304 bit	4194304 bit	4194304 bit	-	4194304 bit	4194304 bit	-	-
Memory IC Type	-	OTP ROM	OTP ROM	OTP ROM	-	OTP ROM	OTP ROM	-	-
memory width	-	8	8	8	-	8	8	-	-
Number of functions	-	1	1	1	-	1	1	-	-
Number of terminals	-	32	32	32	-	32	32	-	-
word count	-	524288 words	524288 words	524288 words	-	524288 words	524288 words	-	-
character code	-	512000	512000	512000	-	512000	512000	-	-
Operating mode	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS	-	-
Maximum operating temperature	-	70 °C	70 °C	70 °C	-	70 °C	70 °C	-	-
organize	-	512KX8	512KX8	512KX8	-	512KX8	512KX8	-	-
Output characteristics	-	3-STATE	3-STATE	3-STATE	-	3-STATE	3-STATE	-	-
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	-	-
encapsulated code	-	SOP	SOP	SOP	-	SOP	SOP	-	-
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	-	-
Package form	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE	-	-
Parallel/Serial	-	PARALLEL	PARALLEL	PARALLEL	-	PARALLEL	PARALLEL	-	-
Peak Reflow Temperature (Celsius)	-	240	240	240	-	240	240	-	-
Certification status	-	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	-	-
Maximum seat height	-	2.8 mm	2.8 mm	2.8 mm	-	2.8 mm	2.8 mm	-	-
Maximum supply voltage (Vsup)	-	5.25 V	5.5 V	5.5 V	-	5.25 V	5.5 V	-	-
Minimum supply voltage (Vsup)	-	4.75 V	4.5 V	4.5 V	-	4.75 V	4.5 V	-	-
Nominal supply voltage (Vsup)	-	5 V	5 V	5 V	-	5 V	5 V	-	-
surface mount	-	YES	YES	YES	-	YES	YES	-	-
technology	-	CMOS	CMOS	CMOS	-	CMOS	CMOS	-	-
Temperature level	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	-	-
Terminal surface	-	TIN LEAD	TIN LEAD	TIN LEAD	-	TIN LEAD	TIN LEAD	-	-
Terminal form	-	GULL WING	GULL WING	GULL WING	-	GULL WING	GULL WING	-	-
Terminal pitch	-	1.27 mm	1.27 mm	1.27 mm	-	1.27 mm	1.27 mm	-	-
Terminal location	-	DUAL	DUAL	DUAL	-	DUAL	DUAL	-	-
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-	-
width	-	10.7 mm	10.7 mm	10.7 mm	-	10.7 mm	10.7 mm	-	-
