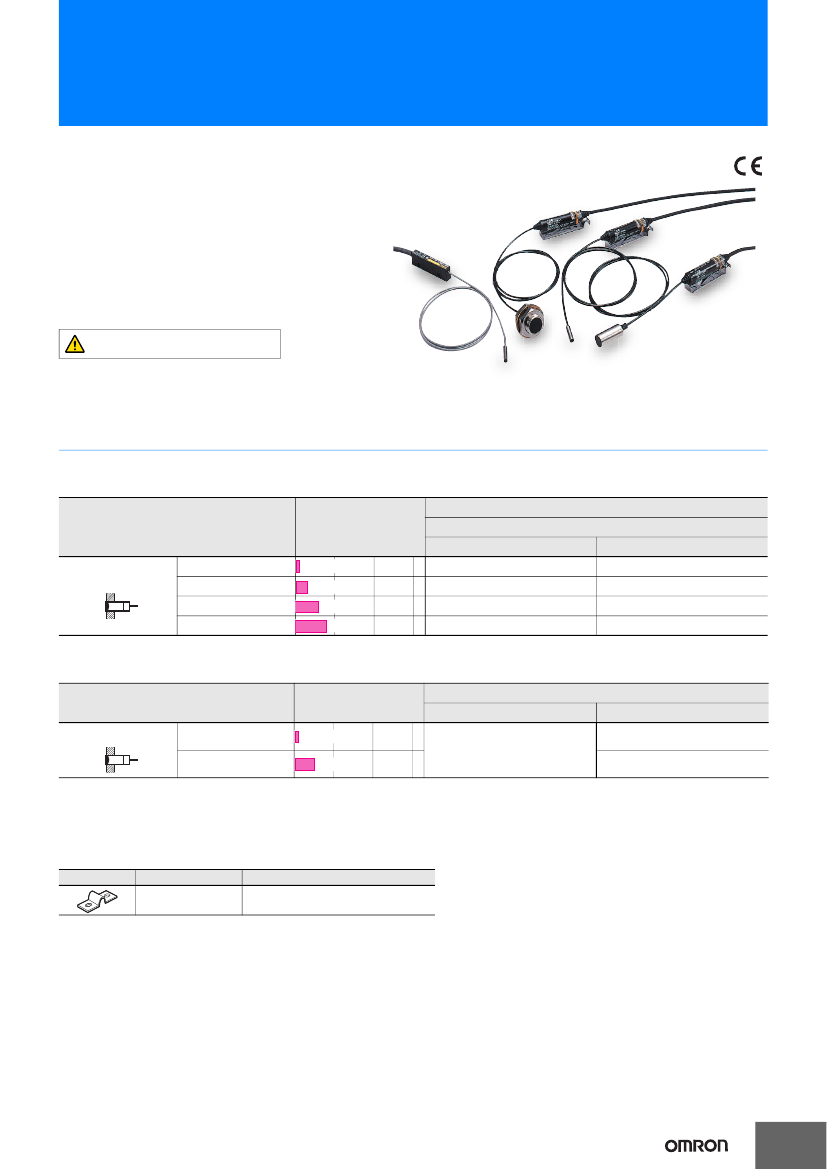

Cable Amplifier Proximity Sensor
E2EC
CSM_E2EC_DS_E_9_2
Subminiature Sensors with
Long-distance Detection
• Shielded Sensor Heads from 3-mm to M12 diameters that
can be embedded in metal.
• Robotics cables provided as a standard feature
(DC 2-Wire Models).
• Indicator provided in Amplifier cable for easy confirmation
of operation.
• Power supply range of 5 to 24 VDC for DC 3-Wire Models.
Be sure to read
Safety Precautions
on
page 6.
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
Ordering Information
Sensors
[Refer to
Dimensions
on page 7.]
DC 2-Wire Models
Model
Appearance
Sensing distance
NO
3 dia.
Operation mode
NC
E2EC-CR8D2 2M
*
E2EC-C1R5D2 2M
*
E2EC-C3D2 2M
*
E2EC-X4D2 2M
*
0.8 mm
1.5 mm
3 mm
4 mm
E2EC-CR8D1 2M
*
E2EC-C1R5D1 2M
*
E2EC-C3D1 2M
*
E2EC-X4D1 2M
*
Shielded
5.4 dia.
8 dia.
M12
* Models with different frequencies are also available. The model numbers are E2EC-@@@@5 (example: E2EC-CR8D15).
DC 3-Wire Models
Appearance
Sensing distance
Model
Output configuration
NPN open-collector output
8 dia.
NO
E2EC-CR5C1 2M
*1 *2
E2EC-C2R5C1 2M
*1 *2
Shielded
3 dia.
0.5 mm
2.5 mm
*1. Models with different frequencies are also available. The model numbers are E2EC-@@@@5 (example: E2EC-CR5D15).
*2. NC models are also available.
Accessories (Order Separately)
Mounting Bracket
The Mounting Bracket for the E2EC-C1R5D@ is not provided with the Sensor. Order a Mounting Bracket separately if required.
[Refer to
Dimensions
on page 8.]
Appearance
Model
Y92E-F5R4
Applicable Sensors
E2EC-C1R5D@ (5.4-mm-dia. Sensor)
1
E2EC
Ratings and Specifications
DC 2-Wire Models
Item
Set distance
Differential travel
Detectable object
Standard sensing
object
Model
E2EC-CR8D@
0.8 mm
±15%
0 to 0.56 mm
E2EC-C1R5D@
1.5 mm
±10%
0 to 1.05 mm
E2EC-C3D@
3 mm
±10%
0 to 2.1 mm
E2EC-X4D@
4 mm
±10%
0 to 2.8 mm
Sensing distance
DC 3-Wire Models
E2EC-CR5C1
0.5 mm
±15%
0 to 0.3 mm
E2EC-C2R5C1
2.5 mm
±10%
0 to 1.7 mm
10% max. of sensing distance
Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to
Engineering Data
on page 3.)
Iron, 5
×
5
×
1 mm
Iron, 8
×
8
×
1 mm
1 kHz
5 to 24 VDC (4.75 to 30 VDC),
ripple (p-p): 10% max.
10 mA max.
---
NPN open-collector output,
100 mA max. (30 VDC max.)
1 V max. (Load current: 100 mA,
Cable length: 2 m)
Detection indicator (red)
NO
Refer to the timing charts under
I/O
Circuit Diagrams
on page 5 for details.
Surge suppressor
Iron,
12
×
12
×
1 mm
Iron, 5
×
5
×
1 mm Iron, 8
×
8
×
1 mm
Response frequency
1.5 kHz
*1
Power supply volt-
age (operating volt-
age range)
Current
consumption
Leakage current
Control
output
Load
current
Residual
voltage
0.8 mA max.
5 to 100 mA
12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
---
3 V max. (Load current: 100 mA, Cable length: 2 m)
D1 Models: Operation indicator (red), Setting indicator (green)
D2 Models: Operation indicator (red)
D1 Models: NO
D2 Models: NC
Refer to the timing charts under
I/O Circuit Diagrams
on page 5 for details.
Load short-circuit protection, Surge suppressor
Operating/Storage:
−25
to 70°C (with no icing or condensation)*2
Operating/Storage: 35% to 95% (with no condensation)
±20%
max. of sensing distance at 23°C in the temperature range of
−25
to 70°C
±2.5%
max. of sensing distance at rated voltage in the rated voltage
±15%
range
50 MΩ min. (at 500 VDC) between current-carrying parts and case
1,000 VAC for 1 min between current-carrying parts and case
Indicators
Operation mode
(with sensing object
approaching)
Protection circuits
Ambient
temperature range
Ambient
humidity range
Temperature
influence
Voltage influence
Insulation
resistance
Dielectric strength
Vibration resistance
Shock resistance
Degree of protection
Connection method
Weight
(packed state)
Case
Sensing
surface
Materials Clamp-
ing nut
Toothed
washer
Accessories
±5%
max. of sensing distance at the
rated voltage range in the voltage
range of 4.75 to 30 V
500 VAC for 1 min between current-
carrying parts and case
Destruction: 500 m/s
2
10 times each in
X, Y, and Z directions
IEC 60529 IP64
Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Destruction: 1,000 m/s
2
10 times each in X, Y, and Z directions
IEC 60529 IP67,
In-house standards: oil-resistant (For Sensor Head only)
Pre-wired Models (Standard cable length: 2 m)
Approx. 45 g
Brass
ABS
---
---
Amplifier Mounting Bracket, Instruction manual
Brass
(nickel-plated)
Iron (zinc-plated)
---
---
Instruction manual
*1. The response frequency is an average value.
Measurement conditions are as follows: standard sensing object, a distance of twice the standard sensing object, and a set distance of half the sensing distance.
*2. Incorrect operation may occur if there is a large temperature difference between the Sensor Head and the Amplifier Unit.
2

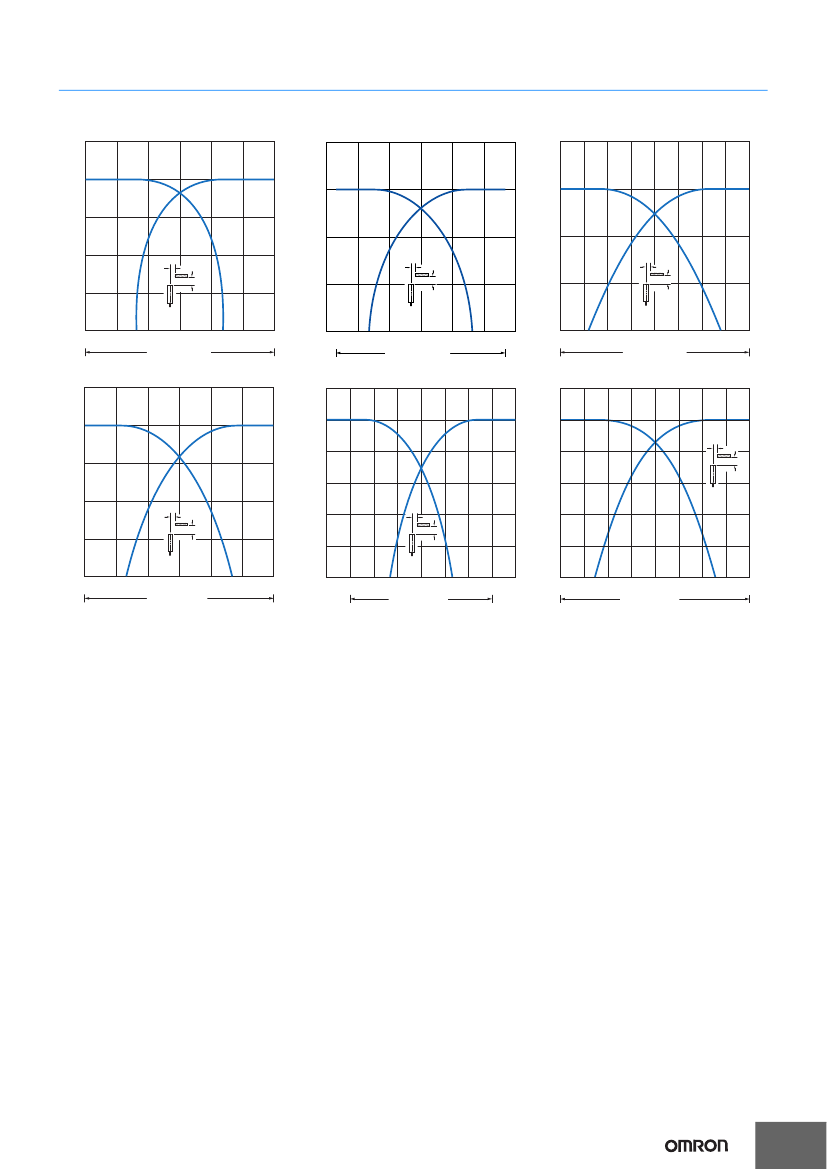

E2EC

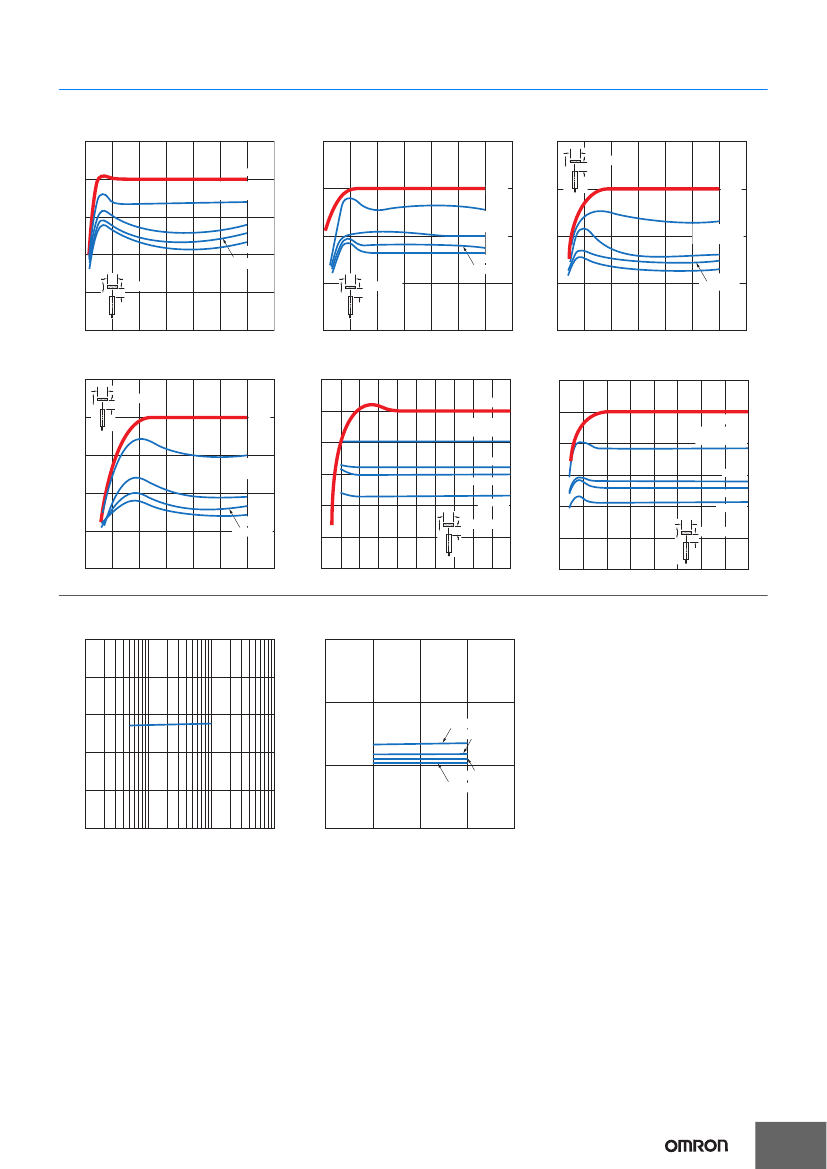

Influence of Sensing Object Size and Material
E2EC-CR8D1
E2EC-C1R5D1
Distance X (mm)
Distance X (mm)
1.0
2.0
E2EC-C3D1
Distance X (mm)
4
d
×
d
t = 1 mm
X
Iron
0.8
Iron
Stainless steel
(SUS304)
1.5
Iron
Stainless steel
(SUS304)
3
0.6
Brass
1.0
Copper
Aluminium
d
×
d
d
×
d
Brass
Copper
Aluminum
2
Stainless steel
(SUS304)
Brass
Copper
Aluminum
0.4
0.2
X
t = 1 mm
0.5
t = 1 mm
X
1
0
5
10
15
20
25
30
35
0
5
10
15
20
25
30
35
0
5
10
15
20
25
30
35
Side length of sensing object: d (mm)
Side length of sensing object: d (mm)
Side length of sensing object: d (mm)
E2EC-X4D1
Distance X (mm)
5
d
×
d
E2EC-CR5C1
Distance X (mm)
0.6
Iron
0.5
Stainless steel
(SUS304)
0.4
Brass
0.3
Aluminum
Copper
E2EC-C2R5C1
Distance X (mm)
3.0
X
4
t = 1 mm
Iron
2.5
Iron
Stainless steel
(SUS304)
2.0
3
Stainless steel
(SUS304)
Brass
1.5
Brass
Aluminum
2
0.2
1
Copper
Aluminum
1.0
Copper
@d
0.1
X
t=1 mm
0.5
@d
X
t=1 mm
0
5
10
15
20
25
30
35
0
2
4
6
8
10
12
14
16
18 20
0
5
10
15
20
25
30
35
40
Side length of sensing object: d (mm)
Side length of sensing object: d (mm)
Side length of sensing object: d (mm)
Residual Output Voltage
DC 2-Wire Models
Residual output voltage (V)
5
Leakage Current
E2EC
Leakage current (mA)
1.5
4
1.0
E2EC-CR8D1
E2EC-C3D1
3
2
0.5
E2EC-X4D1
1
E2EC-C1R5D1
0
1
3
5
10
30 50
100
300 500 1,000
0
10
20
30
40
Load current (mA)
Power supply voltage (V)
4
