AUIRFR5505TRR

Description
18 A, 55 V, 0.11 ohm, P-CHANNEL, Si, POWER, MOSFET, TO-252AA
CategoryDiscrete semiconductor    The transistor
File Size1MB,13 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

AUIRFR5505TRR Online Shopping

Suppliers Part Number Price MOQ In stock
AUIRFR5505TRR - - View Buy Now

AUIRFR5505TRR Overview

18 A, 55 V, 0.11 ohm, P-CHANNEL, Si, POWER, MOSFET, TO-252AA

AUIRFR5505TRR Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerInternational Rectifier ( Infineon )
Parts packaging codeTO-252AA
package instructionSMALL OUTLINE, R-PSSO-G2
Contacts3
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresAVALANCHE RATED, HIGH RELIABILITY
Avalanche Energy Efficiency Rating (Eas)150 mJ
Shell connectionDRAIN
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage55 V
Maximum drain current (Abs) (ID)18 A
Maximum drain current (ID)18 A
Maximum drain-source on-resistance0.11 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JEDEC-95 codeTO-252AA
JESD-30 codeR-PSSO-G2
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals2
Operating modeENHANCEMENT MODE
Maximum operating temperature175 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Polarity/channel typeP-CHANNEL
Maximum power dissipation(Abs)57 W
Maximum pulsed drain current (IDM)64 A
Certification statusNot Qualified
surface mountYES
Terminal surfaceMATTE TIN OVER NICKEL
Terminal formGULL WING
Terminal locationSINGLE
Maximum time at peak reflow temperature30
transistor applicationsSWITCHING
Transistor component materialsSILICON

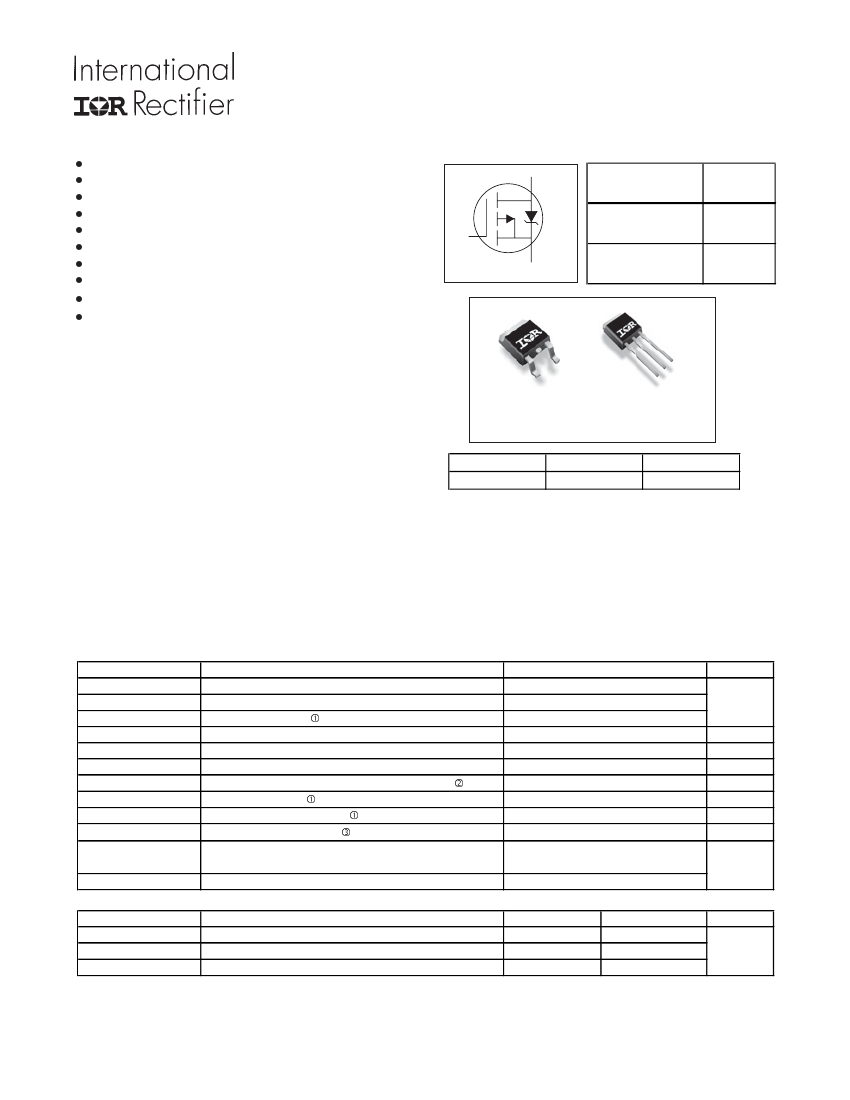

PD - 96342
AUTOMOTIVE GRADE
Features
l
l
l
l
l
l
l
l
l
l
AUIRFR5505
AUIRFU5505
HEXFET
®
Power MOSFET
D
Advanced Planar Technology
Low On-Resistance
P-Channel
Dynamic dV/dT Rating
150°C Operating Temperature
Fast Switching
Fully Avalanche Rated
Repetitive Avalanche Allowed up to Tjmax
Lead-Free, RoHS Compliant
Automotive Qualified *
V
(BR)DSS
-55V
0.11Ω
-18A
G
S
R
DS(on)
max.
I
D
D
D
Description
Specifically designed for Automotive applications, this
Cellular design of HEXFET® Power MOSFETs utilizes
the latest processing techniques to achieve low on-
resistance per silicon area. This benefit combined with the
fast switching speed and ruggedized device design that
HEXFET power MOSFETs are well known for, provides
the designer with an extremely efficient and reliable
device for use in Automotive and a wide variety of other
applications.
G
D
S
G
D
S
D-Pak
AUIRFR5505
G
D
I-Pak
AUIRFU5505
S
Gate
Drain
Source
Absolute Maximum Ratings
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These
are stress ratings only; and functional operation of the device at these or any other condition beyond those indicated
in the specifications is not implied.Exposure to absolute-maximum-rated conditions for extended periods may affect
device reliability. The thermal resistance and power dissipation ratings are measured under board mounted and still
air conditions. Ambient temperature (T
A
) is 25°C, unless otherwise specified.
Parameter
I
D
@ T
C
= 25°C
I
D
@ T
C
= 100°C
I
DM
P
D
@T
C
= 25°C
V
GS
E
AS
I
AR
E
AR
dv/dt
T
J
T
STG
Continuous Drain Current, V
GS
@ -10V
Continuous Drain Current, V
GS
@ -10V
Pulsed Drain Current
Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Single Pulse Avalanche Energy(Thermally limited)
Avalanche Current
Repetitive Avalanche Energy
Peak Diode Recovery dv/dt
Max.
-18
-11
-64
57
0.45
± 20
150
-9.6
5.7
-5.0
-55 to + 150
Units
A
W
W/°C
V
mJ
A
mJ
V/ns
°C
™
Ù
d
Operating Junction and
Storage Temperature Range
Soldering Temperature, for 10 seconds
™
e
300 (1.6mm from case )
Thermal Resistance
Parameter
R
θJC
R
θJA
R
θJA
Junction-to-Case
Junction-to-Ambient (PCB mount) **
Junction-to-Ambient
Typ.
–––
–––
–––
Max.
2.2
50
110
Units
°C/W
HEXFET
®
is a registered trademark of International Rectifier.
*Qualification
standards can be found at http://www.irf.com/
www.irf.com
1
12/6/10
