AS4DDR32M72PBG-75/ET

Description
DDR DRAM, 32MX72, 0.75ns, CMOS, PBGA219, 32 X 25 MM, PLASTIC, BGA-219
Categorystorage    storage
File Size225KB,19 Pages
ManufacturerMicross
Websitehttps://www.micross.com
Download Datasheet Parametric Compare View All

AS4DDR32M72PBG-75/ET Overview

DDR DRAM, 32MX72, 0.75ns, CMOS, PBGA219, 32 X 25 MM, PLASTIC, BGA-219

AS4DDR32M72PBG-75/ET Parametric

Parameter NameAttribute value
MakerMicross
Parts packaging codeBGA
package instructionBGA,
Contacts219
Reach Compliance Codecompliant
ECCN codeEAR99
access modeFOUR BANK PAGE BURST
Maximum access time0.75 ns
Other featuresAUTO/SELF REFRESH
JESD-30 codeR-PBGA-B219
memory density2415919104 bit
Memory IC TypeDDR DRAM
memory width72
Number of functions1
Number of ports1
Number of terminals219
word count33554432 words
character code32000000
Operating modeSYNCHRONOUS
organize32MX72
Package body materialPLASTIC/EPOXY
encapsulated codeBGA
Package shapeRECTANGULAR
Package formGRID ARRAY
Certification statusNot Qualified
self refreshYES
Maximum supply voltage (Vsup)2.7 V
Minimum supply voltage (Vsup)2.3 V
Nominal supply voltage (Vsup)2.5 V
surface mountYES
technologyCMOS
Terminal formBALL
Terminal pitch1.27 mm
Terminal locationBOTTOM
i PEM
2.4Gb
2.4Gb SDRAM-DDR
Austin Semiconductor, Inc.
AS4DDR32M72PBG
32Mx72 DDR SDRAM
iNTEGRATED Plastic Encapsulated Microcircuit
FEATURES
DDR SDRAM Data Rate = 200, 250, 266, 333Mbps
Package:
219 Plastic Ball Grid Array (PBGA), 32 x 25mm
2.5V ±0.2V core power supply
2.5V I/O (SSTL_2 compatible)
Differential clock inputs (CLK and CLK#)
Commands entered on each positive CLK edge
Internal pipelined double-data-rate (DDR)
architecture; two data accesses per clock cycle
Programmable Burst length: 2,4 or 8
Bidirectional data strobe (DQS) transmitted/received
with data, i.e., source-synchronous data capture
(one per byte)
DQS edge-aligned with data for READs; center-aligned
with data for WRITEs
DLL to align DQ and DQS transitions with CLK
Four internal banks for concurrent operation
Two data mask (DM) pins for masking write data
Programmable IOL/IOH option
Auto precharge option
Auto Refresh and Self Refresh Modes
Industrial, Enhanced and Military Temperature
Ranges
Organized as 32M x 72/80
Weight: AS4DDR32M72PBG </= 3.10 grams typical
* This product and or it’s specifications is subject to change without notice.

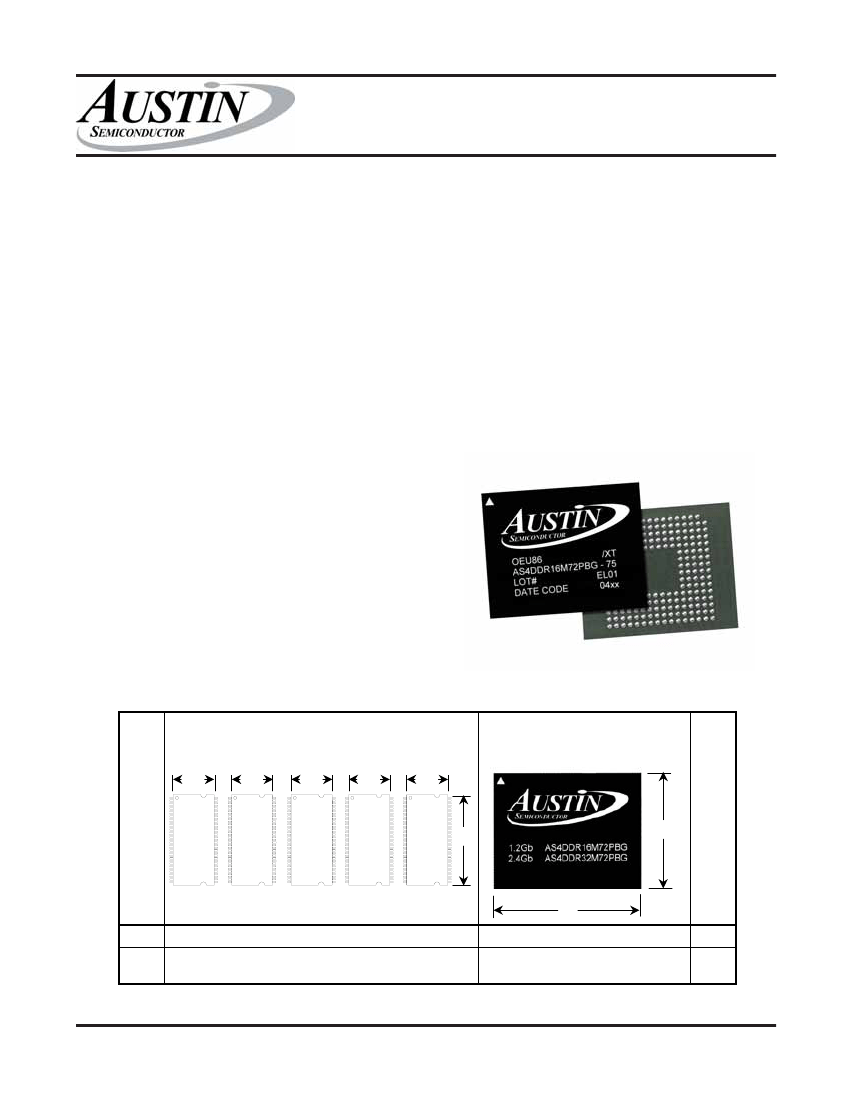

BENEFITS
40% SPACE SAVINGS
Reduced part count
Reduced I/O count
34% I/O Reduction
Reduced trace lengths for lower parasitic
capacitance
Suitable for hi-reliability applications
Laminate interposer for optimum TCE match
Monolithic Solution
O
P
T
I
O
N
S
11.9
11.9
11.9
11.9
11.9
Integrated MCP Solution
S
A
V
I
N
G
S
22.3
25
32
Area
I/O
Count
5 x 265mm2 = 1328mm2 Plus
5 x 66 pins = 320 pins
800mm2
219 Balls
40+%
34 %
AS4DDR32M72PBG
Rev. 1.0 09/06
Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.
1
