P4KE30HB0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> P4KE30HB0

P4KE30HB0: DescriptionTrans Voltage Suppressor Diode, 400W, 24.3V V(RWM), Unidirectional, 1 Element, Silicon, DO-204AL, DO-41, 2 PIN; CategoryDiscrete semiconductor diode; File Size204KB，7 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/; Environmental Compliance

Download Datasheet Parametric View All

P4KE30HB0 Overview

Trans Voltage Suppressor Diode, 400W, 24.3V V(RWM), Unidirectional, 1 Element, Silicon, DO-204AL, DO-41, 2 PIN

P4KE30HB0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Taiwan Semiconductor
package instruction	O-PALF-W2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED
Maximum breakdown voltage	33 V
Minimum breakdown voltage	27 V
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-204AL
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Maximum non-repetitive peak reverse power dissipation	400 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1 W
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	24.3 V
surface mount	NO
technology	AVALANCHE
Terminal surface	MATTE TIN
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

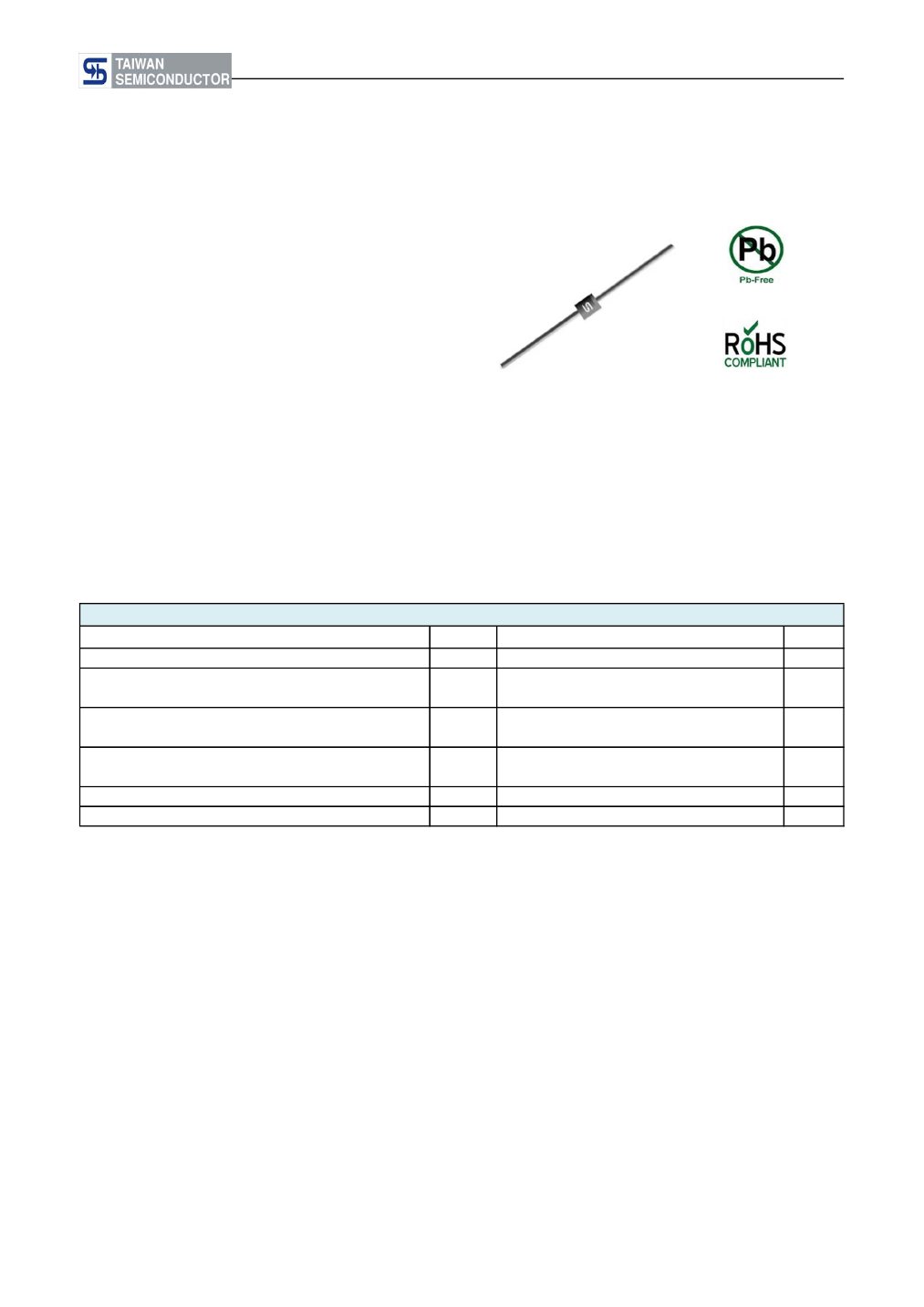

P4KE SERIES

Taiwan Semiconductor

CREAT BY ART

FEATURES

- Excellent clamping capability

- Low dynamic impedance

- 400W surge capability at 10 / 1000

μs

waveform

- Fast response time: Typically less than

1.0ps from 0 volt to V

for unidirectional

and 5.0ns for bidirectional

- Typical I

less than 1μA above 10V

- UL recognized file # E-326243

- Compliant to RoHS Directive 2011/65/EU and

in accordance to WEEE 2002/96/EC

- Halogen-free according to IEC 61249-2-21 definition

Transient Voltage Suppressor

DO-204AL (DO-41)

MECHANICAL DATA

Case:

DO-204AL (DO-41)

Molding compound, UL flammability classification rating 94V-0

Base P/N with suffix "G" on packing code - green compound (halogen-free)

Base P/N with prefix "H" on packing code - AEC-Q101 qualified

Terminal:

Matte tin plated leads, solderable per JESD22-B102

Meet JESD 201 class 1A whisker test,

with prefix "H" on packing code meet JESD 201 class 2 whisker test

Weight:

0.3g (approximately)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

=25℃ unless otherwise noted)

PARAMETER

Peak power dissipation at T

=25℃, Tp=1ms (Note 1)

Steady state power dissipation at T

=75℃

lead lengths .375", 9.5mm (Note 2)

Peak forward surge current, 8.3 ms single half sine-wave

superimposed on rated load (Note 3)

Maximum instantaneous forward voltage at 25 A for

Unidirectional only (Note 4)

Operating junction temperature range

Storage temperature range

Note 2: Mounted on 5 x 5 mm Copper Pads to Each Terminal

Note 3: 8.3ms Single Half Sine-wave or Equivalent Square Wave, Duty Cycle=4 Pulses Per Minute Maximum

Note 4: V

=3.5V for Devices of V

≦200V

and V

=6.5V Max. for Device V

>200V

SYMBOL

FSM

STG

VALUE

400

3.5 / 6.5

- 55 to +175

UNIT

Watts

Volts

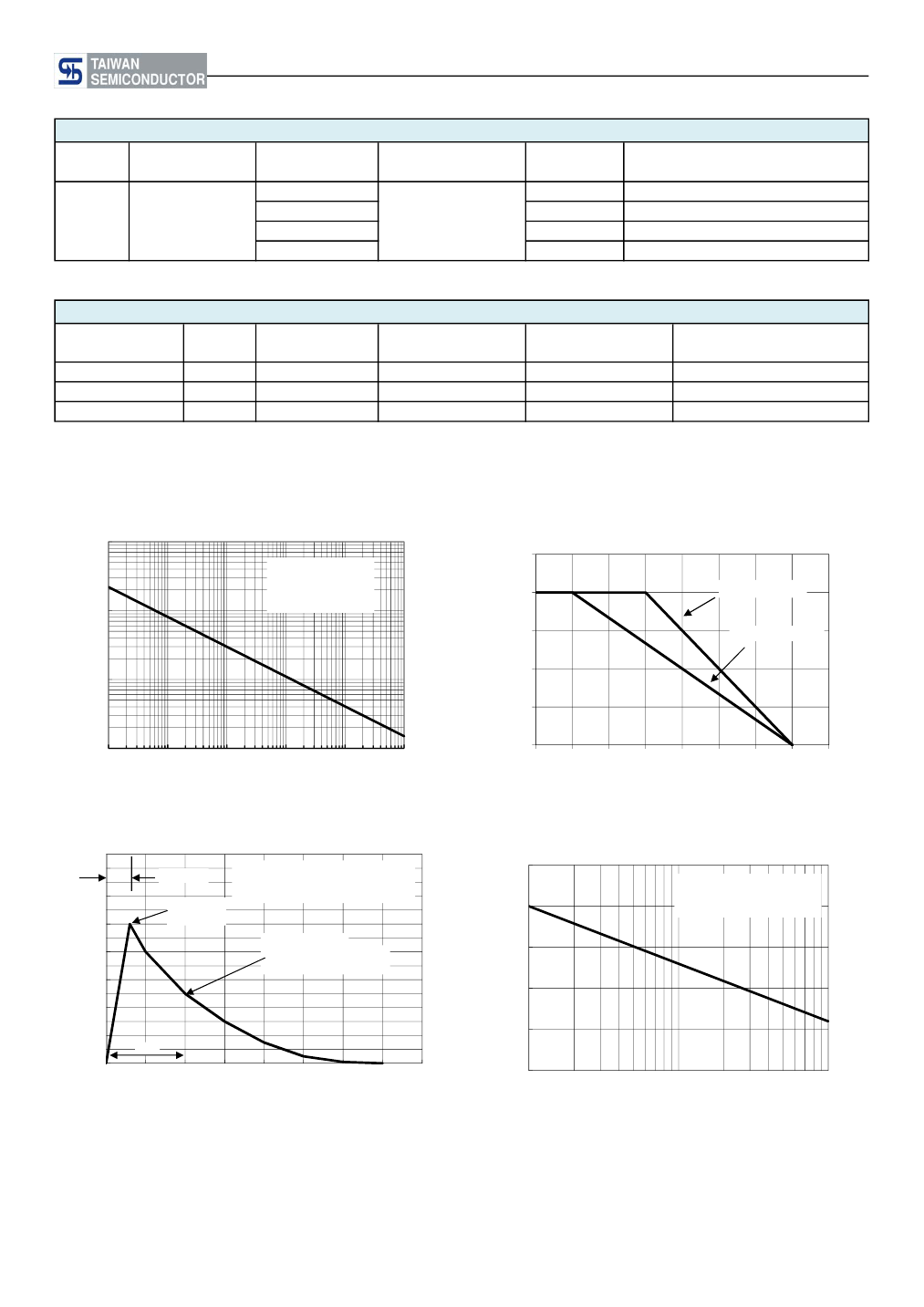

Note 1: Non-repetitive Current Pulse Per Fig. 3 and Derated above T

=25℃ Per Fig. 2

Devices for Bipolar Applications

1. For Bidrectional Use C or CA Suffix for Types P4KE6.8 through Types P4KE440

2. Electrical Characterstics Apply in Both Directions

Document Number: DS_D1405003

Version: J14
