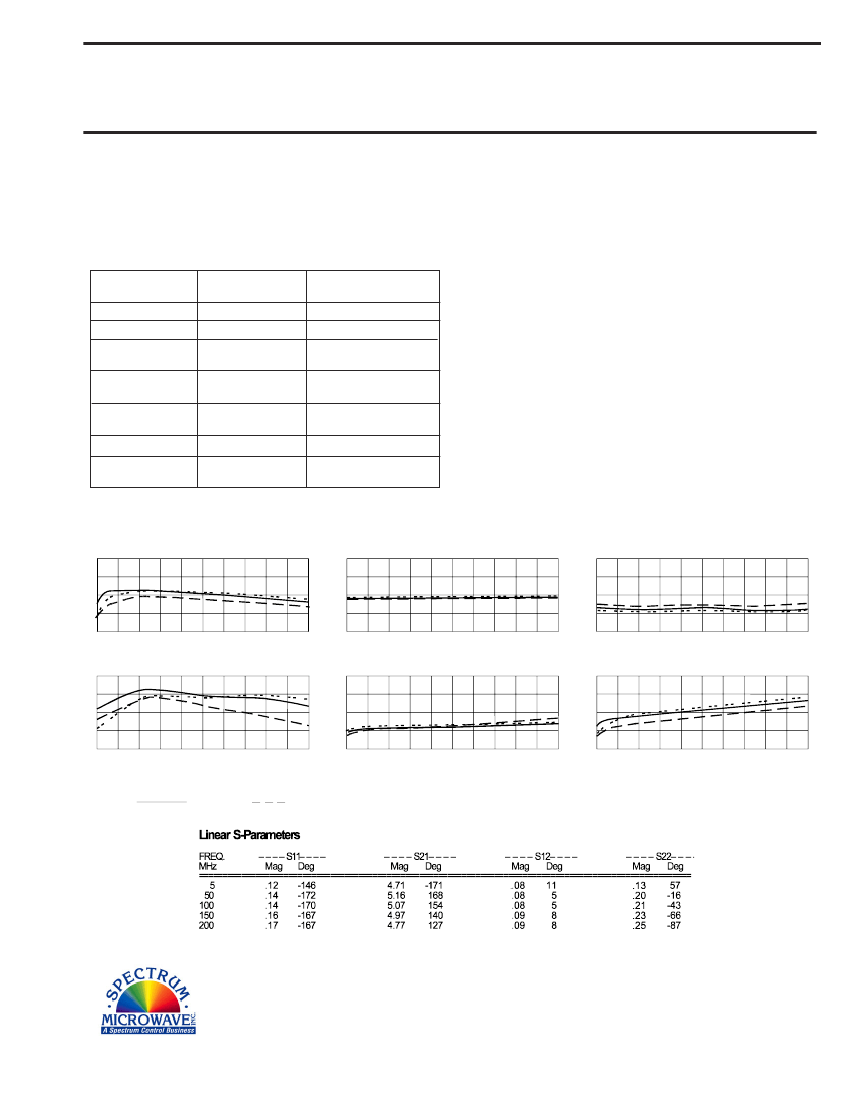

FP9214: DescriptionRF AMPLIFIER MODEL; File Size59KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Compare View All

FP9214 Overview

RF AMPLIFIER MODEL

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TZ9214

Features

Low Cost

High Output Power: +21 dBm Typical

Operating Temp. -55 ºC to +85 ºC

Environmental Screening Available

Available as:

TZ9214, 4 Pin TO-8 (T4)

TN9214, 4 Pin Surface Mount (SM3)

FP9214, 4 Pin Flatpack (FP4)

BX9214, Connectorized Housing (H1)

PN9214, Reduced Size Surface Mount (SM11)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ...... +50 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +44 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +34 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

5 - 200 MHz

+21

-20

<1.5:1

<1.75:1

<6.5

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 200 MHz

12.5 Min.

+20.0 Min.

-19 Max.

2.0:1 Max.

7.5 Max.

+15

105 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 18 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................. 0.5 Watt ( 3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 5 MHz

Stop 200 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Start 5 MHz

Stop 200 MHz

Start 5 MHz

Noise Figure (dB)

Stop 200 MHz

1 dB Comp. (dBm)

+23

+22

+21

+20

+19

Start 5 MHz

Stop 200 MHz

Input VSWR

2.0

1.5

1.0

Start 5 MHz

Stop 200 MHz

Output VSWR

2.0

1.5

1.0

Start 5 MHz

Stop 200 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

01/12/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP9214 Related Products

	FP9214	BX9214	PN9214	TN9214	TZ9214
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	-	API Technologies	API Technologies	API Technologies	API Technologies
package instruction	-	H1	SM11	SM3, 4 PIN	-
Reach Compliance Code	-	compliant	compli	compli	compli
Other features	-	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-
structure	-	COAXIAL	COMPONENT	COMPONENT	COMPONENT
Gain	-	12.5 dB	12.5 dB	12.5 dB	12.5 dB
Maximum input power (CW)	-	18 dBm	18 dBm	18 dBm	-
Maximum operating frequency	-	200 MHz	200 MHz	200 MHz	200 MHz
Minimum operating frequency	-	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	-	85 °C	85 °C	85 °C	-
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C	-
RF/Microwave Device Types	-	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	-	2	2	2	2
