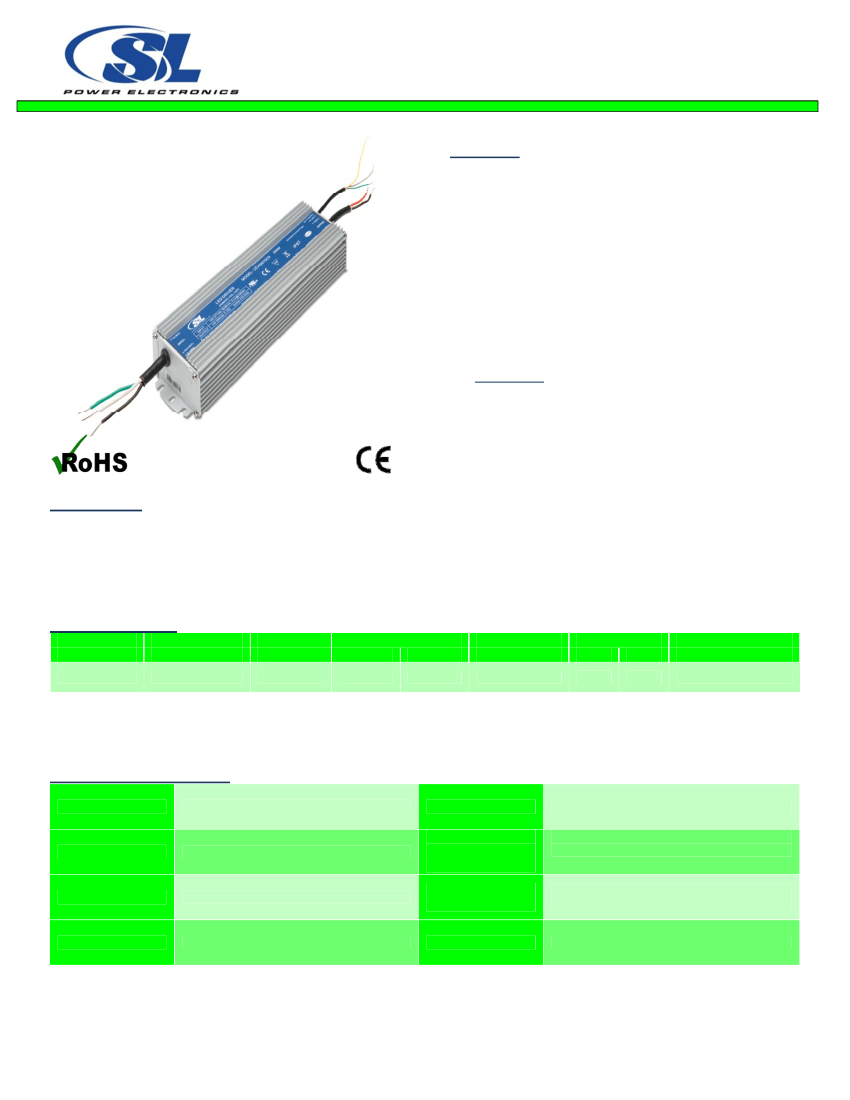

The LE200S-CD Series operate from a 90 ~ 305Vac input range. These units will provide up to a 0.7A of
output current and a maximum output voltage of 285Vdc for 200 W maximum output power. They are designed
to be highly efficient and highly reliable. The standard features include dimming control, lightning protection,
over voltage protection, short circuit protection, and over temperature protection.
Model Selection
Model
Number
LE200S70CD
Notes:
Output
Current
665mA-735mA
Output
Voltage
143V – 285V
Efficiency*
110Vac
220Vac
90%-91%
92%-93%
Ripple &
Noise**
8.6V pk-pk max.
Regulation
Line
Load
±1%
±3%
Overvoltage
Trip Level
342V – 428V
1. Efficiency measured at full load, at input voltage noted.
2. Measured at 20MHz bandwidth, with noise probe directly across output terminals, and load terminated with 0.1µF ceramic and 10µF low ESR electrolytic
capacitors.
General Specifications
AC Input
90-305Vac, 47-63Hz, 1∅
Turn On Time
1.0 seconds, max.
Input Current
100Vac: 2.4A, 220Vac: 1.2A
Overload
Protection
Dimming
Function
Constant Current
Inrush Current
230Vac, cold start: will not exceed 65A
1-10Vdc source or External Resistor can be
used for dimming control. See below.
Input Fuses
XA, 250VAC fuses provided on all models
www.slpower.com
LE200S-CD REV 2.0,11-FEB-13
1
LE200S-CD
200W Single Output
LED Driver Series
General Specifications
(continued)
Earth Leakage
Current
Efficiency
<0.75mA@277Vac, 50Hz
Short Circuit
Protection
Overvoltage
Protection
Overtemperature
Protection
Operating
Temperature
Relative Humidity
Provided - no damage to unit, self-recovery.
Latch mode. AC input will need to be reset to
return to normal operation after an OVP
condition. See chart for trip range.
Latch mode. AC input will need to be reset to
return to normal operation after an OTP
condition. Trip Temperature = 110° typical.
C
Operating:
-35° to +70°
C
C
Non-operating: -40° to +85°
C
C
10% to 100% operating
5% to 100%, non-operating
UL8750, UL935, UL1012, CSA-C22.2 No. 107.1,
EN61347-1, EN61347-2-13
330,000 hours (450mA model, 110Vac input,
80% load, 25° ambient, per MIL-HDBK-217F).
C
90,000 hours (1400mA model, at 110Vac input,
80% load, 45° ambient temperature).
C
See Models chart.
Output Power
200W continuous
Ripple and Noise
See chart
Output Voltage
See chart
Total Regulation
+/- 3%. See chart
Safety Standards
Dimensions
W: 3.13” x L: 9.37” x H: 1.81”
MTBF
Weight
1500g
Lifetime
EMI/EMC Compliance
Emissions
EMI for Lighting Equipment
Static Discharge Immunity
Radiated RF Immunity
EFT/Burst Immunity
Line Surge Immunity
Conducted RF Immunity
Power Frequency Magnetic Field Immunity
Voltage Dip Immunity
Line Harmonic Emissions
Flicker Test
EN55015, Radiated & Conducted with 6db of margin
EN61547
EN61000-4-2, 4kV Contact Discharge, 8kV air discharge
EN61000-4-3
EN61000-4-4
EN61000-4-5, 4kV line-line, 6kV line-earth
EN61000-4-6
EN61000-4-8
EN61000-4-11
EN61000-3-2
EN61000-3-3
www.slpower.com
LE200S-CD REV 2.0,11-FEB-13
2
LE200S-CD
200W Single Output
LED Driver Series

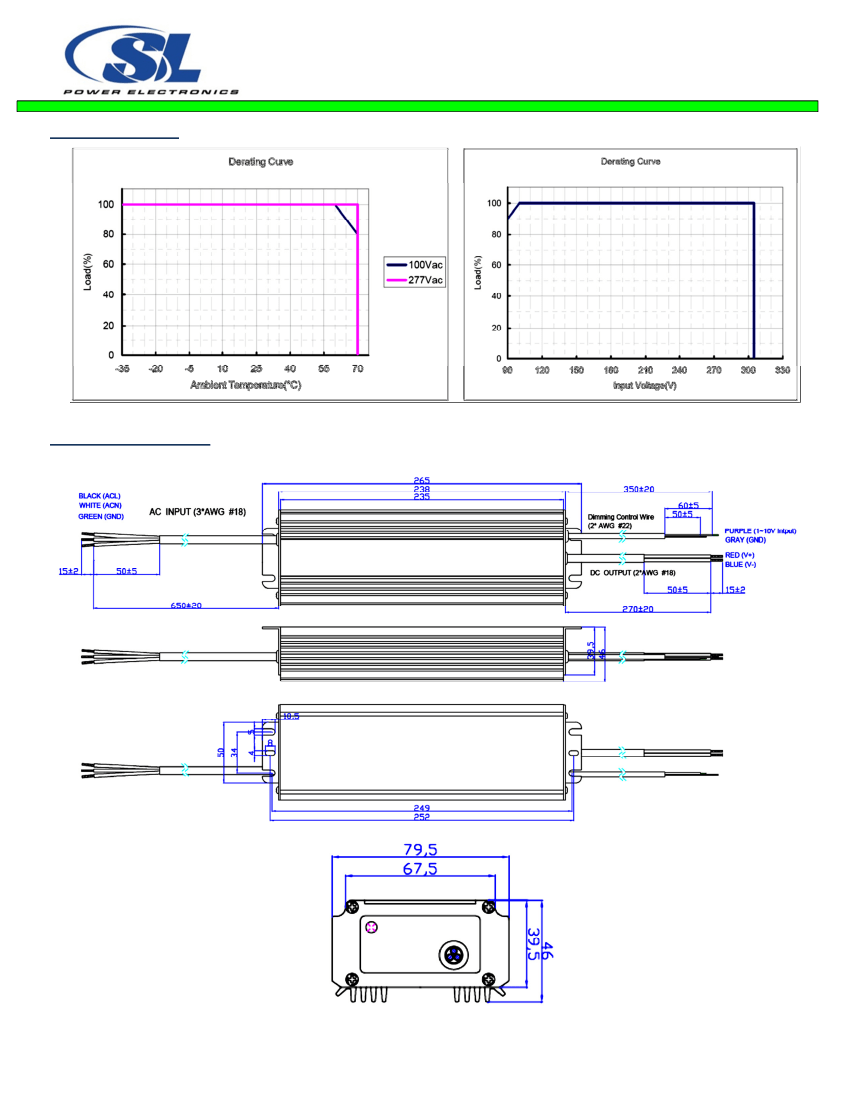

Derating Curves
Mechanical Drawing
www.slpower.com
LE200S-CD REV 2.0,11-FEB-13
3
LE200S-CD
200W Single Output
LED Driver Series

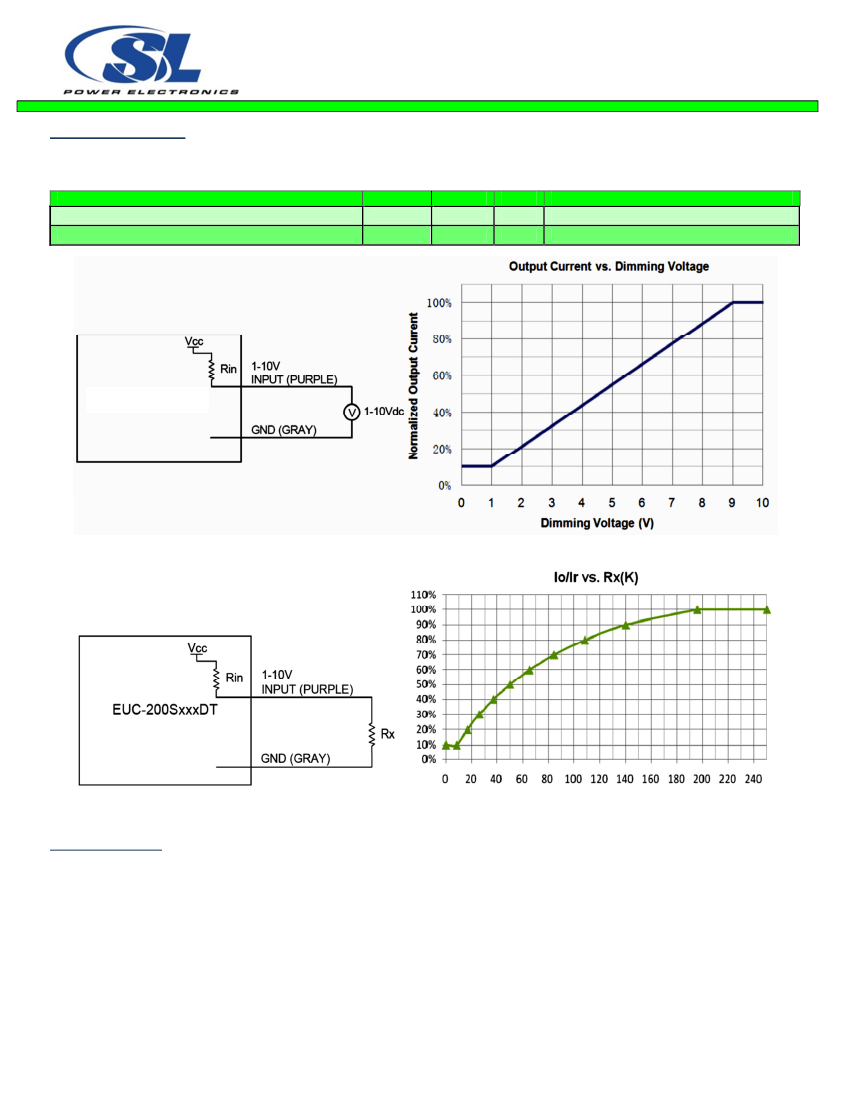

Dimming Control
The dimmer control may be operated from either a potentiometer or from an input signal of 1 – 10 Vdc. Two recommended implementations are
provided below.
Parameters:
Parameter
Absolute Max. Voltage on the 1-10V input
Sink Current on the 1-10V input pin
Min.
-2V
0mA
-
-
Typ.
Max.
12V
1mA
Notes
LE200SXXXCD
Dimming Configuration using External Voltage
LE150SXXXCD
Dimming Configuration using External Resistance
Dimming Control Notes:
1. Io is actual output current and Ir is rated current without dimming control.
2. For the driver to operate properly, the load voltage must be maintained above the minimum voltage threshold (approx. 50% of the max.
output voltage for any given model).
3. If the output voltage is maintained above 50% of the maximum output voltage, the dimming control may be
operated over the entire 1-10V range with output current varying from 100% down to practically 10%.
4. The dimming signal is allowed to be less than 1V, however, when it for 0-1V, the output current is 10%Io.
5. Do not connect the GND of dimming to the output; otherwise, the LED driver can not work normally.
