TC511632FL-85 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> TC511632FL-85

TC511632FL-85: DescriptionIC 32K X 16 PSEUDO STATIC RAM, 85 ns, PDSO40, 0.525 INCH, PLASTIC, SOP-40, Static RAM; Categorystorage storage; File Size321KB，13 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC511632FL-85 Overview

IC 32K X 16 PSEUDO STATIC RAM, 85 ns, PDSO40, 0.525 INCH, PLASTIC, SOP-40, Static RAM

TC511632FL-85 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP,
Contacts	40
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	85 ns
JESD-30 code	R-PDSO-G40
JESD-609 code	e0
length	25.7 mm
memory density	524288 bit
Memory IC Type	PSEUDO STATIC RAM
memory width	16
Number of functions	1
Number of terminals	40
word count	32768 words
character code	32000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32KX16
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Maximum seat height	2.8 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.7 mm

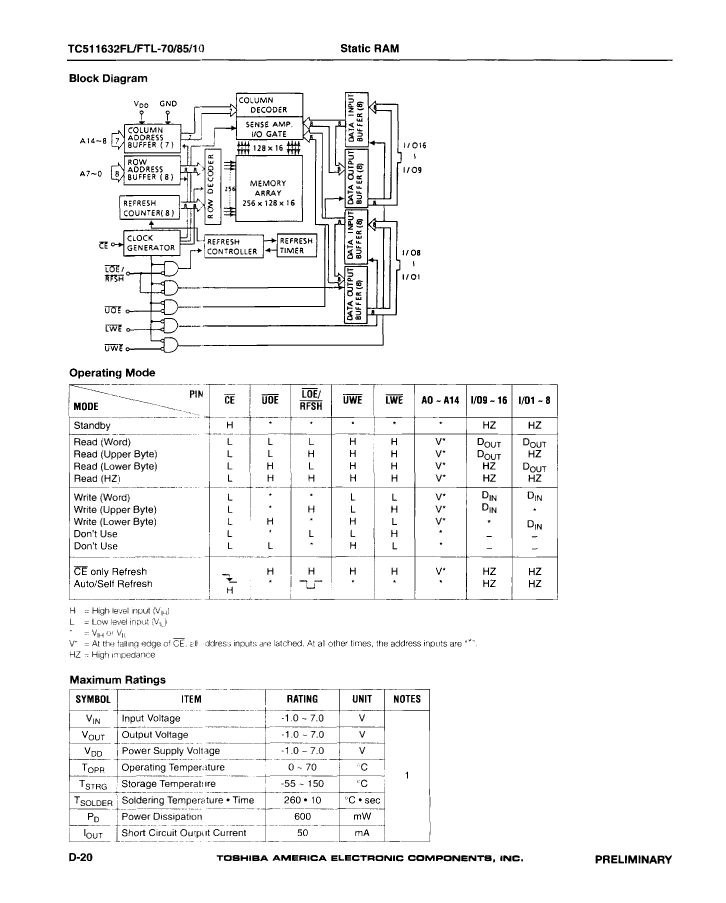

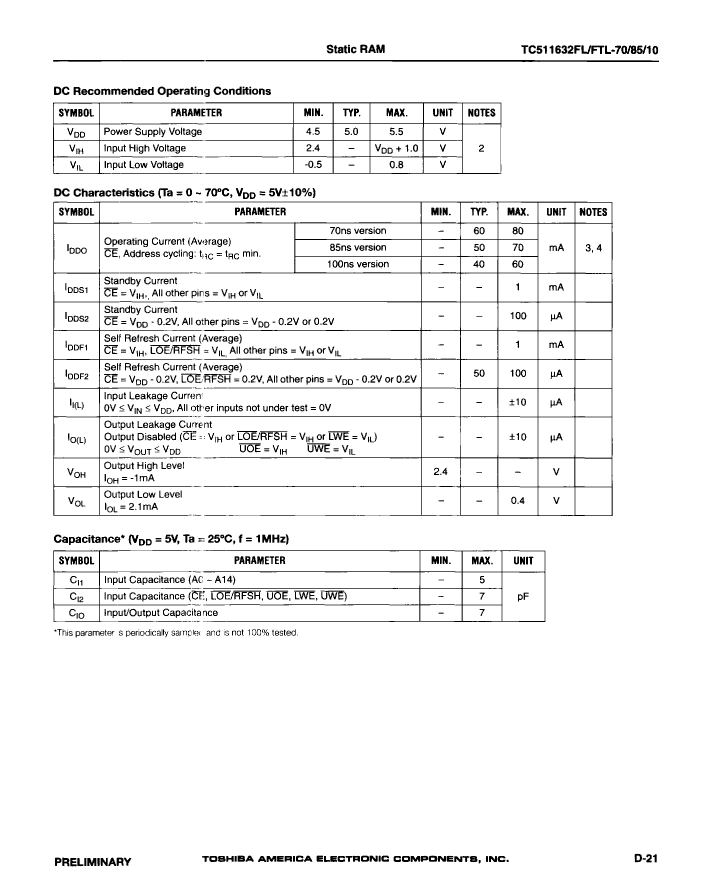

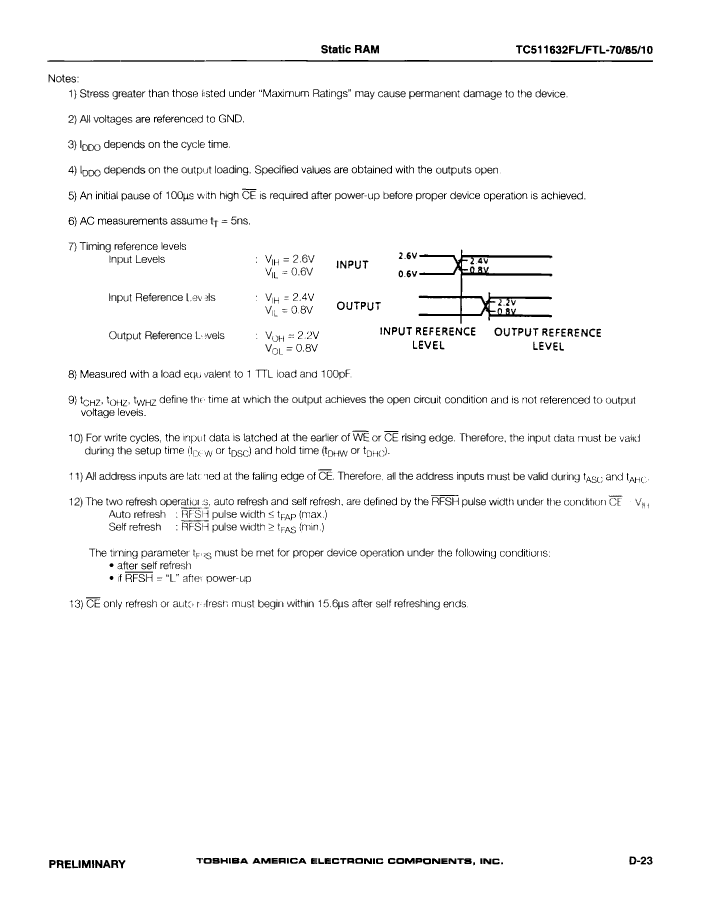

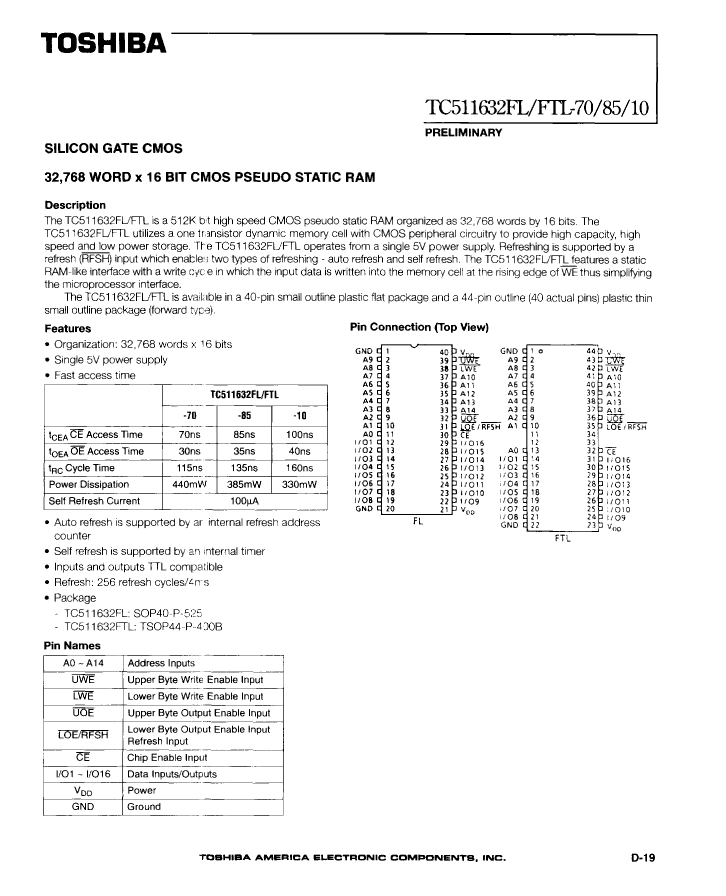

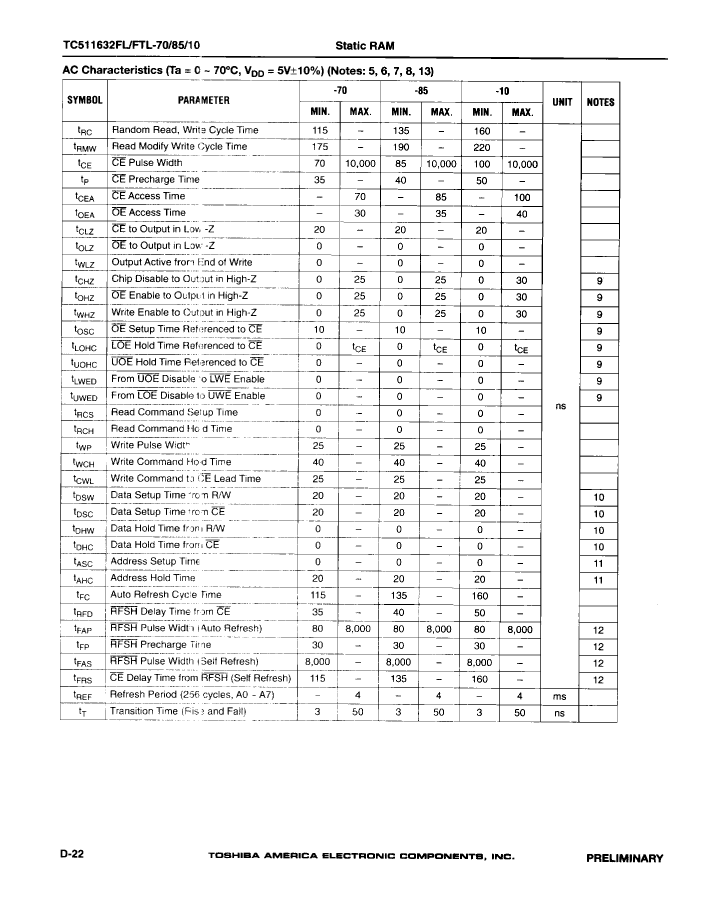

TC511632FL-85 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

TC511632FL-85 Related Products

	TC511632FL-85	TC511632FTL-70	TC511632FL-10	TC511632FL-70	TC511632FTL-85	TC511632FTL-10
Description	IC 32K X 16 PSEUDO STATIC RAM, 85 ns, PDSO40, 0.525 INCH, PLASTIC, SOP-40, Static RAM	IC 32K X 16 PSEUDO STATIC RAM, 70 ns, PDSO40, 0.400 INCH, PLASTIC, TSOP-44/40, Static RAM	IC 32K X 16 PSEUDO STATIC RAM, 100 ns, PDSO40, 0.525 INCH, PLASTIC, SOP-40, Static RAM	IC 32K X 16 PSEUDO STATIC RAM, 70 ns, PDSO40, 0.525 INCH, PLASTIC, SOP-40, Static RAM	IC 32K X 16 PSEUDO STATIC RAM, 85 ns, PDSO40, 0.400 INCH, PLASTIC, TSOP-44/40, Static RAM	IC 32K X 16 PSEUDO STATIC RAM, 100 ns, PDSO40, 0.400 INCH, PLASTIC, TSOP-44/40, Static RAM
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	SOIC	TSOP	SOIC	SOIC	TSOP	TSOP
package instruction	SOP,	TSOP2,	SOP,	SOP,	TSOP2,	TSOP2,
Contacts	40	44	40	40	44	44
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	85 ns	70 ns	100 ns	70 ns	85 ns	100 ns
JESD-30 code	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40
JESD-609 code	e0	e0	e0	e0	e0	e0
length	25.7 mm	18.41 mm	25.7 mm	25.7 mm	18.41 mm	18.41 mm
memory density	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit
Memory IC Type	PSEUDO STATIC RAM	PSEUDO STATIC RAM	PSEUDO STATIC RAM	PSEUDO STATIC RAM	PSEUDO STATIC RAM	PSEUDO STATIC RAM
memory width	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1
Number of terminals	40	40	40	40	40	40
word count	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words
character code	32000	32000	32000	32000	32000	32000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	32KX16	32KX16	32KX16	32KX16	32KX16	32KX16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TSOP2	SOP	SOP	TSOP2	TSOP2
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	240	240	240	240	240	240
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.8 mm	1.2 mm	2.8 mm	2.8 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.8 mm	1.27 mm	1.27 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	10.7 mm	10.16 mm	10.7 mm	10.7 mm	10.16 mm	10.16 mm
