HMC-C018
0.5dB LSB GaAs MMIC 6-BIT DIGITAL
SERIAL CONTROL ATTENUATOR MODULE, DC - 13 GHz
Features
0.5 dB LsB steps to 31.5 dB
CMos Compatible serial Data Interface
typical Bit error: ±0.3 dB
Hermetically sealed Module
Field replaceable sMA Connectors
-55 °C to +85 °C operating temperature
v03.0310
2
AttenuAtors
Typical Applications
the HMC-C018 is ideal for:
• telecom Infrastructure
• Military radio, radar & eCM
• space systems
• test Instrumentation
General Description
the HMC-C018 is a DC to 13 GHz 6-bit GaAs IC
Digital serial Control Attenuator housed in a miniature
hermetic module. this wideband attenuator features
3.6 dB typical insertion loss, +38 dBm input IP3,
and bit values of 0.5 (LsB), 1, 2, 4, 8, and 16 dB for
a total attenuation of 31.5 dB. Attenuation accuracy
is excellent with ±0.3 dB typical step error. A six
bit CMos compatible serial control word is used to
select each attenuation state and a single Vdc bias
of -5V allows operation at frequencies down to DC.
removable sMA connectors can be detached to
allow direct connection of the module’s I/o pins to a
microstrip or coplanar circuit.

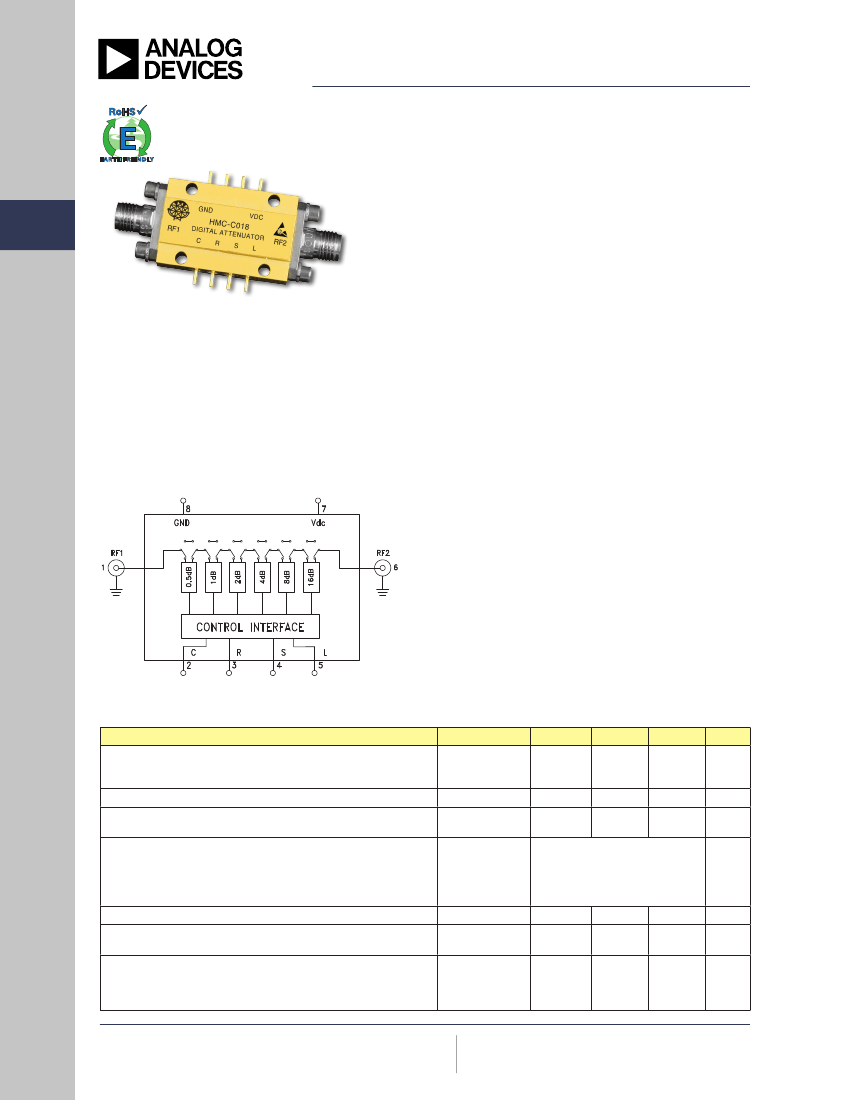

Functional Diagram

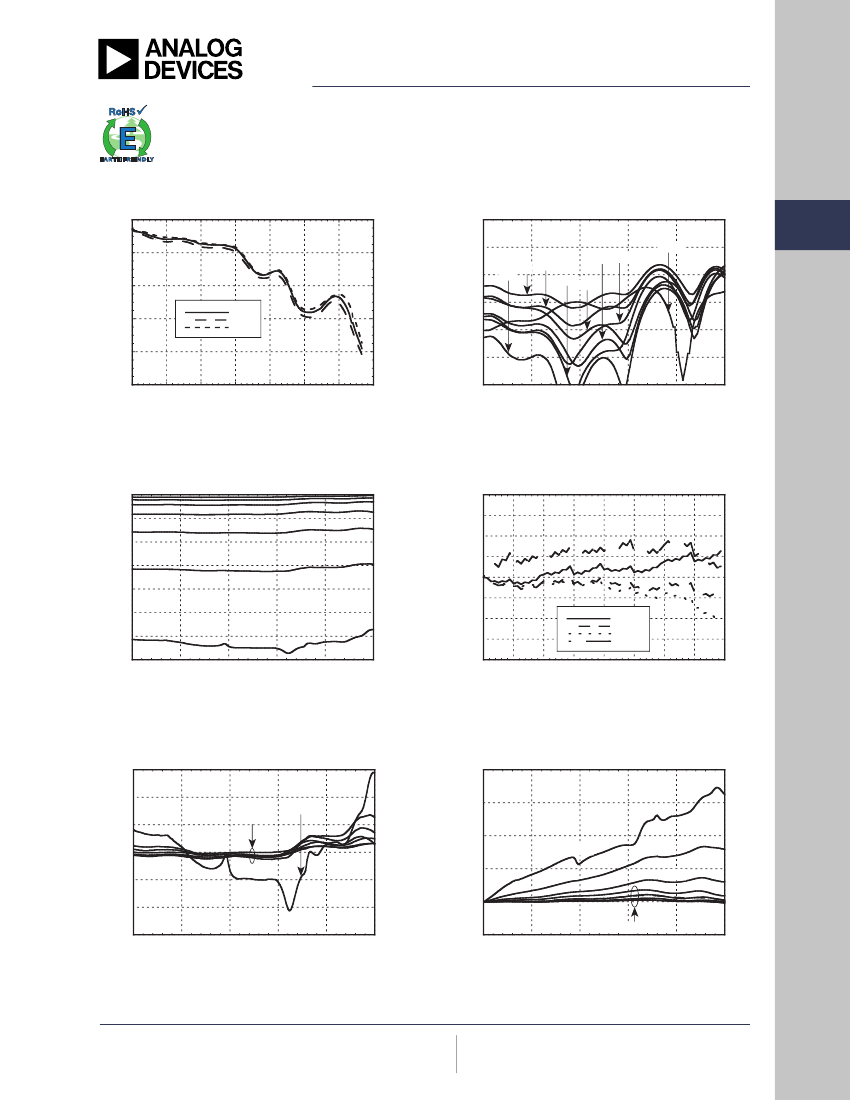

Electrical Specifications,
T
A
= +25 °C, with Vdc = -5V and 0/+5V CMOS Control
Parameter
Insertion Loss
Attenuation range
return Loss (rF1 & rF2, All Atten. states)
Attenuation Accuracy: (referenced to Insertion Loss)
All states
0.5 - 27.5 dB
28.0 - 31.5 dB
All states
Input Power for 0.1 dB Compression
Input third order Intercept Point
(two-tone Input Power= 0 dBm each tone)

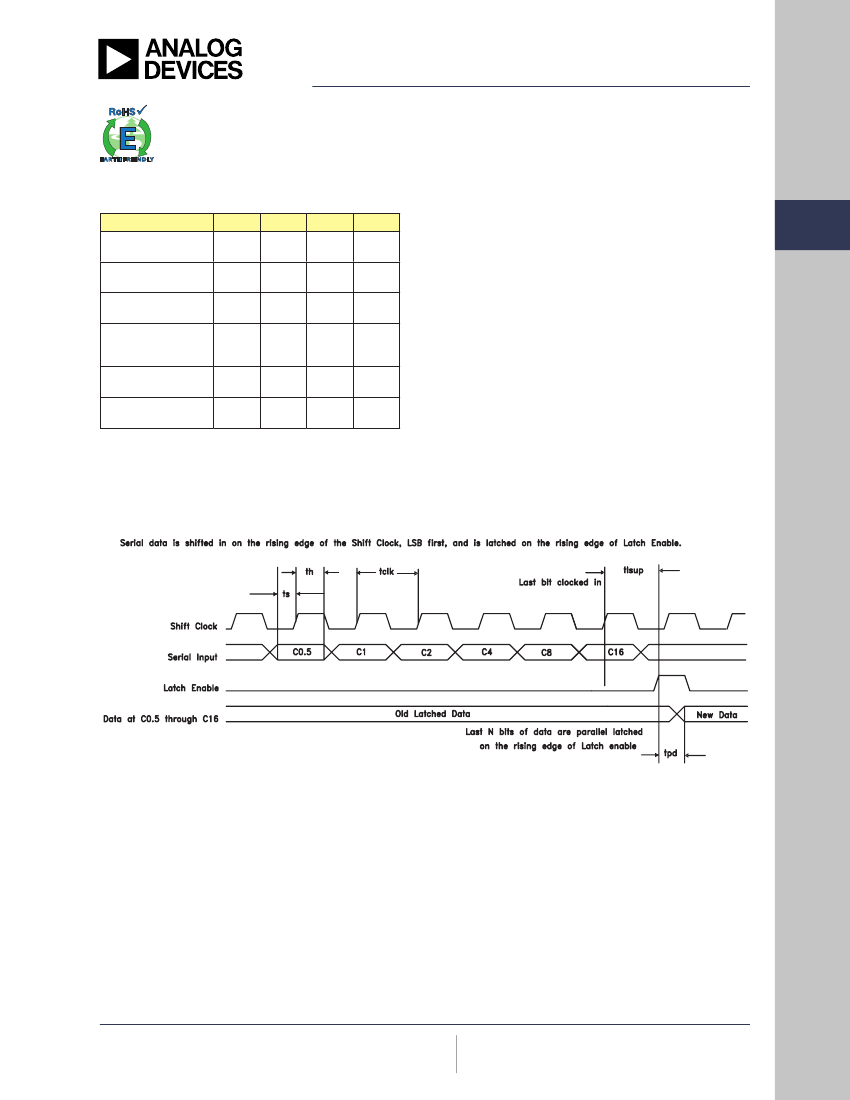

switching Characteristics
trIse, tFALL (10/90% rF)
ton/toFF (50% CtL to 10/90% rF)
reF state
All other states
Frequency (GHz)
DC - 4.0 GHz
4.0 - 8.0 GHz
8.0 - 13 .0 GHz
DC - 13.0 GHz
DC - 8.0 GHz
8.0 - 13.0 GHz
DC - 3.0 GHz
3.0 - 10.0 GHz
3.0 - 10.0 GHz
10.0 - 13.0 GHz
1.0 - 13.0 GHz
1.0 - 13.0 GHz
DC - 13.0 GHz
600
700
ns
ns
Min.
typ.
3.2
3.6
5.0
31.5
15
10
± (0.2 + 3% of Atten. setting) Max
± (0.4 + 3% of Atten. setting) Max
± (0.5 + 6% of Atten. setting) Max
± (0.6 + 6% of Atten. setting) Max
22
46
32
Max.
3.7
4.1
6.0
units
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
2-1
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
For price, delivery, and to place orders: Analog Devices, Inc.,
For price, delivery, and to place orders, please contact Hittite
Way, P.O. Box 9106, Norwood, MA 02062-9106
Microwave Corporation:
One Technology
20 Alpha Road Chelmsford, MA 01824 Phone:
Phone: 781-329-4700 • Order online at www.analog.com
978-250-3343 Fax: 978-250-3373
Application Support: Phone: 1-800-ANALOG-D
Order Online at www.hittite.com
