MC74VHCT04ADT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> MC74VHCT04ADT

MC74VHCT04ADT: DescriptionInverter, AHCT/VHCT Series, 6-Func, 1-Input, CMOS, PDSO14, PLASTIC, TSSOP-14; Categorylogic logic; File Size93KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC74VHCT04ADT Overview

Inverter, AHCT/VHCT Series, 6-Func, 1-Input, CMOS, PDSO14, PLASTIC, TSSOP-14

MC74VHCT04ADT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	TSSOP, TSSOP14,.25
Reach Compliance Code	unknown
series	AHCT/VHCT
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
length	5 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.008 A
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	5 V
Prop。Delay @ Nom-Sup	8.5 ns
propagation delay (tpd)	8.5 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm

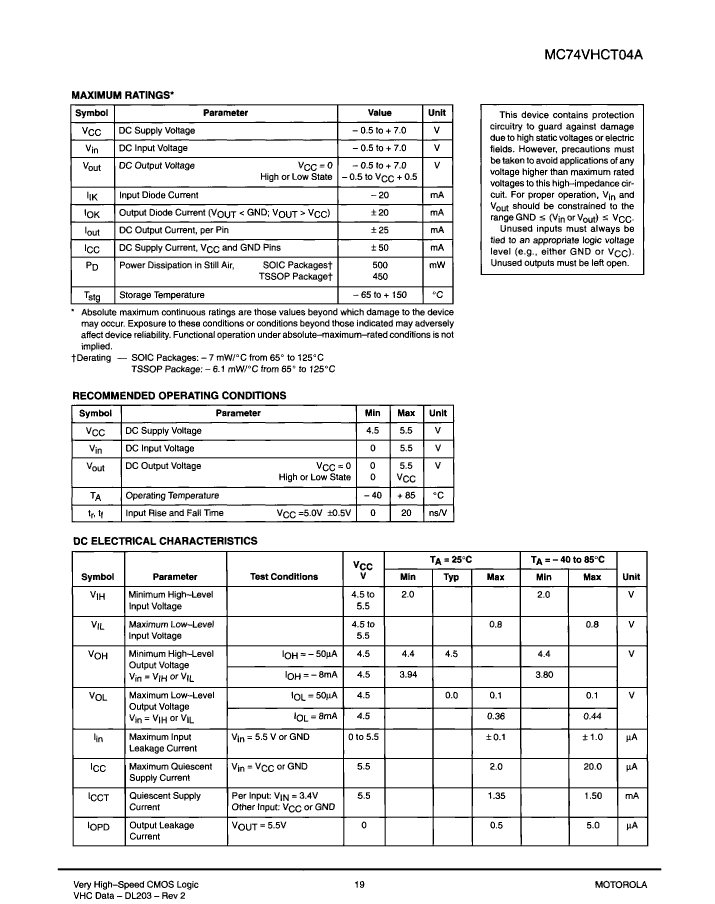

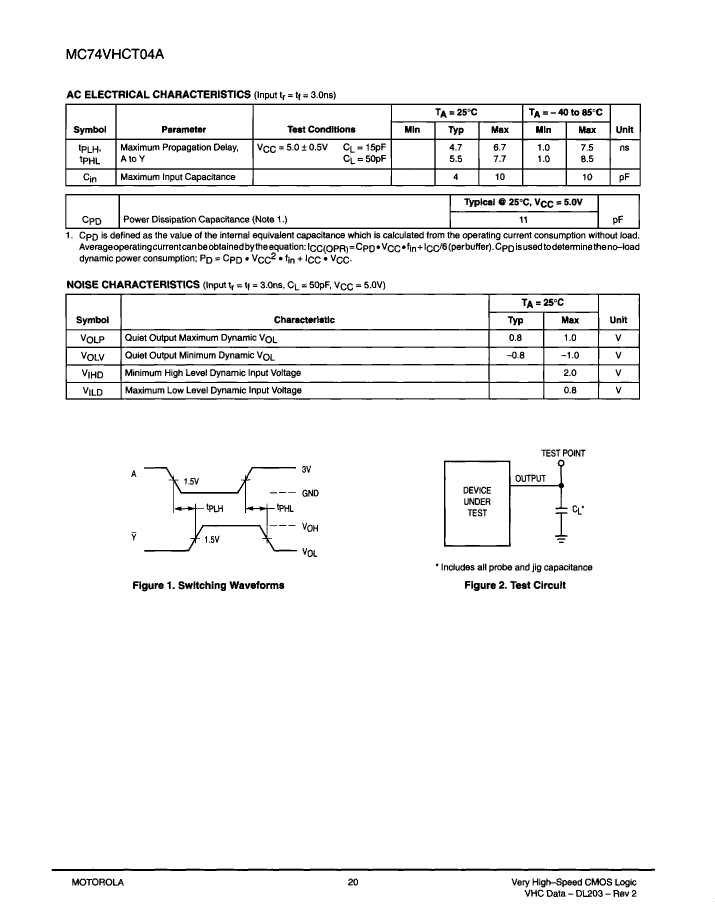

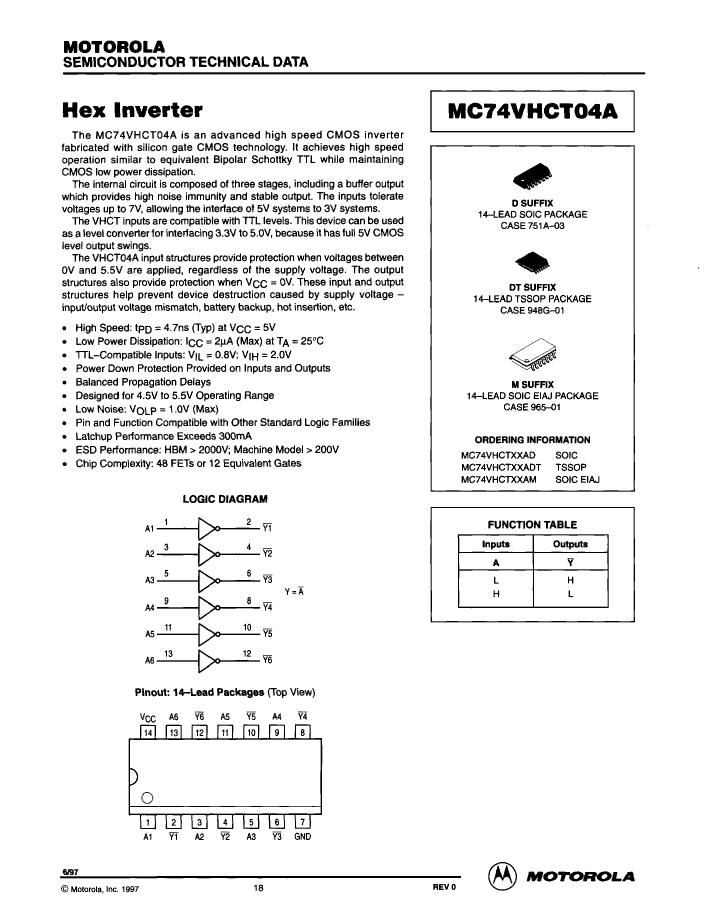

Preview

Download Datasheet

View All

MC74VHCT04ADT Related Products

	MC74VHCT04ADT	MC74VHCT04AMR2	MC74VHCT04ADR2	MC74VHCT04AD	MC74VHCT04AM	MC74VHCT04ADTR2
Description	Inverter, AHCT/VHCT Series, 6-Func, 1-Input, CMOS, PDSO14, PLASTIC, TSSOP-14	AHCT/VHCT SERIES, HEX 1-INPUT INVERT GATE, PDSO14, EIAJ, PLASTIC, SOIC-14	AHCT/VHCT SERIES, HEX 1-INPUT INVERT GATE, PDSO14, PLASTIC, SOIC-14	AHCT/VHCT SERIES, HEX 1-INPUT INVERT GATE, PDSO14, PLASTIC, SOIC-14	Inverter, AHCT/VHCT Series, 6-Func, 1-Input, CMOS, PDSO14, EIAJ, PLASTIC, SOIC-14	Inverter, AHCT/VHCT Series, 6-Func, 1-Input, CMOS, PDSO14, PLASTIC, TSSOP-14
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	TSSOP, TSSOP14,.25	SOP,	SOP,	SOP, SOP14,.25	SOP, SOP14,.3	TSSOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
series	AHCT/VHCT	AHCT/VHCT	AHCT/VHCT	AHCT/VHCT	AHCT/VHCT	AHCT/VHCT
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
length	5 mm	10.2 mm	8.65 mm	8.65 mm	10.2 mm	5 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER
Number of functions	6	6	6	6	6	6
Number of entries	1	1	1	1	1	1
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SOP	SOP	SOP	SOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	8.5 ns	8.5 ns	8.5 ns	8.5 ns	8.5 ns	8.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	2.05 mm	1.75 mm	1.75 mm	2.05 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	4.4 mm	5.275 mm	3.9 mm	3.9 mm	5.275 mm	4.4 mm
