PUMA67E4005-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> PUMA67E4005-15

PUMA67E4005-15: DescriptionEEPROM Module, 128KX32, 150ns, Parallel, CMOS, CQCC68, SMD-68; Categorystorage storage; File Size1MB，13 Pages; ManufacturerAPTA Group Inc

Download Datasheet Parametric Compare View All

PUMA67E4005-15 Overview

EEPROM Module, 128KX32, 150ns, Parallel, CMOS, CQCC68, SMD-68

PUMA67E4005-15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	APTA Group Inc
package instruction	QCCJ, LDCC68,1.0SQ
Reach Compliance Code	unknown
Maximum access time	150 ns
Other features	IT ALSO CONFIGURED AS 512K X 8
Spare memory width	16
Data polling	YES
Durability	10000 Write/Erase Cycles
JESD-30 code	S-CQCC-J68
JESD-609 code	e0
length	24.74 mm
memory density	4194304 bit
Memory IC Type	EEPROM MODULE
memory width	32
Number of functions	1
Number of terminals	68
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX32
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ
Package shape	SQUARE
Package form	CHIP CARRIER
page size	128 words
Parallel/Serial	PARALLEL
power supply	5 V
Programming voltage	5 V
Certification status	Not Qualified
Maximum seat height	5.13 mm
Maximum standby current	0.0012 A
Maximum slew rate	0.24 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
switch bit	YES
width	24.74 mm
Maximum write cycle time (tWC)	10 ms
write protect	SOFTWARE

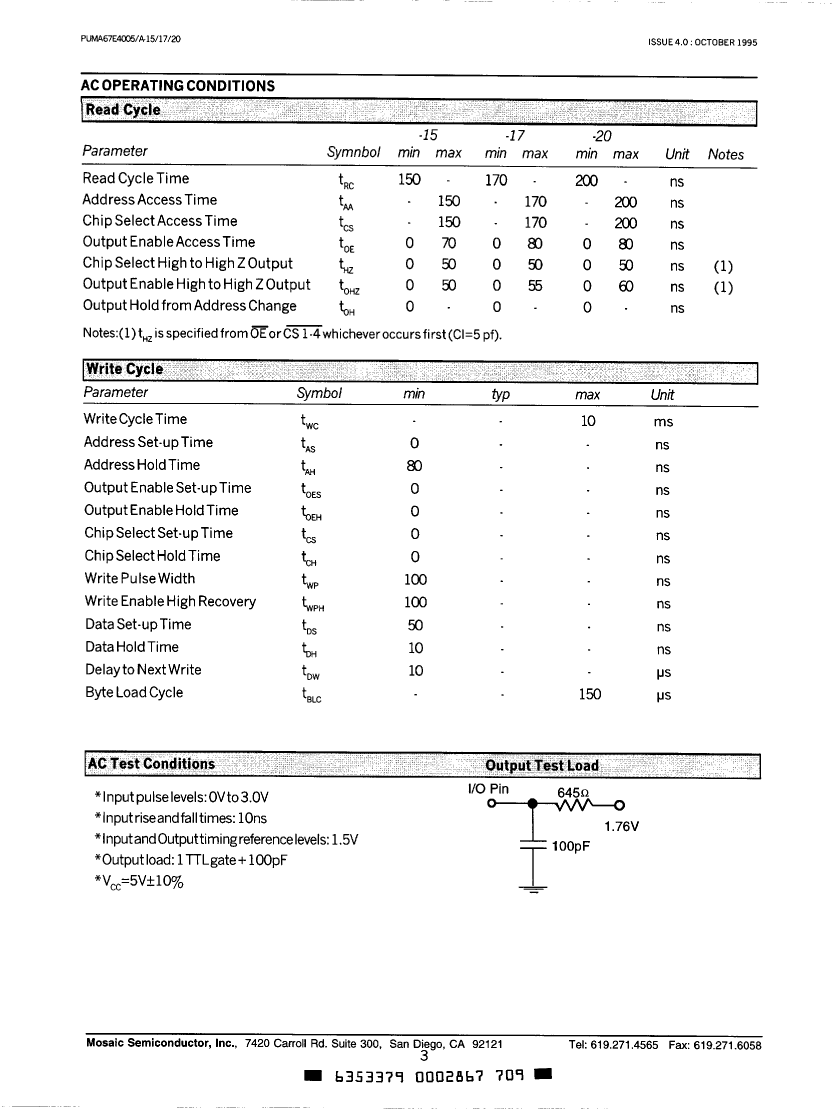

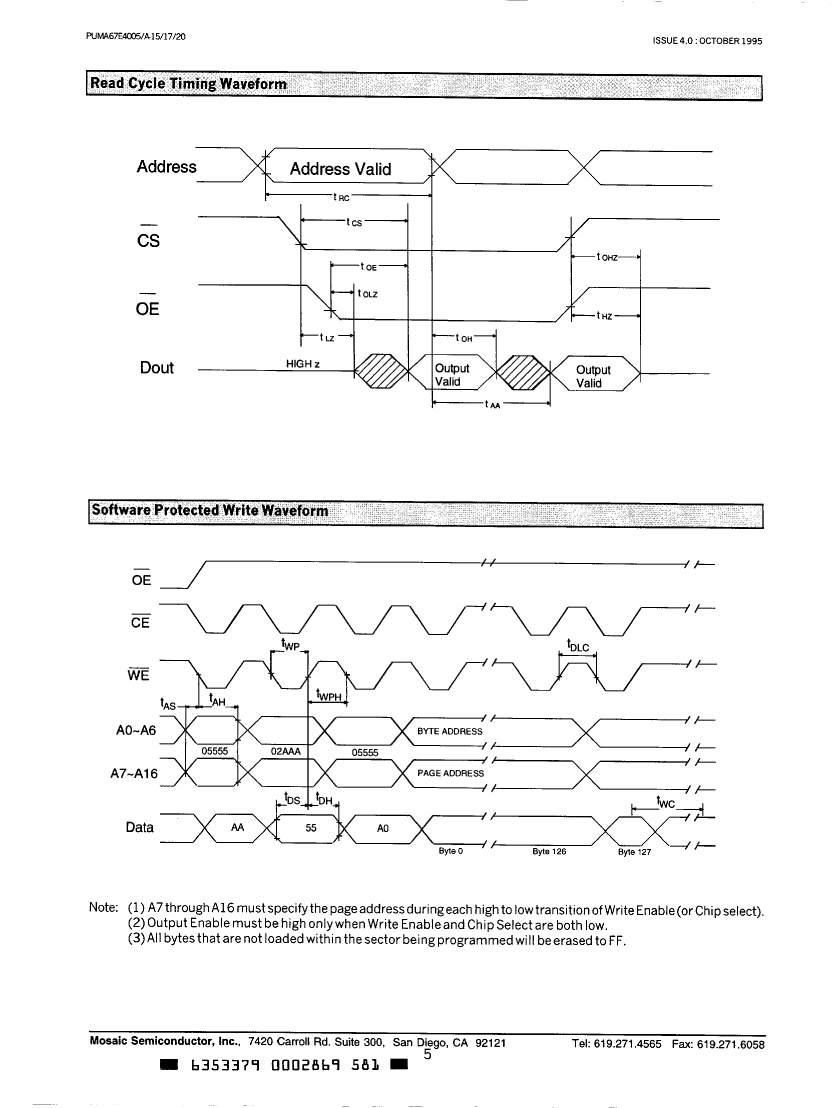

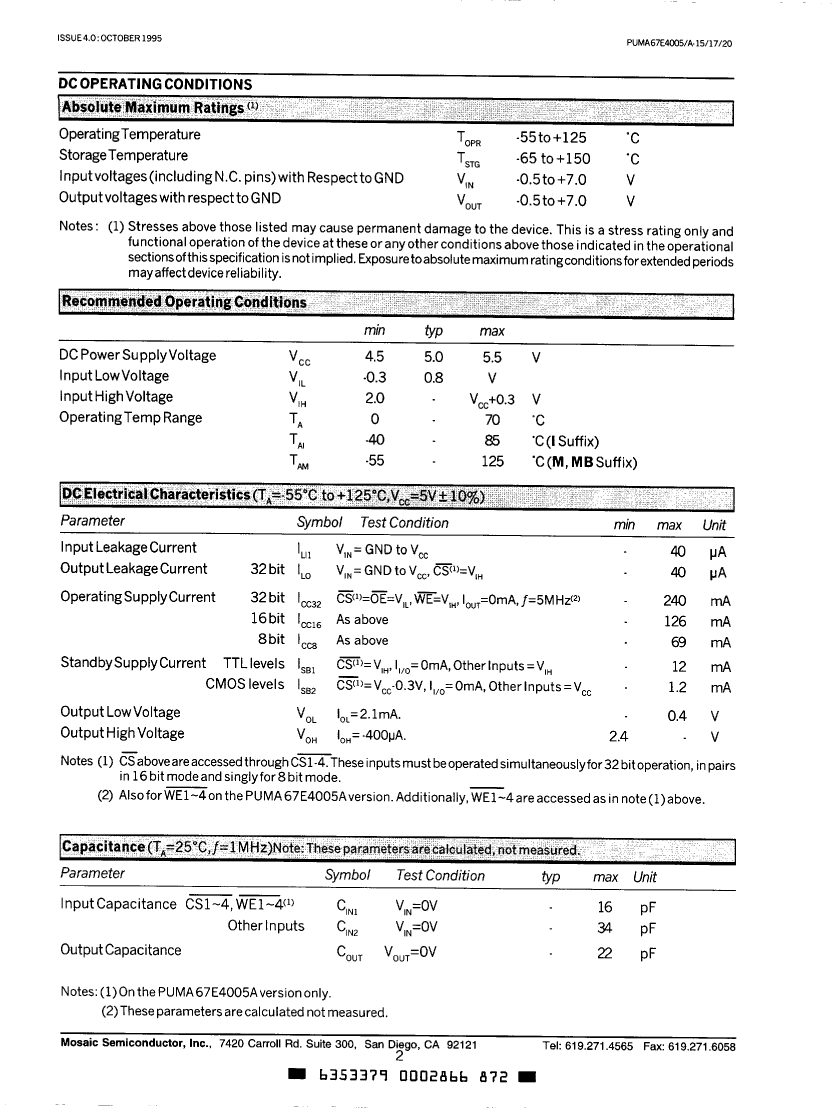

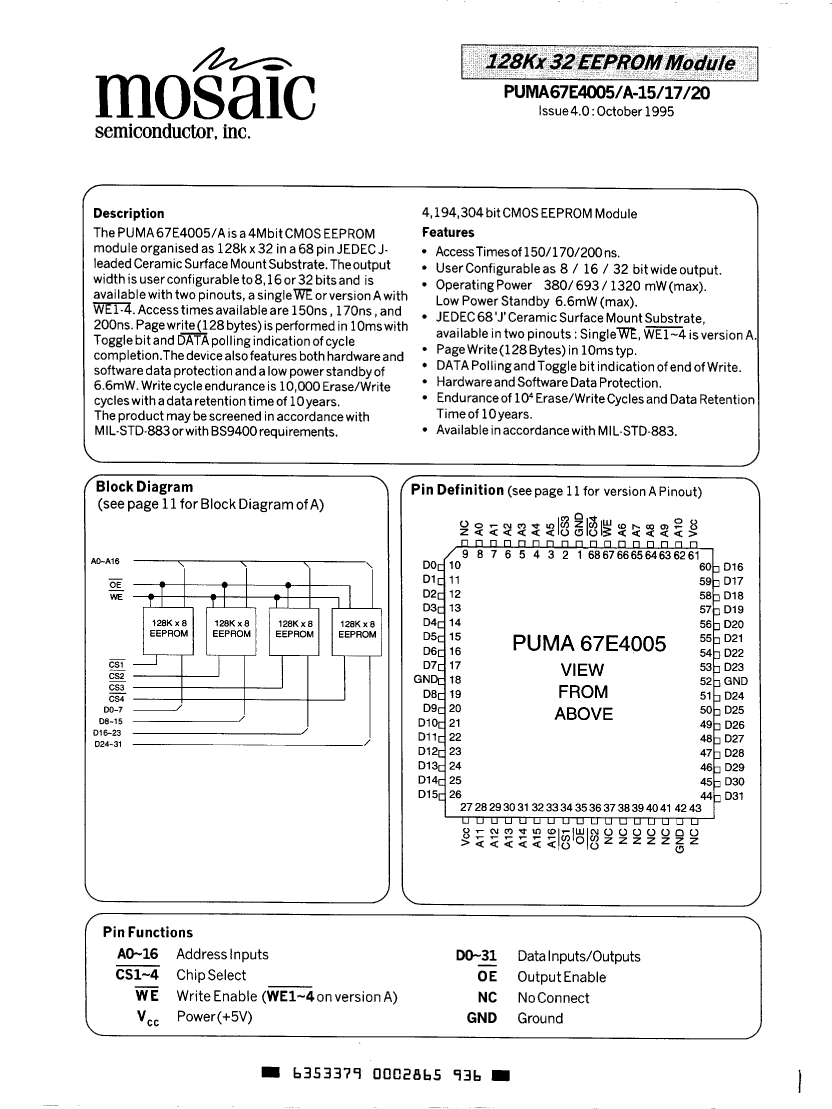

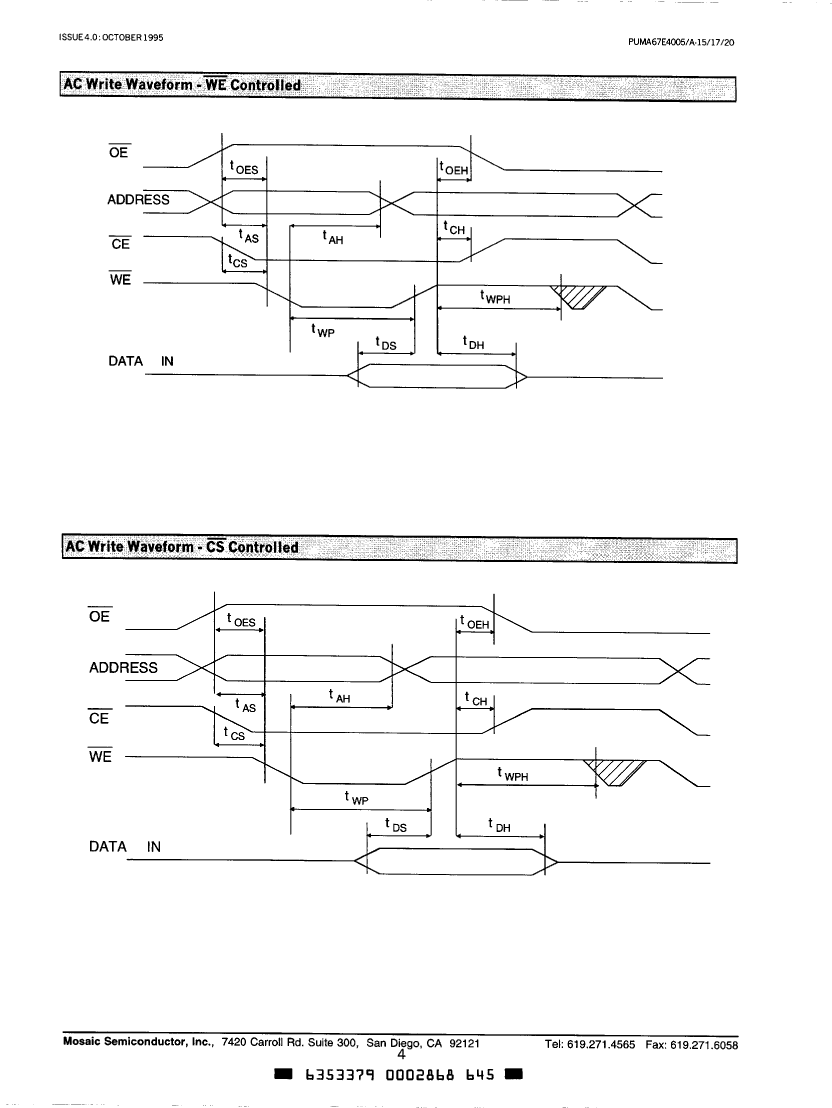

Preview

Download Datasheet

View All

PUMA67E4005-15 Related Products

	PUMA67E4005-15	PUMA67E4005M-15	PUMA67E4005M-17	PUMA67E4005M-20	PUMA67E4005MB-15	PUMA67E4005MB-17	PUMA67E4005MB-20
Description	EEPROM Module, 128KX32, 150ns, Parallel, CMOS, CQCC68, SMD-68	EEPROM Module, 128KX32, 150ns, Parallel, CMOS, CQCC68, SMD-68	EEPROM Module, 128KX32, 170ns, Parallel, CMOS, CQCC68, SMD-68	EEPROM Module, 128KX32, 200ns, Parallel, CMOS, CQCC68, SMD-68	EEPROM Module, 128KX32, 150ns, Parallel, CMOS, CQCC68, SMD-68	EEPROM Module, 128KX32, 170ns, Parallel, CMOS, CQCC68, SMD-68	EEPROM Module, 128KX32, 200ns, Parallel, CMOS, CQCC68, SMD-68
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	APTA Group Inc	APTA Group Inc	APTA Group Inc	APTA Group Inc	APTA Group Inc	APTA Group Inc	APTA Group Inc
package instruction	QCCJ, LDCC68,1.0SQ	QCCJ, LDCC68,1.0SQ	QCCJ, LDCC68,1.0SQ	QCCJ, LDCC68,1.0SQ	QCCJ, LDCC68,1.0SQ	QCCJ, LDCC68,1.0SQ	QCCJ, LDCC68,1.0SQ
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	150 ns	150 ns	170 ns	200 ns	150 ns	170 ns	200 ns
Other features	IT ALSO CONFIGURED AS 512K X 8	IT ALSO CONFIGURED AS 512K X 8	IT ALSO CONFIGURED AS 512K X 8	IT ALSO CONFIGURED AS 512K X 8	IT ALSO CONFIGURED AS 512K X 8	IT ALSO CONFIGURED AS 512K X 8	IT ALSO CONFIGURED AS 512K X 8
Spare memory width	16	16	16	16	16	16	16
Data polling	YES	YES	YES	YES	YES	YES	YES
Durability	10000 Write/Erase Cycles	10000 Write/Erase Cycles	10000 Write/Erase Cycles	10000 Write/Erase Cycles	10000 Write/Erase Cycles	10000 Write/Erase Cycles	10000 Write/Erase Cycles
JESD-30 code	S-CQCC-J68	S-CQCC-J68	S-CQCC-J68	S-CQCC-J68	S-CQCC-J68	S-CQCC-J68	S-CQCC-J68
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
length	24.74 mm	24.74 mm	24.74 mm	24.74 mm	24.74 mm	24.74 mm	24.74 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	EEPROM MODULE	EEPROM MODULE	EEPROM MODULE	EEPROM MODULE	EEPROM MODULE	EEPROM MODULE	EEPROM MODULE
memory width	32	32	32	32	32	32	32
Number of functions	1	1	1	1	1	1	1
Number of terminals	68	68	68	68	68	68	68
word count	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	128KX32	128KX32	128KX32	128KX32	128KX32	128KX32	128KX32
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ	LDCC68,1.0SQ	LDCC68,1.0SQ	LDCC68,1.0SQ	LDCC68,1.0SQ	LDCC68,1.0SQ	LDCC68,1.0SQ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
page size	128 words	128 words	128 words	128 words	128 words	128 words	128 words
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Programming voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.13 mm	5.13 mm	5.13 mm	5.13 mm	5.13 mm	5.13 mm	5.13 mm
Maximum standby current	0.0012 A	0.0012 A	0.0012 A	0.0012 A	0.0012 A	0.0012 A	0.0012 A
Maximum slew rate	0.24 mA	0.24 mA	0.24 mA	0.24 mA	0.24 mA	0.24 mA	0.24 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
switch bit	YES	YES	YES	YES	YES	YES	YES
width	24.74 mm	24.74 mm	24.74 mm	24.74 mm	24.74 mm	24.74 mm	24.74 mm
Maximum write cycle time (tWC)	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms
write protect	SOFTWARE	SOFTWARE	SOFTWARE	SOFTWARE	SOFTWARE	SOFTWARE	SOFTWARE
