Application
Specification
114-18254-1
1,5mm Sensor Flattype Receptacle
Rev C
1,5mm Sensor Flattype Receptacle (SFK 1,5)
1,5mm Sensor Flattype Receptacle II (SFK II 1,5)
TABLE OF CONTENT
1.
2.
2.1
2.2
2.3
2.4
2.5
SCOPE............................................................................................................................ 2
REFERENCED DOCUMENTS........................................................................................ 2
Customer drawings ................................................................................................................................... 2
Product specification ................................................................................................................................. 2
Application specification............................................................................................................................ 2
Customer manual / Instruction sheet ........................................................................................................ 2
Standards.................................................................................................................................................. 2
3.
3.1
3.2
DESCRIPTION................................................................................................................ 3
1,5mm Sensor Flattype Receptacle .......................................................................................................... 3
1,5mm Sensor Flattype Receptacle II ....................................................................................................... 4
4.
REQUIREMENTS ........................................................................................................... 5
Wire........................................................................................................................................................... 5
Feature of crimp........................................................................................................................................ 5
Crimpingdata for automatic application for SFK 1,5 ................................................................................. 6
Crimpingdata for application with ERGOCRIMP handcrimptool for SFK 1,5............................................ 6
Feature of crimp for SFK II 1,5.................................................................................................................. 7
Crimpingdata for automatic application for SFK II 1,5 .............................................................................. 7
Crimpingdata for application with ERGOCRIMP handcrimptool for SFK II 1,5......................................... 8
Preparation of wire .................................................................................................................................... 9
Cutoff and burr .......................................................................................................................................... 9
Wirecrimp.................................................................................................................................................. 9
Insulationcrimp .......................................................................................................................................... 9
Contactbody with spring ............................................................................................................................ 9
Geometrical Tolerances of the crimped contact ..................................................................................... 10
4.1
4.2
4.3
4.4
4.5
4.6
4.7
4.8
4.9
4.10
4.11
4.12
4.13
C
REV
SFK II 1,5 added, whole Spec updated
REVISION RECORD
K.Fruehwirth
DWN
M.Pfeilschifter
CHK
M.Bleicher
APVD
03MAY2010
DATE
1
of
10
ECOC EGA0
LOC: AI
Tyco Electronics Corporation,
Harrisburg, PA 17105
*
This specification is a controlled document.
©
Copyright 2000 by Tyco Electronics Corporation.
All rights reserved
Trademark
| Indicates change
114-18254-1
1.
SCOPE
This specification contains the guidelines for the application of 1,5mm Sensor Flattype Receptacle and
1,5mm Sensor Flattype Receptacle II. It denotes primarily the fully- or semi-automatic application of the
contact and additionally the handcrimptool of Points 4.3 and 4.4 of TE. Exceptions only by special customer
documents.
2.
REFERENCED DOCUMENTS
Dimensions and materials of the contact are shown in the TE Customer Drawings. In the events of conflicts
between this specification and the customer drawing, the customer drawing shall take precedence.
2.1 Customer drawings
2.2 Product specification
Product Specification 108-18617 describes the characteristics of these contacts and the electrical and
mechanical requirements.
2.3 Application specification
Crimp quality requirements are described generally in the Application Specification 114-18022, which can
be ordered separately. For application of 1,5mm Sensor Flattype Receptacle and 1,5mm Sensor Flattype
Receptacle II this Application Specification is valid.
2.4 Customer manual / Instruction sheet
CM 412-18103-1
CM 412-18258
IS 408-7424
IS 411-18079
describes handling with MQC-HD Applicator.
describes handling with a Crimping machine for MQC Applicator.
explains how to measure the crimp height. (For details see 4.2).
describes the ERGOCRIMP Handtool PN 539724. (For details see 4.4).
2.5 Standards
For testing the crimp quality refer to DIN EN 60352-2.
Rev C
2
of
10
114-18254-1

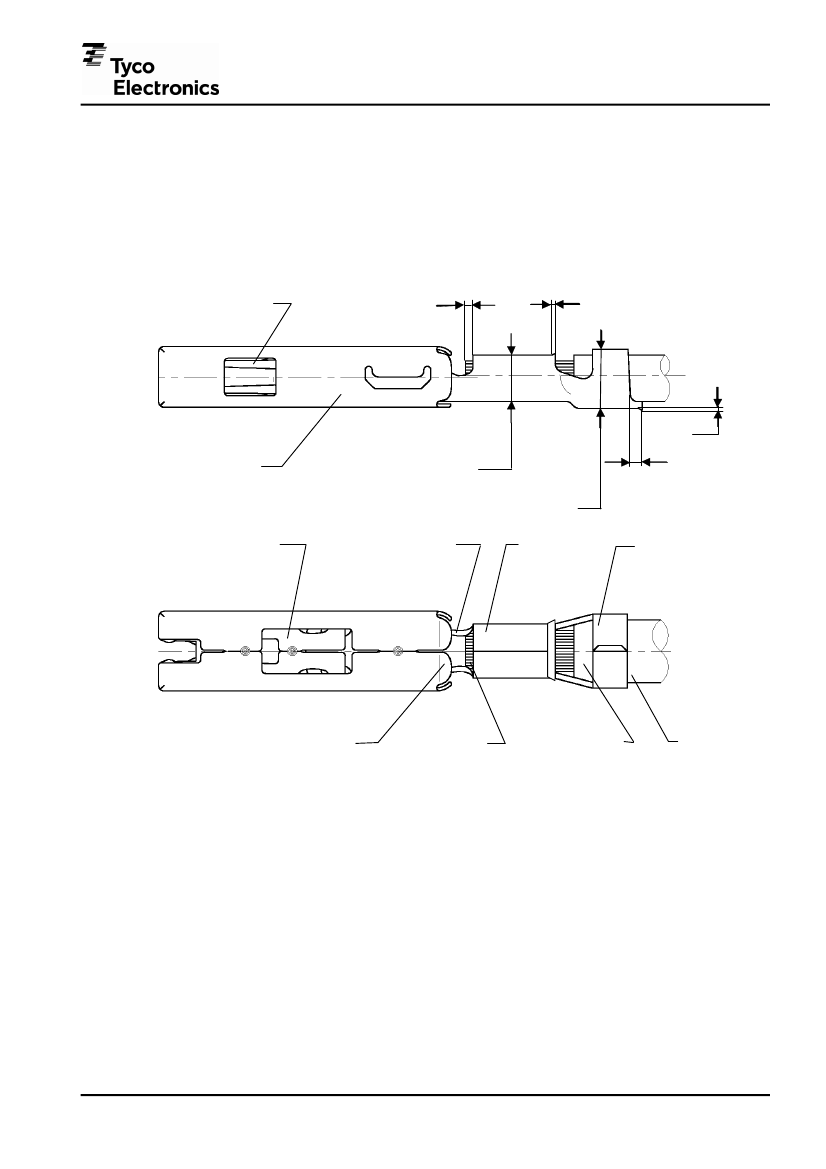

3.2 1,5mm Sensor Flattype Receptacle II
1,5mm Sensor Flattype Receptacle II
Rear Bellmouth
Holes for Locking
Wire Extension
Spring

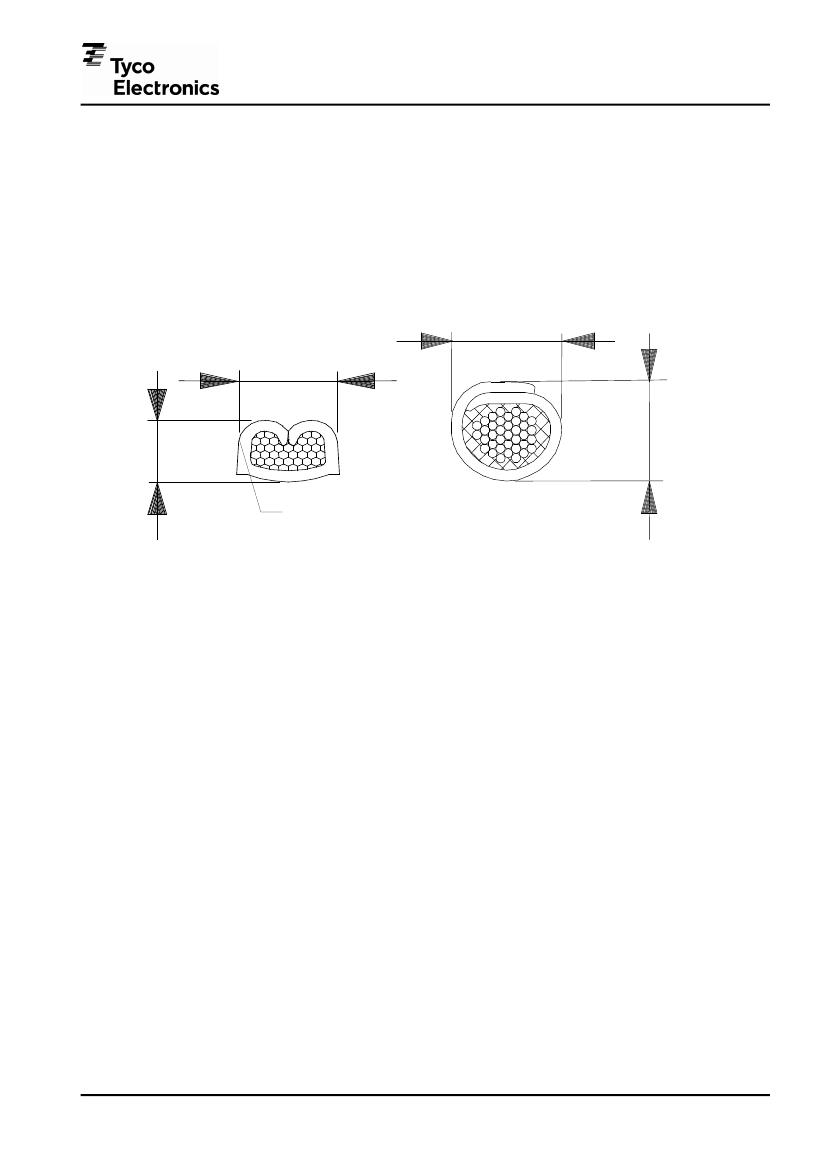

Crimpheight of Wirecrimp
Crimpheight of Insulationcrimp
Cutoff
Burr
Transition to Crimp
Contact Body
Wirecrimp
Insulationcrimp
Wire
End of Spring
End of Wire
End of Insulation
Applied parts can be delivered in two versions:
1,5mm Sensor Flattype Receptacle is provided to insert it through mounted family-seals into appropriated
cavities and to pull out again from there with as less damage as possible.
Contact is locked by two adjacent holes in which the locking elements of the housing snap in. For pulling-
out of the contact, Extraction Tool PN 7-1579007-0 can be used.
The second version, referred to as 1,5mm Sensor Flattype Receptacle II, has a modified spring and special
additional design features for an optimized mating performance by family seal.
Details are shown on the TE Customer Drawings mentioned in 2.1.
Rev C
4
of
10
