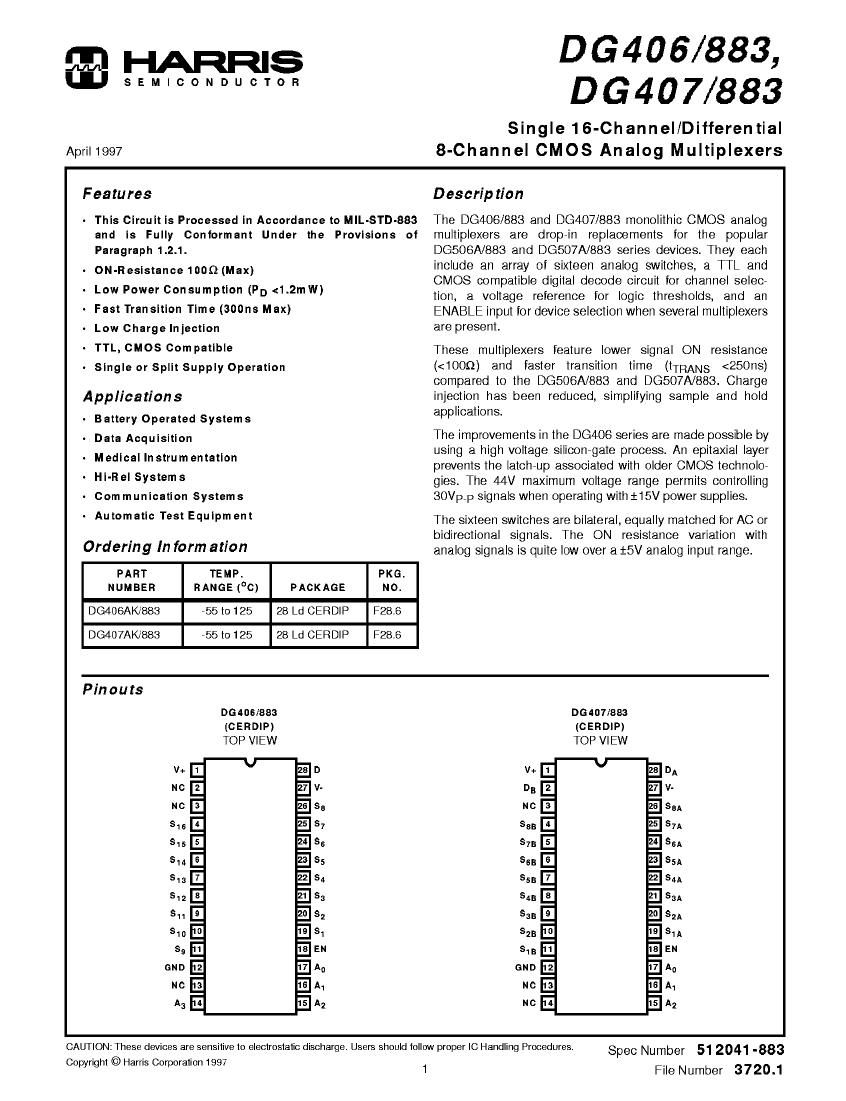

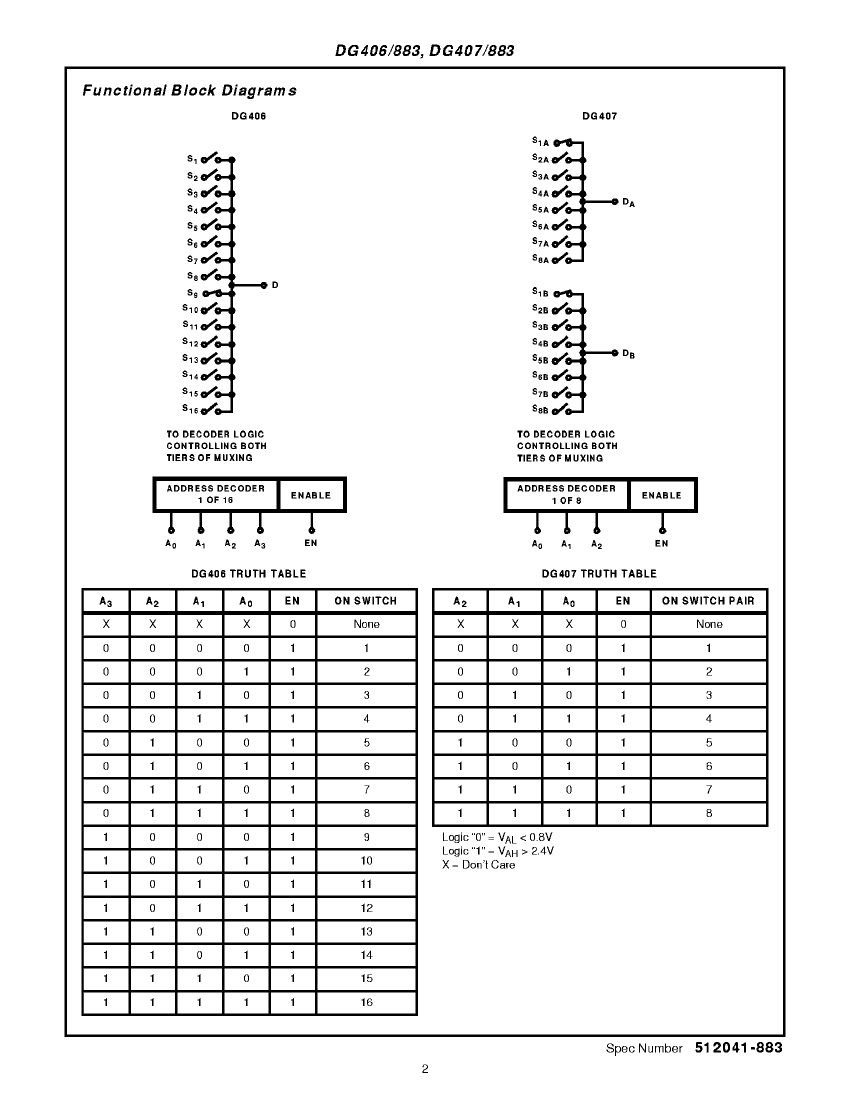

Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28,

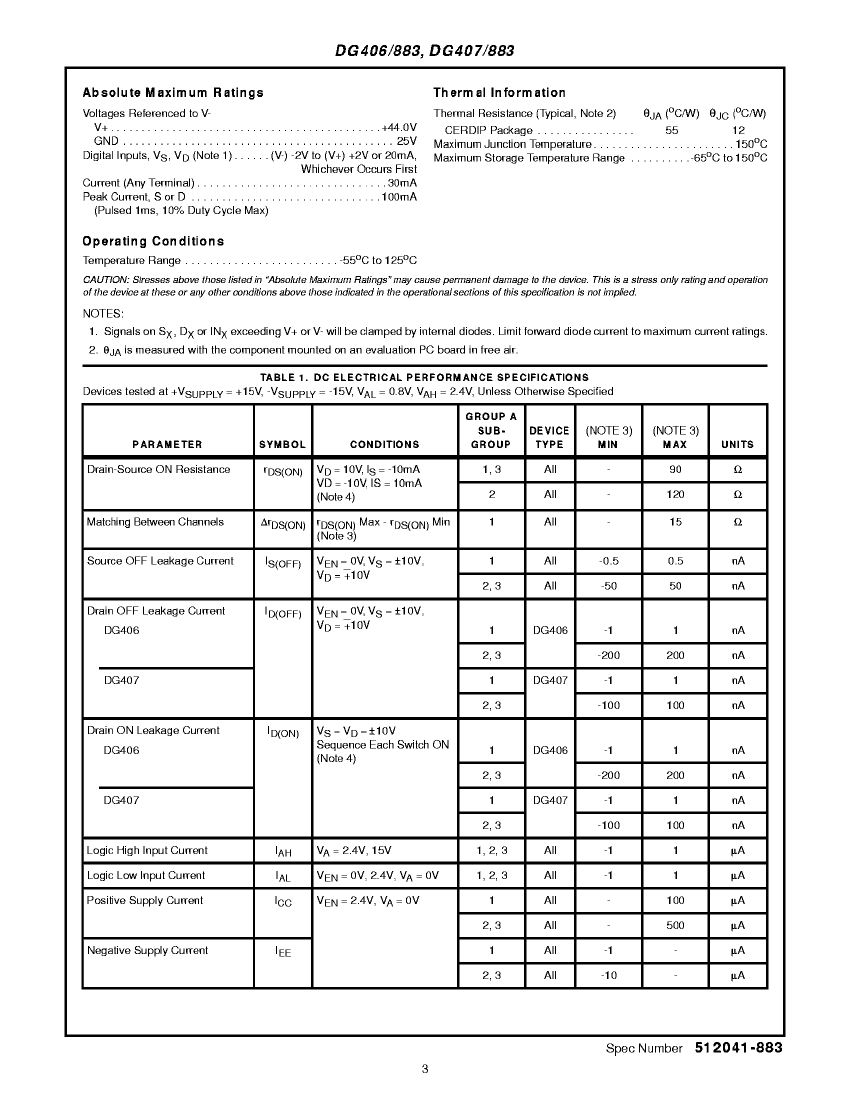

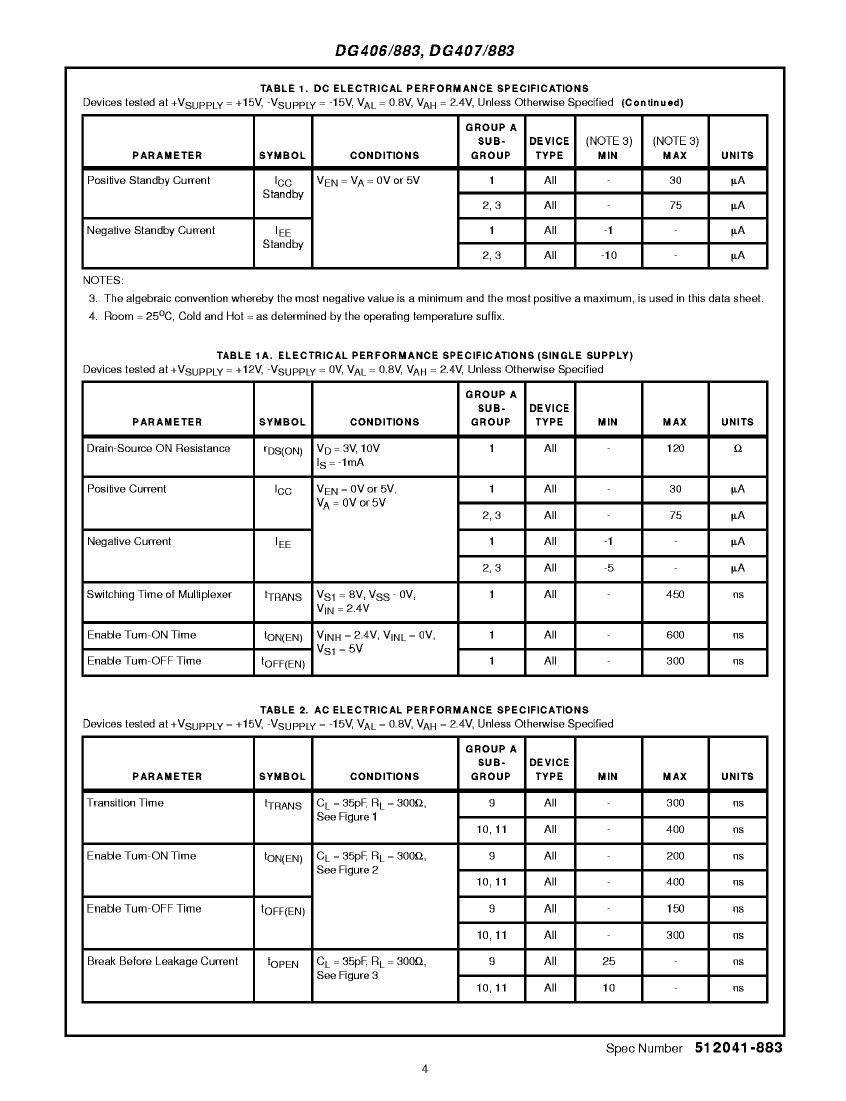

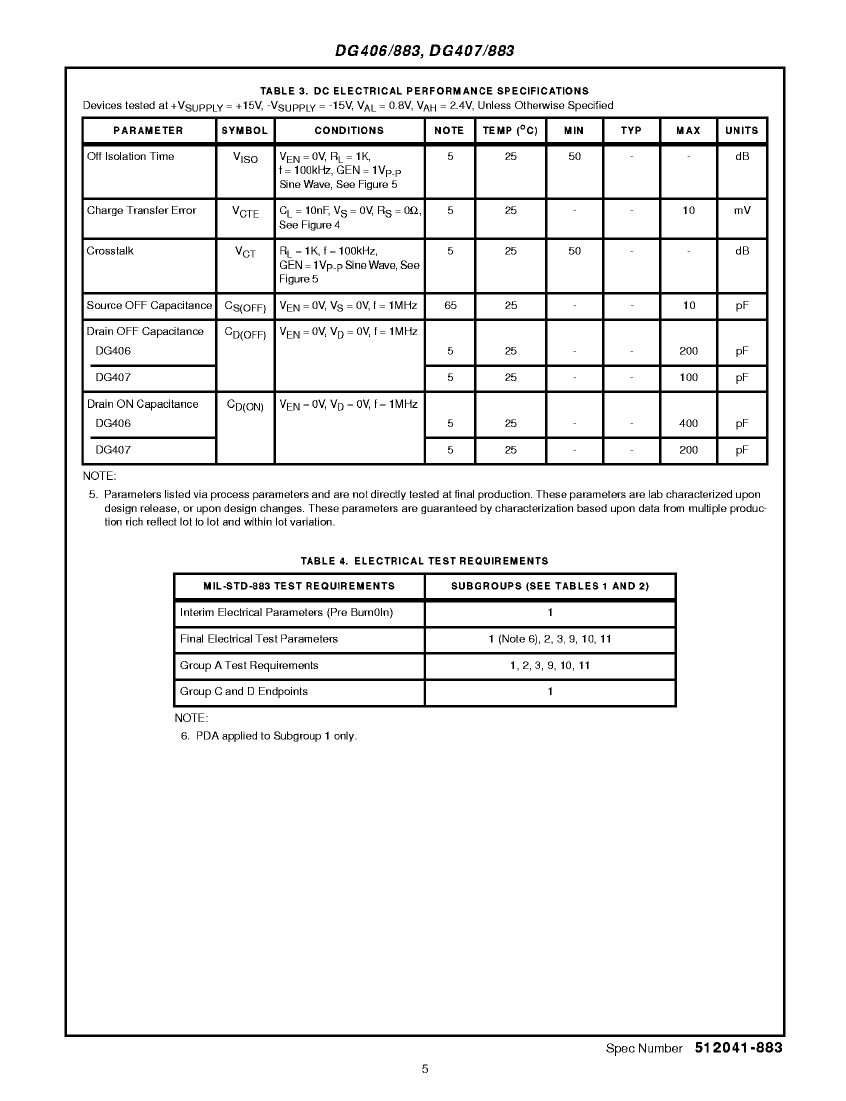

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Harris |
| package instruction | DIP, DIP28,.6 |
| Reach Compliance Code | unknown |
| Analog Integrated Circuits - Other Types | SINGLE-ENDED MULTIPLEXER |
| JESD-30 code | R-GDIP-T28 |
| JESD-609 code | e0 |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of channels | 16 |
| Number of functions | 1 |
| Number of terminals | 28 |
| Maximum on-state resistance (Ron) | 100 Ω |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP28,.6 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 12/+-15 V |
| Certification status | Not Qualified |
| Maximum signal current | 0.03 A |
| Maximum supply current (Isup) | 12.5 mA |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| Maximum disconnect time | 300 ns |
| Maximum connection time | 300 ns |
| switch | BREAK-BEFORE-MAKE |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| DG406AK/883 | 5962-9562301QXA | 5962-9562302QXA | DG407AK/883 | |
|---|---|---|---|---|
| Description | Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28, | Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28 | Differential Multiplexer, 1 Func, 8 Channel, CMOS, CDIP28 | Differential Multiplexer, 1 Func, 8 Channel, CMOS, CDIP28 |
| Maker | Harris | Harris | Harris | Harris |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Analog Integrated Circuits - Other Types | SINGLE-ENDED MULTIPLEXER | SINGLE-ENDED MULTIPLEXER | DIFFERENTIAL MULTIPLEXER | DIFFERENTIAL MULTIPLEXER |
| JESD-30 code | R-GDIP-T28 | R-GDIP-T28 | R-GDIP-T28 | R-GDIP-T28 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V |
| Number of channels | 16 | 16 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 28 | 28 | 28 | 28 |
| Maximum on-state resistance (Ron) | 100 Ω | 300 Ω | 300 Ω | 100 Ω |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | NO | NO | NO |
| Maximum disconnect time | 300 ns | 300 ns | 300 ns | 300 ns |
| Maximum connection time | 300 ns | 300 ns | 300 ns | 300 ns |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | TIN LEAD | TIN LEAD | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Part Number | Manufacturer | Description |
|---|---|---|
| DG406DJ | Vishay(威世) | Multiplexer Switch ICs Single 16:1, 4-bit Multiplexer/MUX |
| DG406AK+ | Maxim(美信半导体) | Multiplexer Switch ICs |
| DG406AK | Rochester Electronics | 16-CHANNEL, SGL ENDED MULTIPLEXER, CDIP28, CERDIP-28 |
| DG406AK/883 | Rochester Electronics | 16-CHANNEL, SGL ENDED MULTIPLEXER, CDIP28, PACKAGE-28 |
| DG406CJ | Rochester Electronics | 16-CHANNEL, SGL ENDED MULTIPLEXER, PDIP28, PLASTIC, DIP-28 |
| DG406DJ | Rochester Electronics | 16-CHANNEL, SGL ENDED MULTIPLEXER, PDIP28, PLASTIC, MS-011AB, DIP-28 |
| DG406AK | Vishay(威世) | Multiplexer Switch ICs Single 16:1, 4-bit Multiplexer/MUX |
| DG406AK/883B | Maxim(美信半导体) | Multiplexer Switch ICs 16:1 CMOS Analog |
| DG406DJ-E3 | Vishay(威世) | Multiplexer Switch ICs Single 16:1, 4-bit Multiplexer/MUX |
| DG406AZ/883 | Vishay(威世) | Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CQCC28, |
| DG406DJZ | Renesas(瑞萨电子) | Single 16-Channel/Differential 8-Channel, CMOS Analog Multiplexers; PDIP28, SOIC28; Temp Range: -40° to 85°C |
| DG406AK | Maxim(美信半导体) | Multiplexer Switch ICs Improved, 16-Channel/Dual 8-Channel, CMOS Analog Multiplexers |
| DG406CJ | Maxim(美信半导体) | Multiplexer Switch ICs Improved, 16-Channel/Dual 8-Channel, CMOS Analog Multiplexers |
| DG406AK/883 | Renesas(瑞萨电子) | 16-CHANNEL, SGL ENDED MULTIPLEXER, CDIP28 |
| DG406AK/883 | Vishay(威世) | Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28, |
| DG406DJ | Harris | Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, PDIP28, |
| DG406AZ/883 | TEMIC | Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CQCC28, |
| DG406AK/883 | TEMIC | Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28, |
| DG406DJ | TEMIC | Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, PDIP28, |
| DG406CWI+ | Maxim(美信半导体) | multiplexer switch ics 16:1 cmos analog |
