PDM41024S20L32I datasheet, PDF

Datasheet> All Categories > storage> storage> PDM41024S20L32I

PDM41024S20L32I: DescriptionStandard SRAM, 128KX8, 20ns, CMOS, CQCC32; Categorystorage storage; File Size311KB，8 Pages; ManufacturerParadigm Technology Inc

Download Datasheet Parametric Compare View All

PDM41024S20L32I Overview

Standard SRAM, 128KX8, 20ns, CMOS, CQCC32

PDM41024S20L32I Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Paradigm Technology Inc
package instruction	QCCN, LCC32,.45X.55
Reach Compliance Code	unknown
ECCN code	3A991.B.2.B
Maximum access time	20 ns
I/O type	COMMON
JESD-30 code	R-CQCC-N32
JESD-609 code	e0
memory density	1048576 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	32
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	128KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC32,.45X.55
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.01 A
Minimum standby current	4.5 V
Maximum slew rate	0.18 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED

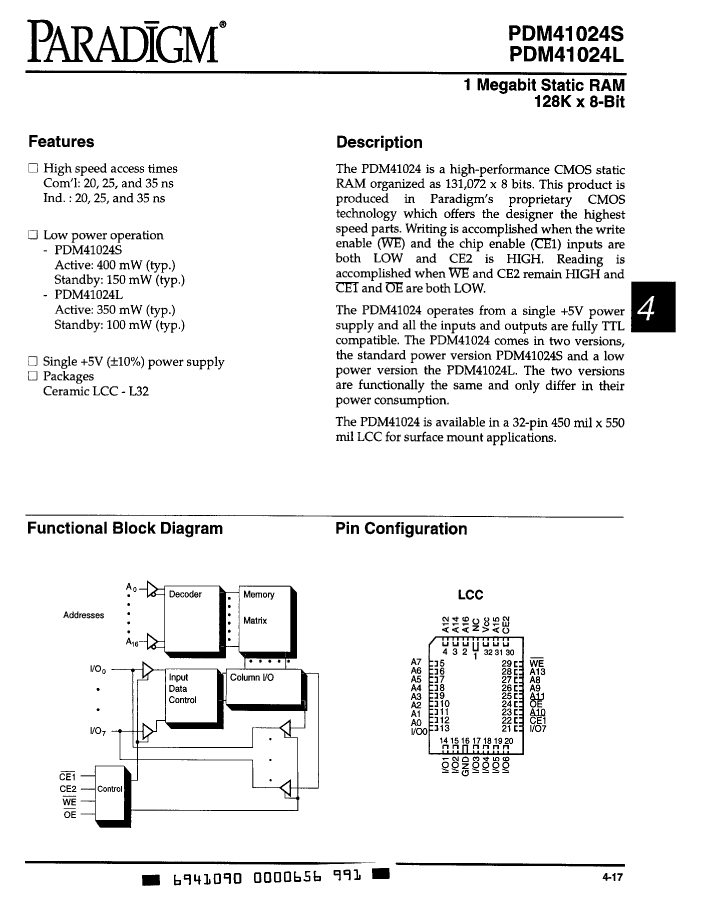

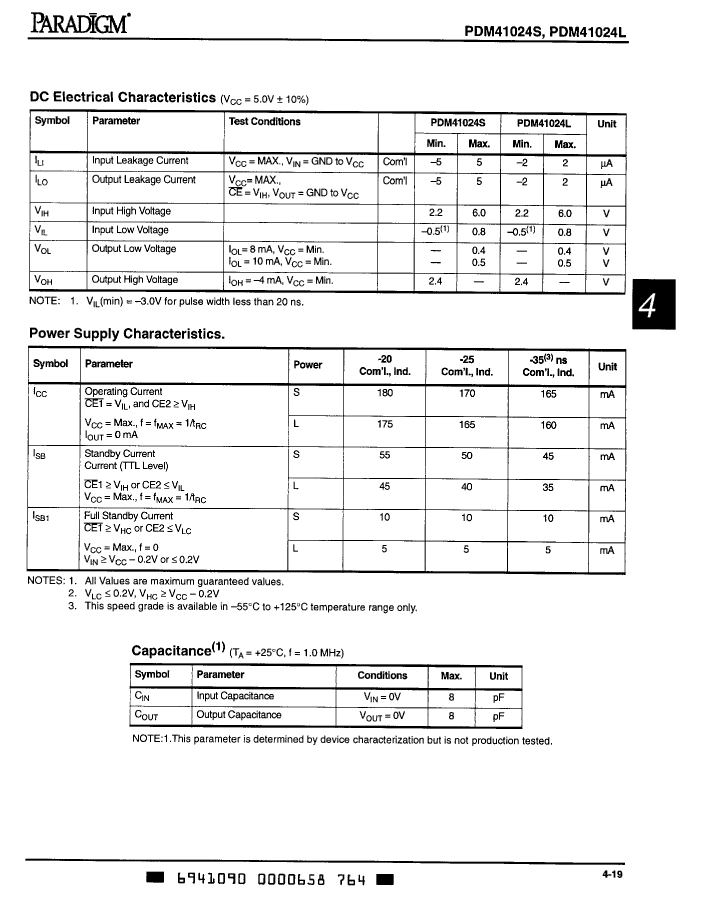

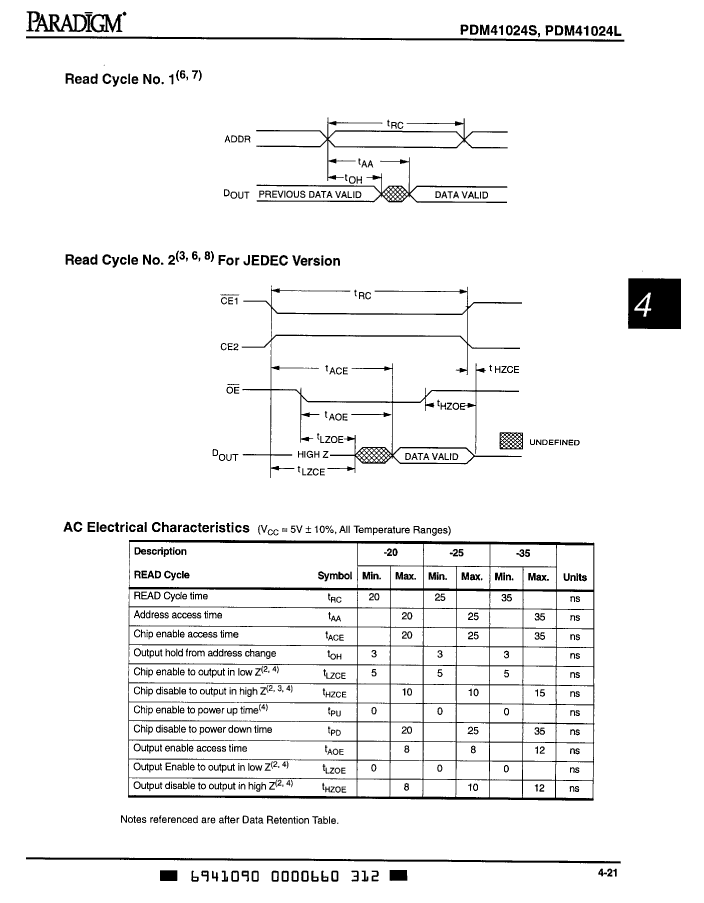

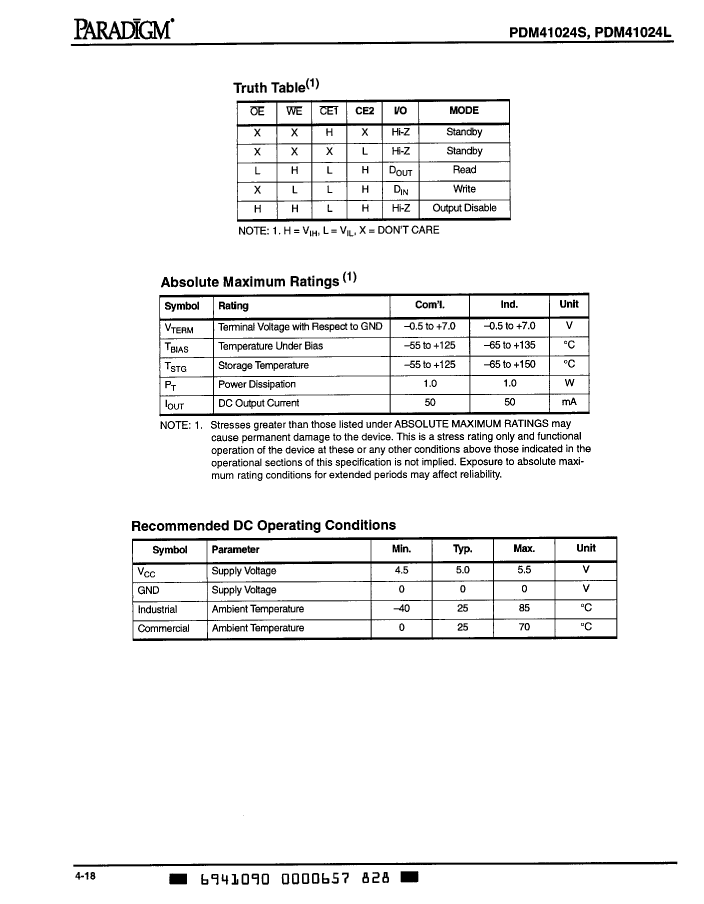

Preview

Download Datasheet

View All

PDM41024S20L32I Related Products

	PDM41024S20L32I	PDM41024S25L32I	PDM41024S25L32	PDM41024L25L32I	PDM41024L25L32	PDM41024S35L32	PDM41024L20L32	PDM41024L20L32I
Description	Standard SRAM, 128KX8, 20ns, CMOS, CQCC32	Standard SRAM, 128KX8, 25ns, CMOS, CQCC32	Standard SRAM, 128KX8, 25ns, CMOS, CQCC32	Standard SRAM, 128KX8, 25ns, CMOS, CQCC32	Standard SRAM, 128KX8, 25ns, CMOS, CQCC32	Standard SRAM, 128KX8, 35ns, CMOS, CQCC32	Standard SRAM, 128KX8, 20ns, CMOS, CQCC32	Standard SRAM, 128KX8, 20ns, CMOS, CQCC32
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Paradigm Technology Inc	Paradigm Technology Inc	Paradigm Technology Inc	Paradigm Technology Inc	Paradigm Technology Inc	Paradigm Technology Inc	Paradigm Technology Inc	Paradigm Technology Inc
package instruction	QCCN, LCC32,.45X.55	QCCN, LCC32,.45X.55	QCCN, LCC32,.45X.55	QCCN, LCC32,.45X.55	QCCN, LCC32,.45X.55	QCCN, LCC32,.45X.55	QCCN, LCC32,.45X.55	QCCN, LCC32,.45X.55
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	20 ns	25 ns	25 ns	25 ns	25 ns	35 ns	20 ns	20 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-CQCC-N32	R-CQCC-N32	R-CQCC-N32	R-CQCC-N32	R-CQCC-N32	R-XQCC-N32	R-CQCC-N32	R-CQCC-N32
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
memory density	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8	8	8
Number of terminals	32	32	32	32	32	32	32	32
word count	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000	128000	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	70 °C	85 °C	70 °C	70 °C	70 °C	85 °C
organize	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN	QCCN	QCCN	QCCN	QCCN	QCCN	QCCN
Encapsulate equivalent code	LCC32,.45X.55	LCC32,.45X.55	LCC32,.45X.55	LCC32,.45X.55	LCC32,.45X.55	LCC32,.45X.55	LCC32,.45X.55	LCC32,.45X.55
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.01 A	0.01 A	0.01 A	0.0005 A	0.0005 A	0.01 A	0.0005 A	0.0005 A
Minimum standby current	4.5 V	4.5 V	4.5 V	2 V	2 V	4.5 V	2 V	2 V
Maximum slew rate	0.18 mA	0.17 mA	0.17 mA	0.165 mA	0.17 mA	0.16 mA	0.175 mA	0.175 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	-	Contains lead	Contains lead
ECCN code	3A991.B.2.B	EAR99	EAR99	EAR99	EAR99	-	3A991.B.2.B	3A991.B.2.B
Number of functions	1	1	1	1	1	-	1	1
Number of ports	1	1	1	1	1	-	1	1
Exportable	YES	YES	YES	YES	YES	-	YES	YES
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	-	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	-	4.5 V	4.5 V
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	-	1	1	1	1	1	-	-
