ASSR-4119-001E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> ASSR-4119-001E

ASSR-4119-001E: DescriptionTRANSISTOR OUTPUT SOLID STATE RELAY, 3750 V ISOLATION-MAX; CategoryLED optoelectronic/LED photoelectric; File Size158KB，11 Pages; ManufacturerAVAGO; Websitehttp://www.avagotech.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ASSR-4119-001E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ASSR-4119-001E	-	-	View	Buy Now

ASSR-4119-001E Overview

TRANSISTOR OUTPUT SOLID STATE RELAY, 3750 V ISOLATION-MAX

ASSR-4119-001E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVAGO
package instruction	0.300 INCH, ROHS COMPLIANT, DIP-6
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	17 weeks
Other features	UL RECOGNIZED, CMOS COMPATIBLE
Configuration	SINGLE
control current	0.003 A
control voltage	1.1 V
Maximum forward current	0.02 A
input type	DC
Maximum insulation voltage	3750 V
JESD-609 code	e3
Number of components	1
Maximum on-state current	0.1 A
Maximum on-state resistance	35 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR
Output circuit type	MOSFET
total height	7.36 mm
total length	9.9 mm
Terminal surface	Tin (Sn)

Preview

Download Datasheet

View All

ASSR-4118 , ASSR-4119 and ASSR-4128

Form A, Solid State Relay (Photo MOSFET)

(400V/0.10A/35)

Data Sheet

Description

The ASSR-41XX Series consists of an AlGaAs infrared

light-emitting diode (LED) input stage optically coupled

to a high-voltage output detector circuit. The detector

consists of a high-speed photovoltaic diode array and

driver circuitry to switch on/off two discrete high volt-

age MOSFETs. The relay turns on (contact closes) with a

minimum input current of 3mA through the input LED.

The relay turns off (contact opens) with an input voltage

of 0.8V or less.

The single channel configurations, ASSR-4118 and ASSR-

4119, are equivalent to 1 Form A Electromechanical Re-

lays (EMR), and the dual channel configuration, ASSR-

4128, is equivalent to 2 Form A EMR. They are available

in 4-pin SO, 6-pin DIP, 8-pin DIP and Gull Wing Surface

Mount for DIP packages. ASSR-4119 enables AC/DC and

DC-only output connections. For DC-only connection,

the output current, Io, increases to 0.2A and the on-re-

sistance, R(ON) reduces to 10.

Features



Compact Solid-State Bi-directional Signal Switch



Single and Dual Channel Normally-off Single-Pole-

Single-Throw (SPST) Relay



400V Output Withstand Voltage



0.1A or 0.2A Current Rating

(See Schematic for ASSR-4119 Connection A and B)



Low Input Current: CMOS Compatibility



Low On-Resistance: 8 Typical for DC-only,

25 Typical for AC/DC



High Input-to-Output Insulation Voltage

(Safety and Regulatory Approvals Pending)

- 3750 Vrms for 1 min per UL1577

- CSA Component Acceptance

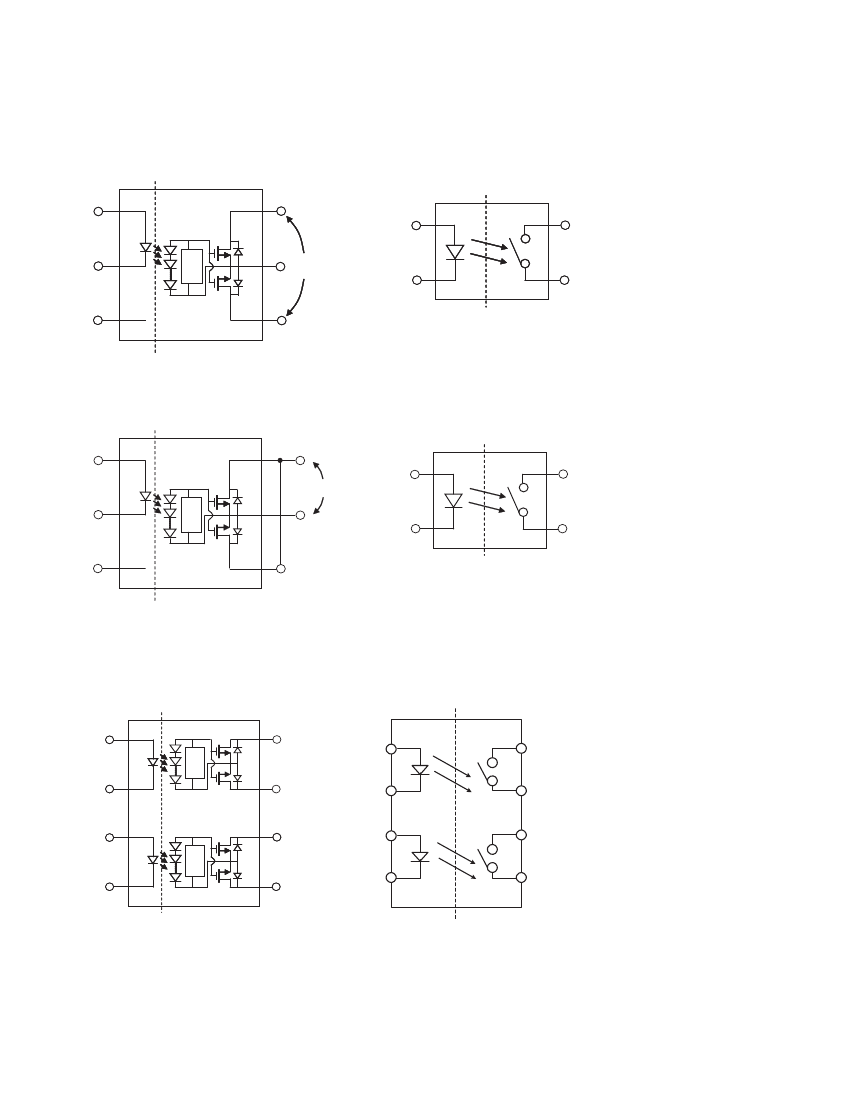

Functional Diagram

Opto-isolation

Applications



Telecommunication Switching

Data Communications

Industrial Controls

Medical

Security

EMR / Reed Relay Replacement

Turn-off

Circuit

Truth Table

LED Output

Off

Open

Single Channel, SPST Relay,

1 Form A in 4-Pin SO Package

CAUTION: It is advised that normal static precautions be taken in handling and assembly

of this component to prevent damage and/or degradation which may be induced by ESD.

ASSR-4119-001E Related Products

	ASSR-4119-001E	ASSR-4118-503E	ASSR-4119-301E	ASSR-4119-501E	ASSR-4128-002E	ASSR-4128-302E	ASSR-4118-003E
Description	TRANSISTOR OUTPUT SOLID STATE RELAY, 3750 V ISOLATION-MAX	TRANSISTOR OUTPUT SOLID STATE RELAY, 3750 V ISOLATION-MAX	TRANSISTOR OUTPUT SOLID STATE RELAY, 3750 V ISOLATION-MAX	TRANSISTOR OUTPUT SOLID STATE RELAY, 3750 V ISOLATION-MAX	DUAL TRANSISTOR OUTPUT SOLID STATE RELAY, 3750 V ISOLATION-MAX	DUAL TRANSISTOR OUTPUT SOLID STATE RELAY, 3750 V ISOLATION-MAX	TRANSISTOR OUTPUT SOLID STATE RELAY, 3750 V ISOLATION-MAX
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	0.300 INCH, ROHS COMPLIANT, DIP-6	ROHS COMPLIANT, SURFACE MOUNT, SOP-4	0.300 INCH, ROHS COMPLIANT, SURFACE MOUNT, DIP-6	0.300 INCH, ROHS COMPLIANT, SURFACE MOUNT, DIP-6	0.300 INCH, ROHS COMPLIANT, DIP-8	0.300 INCH, ROHS COMPLIANT, SURFACE MOUNT, DIP-8	ROHS COMPLIANT, SURFACE MOUNT, SOP-4
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maker	AVAGO	AVAGO	-	AVAGO	AVAGO	AVAGO	AVAGO
Factory Lead Time	17 weeks	17 weeks	-	17 weeks	17 weeks	17 weeks	17 weeks
Other features	UL RECOGNIZED, CMOS COMPATIBLE	UL RECOGNIZED, CMOS COMPATIBLE	-	UL RECOGNIZED, CMOS COMPATIBLE	UL RECOGNIZED, CMOS COMPATIBLE	UL RECOGNIZED, CMOS COMPATIBLE	UL RECOGNIZED, CMOS COMPATIBLE
Configuration	SINGLE	COMPLEX	-	SINGLE	COMPLEX	COMPLEX	COMPLEX
control current	0.003 A	0.003 A	-	0.003 A	0.003 A	0.003 A	0.003 A
control voltage	1.1 V	1.1 V	-	1.1 V	1.1 V	1.1 V	1.1 V
Maximum forward current	0.02 A	0.02 A	-	0.02 A	0.02 A	0.02 A	0.02 A
input type	DC	DC	-	DC	DC	DC	DC
Maximum insulation voltage	3750 V	3750 V	-	3750 V	3750 V	3750 V	3750 V
JESD-609 code	e3	e3	-	e3	e3	e3	e3
Number of components	1	1	-	1	2	2	1
Maximum on-state current	0.1 A	0.1 A	-	0.1 A	0.1 A	0.1 A	0.1 A
Maximum on-state resistance	35 Ω	35 Ω	-	35 Ω	35 Ω	35 Ω	35 Ω
Maximum operating temperature	85 °C	85 °C	-	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	-	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR
Output circuit type	MOSFET	MOSFET	-	MOSFET	MOSFET	MOSFET	MOSFET
total height	7.36 mm	2.1 mm	-	4.8 mm	7.6 mm	4.2 mm	2.1 mm
total length	9.9 mm	4.3 mm	-	9.9 mm	9.9 mm	9.9 mm	4.3 mm
Terminal surface	Tin (Sn)	Matte Tin (Sn)	-	Tin (Sn)	Tin (Sn)	Tin (Sn)	Matte Tin (Sn)
