2.92mm Male Connector Solder Attachment For 0.118 inch
TECHNICAL DATA SHEET
2.92mm Male Connector Solder Attachment For 0.118 inch
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
2.92mm Male
0.118 inch
Solder
Straight
PE4989
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Maximum Insertion Loss, dB
DC to 40
50
1.28:1
0.32
Mechanical Specifications

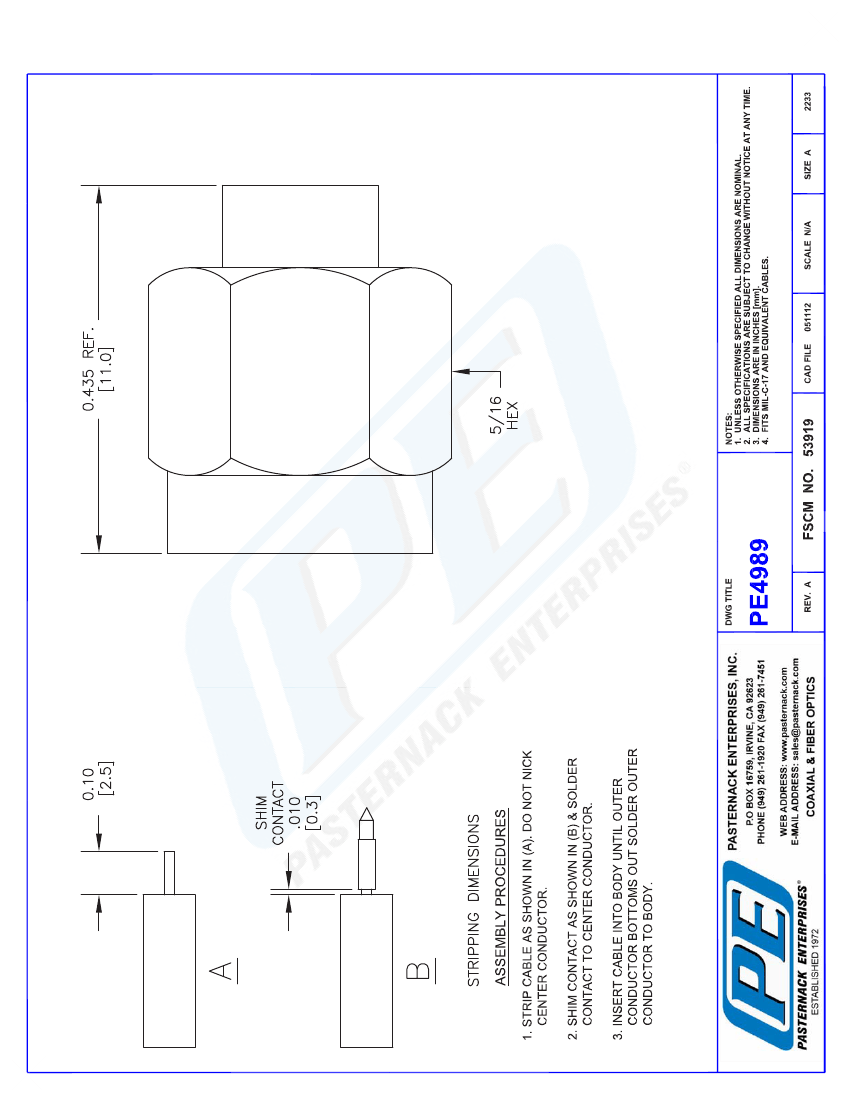

Size
Length, in [mm]
Width/Dia., in [mm]
.
0.435 [11.05]
0.312 [8]
0.006 [2.72]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
2.92mm Male
Beryllium Copper, Gold
MIL-G-45204, Type II, Class 1
Passivated Stainless Steel
ASTM A380
Passivated Stainless Steel
ASTM A380
PPO
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/2.92mm-male-standard-0.118-connector-pe4989-p.aspx
2.92mm Male Connector Solder Attachment For 0.118 inch from Pasternack Enterprises has same day shipment for domestic
and International orders. We maintain 99% availability of the industry’s broadest selection of RF, microwave and fiber optic
products.
PE4989 REV
1
