X1250ANBB086B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> X1250ANBB086B

X1250ANBB086B: DescriptionRocker Switch, DPST, Latched, 1A, 30VDC, Solder Terminal, Curved Rocker Actuator, Through Hole-straight, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size65KB，1 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

X1250ANBB086B Overview

Rocker Switch, DPST, Latched, 1A, 30VDC, Solder Terminal, Curved Rocker Actuator, Through Hole-straight, ROHS COMPLIANT

X1250ANBB086B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	BULGIN
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	CURVED ROCKER
body width	13 mm
body height	17 mm
Body length or diameter	29.5 mm
Contact (AC) maximum rated R load	16A@250VAC
Maximum contact current (AC)	16 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@30VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Manufacturer's serial number	1250
Installation features	THROUGH HOLE-STRAIGHT
surface mount	NO
Switch action	LATCHED
switch function	DPST
Switch type	ROCKER SWITCH
Termination type	SOLDER

Preview

Download Datasheet

View All

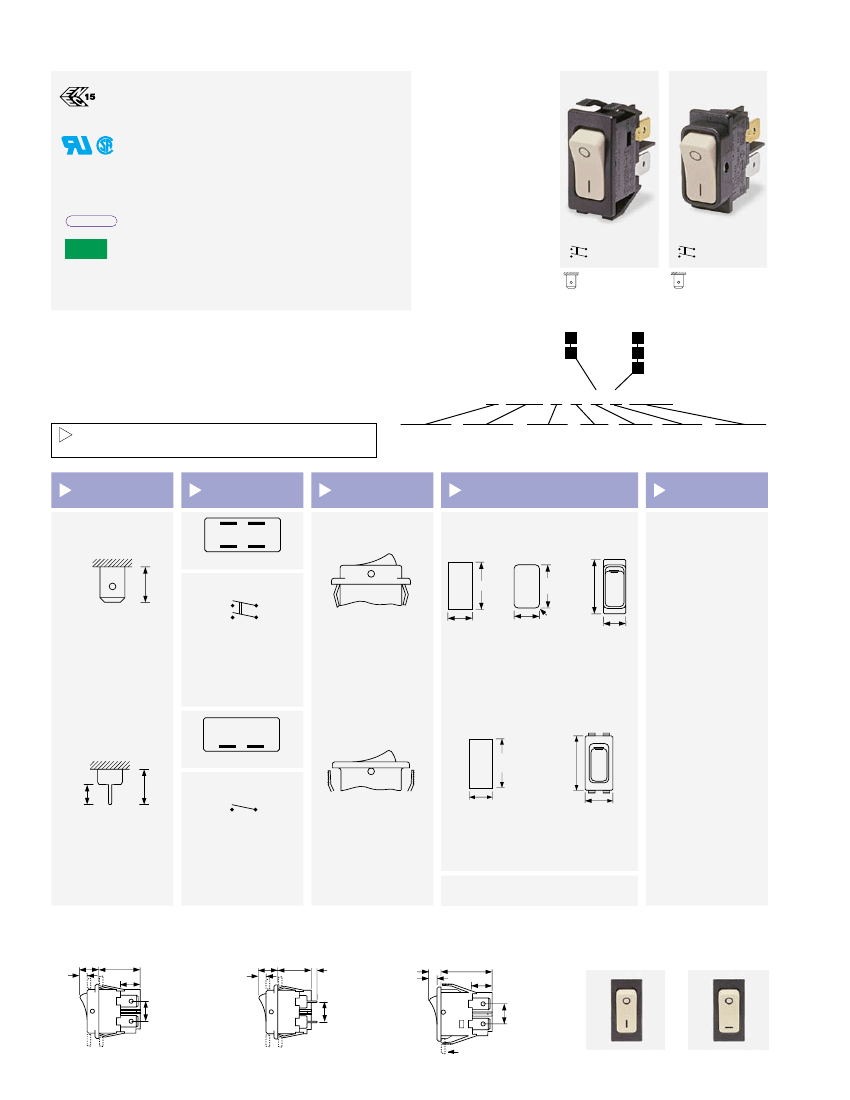

1250 Rocker Switches

10A 250Vac

10(6)A 250Vac T100

6A 400Vac T100

1A 30Vdc

UL CSA 10A 250Vac

UL CSA 16A 250Vac Resistive

UL CSA 125Vac 1/2hp

UL CSA 1A 30Vdc

UL 100˚C, file E45221, CSA file LR10990

In house test

Standard rocker switch

Double pole in single

pole body

Snap in or sub panel

mount

Integral terminal barrier

Push on or PCB

terminals

High inrush tolerance

Bezel size:

29.5 x 15mm (snap in)

23.5 x 13mm (sub panel

mount)

Inrush 75A to EN61058-1 & 10A 28Vdc

RoHS compliant

3mm contact gap

Technical data on pages 4 & 5

RoHS

C1250AP

C1250AN

BLACK

WHITE

BLACK

WHITE

GREY

C 1250 A P B B 085W

ORDER FORMAT

TERMINAL

FUNCTION

9.0

TERMINAL

CODE

FUNCTION

CODE

ROCKER

CODE

BODY BODY

CODE COLOR

ROCKER

COLOR

LEGEND &

OPTIONS

ROCKER

BODY

Panel cut-out

Sub-panel

OPTIONS

Finish

Bezel

Matt finish only

Curved

On when pressed over terminal 1

Facia

23.8 29.5

nom

13.1 R3.5

nom

Color

Call factory

for custom colors.

A full range is available for

large orders

13.0

1250

Shown in N body

6.3 x 0.8

ON - OFF

Double pole

Poles are 9.0mm

between centres.

12.4/

12.5

Panel thickness

0.75-1.24

1.25-1.99

2.00-3.00

Dim X

26.1/26.2

26.3/26.4

26.7/26.8

Bezel

Legend printing

Select from the

examples or call factory for

custom legends

Panel cut-out

27.2/

27.3

On when pressed over terminal 1

9.0

5.2

29.5

1250SP

Shown in P body

12.4/

12.5

15.0

PCB 0.8sq

(N body only)

ON - OFF

Single pole

Panel thickness

0.75-3.00

Cut-outs must be punched in the direction of insertion

Dimensions

(mm)

1250AN

(C terminals shown)

11.0

4.0

21.0

9.8

10.6

1250AN

(X terminals shown)

11.0 17.0

4.0

3.2

6.0

4.0

1250AP

(C terminals shown)

26.0

9.8

10.6

Examples of our range of legend printing

( ) is legend color B-Black, W-White, R-Red

10.6

Facia Sub-panel

Panel

085(B)

086(B)

ARCOLECTRIC CORPORATION

31-315 Plantation Drive, Thousand Palms, CA 92276 Tel: 760-343-3650 Fax: 760-343-3651 email: info@arcolectric.com
