MBM29LV800B-10PR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> MBM29LV800B-10PR

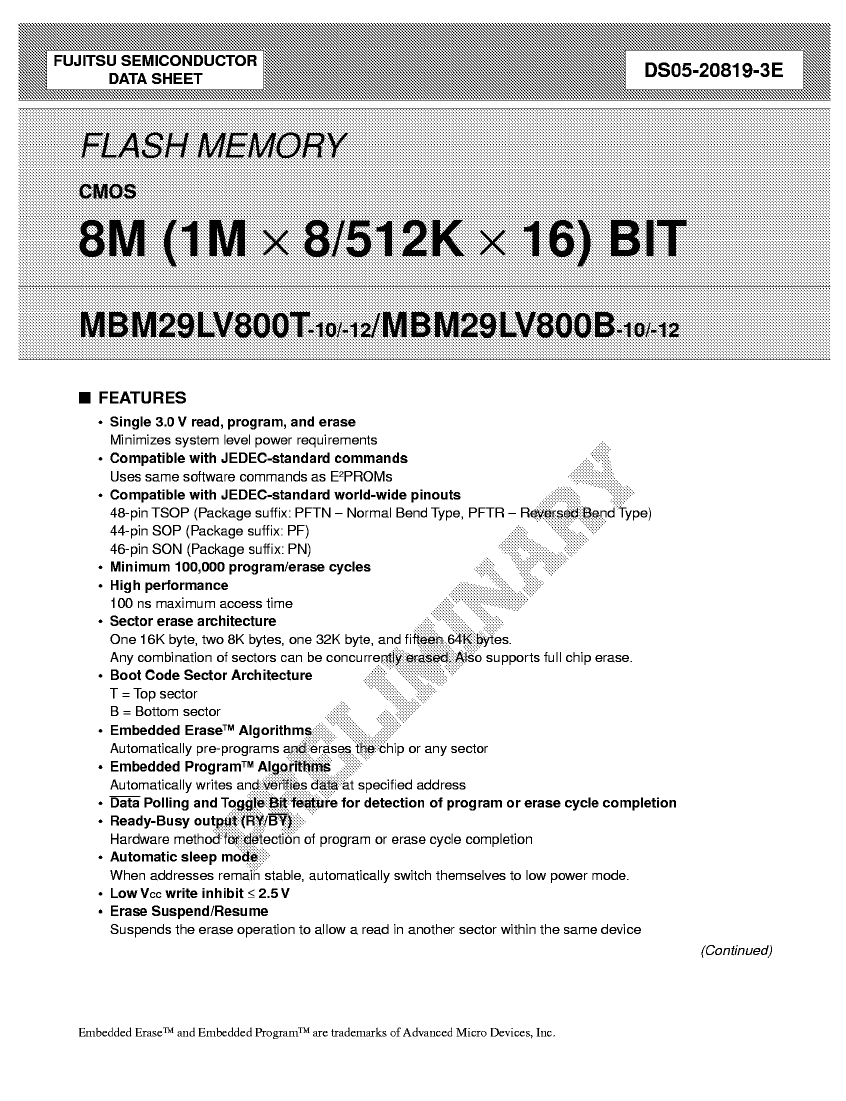

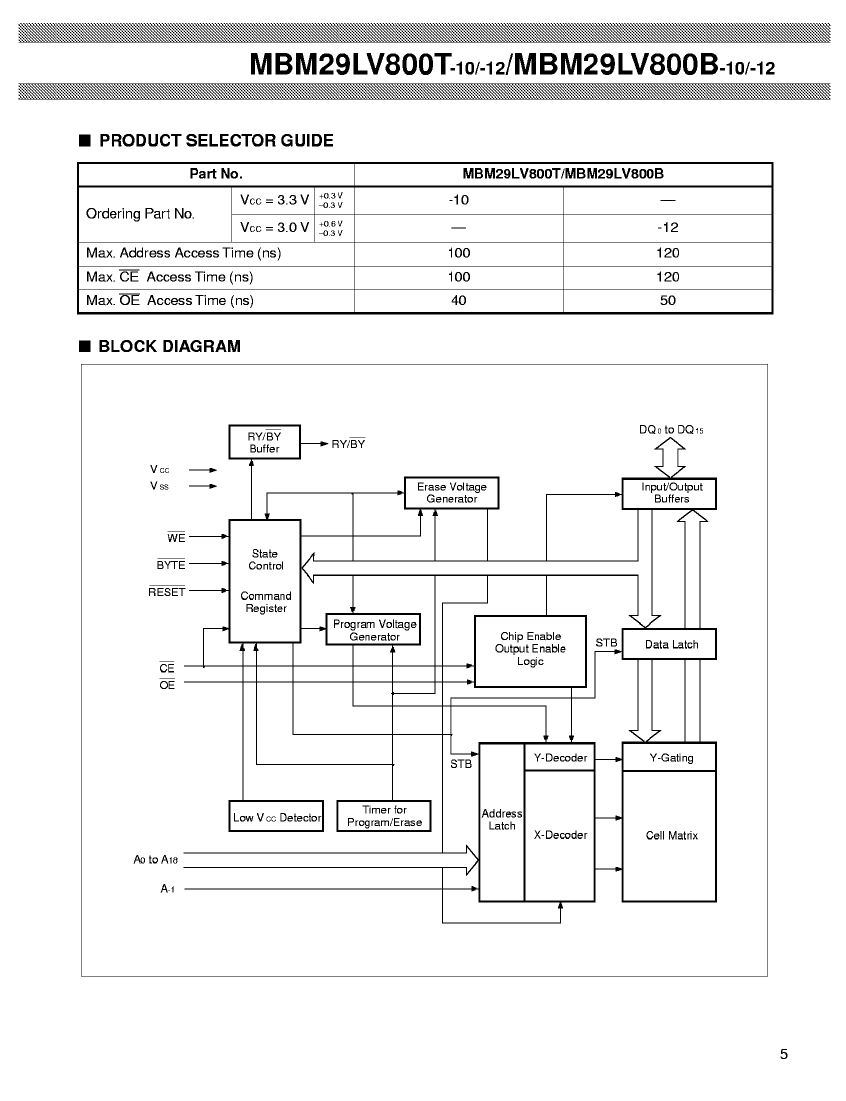

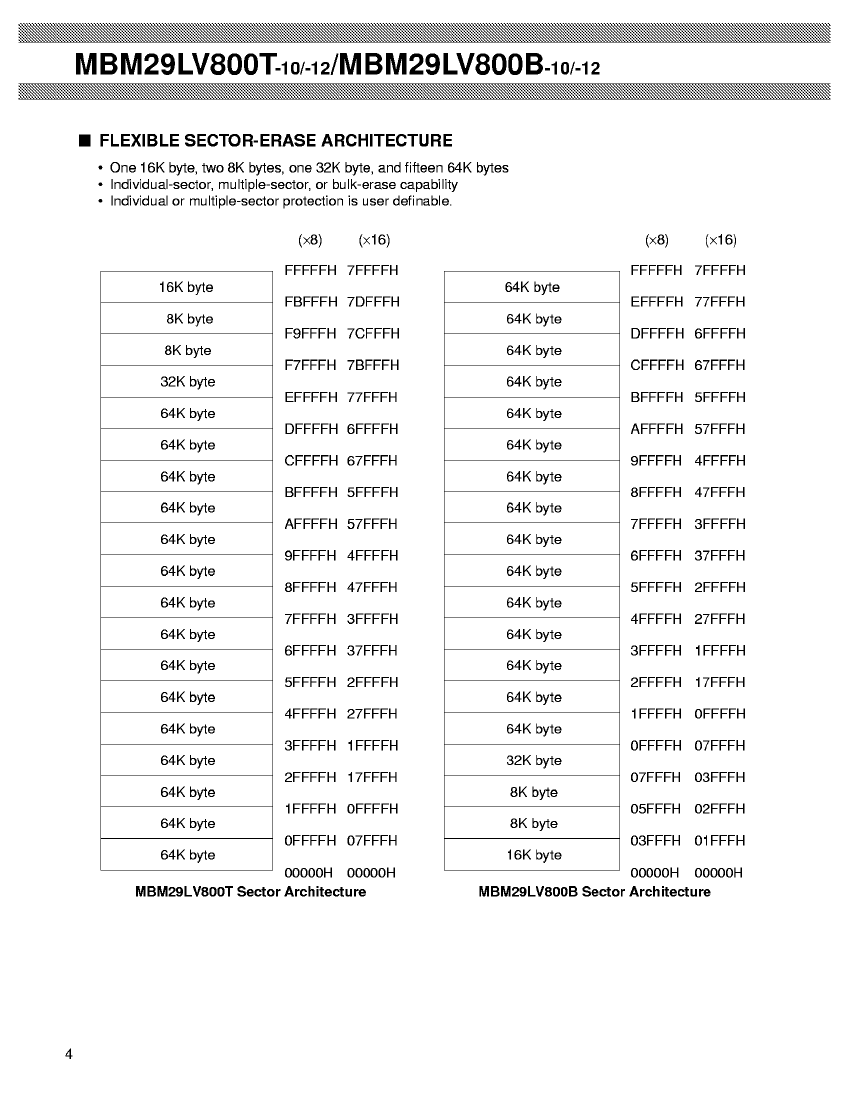

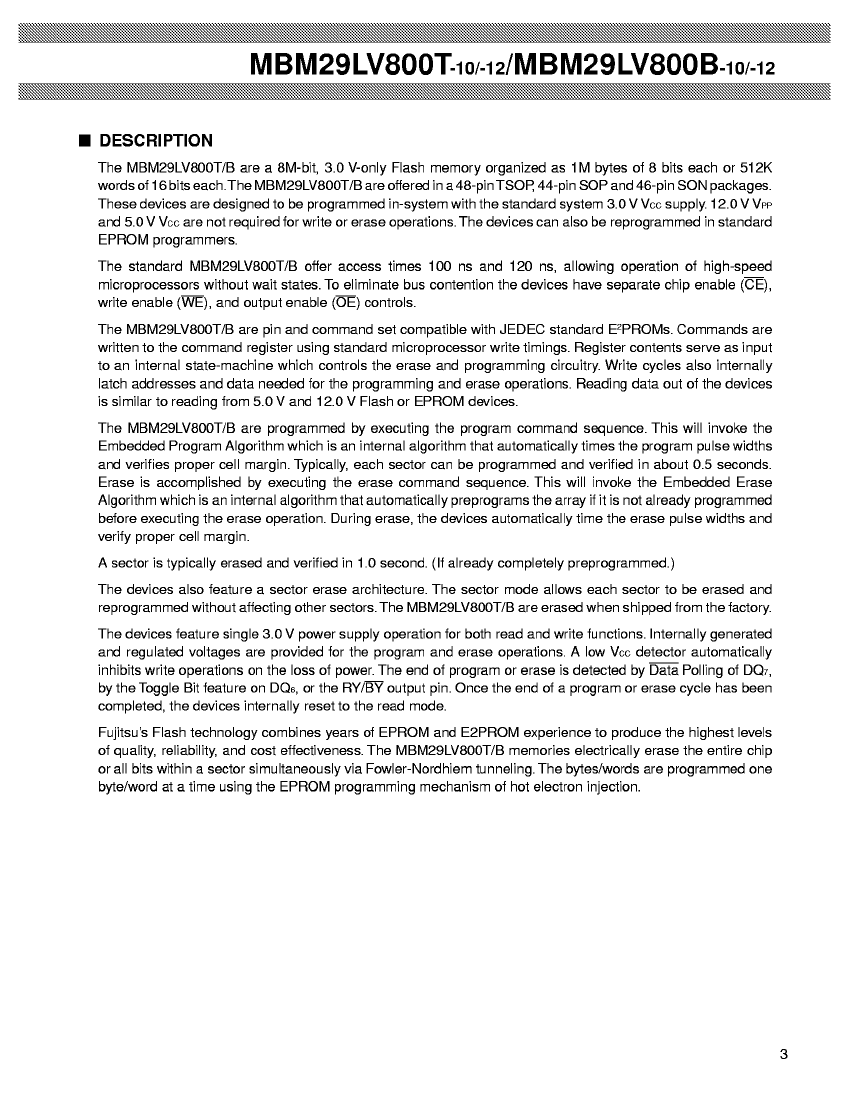

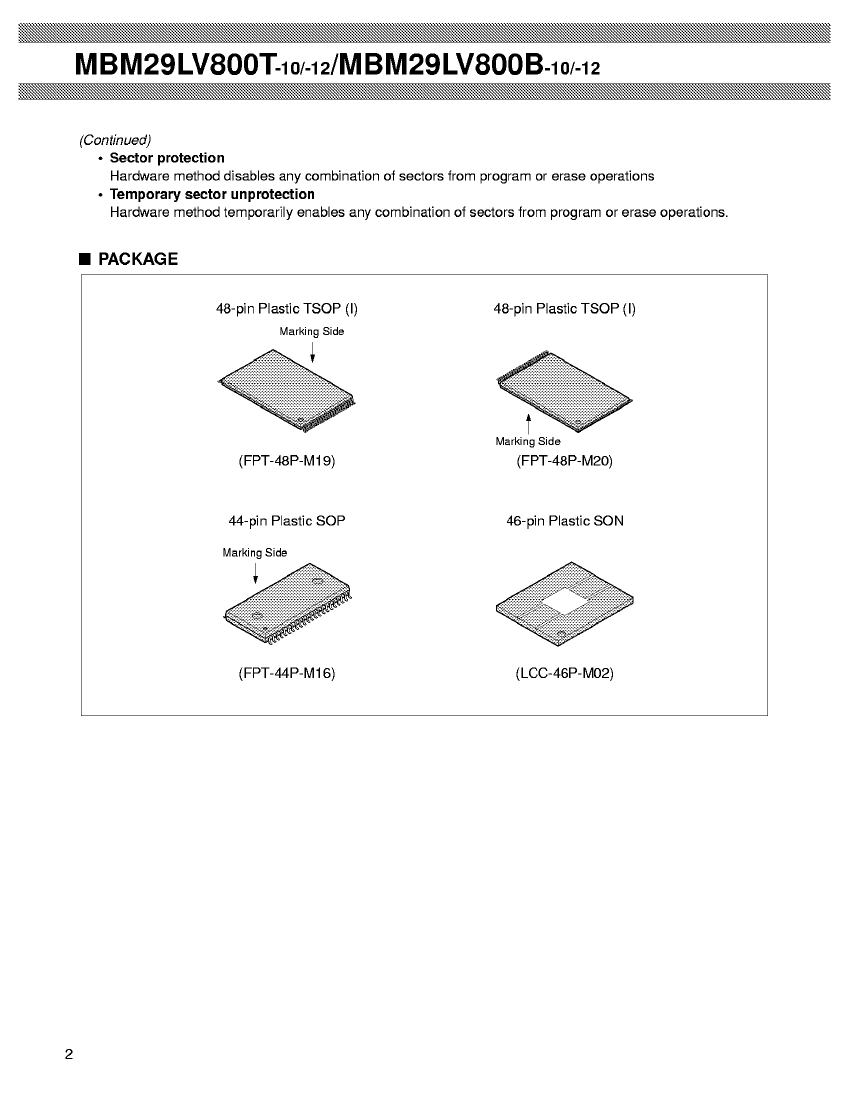

Preview

MBM29LV800B-10PR: Description1MX8 FLASH 3V PROM, 100ns, PDSO46; Categorystorage storage; File Size2MB，51 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

MBM29LV800B-10PR Overview

1MX8 FLASH 3V PROM, 100ns, PDSO46

MBM29LV800B-10PR Parametric

Parameter Name	Attribute value
Objectid	1439438807
package instruction	SON,
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
Maximum access time	100 ns
Other features	CAN ALSO BE CONFIGURABLE AS 512K X 16 ;100K PROGRAM/ERASE CYCLE MIN
startup block	BOTTOM
JESD-30 code	R-PDSO-N46
memory density	8388608 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of terminals	46
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX8
Package body material	PLASTIC/EPOXY
encapsulated code	SON
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Programming voltage	3 V
Certification status	Not Qualified
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	DUAL
type	NOR TYPE

Preview

Download Datasheet

View All

MBM29LV800B-10PR Related Products

	MBM29LV800B-10PR	MBM29LV800B-10PFTN	MBM29LV800B-12PFTN	MBM29LV800T-10PR	MBM29LV800T-12PR	MBM29LV800B-12PR	MBM29LV800B-10PFTR
Description	1MX8 FLASH 3V PROM, 100ns, PDSO46	Flash, 1MX8, 100ns, PDSO48, PLASTIC, TSOP1-48	Flash, 1MX8, 120ns, PDSO48, PLASTIC, TSOP1-48	Flash, 1MX8, 100ns, PDSO46	Flash, 1MX8, 120ns, PDSO46	Flash, 1MX8, 120ns, PDSO46	Flash, 1MX8, 100ns, PDSO48, PLASTIC, REVERSE, TSOP1-48
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	100 ns	100 ns	120 ns	100 ns	120 ns	120 ns	100 ns
Other features	CAN ALSO BE CONFIGURABLE AS 512K X 16 ;100K PROGRAM/ERASE CYCLE MIN	CAN ALSO BE CONFIGURABLE AS 512K X 16 ;100K PROGRAM/ERASE CYCLE MIN	CAN ALSO BE CONFIGURABLE AS 512K X 16 ;100K PROGRAM/ERASE CYCLE MIN	CAN ALSO BE CONFIGURABLE AS 512K X 16 ;100K PROGRAM/ERASE CYCLE MIN	CAN ALSO BE CONFIGURABLE AS 512K X 16 ;100K PROGRAM/ERASE CYCLE MIN	CAN ALSO BE CONFIGURABLE AS 512K X 16 ;100K PROGRAM/ERASE CYCLE MIN	CAN ALSO BE CONFIGURABLE AS 512K X 16 ;100K PROGRAM/ERASE CYCLE MIN
startup block	BOTTOM	BOTTOM	BOTTOM	TOP	TOP	BOTTOM	BOTTOM
JESD-30 code	R-PDSO-N46	R-PDSO-G48	R-PDSO-G48	R-PDSO-N46	R-PDSO-N46	R-PDSO-N46	R-PDSO-G48
memory density	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bi
Memory IC Type	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
memory width	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1
Number of terminals	46	48	48	46	46	46	48
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX8	1MX8	1MX8	1MX8	1MX8	1MX8	1MX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SON	TSOP1	TSOP1	SON	SON	SON	TSOP1-R
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Programming voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	2.7 V	3 V	2.7 V	2.7 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3 V	3.3 V	3 V	3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	GULL WING	GULL WING	NO LEAD	NO LEAD	NO LEAD	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
package instruction	SON,	PLASTIC, TSOP1-48	TSOP1, TSSOP48,.8,20	-	-	-	PLASTIC, REVERSE, TSOP1-48
Maker	-	-	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU
