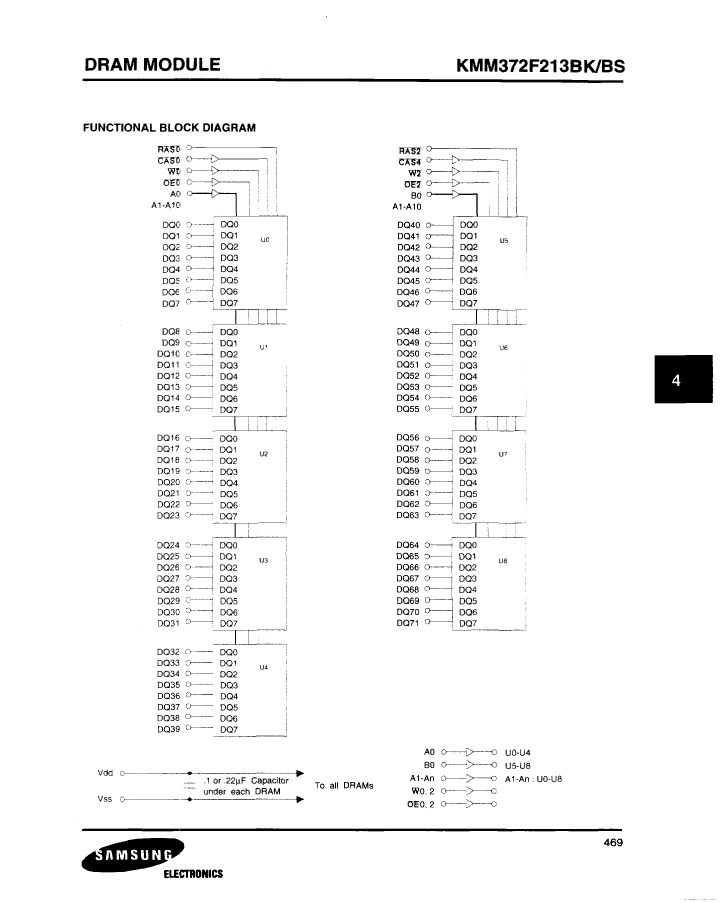

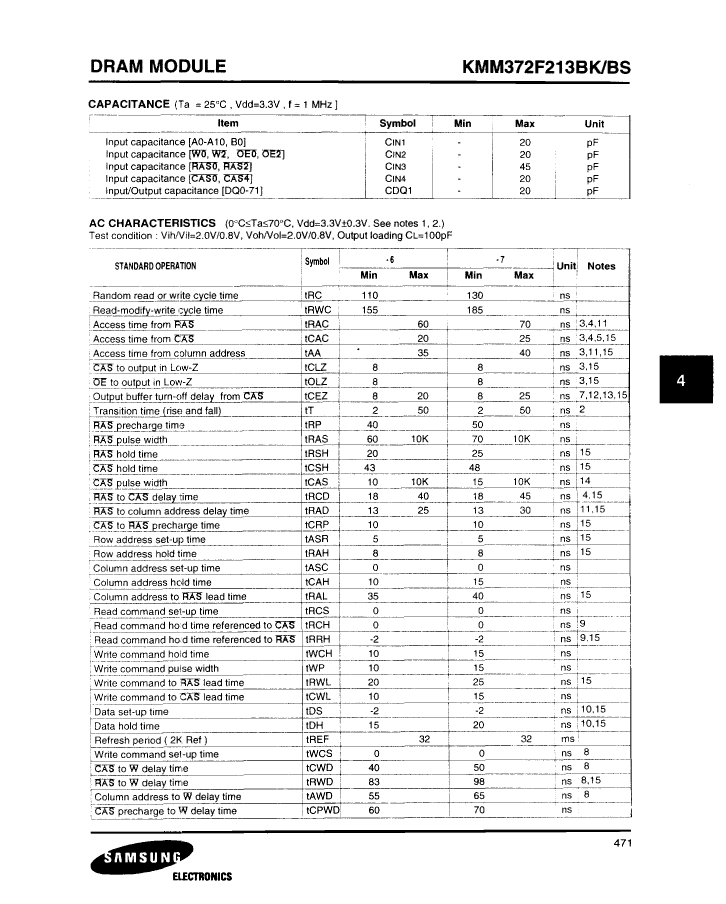

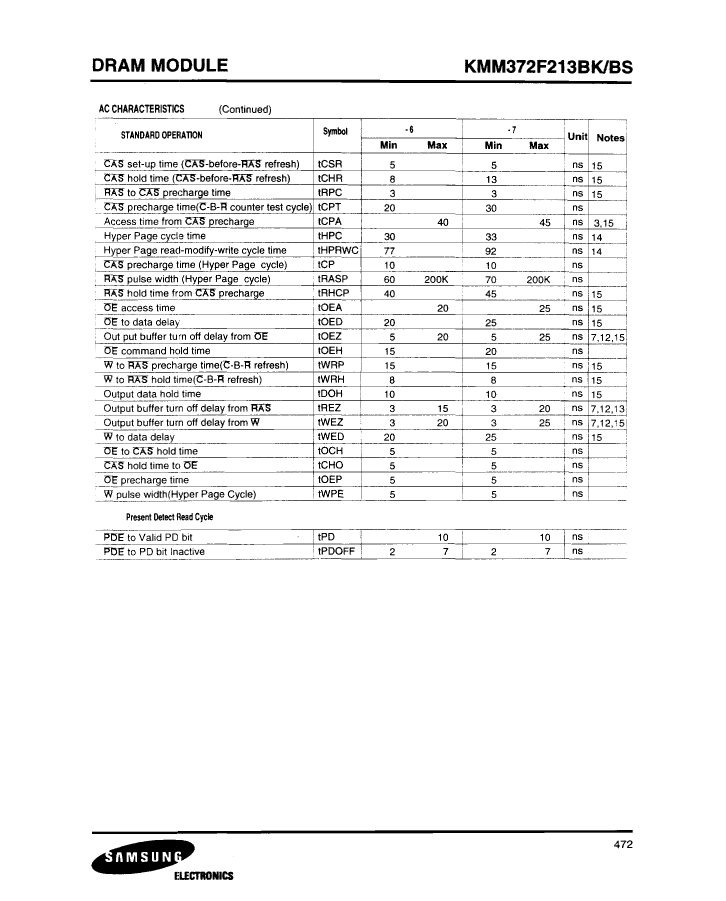

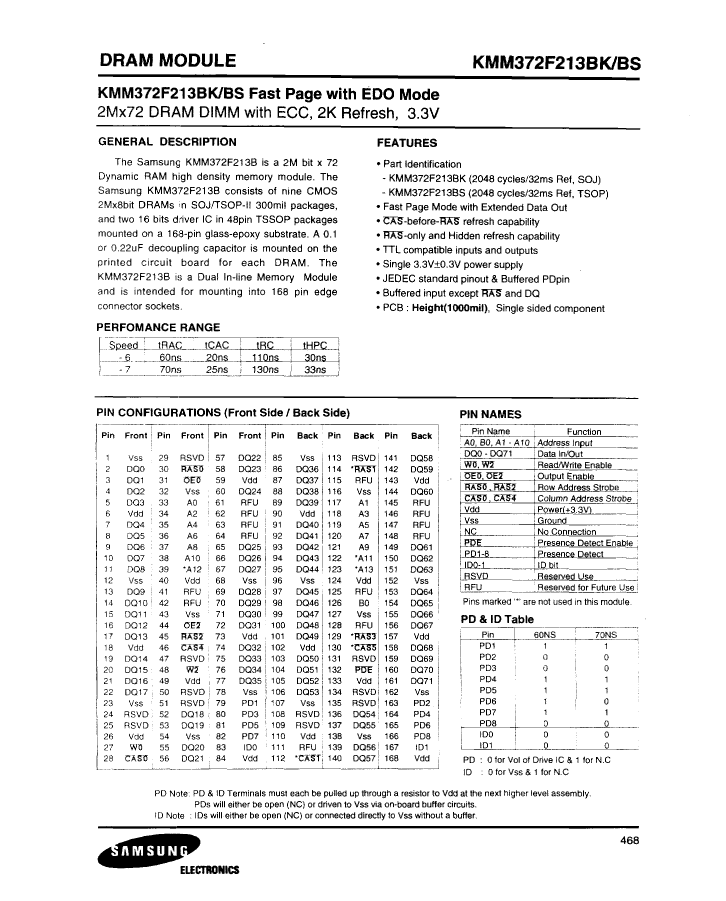

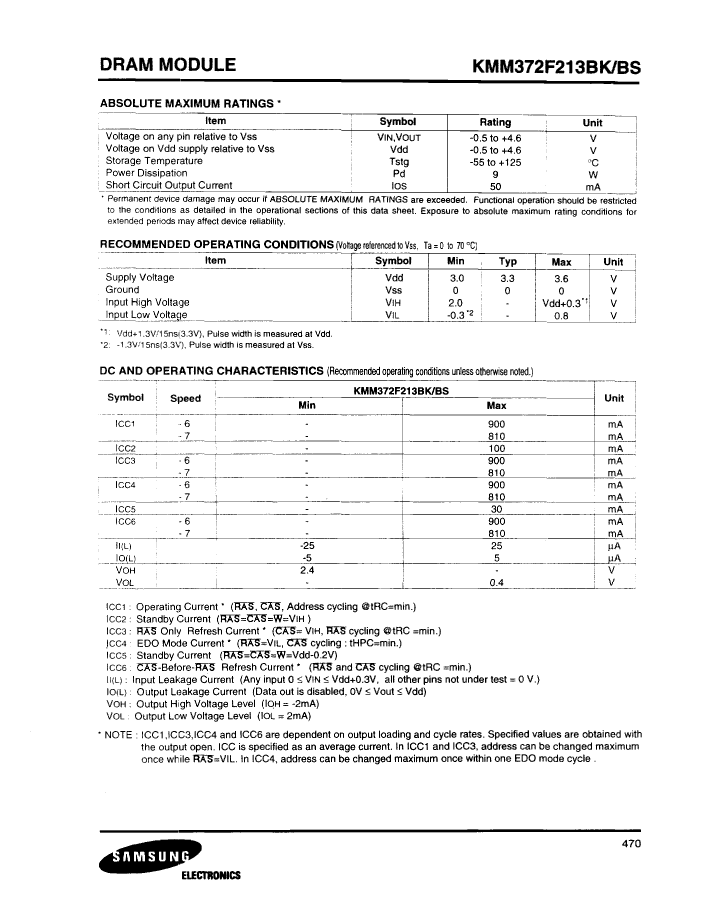

Preview

KMM372F213BS-6: DescriptionEDO DRAM Module, 2MX72, 60ns, CMOS, DIMM-168; Categorystorage storage; File Size287KB，7 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KMM372F213BS-6 Overview

EDO DRAM Module, 2MX72, 60ns, CMOS, DIMM-168

KMM372F213BS-6 Parametric

Parameter Name	Attribute value
Maker	SAMSUNG
Parts packaging code	DIMM
package instruction	DIMM, DIMM168
Contacts	168
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE WITH EDO
Maximum access time	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
Spare memory width	32
I/O type	COMMON
JESD-30 code	R-XDMA-N168
memory density	150994944 bit
Memory IC Type	EDO DRAM MODULE
memory width	72
Number of functions	1
Number of ports	1
Number of terminals	168
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX72
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM168
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	2048
Maximum seat height	25.4 mm
self refresh	NO
Maximum standby current	0.03 A
Maximum slew rate	0.9 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

KMM372F213BS-6 Related Products

	KMM372F213BS-6	KMM372F213BK-6	KMM372F213BK-7	KMM372F213BS-7
Description	EDO DRAM Module, 2MX72, 60ns, CMOS, DIMM-168	EDO DRAM Module, 2MX72, 60ns, CMOS, DIMM-168	EDO DRAM Module, 2MX72, 70ns, CMOS, DIMM-168	EDO DRAM Module, 2MX72, 70ns, CMOS, DIMM-168
Parts packaging code	DIMM	DIMM	DIMM	DIMM
package instruction	DIMM, DIMM168	DIMM, DIMM168	DIMM, DIMM168	DIMM, DIMM168
Contacts	168	168	168	168
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	60 ns	60 ns	70 ns	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
Spare memory width	32	32	32	32
I/O type	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168
memory density	150994944 bit	150994944 bit	150994944 bit	150994944 bit
Memory IC Type	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE
memory width	72	72	72	72
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	168	168	168	168
word count	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	2MX72	2MX72	2MX72	2MX72
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIMM	DIMM	DIMM	DIMM
Encapsulate equivalent code	DIMM168	DIMM168	DIMM168	DIMM168
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	2048	2048	2048	2048
Maximum seat height	25.4 mm	25.4 mm	25.4 mm	25.4 mm
self refresh	NO	NO	NO	NO
Maximum standby current	0.03 A	0.03 A	0.03 A	0.03 A
Maximum slew rate	0.9 mA	0.9 mA	0.81 mA	0.81 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maker	SAMSUNG	-	SAMSUNG	SAMSUNG
