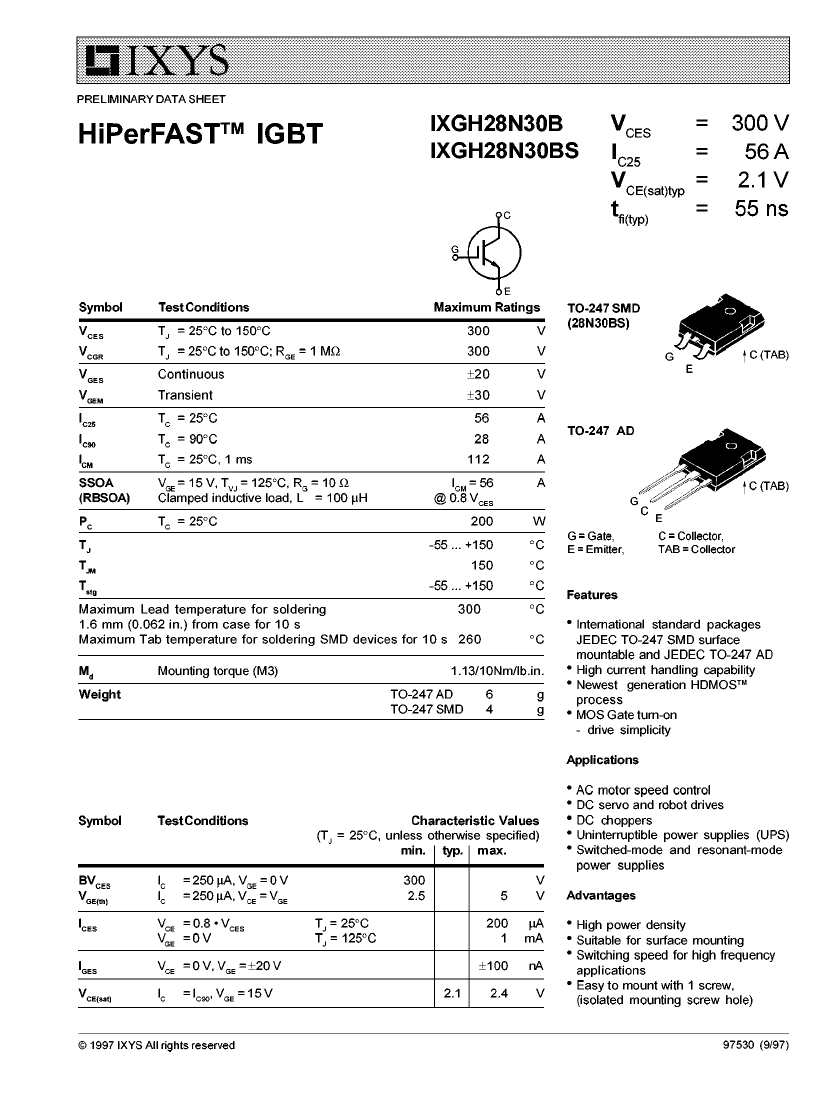

Insulated Gate Bipolar Transistor, 56A I(C), 300V V(BR)CES, N-Channel, TO-247SMD, 3 PIN

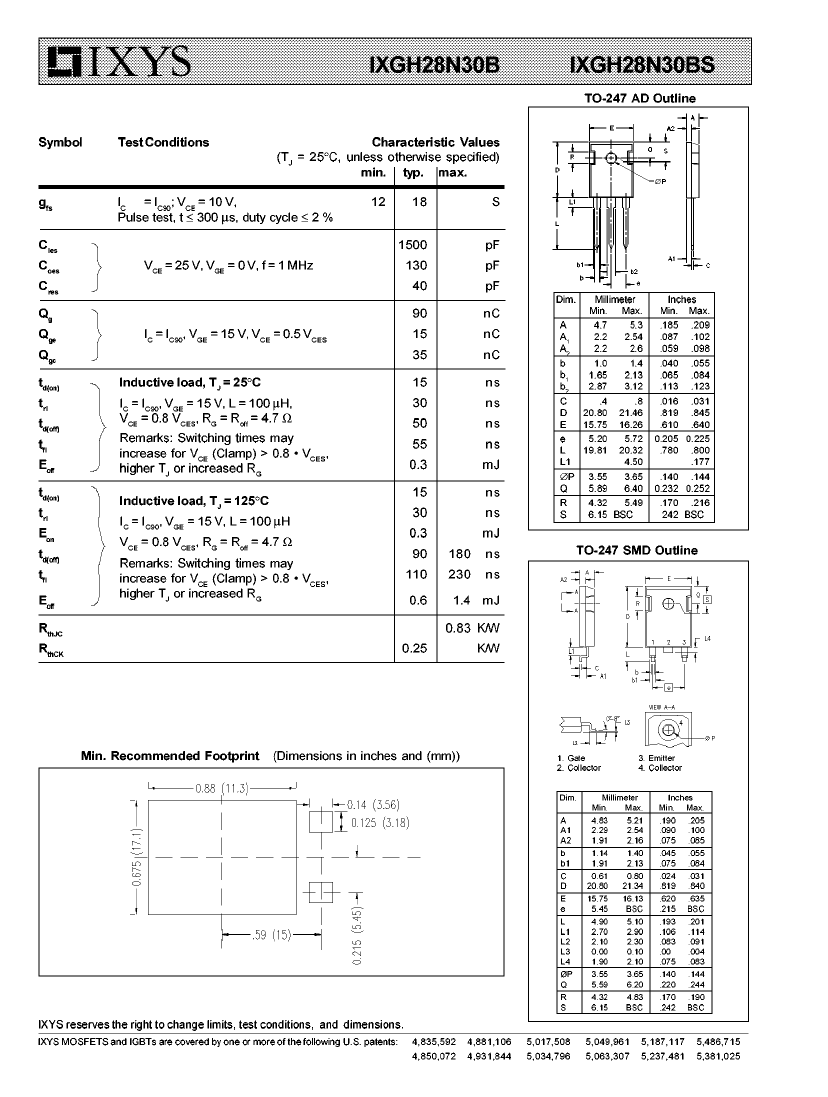

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | IXYS |
| Parts packaging code | TO-247SMD |
| package instruction | TO-247SMD, 3 PIN |
| Contacts | 3 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | FAST |
| Shell connection | COLLECTOR |
| Maximum collector current (IC) | 56 A |
| Collector-emitter maximum voltage | 300 V |
| Configuration | SINGLE |
| Gate emitter threshold voltage maximum | 5 V |
| Gate-emitter maximum voltage | 20 V |
| JESD-30 code | R-PSFM-G2 |
| Number of components | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | N-CHANNEL |
| Maximum power dissipation(Abs) | 200 W |
| Certification status | Not Qualified |
| surface mount | YES |
| Terminal form | GULL WING |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| transistor applications | MOTOR CONTROL |
| Transistor component materials | SILICON |
| Nominal off time (toff) | 90 ns |
| Nominal on time (ton) | 15 ns |
