5449-6-30-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5449-6-30-0

5449-6-30-0: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size120KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

5449-6-30-0 Overview

Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking

5449-6-30-0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.346 inch
subject depth	0.358 inch
body length	1.8 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	800VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
Manufacturer's serial number	5446
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	6u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	30

Preview

Download Datasheet

View All

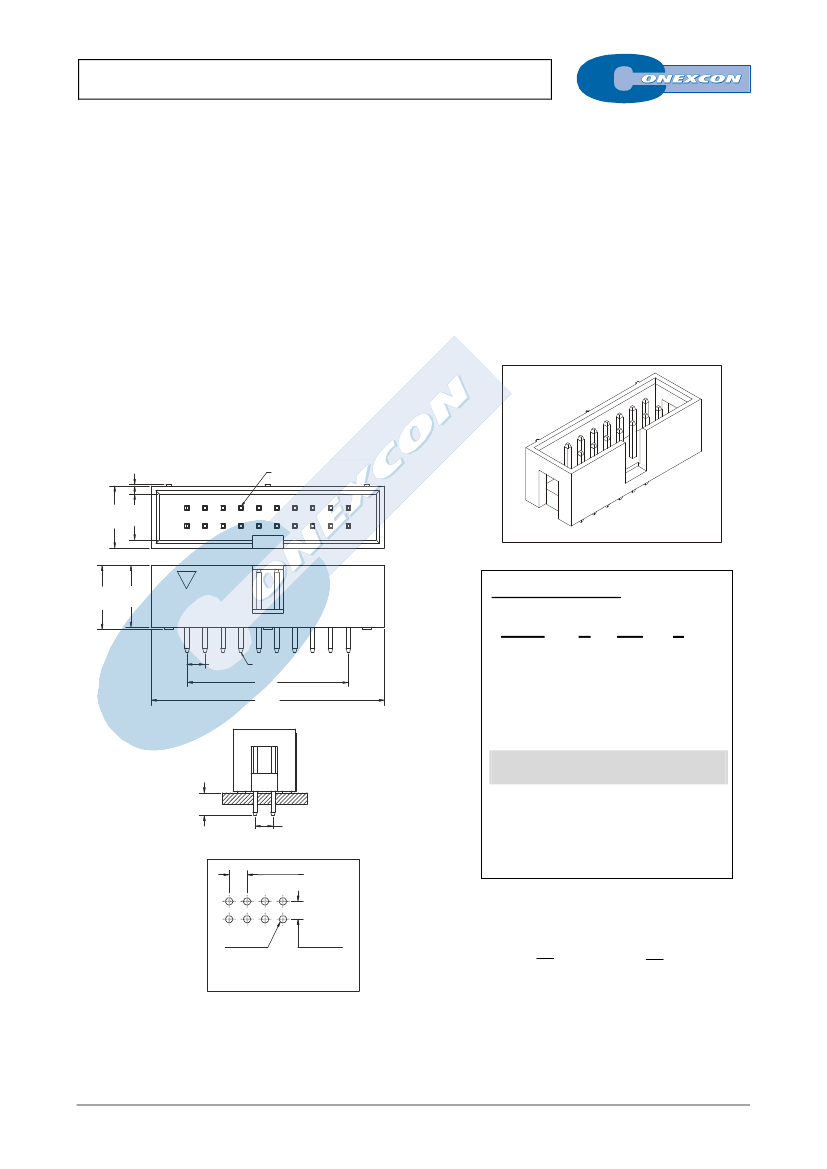

DUAL ROW TOP ENTRY BOX HEADER

5446 SERIES.

2.54 x 2.54 mm. (0.100 x 0.100”) pitch.

General Features

Electrical Features



Available in 6, 8, 10, 12, 14, 16, 20, 24, 26, 30, 34, 40, 44,

50, 60 and 64 circuits

Mates with 2.54 mm crimp housing 2646 series, IDC conn.

5435 series and PCB connectors 5448 and 5449 Series

Gold plated 0.64 mm. square pin

Fully shrouded with polarized slot.



Voltage rating: < 250V

Current rating: < 2 A

Contact resistance: < 20 mΩ

Dielectric withstanding Voltage: 800 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Insulator: PBT UL 94 V-0

Terminal: gold plated brass

Operating temperature. -25ºC to +85ºC

RoHS compliant

Mechanical Features



Pin retention force to insulator: > 1.00 Kgf

Durability: 50 Cycles

Dimension Information

0.20

0.64. mm square

8.80

6.50

9.10

8.80

Ordering Information:

5446 -

2.54

0.64. mm square

T-

XX-

1. Connector Series

2. (T) Contact Plating



3.20

2.54

T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel



3. (XX) Number of circuits

Available in 6 through 64 circuits

2.54±0.05

.100±.002

Dimensions:

(In mm.)

1.02±0.05

.040±.002

2.54±0.05

.100±.002





2.54











(XX) = Number of circuits





2.54



 

7.62







RECOMMENDED HOLE PATTERN

A-XX

FULL LINE CATALOGUE
