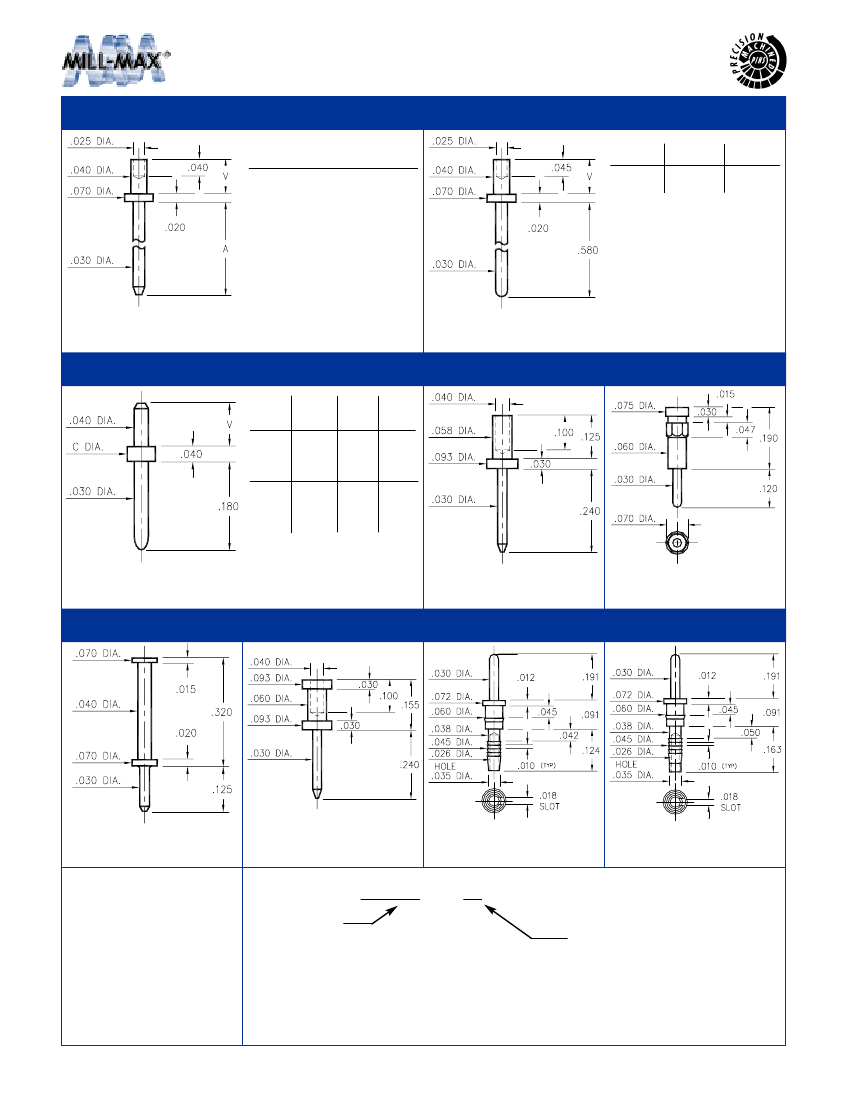

PRINTED CIRCUIT PINS

3110/3111

Basic

Part

Number

3110-1

3110-2

3110-3

3111-1

3111-2

3111-3

Board

Thick-

ness

.031

.062

.094

.031

.062

.094

Length

A

.150

.300

Length

V

.051

.082

.113

.051

.082

.113

3150

Basic Part

Number

Board

Thickness

Length

V

3150-1

3150-2

.031

.062

.051

.082

311X-X-00-XX-00-00-08-0

Swage mount in .043 hole

3150-X-00-XX-00-00-08-0

Swage mount in .043 mounting hole

3136/3137

Basic

Part

Number

3136-1

3136-2

3136-3

3137-1

3137-2

3137-3

3137-4

Flange

Dia.

C

.078

Board

Thick-

ness

.062

.094

.125

.062

.094

.125

.156

Length

V

.082

.110

.145

.082

.110

.145

.185

3148

8815

.062

313X-X-00-XX-00-00-08-0

Solder mount in .043 mounting hole

3148-3-00-XX-00-00-08-0

Swage mount in .062 hole

for .094 thick board

8815-0-00-XX-00-00-03-0

Hex press-fit in .066

plated thru hole

6821

3132

5601

5602

6821-0-00-XX-00-00-08-0

Wire Termination

3132-0-00-XX-00-00-08-0

Wire Termination

Material is annealed

5601-0-01-XX-00-00-03-0

Compliant press-fit in .040±.003 plated

hole. For .060→.100 thick board.

5602-0-01-XX-00-00-03-0

Compliant press-fit in .040±.003 plated

hole. For .090→.130 thick board.

SPECIFICATIONS

PIN MATERIAL:

Brass Alloy 360, 1/2 Hard

( Except Swage pins which

are annealed )

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - 0X - XX - 00 - 00 - 0X - 0

BASIC PART #

SPECIFY PIN FINISH:

01

200µ"

TIN/LEAD OVER

NICKEL

15

10µ"

GOLD OVER

NICKEL

21

20µ"

GOLD OVER

NICKEL

34

50µ"

GOLD OVER

NICKEL

Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253
