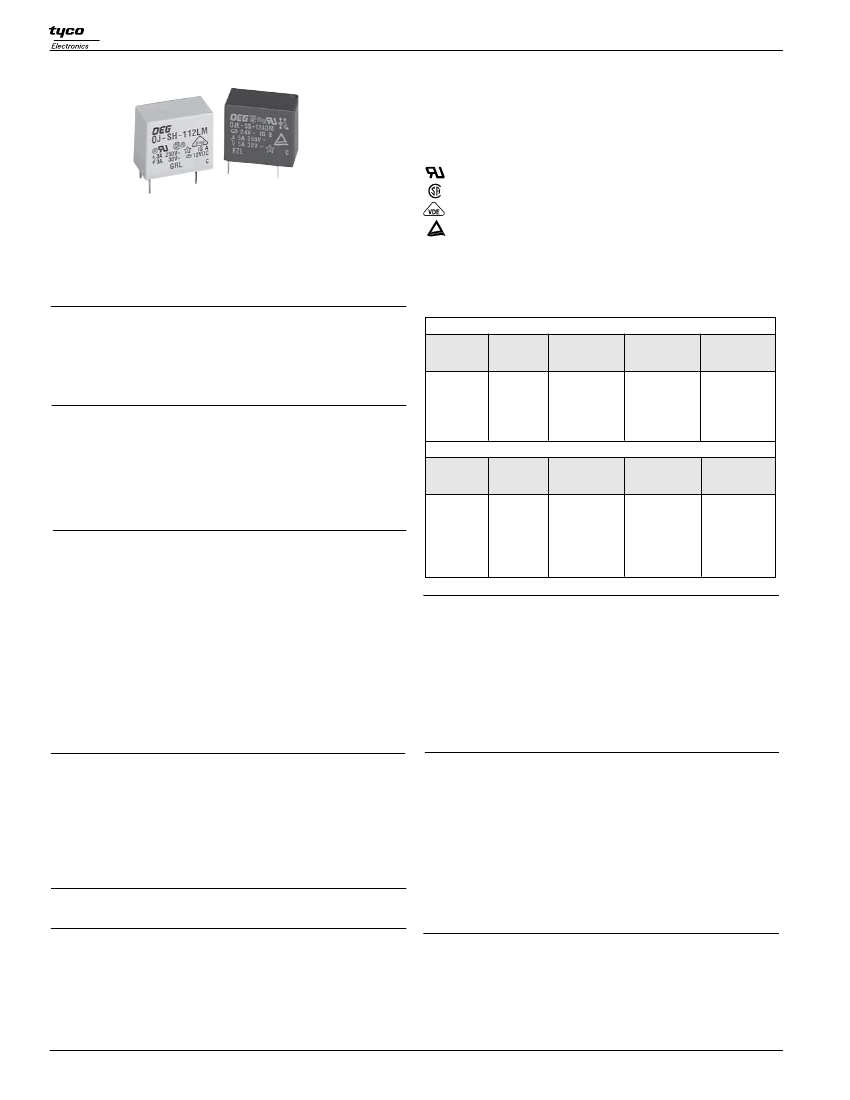

Catalog 1308242
Issued 3-03 (PDF Rev.11-04)
OEG
OJ/OJE
series
3-10 Amp Miniature,
PC Board Relay
Appliances, HVAC, Industrial Control.
UL File No. E82292
CSA File No. LR48471
VDE File No. 10080
TUV File No. R75081
Users should thoroughly review the technical data before selecting a product part
number. It is recommended that user also seek out the pertinent approvals files of
the agencies/laboratories and review them to ensure the product meets the
requirements for a given application.
Features
• Miniature size 18.2 x 10.2 x 14.7h.
• 1 Form A (SPST-NO) contact arrangement.
• Designed to meet UL, CSA, VDE, TUV requirements.
• Designed to meet 4kV dielectric between coil and contacts (OJ).
• Sensitive and standard coils available.
• Immersion cleanable, sealed version available.
Coil Data @ 20°C
OJ/OJE-L Sensitive
Rated Coil
Voltage
(VDC)
5
6
9
12
24
Nominal
Current
(mA)
40.0
33.3
22.5
16.7
8.6
Coil
Resistance
(ohms)
±
10%
125
180
400
720
2,800
Must Operate
Voltage
(VDC)
3.75
4.50
6.75
9.00
18.00
Must Release
Voltage
(VDC)
0.25
0.30
0.45
0.60
1.20
Contact Data @ 20°C
Arrangements:
1 Form A (SPST-NO).
Material:
Ag, Ag Alloy.
Max. Switching Rate:
300 ops./min. (no load).
30 ops./min. (rated load).
Expected Mechanical Life:
10 million operations (no load).
Expected Electrical Life:
100,000 operations (rated load).
Minimum Load:
100mA @5VDC.
Initial Contact Resistance:
100 milliohms @ 1A,6VDC.
OJ/OJE-D and -H Standard
Rated Coil
Voltage
(VDC)
5
6
9
12
24
48
Nominal
Current
(mA)
91.0
75.0
50.0
37.5
18.8
9.4
Coil
Resistance
(ohms)
±
10%
55
80
180
320
1,280
5,100
Must Operate
Voltage
(VDC)
3.50
4.20
6.30
8.40
16.80
33.60
Must Release
Voltage
(VDC)
0.25
0.30
0.45
0.60
1.20
2.40
Contact Ratings
3A @ 250VAC resistive,
3A @ 28VDC resistive.
OJ/OJE-LMH:
8A @ 250VAC resistive,
8A @ 28VDC resistive.
OJ/OJE-DM:
5A @ 250VAC resistive,
5A @ 28VDC resistive.
OJ/OJE-HM:
10A @ 250VAC resistive,
10A @ 28VDC resistive.
Max. Switched Voltage: AC:
265V.
DC:
30V.
Max. Switched Power:
OJ/OJE-LM:
720VA, 90W
OJ/OJE-LMH:
1,800VA, 200W
OJ/OJE-DM:
1,200VA, 150W
OJ/OJE-HM:
2,500VA, 280W
Note:
Consult factory regarding TV-5 rated models.
Ratings: OJ/OJE-LM:
Operate Data
Must Operate Voltage:
OJ/OJE -L:
75% of nominal voltage or less.
OJ/OJE -D and -H:
70% of nominal voltage or less.
Must Release Voltage:
OJ/OJE -L:
5% of nominal voltage or more.
OJ/OJE -D and -H:
5% of nominal voltage or more.
Operate Time: OJ/OJE -L:
15 ms max.
OJ/OJE -D and -H:
10 ms max.
Release Time:
4 ms max.
Initial Dielectric Strength
Between Open Contacts:
OJ:
750VAC 50/60 Hz. (1 minute).
OJE:
750VAC 50/60 Hz. (1 minute).
Between Coil and Contacts:
OJ:
4,000VAC 50/60 Hz. (1 minute).
OJE:
3,000VAC 50/60 Hz. (1 minute).
Surge Voltage Between Coil and Contacts:
OJ:
10,000V (1.2/50µs).
OJE:
5,000V (1.2/50µs).
Environmental Data
Temperature Range:
Operating, Class A (105
°
C) Insulation:
OJ/OJE-L:
-30°C to +80°C
OJ/OJE-D & -H:
-30°C to +60°C.
Operating, Class F (155
°
C) Insulation:
OJ/OJE-L:
-30°C to +105°C
OJ/OJE-D and -H:
-30°C to +85°C.
Vibration, Mechanical:
10 to 55 Hz., 1.5mm double amplitude
Operational:
10 to 55 Hz., 1.5mm double amplitude.
Shock, Mechanical:
1,000m/s
2
(100G approximately).
Operational:
100m/s
2
(10G approximately).
Operating Humidity:
20 to 85% RH. (Non-condensing).
Initial Insulation Resistance
Between Mutually Insulated Elements:
1,000M ohms min. @ 500VDCM.
Coil Data
Voltage:
5 to 48VDC.
Nominal Power: OJ/OJE-LM and LMH:
200 mW.
OJ/OJE-DMand HM:
450 mW.
Coil Temperature Rise:
OJ/OJE-LM and LMH :
30°C max., at rated coil voltage.
OJ/OJE-DM and HM:
40°C max., at rated coil voltage.
Max. Coil Power:
130% of nominal.
Duty Cycle:
Continuous.
Dimensions are shown for
422
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Mechanical Data
Termination:
Printed circuit terminals.
Enclosure (94V-0 Flammability Ratings):
OJ/OJE-SS:
Vented (Flux-tight), plastic cover.
OJ/OJE-SH:
Sealed, plastic case.
Weight:
0.32 oz (9g) approximately.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
Refer to inside back cover.
Catalog 1308242
Issued 3-03 (PDF Rev. 11-04)
OEG
Ordering Information
Typical Part Number
1. Basic Series:
OJ = 4kV dielectric, coil and contacts.
OJE = 3kV dielectric, coil and contacts.
2. Enclosure:
SS = Vented (Flux-tight)*, plastic cover.
SH = Sealed, plastic case.
3. Termination:
1 = 1 pole
4. Coil Voltage:
05 = 5VDC
06 = 6VDC
09 = 9VDC
12 = 12VDC
24 = 24VDC
48 = 48VDC
D = Standard (450mW) Coil, 5A Contacts
B
OJE
-SH
-1
12
L
M
H
F
,095
5. Coil Input/Contact Rating:
L = Sensitive (200mW) Coil, 3A Contacts**
H = Standard (450mW) Coil, 10A Contacts
6. Contact Arrangement:
M = 1 Form A, SPST-NO
7. High Capacity Contact Rating Option for Sensitive Coil:
H = 8A Contacts (Only available with Coil Input/Contact Rating code "L").
8. Insulation System:
Leave Blank = Class A (105°C)
F = Class F (155°C)
,095 = Standard model for enclosure code "SH"
Other Suffix = Custom model
9. Suffix:
,000 = Standard model for enclosure code "SS"
* Not suitable for immersion cleaning processes.
** For higher contact rating with sensitve coil, add suffix "H" to the end of the part number as indicated in step 7 of Ordering Information.
Our authorized distributors are more likely to stock the following items for immediate delivery.
OJ-SH-105HM,095
OJ-SH-112LMH,095
OJ-SH-124LMH,095
OJE-SH-105DM,095
OJE-SH-112DM,095
OJE-SH-124DM,095
OJE-SH-112HM,095
OJE-SH-105LMH,095
OJE-SH-112LMH,095
OJE-SH-124LMH,095
Outline Dimensions
Wiring Diagram (Bottom View)
.58
±
.02
(14.7
±
.5)
.018 x .018
(.45 x .45)
.012
(.3)
.157
±
.012
(4.00
±
.3)
.012
(.3)
.401
±
.02
(10.2
±
.5)
.039
(1.0)
.039
(1.0)
PC Board Layout (Bottom View)
4 – .05 DIA
(1.3) .067
(1.71)
.300
±
.008
(7.62
±
.2)
.300
±
.004
(7.6
±
.1)
.500
±
.008
(12.70
±
.2)
.716
±
.02
(18.2
±
.5)
.067
(1.71)
.1
±
.008
(2.54
±
.2)
.500
±
.004
(12.7
±
.1)
.100
±
.004
(2.54
±
.1)
Reference Data
Coil Temperature Rise
60
50
Operate Time
12
10
Life Expectancy
100
HM type, 120VAC Res.
LMH type, 250VAC Res.
Temp. Rise (°C)
Time (msec)
40
30
20
10
8
6
Operate Time
4
2
Release Time
Operation (x 10
4
)
10
LM type, 250VAC Res.
DM type, 250VAC Res.
1
0.7
0
1
2
3
4
5
6
7
8
9
10
Contact Current (A)
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.1
0.2
0.3
0.4
0.5
0.6
Coil Power (W)
Coil Power (W)
Test relay: OJE-SH-112LMH
Dimensions are shown for
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
423
Refer to inside back cover.
