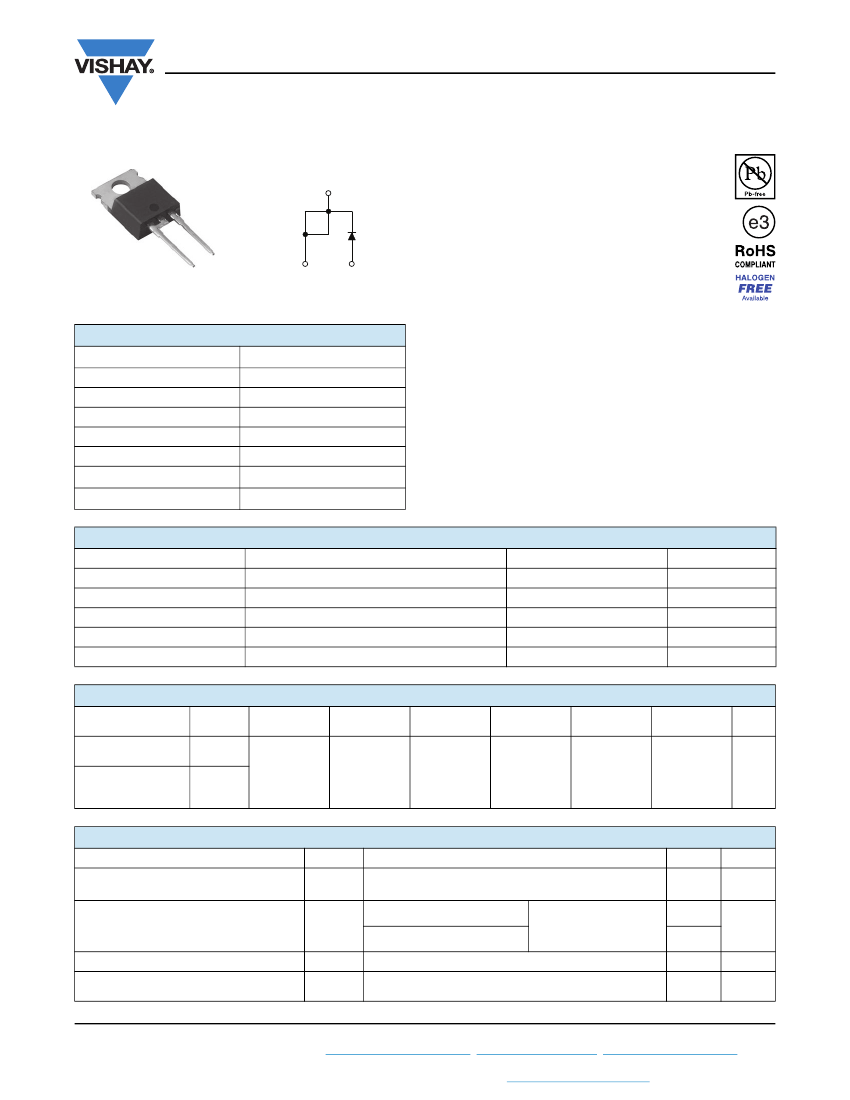

VS-8TQ...PbF Series, VS-8TQ...-N3 Series
www.vishay.com
Vishay Semiconductors
Schottky Rectifier, 8 A
FEATURES
Base
cathode
2
• 175 °C T
J
operation
• Low forward voltage drop
• High frequency operation
• High
purity,
high
temperature
epoxy
encapsulation for enhanced mechanical
strength and moisture resistance
• Guard ring for enhanced ruggedness and long
term reliability
• Compliant to RoHS Directive 2002/95/EC
• Designed and qualified according to JEDEC-JESD47
TO-220AC
1
Cathode
3
Anode
PRODUCT SUMMARY
Package
I
F(AV)
V
R
V
F
at I
F
I
RM
max.
T
J
max.
Diode variation
E
AS
TO-220AC
8A
60 V, 80 V, 100 V
0.58 V
7 mA at 125 °C
175 °C
Single die
7.5 mJ
• Halogen-free according to IEC 61249-2-21 definition
(-N3 only)
DESCRIPTION
The VS-8TQ... Schottky rectifier series has been optimized
for low reverse leakage at high temperature. The proprietary
barrier technology allows for reliable operation up to 175 °C
junction temperature. Typical applications are in switching
power supplies, converters, freewheeling diodes, and
reverse battery protection.
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
I
F(AV)
V
RRM
I
FSM
V
F
T
J
CHARACTERISTICS
Rectangular waveform
Range
t
p
= 5 μs sine
8 A
pk
, T
J
= 125 °C
Range
VALUES
8
60 to 100
850
0.58
- 55 to 175
UNITS
A
V
A
V
°C
VOLTAGE RATINGS
PARAMETER
Maximum DC
reverse voltage
Maximum working
peak reverse
voltage
SYMBOL
V
R
60
V
RWM
60
80
80
100
100
V
VS-
8TQ060PbF
VS-
8TQ060-N3
VS-
8TQ080PbF
VS-
8TQ080-N3
VS-
8TQ100PbF
VS-
8TQ100-N3
UNITS
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Maximum average forward current
See fig. 5
Maximum peak one cycle
non-repetitive surge current
See fig. 7
Non-repetitive avalanche energy
Repetitive avalanche current
SYMBOL
I
F(AV)
TEST CONDITIONS
50 % duty cycle at T
C
= 157 °C, rectangular waveform
5 µs sine or 3 µs rect. pulse
I
FSM
10 ms sine or 6 ms rect. pulse
E
AS
I
AR
Following any rated load
condition and with rated
V
RRM
applied
VALUES
8
850
A
230
7.50
0.50
mJ
A
UNITS
A
T
J
= 25 °C, I
AS
= 0.50 A, L = 60 mH
Current decaying linearly to zero in 1 μs
Frequency limited by T
J
maximum V
A
= 1.5 x V
R
typical
Revision: 29-Aug-11
Document Number: 94265
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-8TQ...PbF Series, VS-8TQ...-N3 Series
www.vishay.com
Vishay Semiconductors
ELECTRICAL SPECIFICATIONS
PARAMETER
SYMBOL
8A
Maximum forward voltage drop
See fig. 1
V
FM (1)
16 A
8A
16 A
Maximum reverse leakage current
See fig. 2
Maximum junction capacitance
Typical series inductance
Maximum voltage rate of change
Note
(1)
Pulse width < 300 μs, duty cycle < 2 %
I
RM (1)
C
T
L
S
dV/dt
T
J
= 25 °C
T
J
= 125 °C
TEST CONDITIONS
T
J
= 25 °C
T
J
= 125 °C
V
R
= rated V
R
VALUES
0.72
0.88
0.58
0.69
0.55
7
500
8
10 000
mA
pF
nH
V/µs
V
UNITS
V
R
= 5 V
DC
(test signal range 100 kHz to 1 MHz) 25 °C
Measured lead to lead 5 mm from package body
Rated V
R
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
Maximum junction and storage
temperature range
Maximum thermal resistance,
junction to case
Typical thermal resistance,
case to heatsink
Approximate weight
minimum
maximum
SYMBOL
T
J
, T
Stg
R
thJC
R
thCS
DC operation
See fig. 4
Mounting surface, smooth and greased
TEST CONDITIONS
VALUES
- 55 to 175
2.0
°C/W
0.50
2
0.07
6 (5)
12 (10)
g
oz.
kgf · cm
(lbf · in)
8TQ060
Marking device
Case style TO-220AC
8TQ080
8TQ100
UNITS
°C
Mounting torque
Revision: 29-Aug-11
Document Number: 94265
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-8TQ...PbF Series, VS-8TQ...-N3 Series
www.vishay.com
Vishay Semiconductors
100
1000
T
J
= 175 °C
I
F
- Instantaneous Forward
Current (A)
I
R
- Reverse Current (mA)
10
1
0.1
0.01
0.001
0.0001
T
J
= 150 °C
T
J
= 125 °C
T
J
= 100 °C
T
J
= 75 °C
T
J
= 50 °C
T
J
= 25 °C
100
10
T
J
= 175 °C
T
J
= 125 °C
T
J
= 25 °C
1
0.1
0
0.2 0.4 0.6 0.8 1.0 1.2 1.4
1.6 1.8 2.0 2.2
0
20
40
60
80
100
V
FM
- Forward Voltage Drop (V)

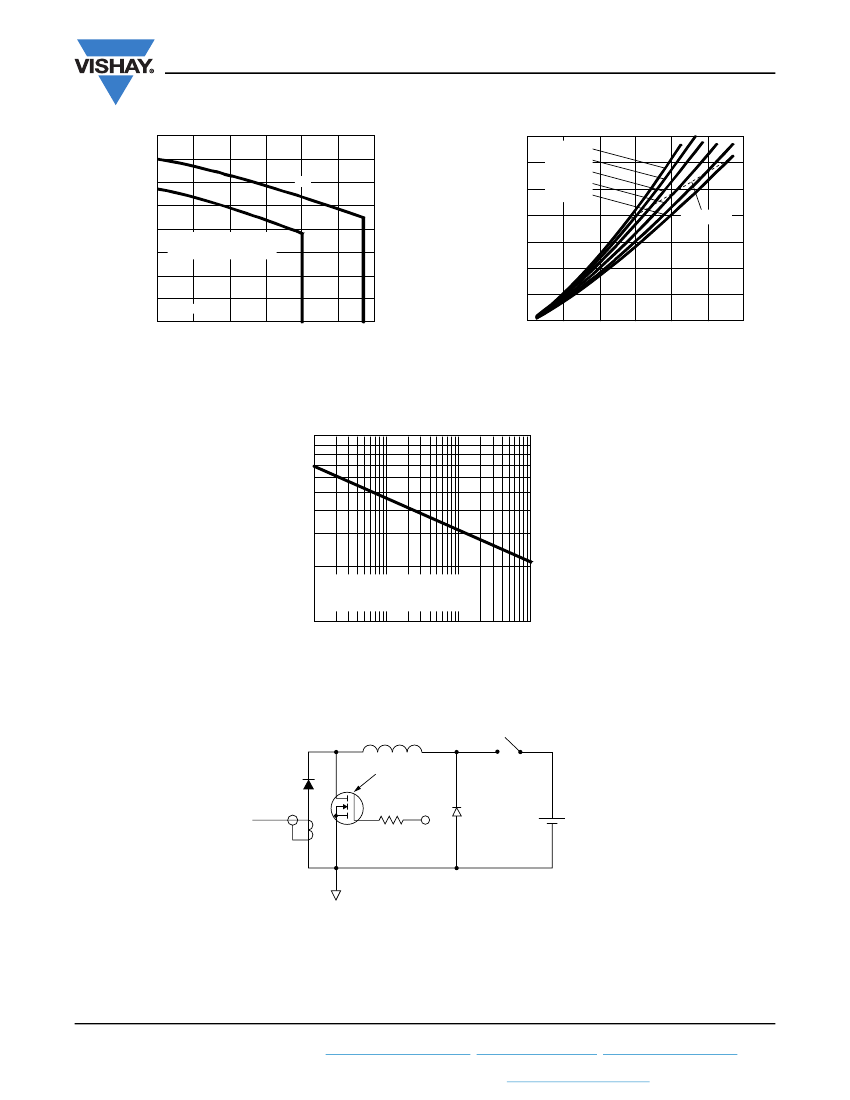

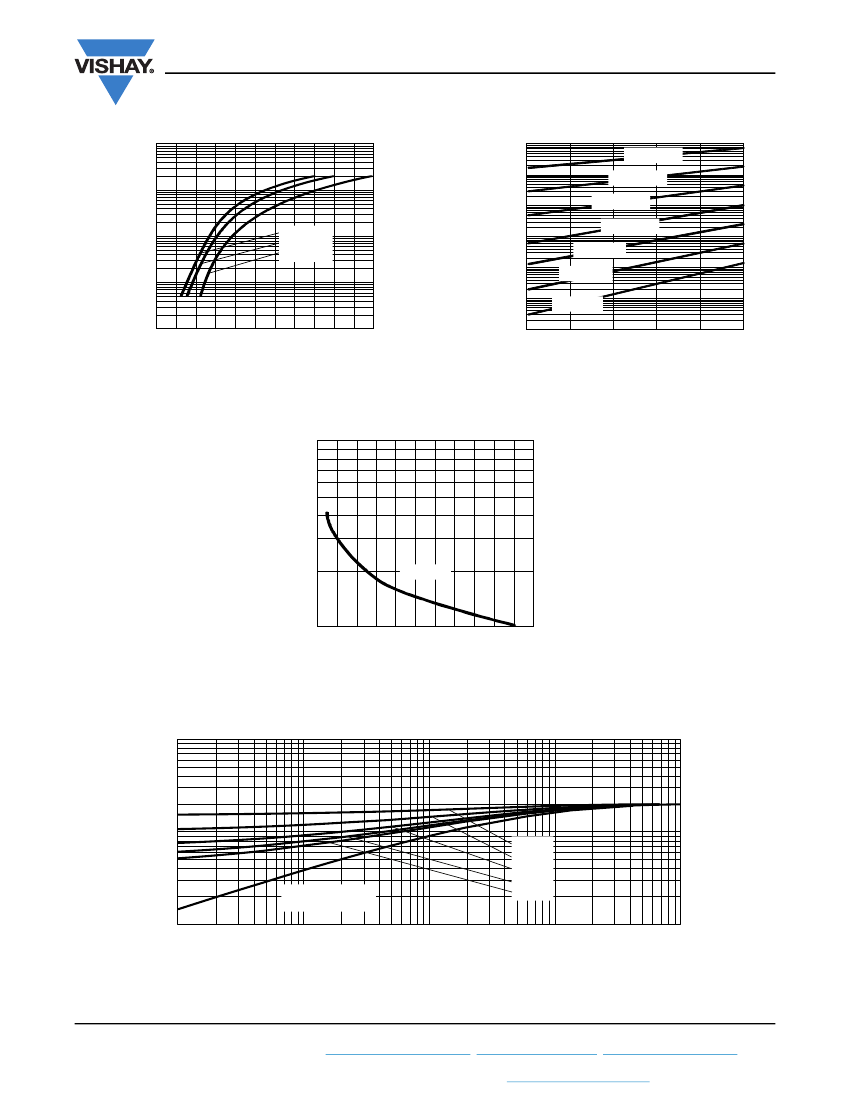

Fig. 1 - Maximum Forward Voltage Drop Characteristics
V
R
- Reverse Voltage (V)
Fig. 2 - Typical Values of Reverse Current vs.
Reverse Voltage
1000
C
T
- Junction Capacitance (pF)
T
J
= 25 °C
100
0
10
20 30 40 50 60 70
80
90 100
110
V
R
- Reverse Voltage (V)
Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage
Z
thJC
- Thermal Impedance (°C/W)
10
1
D = 0.75
D = 0.50
D = 0.33
D = 0.25
D = 0.20
Single pulse
(thermal resistance)
0.1
0.0001
0.001
0.01
0.1
1
t
1
- Rectangular Pulse Duration (s)
Fig. 4 - Maximum Thermal Impedance Z
thJC
Characteristics
Revision: 29-Aug-11
Document Number: 94265
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-8TQ...PbF Series, VS-8TQ...-N3 Series
www.vishay.com
Vishay Semiconductors
7
D = 0.20
D = 0.25
D = 0.33
D = 0.50
D = 0.75
RMS limit
180
Allowable Case Temperature (°C)
170
165
160
155
150
145
See note (1)
140
0
2
4
6
Square wave (D = 0.50)
80 % rated V
R
applied
DC
Average Power Loss (W)
175
6
5
4
3
2
DC
1
0
8
10
12
0
2
4
6
8
10
12
I
F(AV)
- Average Forward Current (A)
Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current
I
F(AV)
- Average Forward Current (A)
Fig. 6 - Forward Power Loss Characteristics
I
FSM
- Non-Repetitive Surge Current (A)
1000
At any rated load condition and
with rated V
RRM
applied
following surge
100
10
100
1000
10 000
t
p
- Square Wave Pulse Duration (µs)
Fig. 7 - Maximum Non-Repetitive Surge Current
L
High-speed
switch
Freewheel
diode
40HFL40S02
+
V
d
= 25
V
D.U.T.
IRFP460
R
g
= 25
Ω
Current
monitor
Fig. 8 - Unclamped Inductive Test Circuit
Note
Formula used: T
C
= T
J
- (Pd + Pd
REV
) x R
thJC
;
Pd = Forward power loss = I
F(AV)
x V
FM
at (I
F(AV)
/D) (see fig. 6);
Pd
REV
= Inverse power loss = V
R1
x I
R
(1 - D); I
R
at V
R1
= 80 % rated V
R
(1)
Revision: 29-Aug-11
Document Number: 94265
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-8TQ...PbF Series, VS-8TQ...-N3 Series
www.vishay.com
ORDERING INFORMATION TABLE
Vishay Semiconductors
Device code
VS-
1
1
2
3
4
5
8
2
-
-
-
-
-
T
3
Q
4
100
5
PbF
6
Vishay Semiconductors product
Current rating (8 = 8 A)
Package:
T = TO-220
Schottky "Q" series
Voltage ratings
Environmental digit
060 = 60 V
080 = 80 V
100 = 100 V
6
-
PbF = Lead (Pb)-free and RoHS compliant
-N3 = Halogen-free, RoHS compliant, and totally lead (Pb)-free
ORDERING INFORMATION
(Example)
PREFERRED P/N
VS-8TQ060PbF
VS-8TQ060-N3
VS-8TQ080PbF
VS-8TQ080-N3
VS-8TQ100PbF
VS-8TQ100-N3
QUANTITY PER T/R
50
50
50
50
50
50
MINIMUM ORDER QUANTITY
1000
1000
1000
1000
1000
1000
PACKAGING DESCRIPTION
Antistatic plastic tube
Antistatic plastic tube
Antistatic plastic tube
Antistatic plastic tube
Antistatic plastic tube
Antistatic plastic tube
LINKS TO RELATED DOCUMENTS
Dimensions
Part marking information
TO-220AC PbF
TO-220AC -N3
www.vishay.com/doc?95221
www.vishay.com/doc?95224
www.vishay.com/doc?95068
Revision: 29-Aug-11
Document Number: 94265
5
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
