Product data sheet
Automation technology - sensors and actuators
Product description
Area
Order number
M12-A male panel mount connector, Contacts: 8, not shielded, dip-solder, IP68, UL, PG9
M12-A series 713
86 0131 0000 00008
Illustration
Conductor layout

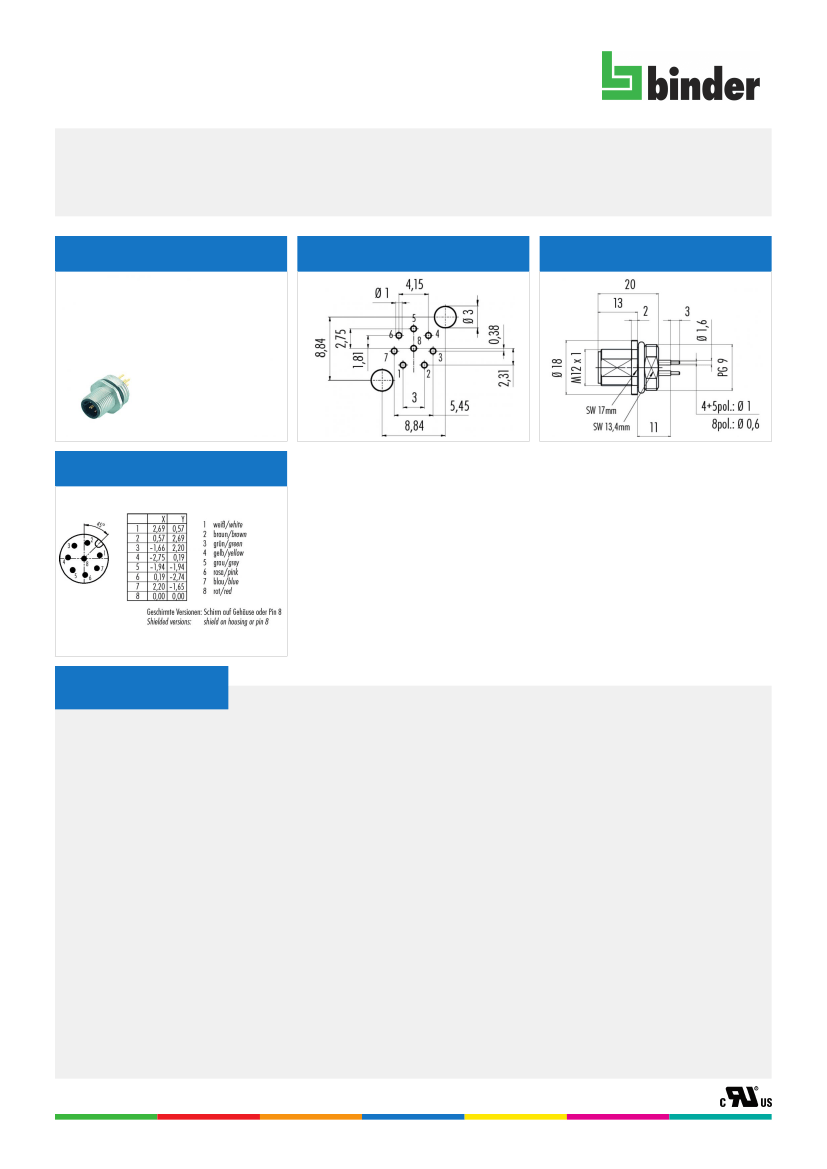

Scale drawing
Contact arrangement
You can find the assembly instructions on the next page.
Technical data
General values
Notice
Please note that, due to the
change from the old to the new
order number, there may be
deviations in the technical
specifications. For questions
about product details, please use
the ‘Contact Customer Service’
form on the right.
male panel mount connector
screw
dip-solder
85 °C
– 40 °C
85369010
Electrical values
Rated current (40 °C)
Rated voltage
Rated impulse voltage
Pollution degree
Overvoltage category
Insulating material group
Volume resistivity
Insulation resistance
EMC compliance
Degree of protection
Mechanical operation
1,5 A (2 A UL)
30 V
800 V
3
II
III
≤ 3 mΩ
> 10⁸ Ω
not shielded
IP68
> 100 Mating cycles
Connector design
Connector locking system
Termination
Upper limit temperature
Lower limit temperature
Customs tariff number
Material
Contact material
Contact plating
Contact body material
Housing material
CuZn (brass)
Au (gold)
PA
Zinc die-cast nickel-plated
Cable data
Approval 1
UL
Date: 2019-06-03 - Page 1 of 3
Product data sheet
Automation technology - sensors and actuators
Product description
Area
Order number
M12-A male panel mount connector, Contacts: 8, not shielded, dip-solder, IP68, UL, PG9
M12-A series 713
86 0131 0000 00008

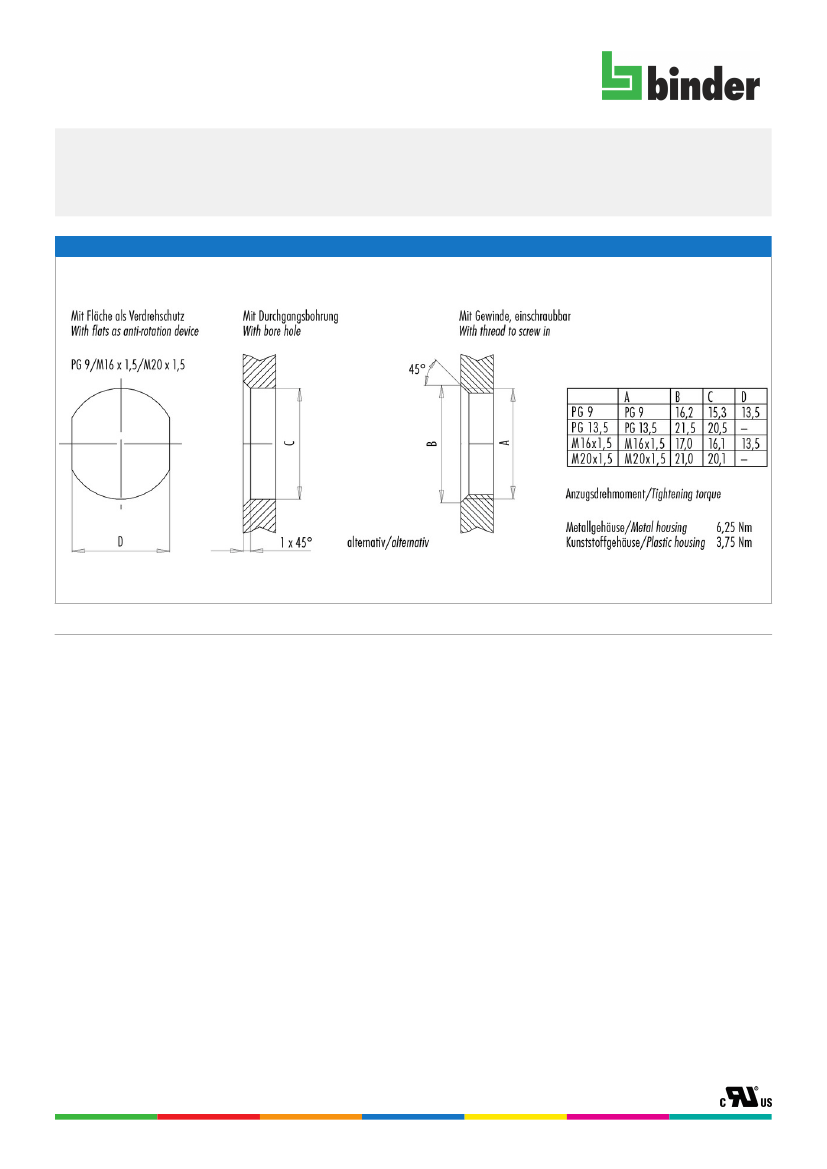

Assembly instructions / Panel cut-out
Date: 2019-06-03 - Page 2 of 3
Product data sheet
Automation technology - sensors and actuators
Product description
Area
Order number
M12-A male panel mount connector, Contacts: 8, not shielded, dip-solder, IP68, UL, PG9
M12-A series 713
86 0131 0000 00008
Security notices
The connectors are designed for use in plant, control system and electrical equipment. The end user is responsible
for checking whether the connectors are suitable for use in other applications.
Connectors with degree of protection IP 67 and IP 68 are not suitable for use under water. When used outdoors, the
connectors must be separately protected against corrosion. For further information about IP degrees of protection
refer to ‘Technical support’ in the Download Centre.
Date: 2019-06-03 - Page 3 of 3
Powered by TCPDF (www.tcpdf.org)
