HC6216KSHCT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HC6216KSHCT

HC6216KSHCT: DescriptionStandard SRAM, 2KX8, 100ns, CMOS, CDFP24, CERAMIC, FP-24; Categorystorage storage; File Size492KB，14 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

HC6216KSHCT Overview

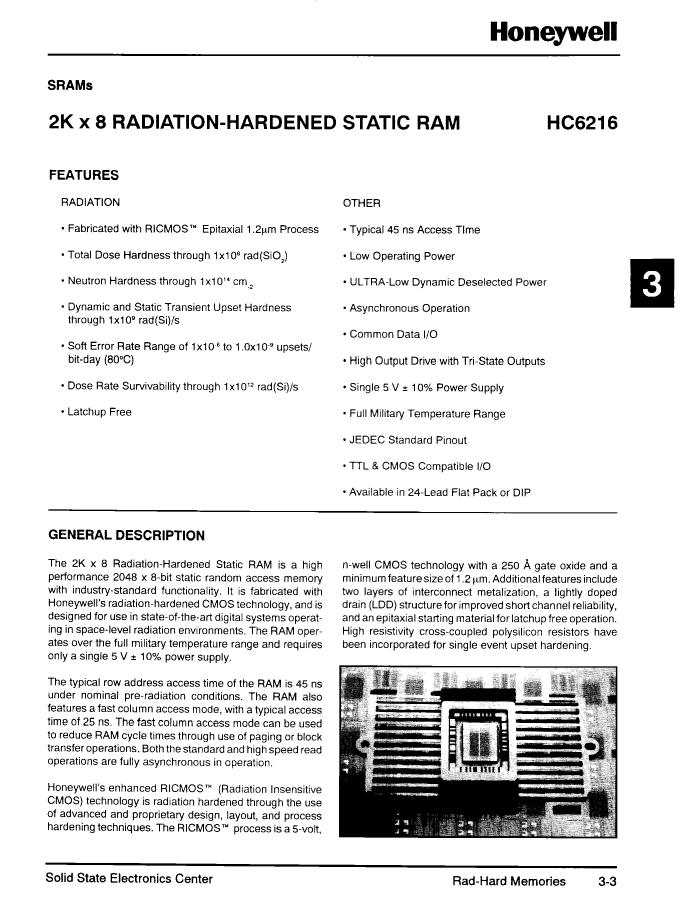

Standard SRAM, 2KX8, 100ns, CMOS, CDFP24, CERAMIC, FP-24

HC6216KSHCT Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Honeywell
Parts packaging code	DFP
package instruction	DFP, FL24,.4
Contacts	24
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	100 ns
Other features	RADIATION-HARDENED SRAM
I/O type	COMMON
JESD-30 code	R-CDFP-F24
JESD-609 code	e0
length	15.1384 mm
memory density	16384 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	24
word count	2048 words
character code	2000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	2KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL24,.4
Package shape	RECTANGULAR
Package form	FLATPACK
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Filter level	38535V;38534K;883S
Maximum seat height	3.175 mm
Maximum standby current	0.00009 A
Minimum standby current	2.5 V
Maximum slew rate	0.007 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

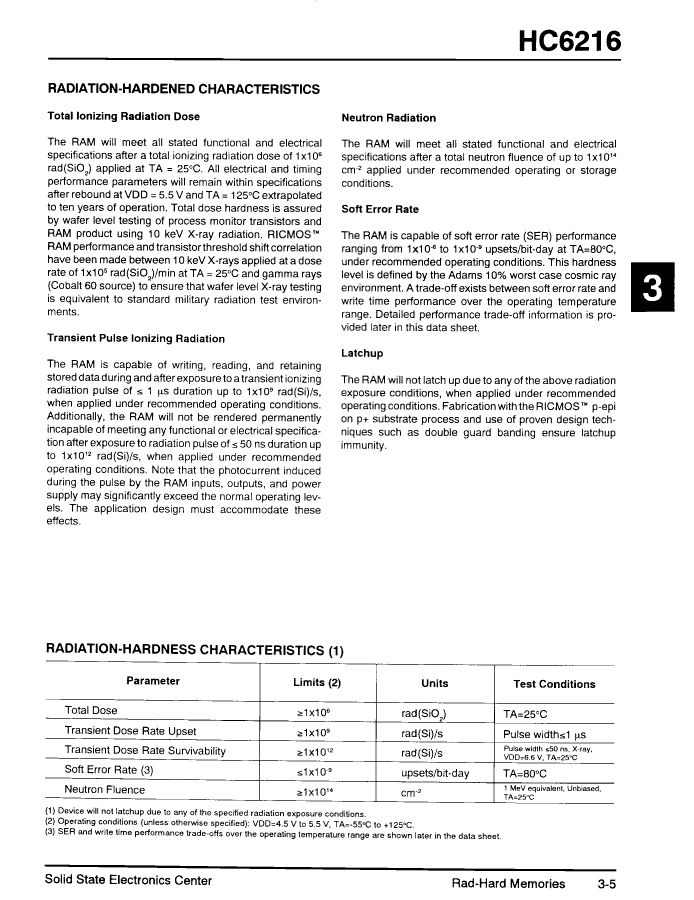

total dose	1M Rad(Si) V
width	10.16 mm

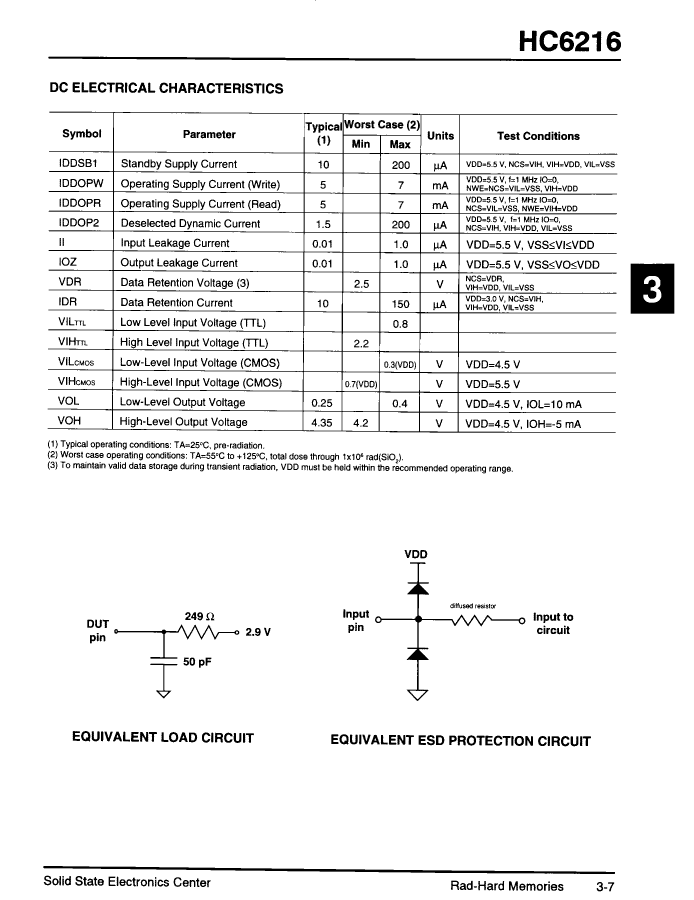

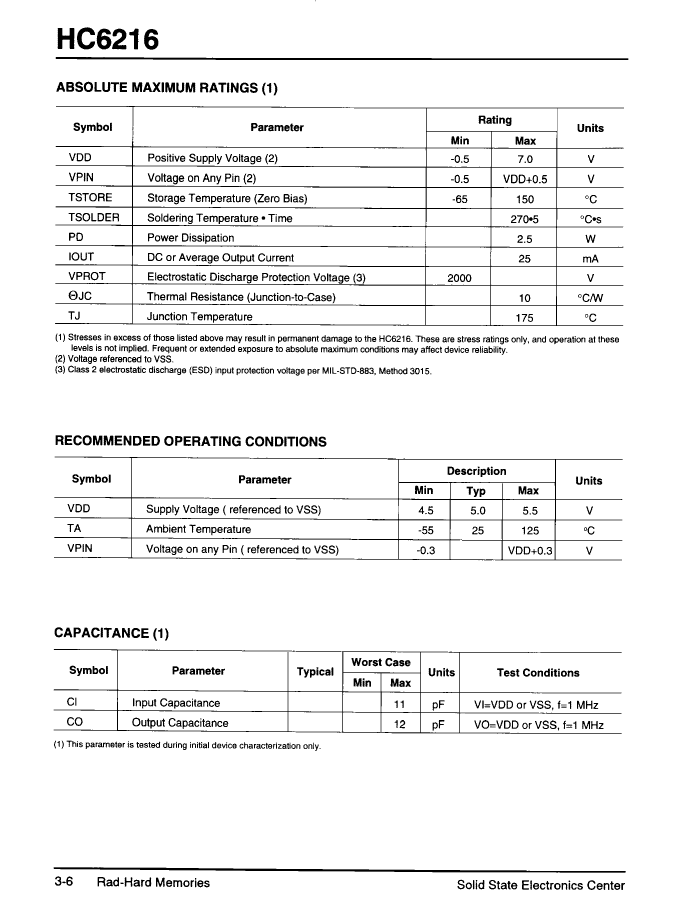

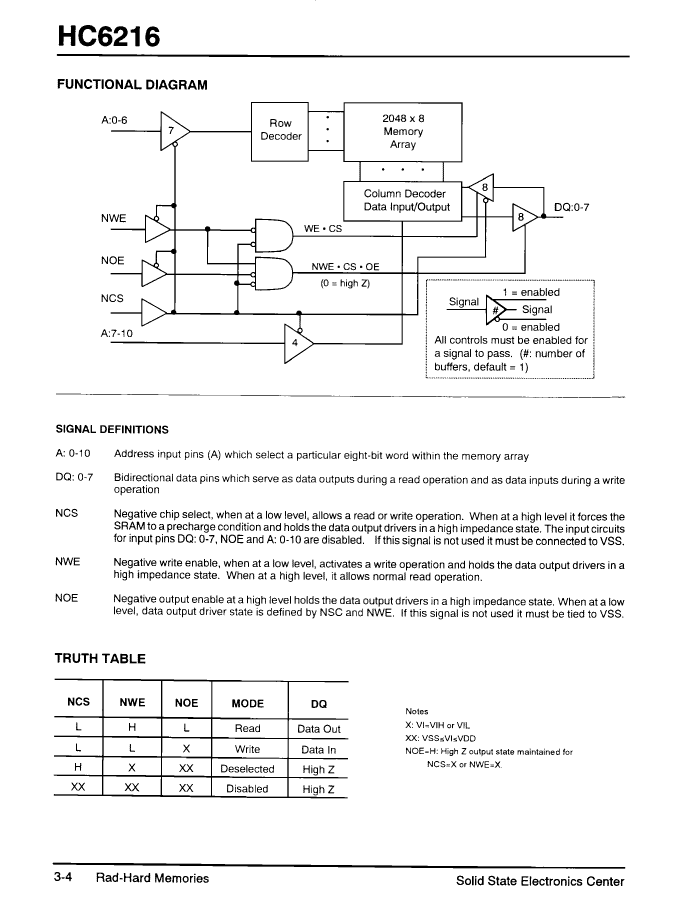

Preview

Download Datasheet

View All

HC6216KSHCT Related Products

	HC6216KSHCT	HC6216KCH-T	HC6216JCH-C	HC6216JCH-T	HC6216KSHCC	HC6216JSHCC	HC6216JSHCT
Description	Standard SRAM, 2KX8, 100ns, CMOS, CDFP24, CERAMIC, FP-24	Standard SRAM, 2KX8, 100ns, CMOS, CDFP24, CERAMIC, FP-24	Standard SRAM, 2KX8, 100ns, CMOS, CDIP24, CERAMIC, DIP-24	Standard SRAM, 2KX8, 100ns, CMOS, CDIP24, CERAMIC, DIP-24	Standard SRAM, 2KX8, 100ns, CMOS, CDFP24, CERAMIC, FP-24	Standard SRAM, 2KX8, 100ns, CMOS, CDIP24, CERAMIC, DIP-24	Standard SRAM, 2KX8, 100ns, CMOS, CDIP24, CERAMIC, DIP-24
Parts packaging code	DFP	DFP	DIP	DIP	DFP	DIP	DIP
package instruction	DFP, FL24,.4	DFP,	DIP,	DIP,	DFP, FL24,.4	DIP, DIP24,.6	DIP, DIP24,.6
Contacts	24	24	24	24	24	24	24
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum access time	100 ns	100 ns	100 ns	100 ns	100 ns	100 ns	100 ns
Other features	RADIATION-HARDENED SRAM	RADIATION-HARDENED SRAM	RADIATION-HARDENED SRAM	RADIATION-HARDENED SRAM	RADIATION-HARDENED SRAM	RADIATION-HARDENED SRAM	RADIATION-HARDENED SRAM
JESD-30 code	R-CDFP-F24	R-CDFP-F24	R-CDIP-T24	R-CDIP-T24	R-CDFP-F24	R-CDIP-T24	R-CDIP-T24
length	15.1384 mm	15.1384 mm	30.48 mm	30.48 mm	15.1384 mm	30.48 mm	30.48 mm
memory density	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24
word count	2048 words	2048 words	2048 words	2048 words	2048 words	2048 words	2048 words
character code	2000	2000	2000	2000	2000	2000	2000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	2KX8	2KX8	2KX8	2KX8	2KX8	2KX8	2KX8
Exportable	YES	YES	YES	YES	YES	YES	YES
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DFP	DIP	DIP	DFP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	IN-LINE	IN-LINE	FLATPACK	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.175 mm	3.175 mm	4.318 mm	4.318 mm	3.175 mm	4.318 mm	4.318 mm
Minimum standby current	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	10.16 mm	10.16 mm	15.24 mm	15.24 mm	10.16 mm	15.24 mm	15.24 mm
Is it lead-free?	Contains lead	-	-	-	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	-	-	-	incompatible	incompatible	incompatible
Maker	Honeywell	Honeywell	-	Honeywell	-	Honeywell	Honeywell
I/O type	COMMON	-	-	-	COMMON	COMMON	COMMON
JESD-609 code	e0	-	-	-	e0	e0	e0
Output characteristics	3-STATE	-	-	-	3-STATE	3-STATE	3-STATE
Encapsulate equivalent code	FL24,.4	-	-	-	FL24,.4	DIP24,.6	DIP24,.6
Filter level	38535V;38534K;883S	-	-	-	38535V;38534K;883S	38535V;38534K;883S	38535V;38534K;883S
Maximum standby current	0.00009 A	-	-	-	0.00009 A	0.00009 A	0.00009 A
Maximum slew rate	0.007 mA	-	-	-	0.007 mA	0.007 mA	0.007 mA
Terminal surface	Tin/Lead (Sn/Pb)	-	-	-	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
total dose	1M Rad(Si) V	-	-	-	1M Rad(Si) V	1M Rad(Si) V	1M Rad(Si) V
