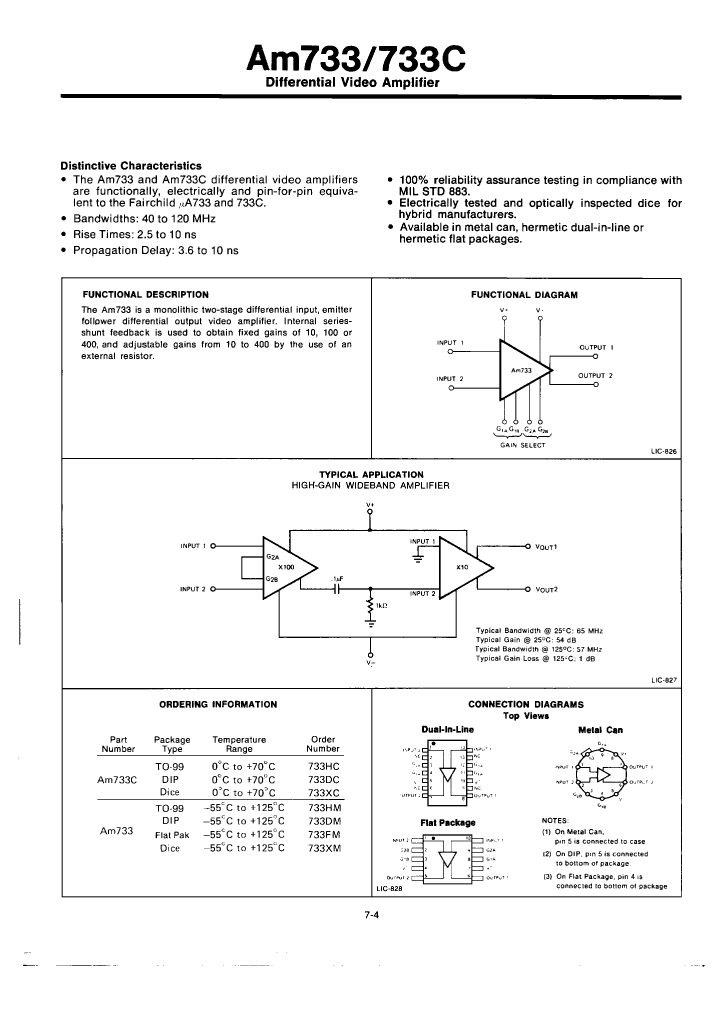

Video Amplifier, 1 Channel(s), Bipolar, CDIP14, HERMETIC SEALED, DIP-14

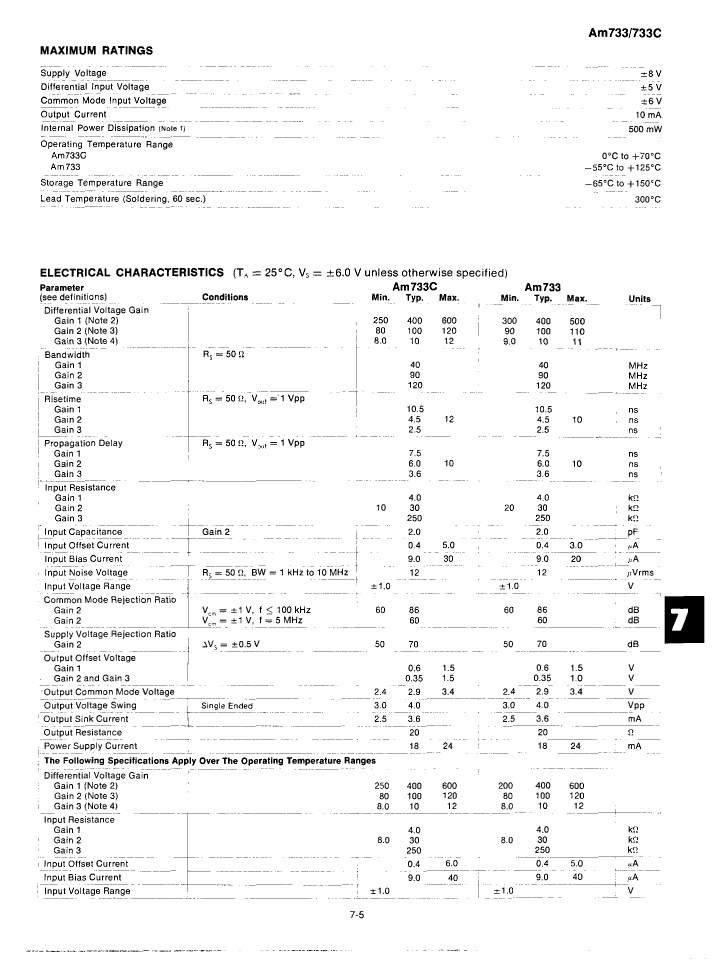

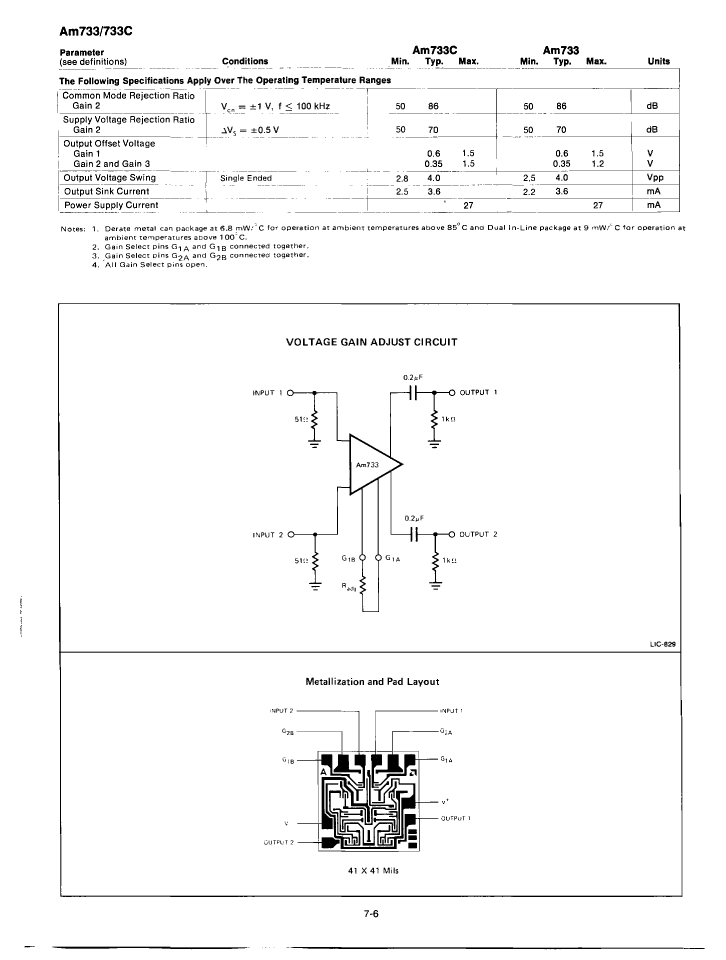

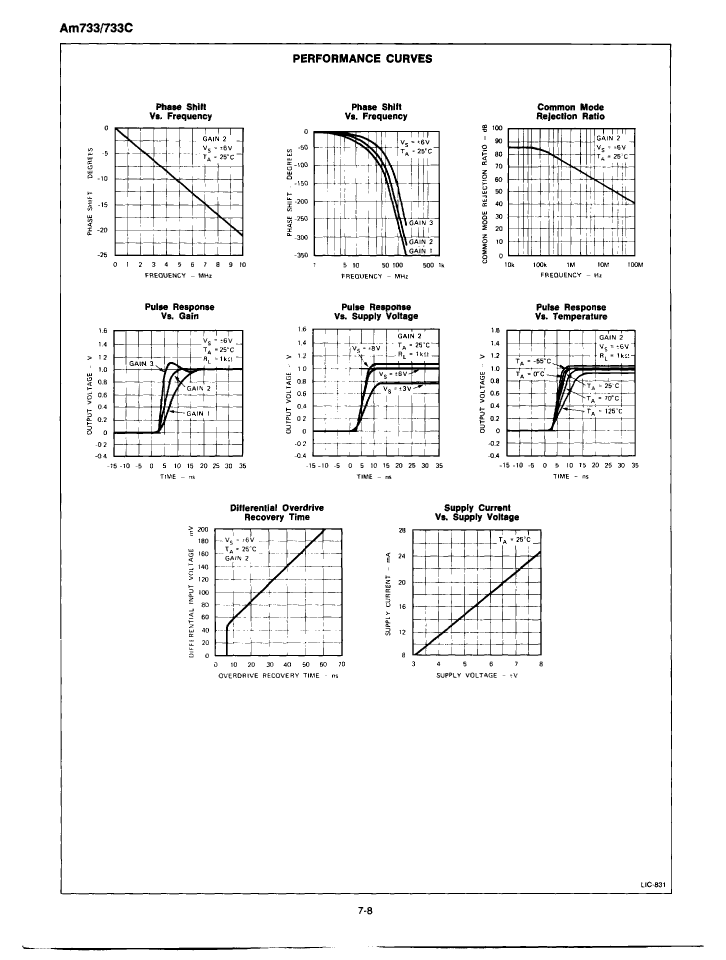

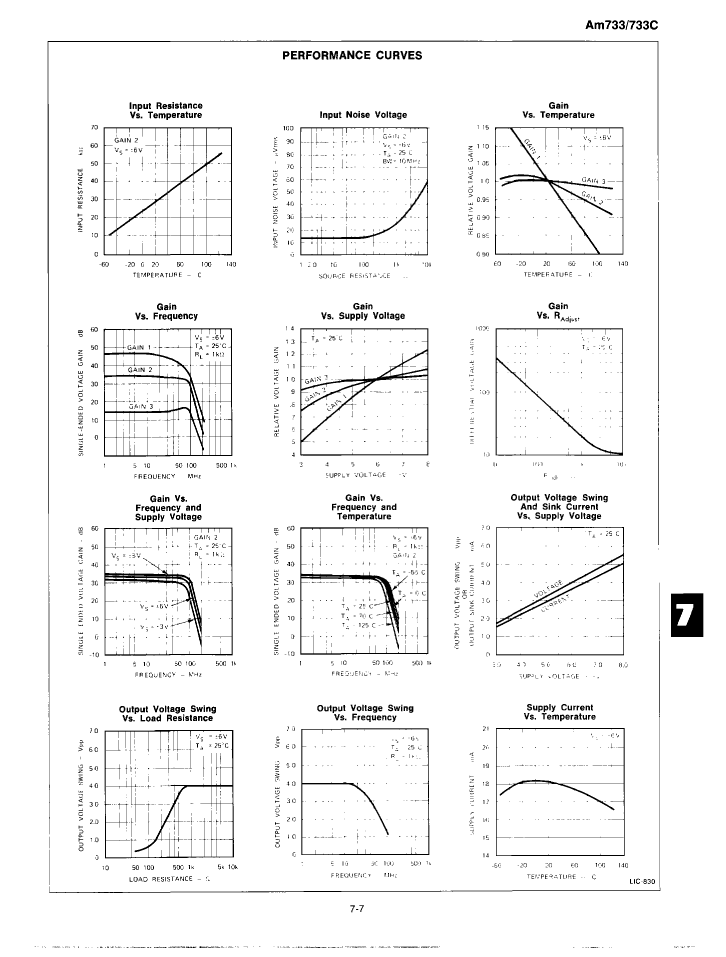

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | AMD |
| Parts packaging code | DIP |
| package instruction | DIP, DIP14,.3 |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Nominal bandwidth | 120000 kHz |
| Commercial integrated circuit types | VIDEO AMPLIFIER |
| Gain | 52.04 dB |
| JESD-30 code | R-CDIP-T14 |
| JESD-609 code | e0 |
| length | 19.431 mm |
| Number of channels | 1 |
| Number of terminals | 14 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | +-6 V |
| Certification status | Not Qualified |
| Maximum seat height | 5.08 mm |
| Maximum slew rate | 27 mA |
| Maximum supply voltage (Vsup) | 6 V |
| Minimum supply voltage (Vsup) | 6 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 7.62 mm |
| 733DC | 733FM | AM733DM | AM733FM | 733DM | 733HC | 733HM | 733XC | 733XM | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Video Amplifier, 1 Channel(s), Bipolar, CDIP14, HERMETIC SEALED, DIP-14 | Video Amplifier, 1 Channel(s), Bipolar, CDFP10, HERMETIC SEALED, FP-10 | Video Amplifier, 1 Channel(s), 1 Func, CDIP14, HERMETIC SEALED, DIP-14 | Video Amplifier, 1 Channel(s), 1 Func, CDFP10, HERMETIC SEALED, FP-10 | Video Amplifier, 1 Channel(s), Bipolar, CDIP14, HERMETIC SEALED, DIP-14 | Video Amplifier, 1 Channel(s), Bipolar, MBCY8, METAL CAN, TO-99, 10 PIN | Video Amplifier, 1 Channel(s), Bipolar, MBCY8, METAL CAN, TO-99, 10 PIN | Video Amplifier, 1 Channel(s), Bipolar, 0.041 X 0.041 INCH, DIE-10 | Video Amplifier, 1 Channel(s), Bipolar, 0.041 X 0.041 INCH, DIE-10 |
| Parts packaging code | DIP | DFP | DIP | DFP | DIP | TO-99 | TO-99 | DIE | DIE |
| package instruction | DIP, DIP14,.3 | DFP, FL10,.3 | HERMETIC SEALED, DIP-14 | HERMETIC SEALED, FP-10 | DIP, DIP14,.3 | TO-99, CAN10,.23 | TO-99, CAN10,.23 | DIE, DIE OR CHIP | DIE, DIE OR CHIP |
| Contacts | 14 | 10 | 14 | 10 | 14 | 8 | 8 | 10 | 10 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Nominal bandwidth | 120000 kHz | 120000 kHz | 120000 kHz | 120000 kHz | 120000 kHz | 120000 kHz | 120000 kHz | 120000 kHz | 120000 kHz |
| Commercial integrated circuit types | VIDEO AMPLIFIER | VIDEO AMPLIFIER | VIDEO AMPLIFIER | VIDEO AMPLIFIER | VIDEO AMPLIFIER | VIDEO AMPLIFIER | VIDEO AMPLIFIER | VIDEO AMPLIFIER | VIDEO AMPLIFIER |
| Gain | 52.04 dB | 52.04 dB | 52.04 dB | 52.04 dB | 52.04 dB | 52.04 dB | 52.04 dB | 52.04 dB | 52.04 dB |
| JESD-30 code | R-CDIP-T14 | R-CDFP-F10 | R-CDIP-T14 | R-CDFP-F10 | R-CDIP-T14 | O-MBCY-W8 | O-MBCY-W8 | S-XUUC-N10 | S-XUUC-N10 |
| Number of channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 14 | 10 | 14 | 10 | 14 | 8 | 8 | 10 | 10 |
| Maximum operating temperature | 70 °C | 125 °C | 125 °C | 125 °C | 125 °C | 70 °C | 125 °C | 70 °C | 125 °C |
| Minimum operating temperature | - | -55 °C | -55 °C | -55 °C | -55 °C | - | -55 °C | - | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | METAL | METAL | UNSPECIFIED | UNSPECIFIED |
| encapsulated code | DIP | DFP | DIP | DFP | DIP | TO-99 | TO-99 | DIE | DIE |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | ROUND | ROUND | SQUARE | SQUARE |
| Package form | IN-LINE | FLATPACK | IN-LINE | FLATPACK | IN-LINE | CYLINDRICAL | CYLINDRICAL | UNCASED CHIP | UNCASED CHIP |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 6 V | 6 V | 6 V | 6 V | 6 V | 6 V | 6 V | 6 V | 6 V |
| Minimum supply voltage (Vsup) | 6 V | 6 V | 6 V | 6 V | 6 V | 6 V | 6 V | 6 V | 6 V |
| surface mount | NO | YES | NO | YES | NO | NO | NO | YES | YES |
| Temperature level | COMMERCIAL | MILITARY | MILITARY | MILITARY | MILITARY | COMMERCIAL | MILITARY | COMMERCIAL | MILITARY |
| Terminal form | THROUGH-HOLE | FLAT | THROUGH-HOLE | FLAT | THROUGH-HOLE | WIRE | WIRE | NO LEAD | NO LEAD |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | BOTTOM | BOTTOM | UPPER | UPPER |
| Is it Rohs certified? | incompatible | incompatible | - | - | incompatible | incompatible | incompatible | - | - |
| Maker | AMD | - | AMD | AMD | AMD | AMD | AMD | AMD | AMD |
| JESD-609 code | e0 | e0 | - | - | e0 | e0 | e0 | - | - |
| length | 19.431 mm | 6.477 mm | 19.431 mm | 6.477 mm | 19.431 mm | - | - | - | - |
| Encapsulate equivalent code | DIP14,.3 | FL10,.3 | - | - | DIP14,.3 | CAN10,.23 | CAN10,.23 | DIE OR CHIP | DIE OR CHIP |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | - | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | - |
| power supply | +-6 V | +-6 V | - | - | +-6 V | +-6 V | +-6 V | +-6 V | +-6 V |
| Maximum seat height | 5.08 mm | 2.032 mm | 5.08 mm | 2.032 mm | 5.08 mm | - | - | - | - |
| Maximum slew rate | 27 mA | 27 mA | - | - | 27 mA | 27 mA | 27 mA | 27 mA | 27 mA |
| technology | BIPOLAR | BIPOLAR | - | - | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - | - |
| Terminal pitch | 2.54 mm | 1.27 mm | 2.54 mm | 1.27 mm | 2.54 mm | - | - | - | - |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | - | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | - |
| width | 7.62 mm | 6.35 mm | 7.62 mm | 6.35 mm | 7.62 mm | - | - | - | - |
