A-42227-0004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> A-42227-0004

A-42227-0004: Description4 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector; File Size170KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

A-42227-0004 Overview

4 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

A-42227-0004 Parametric

Parameter Name	Attribute value
Connector type	BOARD CONNECTOR
Contact materials	NOT SPECIFIED
Terminal spacing	2.54 mm
Total number of contacts	4
EU RoHS regulations	Yes
state	Active
width	0.2840 inch
body_depth	0.3370 inch
body_diamete	0.4000 inch
Shell style	RECEPTACLE
Contact surface matching	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED
Connector male and female	MALE
contact_patte	RECTANGULAR
contact_resistance	20 mohm
contact_style	SQ PIN-SKT
dielectric_withstanding_voltage__v_	1500VAC
According to DIN	NO
Filter characteristics	NO
Comply with IEC	NO
insertion_force_max__n_	1.946
insulation_resistance	5.00E9 ohm
insulator_material	NYLON
Manufacturer Series	42227
mating_contact_pitch__inch_	0.1
collocation information	MULTIPLE MATING PARTS AVAILABLE
Meet MIL	NO
hybrid connection	NO
mounting_option_1	POLARIZED LCK
Installation method	STRAIGHT
Installation type	BOARD
umber_of_connectors	ONE
umber_of_pcb_rows	1
Number of load rows	1
Minimum operating temperature	-40 Cel
erating_temperature_max__cel_	105
Options	GENERAL PURPOSE
cb_contact_patte	RECTANGULAR
ed_current__signal_	2.5 A
eference_standard	UL, CSA
eliability	COMMERCIAL
sub_category	Headers and Edge Type Connectors
erminal_length	0.1200 inch
Terminal type	SOLDER
UL flammability code	94V-0
withdrawl_force_min__n_	.556
dditional_feature	POLARIZATION

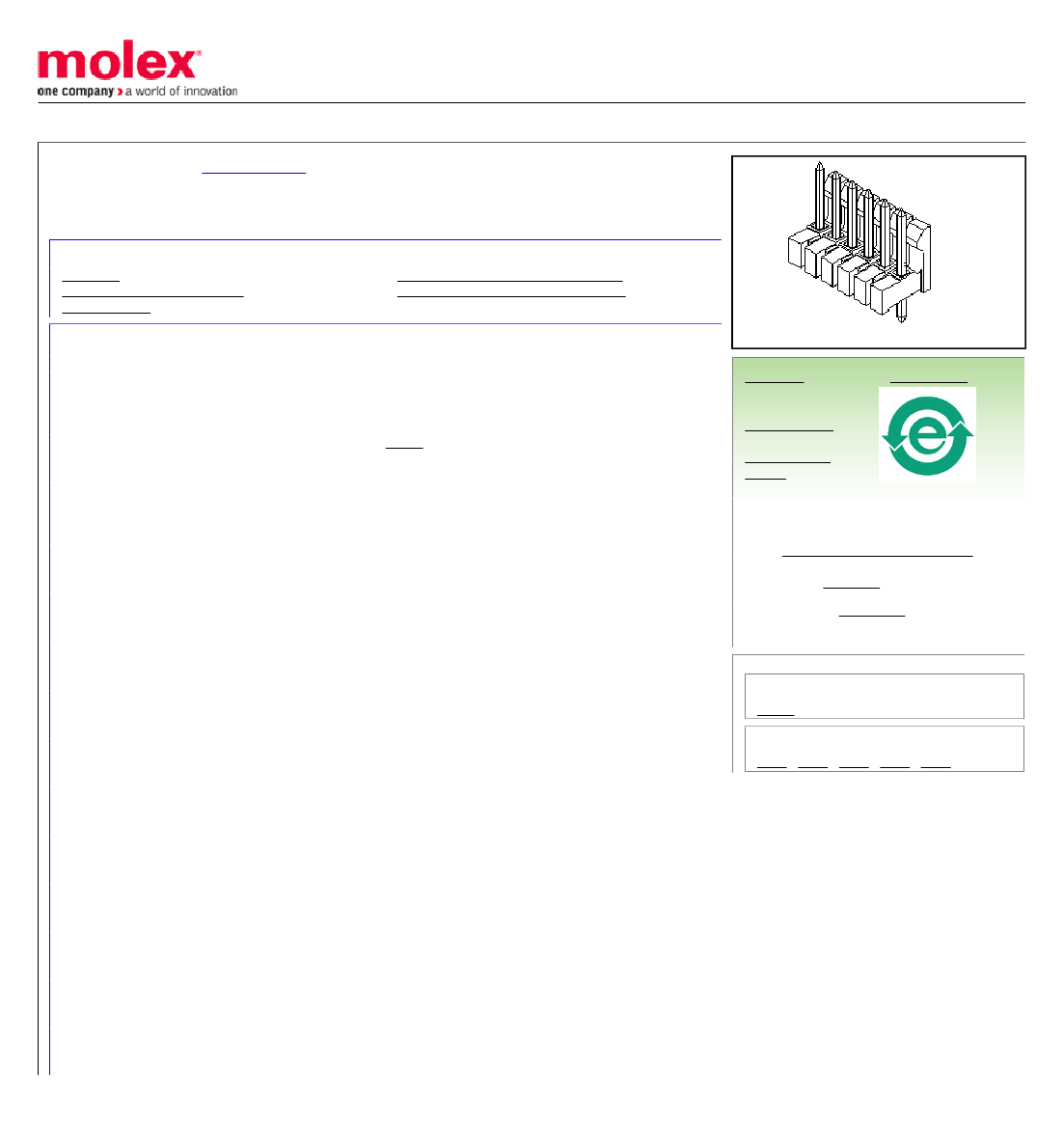

Preview

Download Datasheet

View All

This document was generated on 03/21/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0022280040

Active

2.54mm (.100") Pitch KK® Header, Breakaway, Vertical, with Friction Lock, 4 Circuits,

Tin (Sn) Plating

Documents:

3D Model

Packaging Specification (PDF)

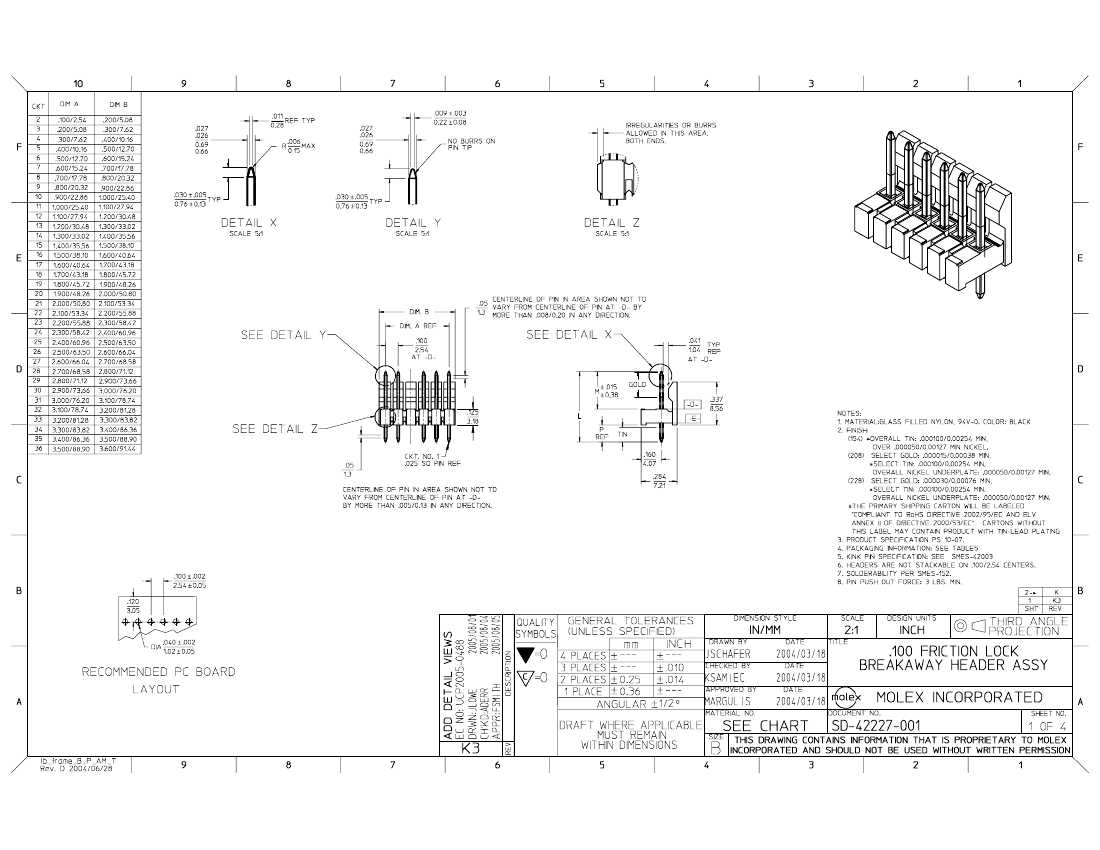

Drawing (PDF)

Product Specification PS-10-07 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Application

Product Name

PCB Headers

42227

Wire-to-Board

KK®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Yes

Black

94V-0

Yes

Brass

Tin

Nylon

Vertical

0.120 In

3.05 mm

None

0.062 In

1.60 mm

Bag

0.100 In

2.54 mm

100

2.5

100

2.5

0°C to +75°C

Through Hole

Search Parts in this Series

42227Series

Mates With

2695 , 6471 , 7880 , 4455 , 7720

Electrical

A-42227-0004 Related Products

	A-42227-0004	42227-0004
Description	4 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	4 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact materials	NOT SPECIFIED	NOT SPECIFIED
Terminal spacing	2.54 mm	2.54 mm
Total number of contacts	4	4
EU RoHS regulations	Yes	Yes
state	Active	Active
width	0.2840 inch	0.2840 inch
body_depth	0.3370 inch	0.3370 inch
body_diamete	0.4000 inch	0.4000 inch
Shell style	RECEPTACLE	RECEPTACLE
Contact surface matching	NOT SPECIFIED	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED	NOT SPECIFIED
Connector male and female	MALE	MALE
contact_patte	RECTANGULAR	RECTANGULAR
contact_resistance	20 mohm	20 mohm
contact_style	SQ PIN-SKT	SQ PIN-SKT
dielectric_withstanding_voltage__v_	1500VAC	1500VAC
According to DIN	NO	NO
Filter characteristics	NO	NO
Comply with IEC	NO	NO
insertion_force_max__n_	1.946	1.946
insulation_resistance	5.00E9 ohm	5.00E9 ohm
insulator_material	NYLON	NYLON
Manufacturer Series	42227	42227
mating_contact_pitch__inch_	0.1	0.1
collocation information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Meet MIL	NO	NO
hybrid connection	NO	NO
mounting_option_1	POLARIZED LCK	POLARIZED LCK
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
umber_of_connectors	ONE	ONE
umber_of_pcb_rows	1	1
Number of load rows	1	1
Minimum operating temperature	-40 Cel	-40 Cel
erating_temperature_max__cel_	105	105
Options	GENERAL PURPOSE	GENERAL PURPOSE
cb_contact_patte	RECTANGULAR	RECTANGULAR
ed_current__signal_	2.5 A	2.5 A
eference_standard	UL, CSA	UL, CSA
eliability	COMMERCIAL	COMMERCIAL
sub_category	Headers and Edge Type Connectors	Headers and Edge Type Connectors
erminal_length	0.1200 inch	0.1200 inch
Terminal type	SOLDER	SOLDER
UL flammability code	94V-0	94V-0
withdrawl_force_min__n_	.556	.556
dditional_feature	POLARIZATION	POLARIZATION
