89C1632RPQK-20 Overview

SRAM,

89C1632RPQK-20 Parametric

Parameter Name	Attribute value
Maker	Data Device Corporation
Reach Compliance Code	compliant

Preview

Download Datasheet

View All

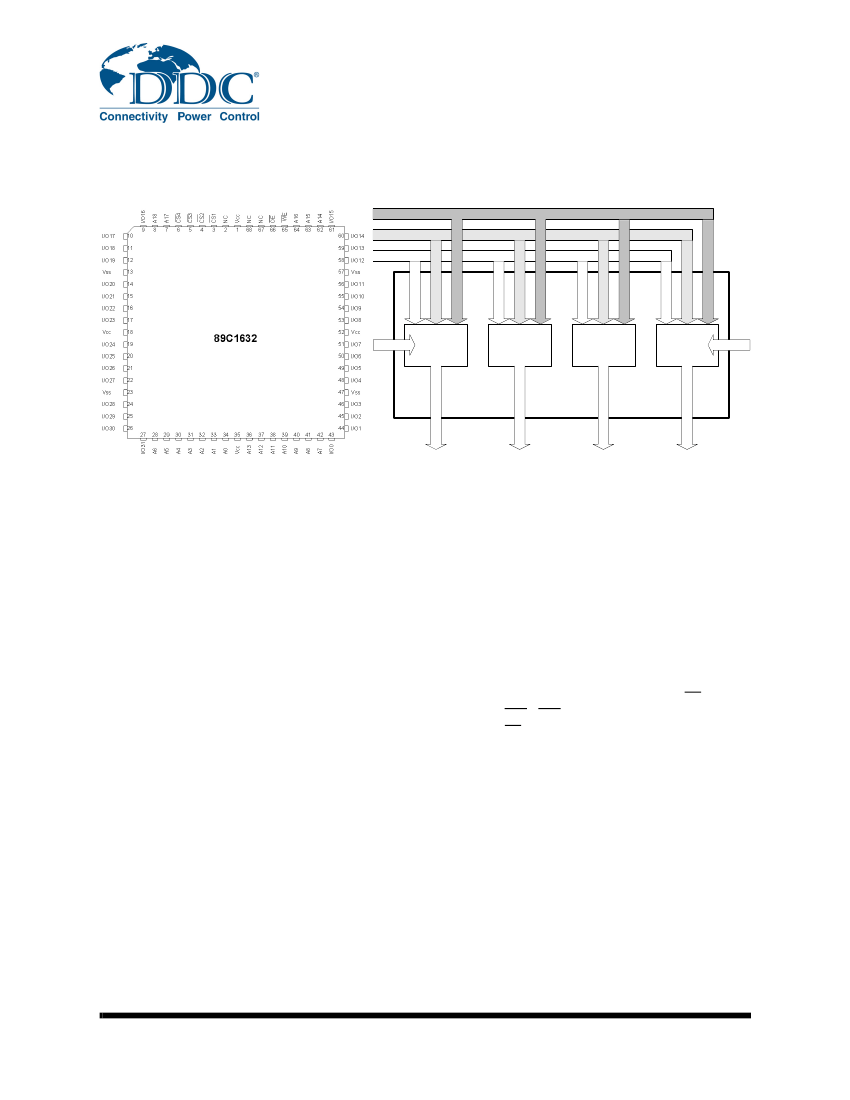

16 Megabit (512K x 32-Bit)

MCM SRAM

89C1632

16 Megabit (512k x 32-bit) SRAM MCM

CS 1-4

Address

OE, WE

Power

4Mb SRAM

Ground

MCM

Memory

I/O 0-7

I/O 8-15

I/O 16-23

I/O 24-31

Logic Diagram

EATURES

• Four 512k x 8 SRAM architecture

• R

-P

® technology hardens against natural space radia-

tion technology

• Total dose hardness:

- > 100 krad (Si), depending upon space mission

• Excellent Single Event Effects:

- SEL > 101MeV-cm

/mg

- SEU threshold = 3 MeV-cm

/mg

- SEU saturated cross section: 6E-9 cm

/bit

• Package: 68-pin quad flat package

• Fast access time: 20, 25 and 30 ns

• Completely static memory - no clock or timing strobe

required

• Internal bypass capacitor

• High-speed silicon-gate CMOS technology

• 5V or 3V ± 10% power supply

• Equal address and chip enable access times

• Three-state outputs

• All inputs and outputs are TTL compatible

ESCRIPTION

DDC’s 89C1632 high-performance 16 Megabit Multi-Chip

Module (MCM) Static Random Access Memory features a

greater than 100 krad (Si) total dose tolerance, depending

upon space mission. The four 4-Megabit SRAM die and

bypass capacitors are incorporated into a high-reliable her-

metic quad flat-pack ceramic package. With high-performance

silicon-gate CMOS technology, the 89C1632 reduces power

consumption and eliminates the need for external clocks or

timing strobes. It is equipped with output enable (OE) and four

byte enable (CS1 - CS4) inputs to allow greater system flexi-

bility. When OE input is high, the output is forced to high

impedance.

DDC’s patented R

-P

® packaging technology incorporates

radiation shielding in the microcircuit package. In a GEO orbit,

-P

provides true greater than 100 krad (Si) total radiation

dose tolerance, dependent upon space mission. It eliminates

the need for box shielding while providing the required radia-

tion shielding for a lifetime in orbit or a space mission. This

product is available with screening up to DDC’s self-defined

Class K.

01.10.05 Rev 3

All data sheets are subject to change without notice

(631) 567-5600 - www.ddc-web.com
