FOXSDLF/184-20/TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> FOXSDLF/184-20/TR

FOXSDLF/184-20/TR: DescriptionParallel - Fundamental Quartz Crystal, 18.432MHz Nom, HC49SD, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size152KB，3 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

FOXSDLF/184-20/TR Overview

Parallel - Fundamental Quartz Crystal, 18.432MHz Nom, HC49SD, SMD, 2 PIN

FOXSDLF/184-20/TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
package instruction	HC49SD, SMD, 2 PIN
Reach Compliance Code	compliant
Other features	TR, 13 INCH
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	50 ppm
JESD-609 code	e1
load capacitance	20 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	18.432 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L11.7XB5.0XH4.5 (mm)/L0.461XB0.197XH0.177 (inch)
Series resistance	40 Ω
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)

Preview

Download Datasheet

View All

Resistance Weld SMD Crystal

Model: HC49SDLF

Page 1 of 3

RoHS Compliant / Pb Free

Rev. 3/30/2015

http://www.foxonline.com/need_a_sample.htm

FEATURES

OPTIONS

• Stock Standard

(see page 2)

• Tolerances to 10 PPM

• Fundamental to 40 MHz

• Stabilities to 5 PPM

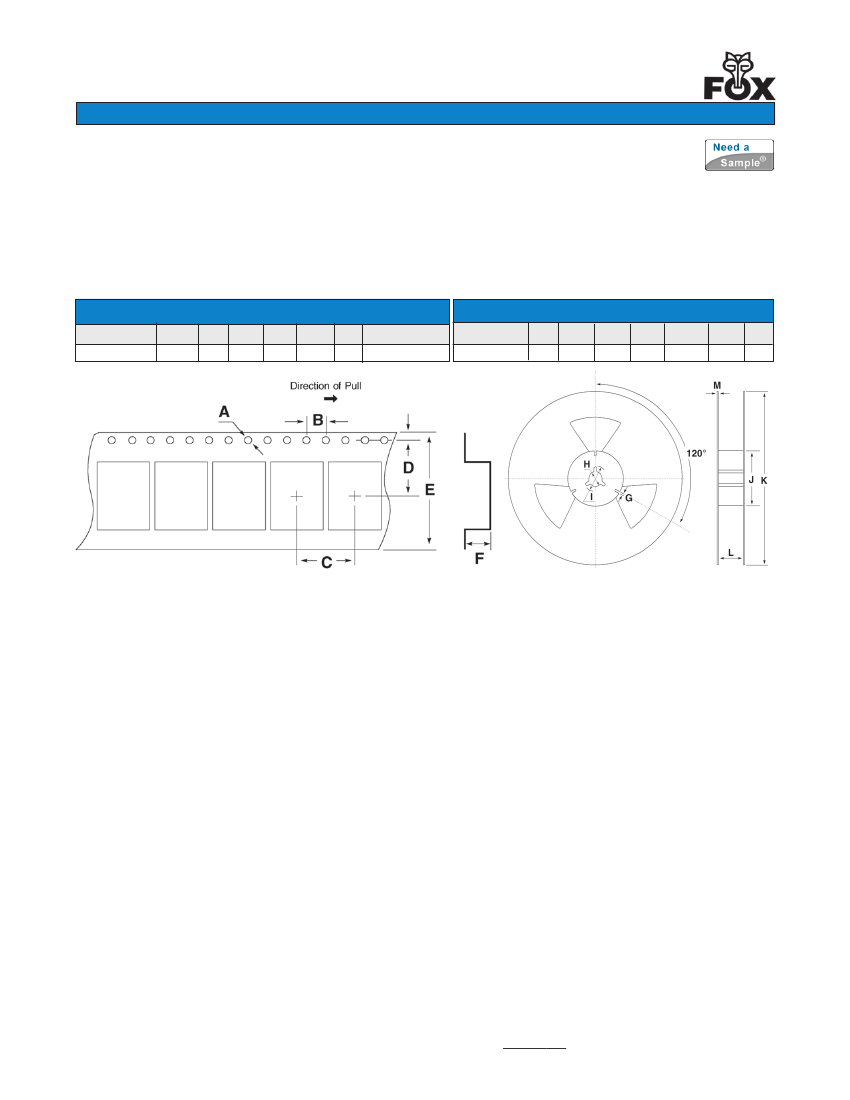

• Tape and Reel

(1,000 pcs. STD)

• Temperatures to -55ºC ~ +125ºC

• 3.2mm Height Max

(HC49SSDLF)

1 0 .3 M ax

4 .5 M ax

• PART NUMBER

Part Number

278LF-Frequency-xxxxx

Model Number

HC49SDLF

Frequency Range (MHz)

3.200 ~ 80.000

3 .8 M ax

• STANDARD SPECIFICATIONS

PARAMETERS

Frequency Range

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

Temperature Range

Operating

OPR

)

Storage

STG

)

Shunt Capacitance (Co)

Load Capacitance

)

Drive Level

Aging per year

Maximum Soldering Temp / Time

Moisture Sensitivity Level (MSL)

Termination Finish:

MAX

(unless otherwise noted)

3.200 ~ 80.000 MHz

±50 PPM

1,3

±50 PPM

-20ºC ~ +70ºC

-40ºC ~ +125ºC

7pF

10 pF ~ Series

(Customer Specified)

0.5 mW (0.1 mW Typical)

±3 PPM

260ºC / 10 Seconds

Sn/Ag/Cu

0 .7 5 ±0 .35

1 3 .9 M ax

1 1 .7 M ax

5 .0 M ax

Recommended

HC49SD Solder Pad Layout

1 5 .0 ±0 .1

2 .0 ±0 .1

4 .0 ±0 .1

Other tolerances, stabilities available. Consult Fox Customer Service for specific requirements.

Operating temperature ranges to -55ºC ~

125ºC available.

Crystal has a ±30ppm tolerance specification for all standard part numbers. These part numbers

are listed on page 2 of this datasheet.

Note: Dimensional drawing is for reference to critical specifications defined by size measure¬ments.

Certain non-critical visual attributes, such as side castellations, etc. may vary.

All specifications subject to change without notice.

All dimensions are in millimeters.

TERMINATION FINISH: Sn/3.0Ag/0.5Cu

Frequency Range

(MHz)

3.200 ~ 3.500

3.500+ ~ 4.000

4.000+ ~ 5.000

5.000+ ~ 6.000

6.000+ ~ 7.000

7.000+ ~ 9.000

9.000+ ~ 13.000

13.000+ ~ 20.000

20.000+ ~ 40.000

27.000 ~ 70.000

70.000+ ~ 80.000

Operating Mode

Fundamental

3rd OT

Max ESR

Ω

300

200

150

120

100

Fox Electronics

5570 Enterprise Parkway

Fort Myers, Florida 33905

USA +1.239.693.0099

FOXonline.com

FAX +1.239.693.1554

An Integrated Device Technology, Inc. company
