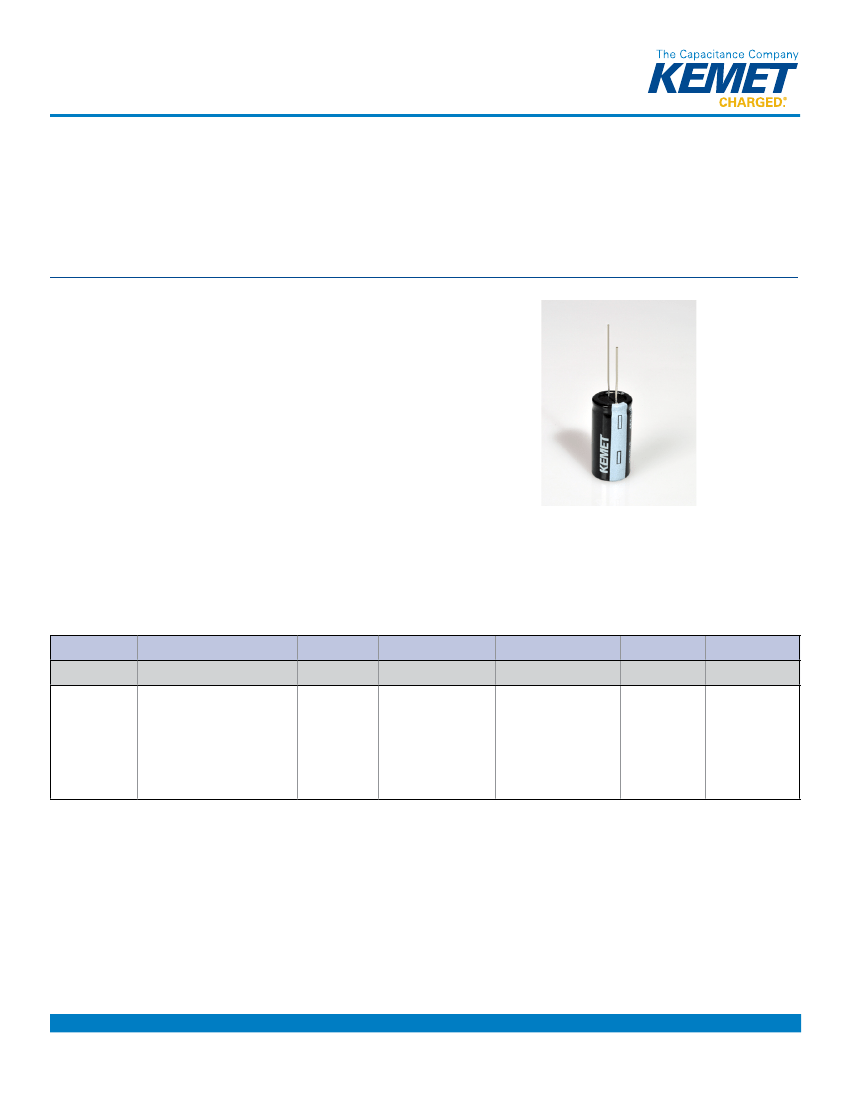

Radial Aluminum Electrolytic Capacitors
EST Series, 105ºC
Overview
Applications
Typical applications include SMPS, power supplies, adaptors,
chargers, monitors and computers.
KEMET's EST Series of aluminum electrolytic radial capacitors
are designed for low impedance and long life (up to 1,000 hours)
applications.
Benefits
•
•
•
•
•
Long life, up to 10,000 hours
Low impedance
Operating temperature of up to 105°C
Case with Ø D ≥ 6.3 mm
Safety vent on the capacitor base
Part Number System
EST
Series
Radial Leaded
Aluminum
Electrolytic
157
Capacitance Code (pF)
Digits 4 – 5 represent the first
two digits of the capacitance
value. The final digit indicates
the number of zeros to be
added.
M
Tolerance
M = ±20%
6R3
Rated Voltage (VDC)
6R3 = 6.3
010 = 10
016 = 16
025 = 25
035 = 35
050 = 50
063 = 63
A
Electrical Parameters
A = Standard
C3
Size Code
See Dimension
Table
AA
Packaging
See Ordering
Options Table
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
A4010_EST • 4/17/2013
1
Radial Aluminum Electrolytic Capacitors – EST Series, 105ºC
Ordering Options Table
Diameter
4 – 22
4–5
6.3
8
10 – 13
16
4–8
10
4–8
4–5
4 – 6.3
4 – 5, 8 – 16
Packaging Type
Bulk (bag)
Tape & Reel
Tape & Reel
Tape & Reel
Ammo
Ammo
Ammo
Ammo
Ammo
Ammo
Tape & Reel
Tape & Reel
Lead Type
Straight
Formed to 2.5 mm
2.5 mm Lead Spacing
Formed to 5 mm
5 mm Lead Spacing
7.5 mm Lead Spacing
Other Packaging Options
Formed to 5 mm
5 mm Lead Spacing
Straight
Formed to 2.5 mm
Formed to 5 mm
Straight
Lead Length
(mm)
20/15 Minimum
H
0
= 16.5 ±0.75
H
0
= 18.5 ±0.75
H
0
= 16.5 ±0.75
H
0
= 18.5 ±0.75
H
0
= 18.5 ±0.75
H
0
= 16.5 ±0.75
H
0
= 16.5 ±0.75
H
0
= 18.5 ±0.75
H
0
= 16.5 ±0.75
H
0
= 16.5 ±0.75
H
0
= 18.5 ±0.75
Lead and
Packaging Code
AA
LA
KA
JA
EA
EA
DA
DA
EA
FA
JA
KA
Standard Bulk Packaging Options
Standard Auto-Insertion Packaging Options
Contact KEMET for other Lead and Packaging options
Environmental Compliance
As an environmentally conscious company, KEMET is working continuously with improvements concerning the environmental effects
of both our capacitors and their production. In Europe (RoHS Directive) and in some other geographical areas like China, legislation
has been put in place to prevent the use of some hazardous materials, such as lead (Pb), in electronic equipment. All products in this
catalog are produced to help our customers’ obligations to guarantee their products and fulfill these legislative requirements. The only
material of concern in our products has been lead (Pb), which has been removed from all designs to fulfill the requirement of containing
less than 0.1% of lead in any homogeneous material. KEMET will closely follow any changes in legislation world wide and makes any
necessary changes in its products, whenever needed.
Some customer segments such as medical, military and automotive electronics may still require the use of lead in electrode coatings.
To clarify the situation and distinguish products from each other, a special symbol is used on the packaging labels for RoHS compatible
capacitors.
Because of customer requirements, there may appear additional markings such as LF = Lead Free or LFW = Lead Free Wires on the
label.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
A4010_EST • 4/17/2013
2
Radial Aluminum Electrolytic Capacitors – EST Series, 105ºC
Dimensions – Millimeters
L
Safety vent
LL+
LL-
P
Insulated Sleeve
D
d
D
Nominal
5
6.3
8
8
8
10
10
10
10
10
13
13
13
13
13
16
16
16
16
18
18
18
Polarity Stripe
Size Code
C3
E3
G3
G4
G6
H1
H2
H4
H5
H6
L3
L4
L8
L6
L7
M7
M2
M3
M4
N1
N2
N3
L
Tolerance
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
Nominal
11
11
11
15
20
12
16
20
25
30
20
25
30
36
40
25
32
36
40
32
36
40
Tolerance
+1.5/-0
+1.5/-0
+1.5/-0
+2.0/-0
+2.0/-0
+1.5/-0
+2.0/-0
+2.0/-0
+2.0/-0
+2.0/-0
+2.0/-0
+2.0/-0
+2.0/-0
+2.0/-0
+2.0/-0
+2.0/-0
+2.0/-0
+2.0/-0
+2.0/-0
+2.0/-0
+2.0/-0
+2.0/-0
Nominal
2
2.0
3.5
3.5
3.5
5
5
5
5
5
5
5
5
5
5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
p
Tolerance
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
Nominal
0.5
0.5
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
d
Tolerance
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
LL+/LL-
Nominal
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
Tolerance
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
A4010_EST • 4/17/2013
3
Radial Aluminum Electrolytic Capacitors – EST Series, 105ºC
Performance Characteristics
Item
Capacitance Range
Capacitance Tolerance
Rated Voltage
Life Test
Operating Temperature
Leakage Current
10 – 15,000 µF
±20% at 120 Hz / 20°C
6.3 – 63 VDC
4,000 – 10,000 hours (see conditions in Test Method & Performance)
-40°C to +105°C
I ≤ 0.01 CV or 3 µA, whichever is greater
C = rated capacitance (µF), V = rated voltage (VDC). Voltage applied for 2 minutes at 20°C.
Performance Characteristics
Compensation Factor of Ripple Current (RC) vs. Frequency
Capacitance Range (µF)
6.8 – 180
220 – 560
680 – 1,800
2,200 – 3,900
≥ 4,700
120 Hz
0.40
0.50
0.60
0.75
0.85
1 kHz
0.75
0.85
0.87
0.90
0.95
10 kHz
0.90
0.94
0.95
0.95
0.98
100 kHz
1.00
1.00
1.00
1.00
1.00
Test Method & Performance
Conditions
Temperature
Can Ø ≤ 6.3 mm
Can Ø ≤ 6.3 mm
Test Duration
8.0 ≤ Can Ø ≥ 10.0 mm
8.0 ≤ Can Ø ≥ 10.0 mm
Can Ø ≥ 12.5 mm
Can Ø ≥ 12.5 mm
Ripple Current
Voltage
Load Life Test
105°C
V ≤ 10 VDC
V ≤ 16 VDC
V ≤ 10 VDC
V ≤ 16 VDC
V ≤ 10 VDC
V ≤ 16 VDC
4,000 hours
5,000 hours
6,000 hours
7,000 hours
8,000 hours
10,000 hours
Shelf Life Test
105°C
1,000 hours
Maximum ripple current specified at 100 kHz 105°C
The sum of DC voltage and the peak AC voltage must not exceed the rated
voltage of the capacitor
No ripple current applied
No voltage applied
Performance
Capacitance Change
Dissipation Factor
Leakage Current
The following specifications will be satisfied when the capacitor is restored to 20°C:
Within ±25% of the initial value
Does not exceed 200% of the specified value
Does not exceed specified value
A4010_EST • 4/17/2013
4
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
Radial Aluminum Electrolytic Capacitors – EST Series, 105ºC
Table 1 – Ratings & Part Number Reference
VDC
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
25
25
25
25
25
25
VDC Surge
Voltage
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
32
32
32
32
32
32
Rated
Capacitance
120 Hz 20°C
(µF)
150
330
680
820
1000
1500
1500
2200
2700
3300
3900
4700
5600
6800
6800
8200
10000
12000
15000
100
220
470
680
1000
1500
220
270
330
390
4700
4700
5600
6800
8200
1000
56
100
220
330
470
680
1000
4700
2200
2700
3300
3900
4700
5600
5600
6800
47
100
150
220
330
470
Case Size
D x L (mm)
5x11
6.3x11
8x11
8x15
10x12
8x20
10x16
10x20
10x25
13x20
13x25
13x30
13x36
13x40
16x25
16x32
16x36
18x32
18x36
5x11
6.3x11
8x11
8x15
10x16
10x20
10x25
13x20
13x25
13x30
13x36
13x40
16x25
16x32
16x36
18x36
5x11
6.3x11
8x11
8x15
8x15
10x16
10x20
10x25
13x25
13x30
13x36
13x40
16x32
16x36
18x32
18x36
5x11
6.3x11
8x11
8x11
8x15
10x16
DF
120 Hz 20°C
(tan δ %)*
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
14
14
14
14
14
14
RC
100 kHz
105°C (mA)
210
340
640
840
865
1050
1210
1400
1650
1900
2230
2650
2880
3350
2930
3450
3610
4170
4220
210
340
640
840
1210
1400
1650
1900
2230
2650
2880
3350
2930
3450
3610
4220
210
340
640
701
840
1210
1400
1650
2230
2650
2880
3350
3450
3610
4170
4220
210
340
640
640
840
1210
ESR
100 kHz
20°C (Ω)
0.72
0.38
0.2
0.16
0.12
0.11
0.084
0.062
0.052
0.046
0.034
0.03
0.027
0.024
0.028
0.025
0.018
0.015
0.014
0.72
0.38
0.2
0.16
0.084
0.062
0.052
0.046
0.034
0.03
0.027
0.024
0.028
0.025
0.018
0.014
0.72
0.38
0.2
0.16
0.16
0.084
0.062
0.052
0.034
0.03
0.027
0.024
0.028
0.018
0.015
0.014
0.72
0.38
0.2
0.2
0.16
0.084
Part Number
EST157M6R3AC3(1)
EST337M6R3AE3(1)
EST687M6R3AG3(1)
EST827M6R3AG4(1)
EST108M6R3AH1(1)
EST158M6R3AG6(1)
EST158M6R3AH2(1)
EST228M6R3AH4(1)
EST278M6R3AH5(1)
EST338M6R3AL3(1)
EST398M6R3AL4(1)
EST478M6R3AL8(1)
EST568M6R3AL6(1)
EST688M6R3AL7(1)
EST688M6R3AM7(1)
EST828M6R3AM2(1)
EST109M6R3AM3(1)
EST129M6R3AN1(1)
EST159M6R3AN2(1)
EST107M010AC3(1)
EST227M010AE3(1)
EST477M010AG3(1)
EST687M010AG4(1)
EST108M010AH2(1)
EST158M010AH4(1)
EST227M010AH5(1)
EST277M010AL3(1)
EST337M010AL4(1)
EST397M010AL8(1)
EST478M010AL6(1)
EST478M010AL7(1)
EST568M010AM7(1)
EST688M010AM2(1)
EST828M010AM3(1)
EST108M010AN2(1)
EST566M016AC3(1)
EST107M016AE3(1)
EST227M016AG3(1)
EST337M016AG4(1)
EST477M016AG4(1)
EST687M016AH2(1)
EST108M016AH4(1)
EST478M016AM2(1)
EST228M016AL4(1)
EST278M016AL8(1)
EST338M016AL6(1)
EST398M016AL7(1)
EST478M016AM2(1)
EST568M016AM3(1)
EST568M016AN1(1)
EST688M016AN2(1)
EST476M025AC3(1)
EST107M025AE3(1)
EST157M025AG3(1)
EST227M025AG3(1)
EST337M025AG4(1)
EST477M025AH2(1)
VDC
VDC Surge
Rated
Capacitance
Case Size
DF
RC
LC
Part Number
(1) Insert packaging code. See Ordering Options Table for available options.
* When capacitance exceeds 1,000 µF, the DF value (%) is increased by 2% for every additional 1,000 µF.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
A4010_EST • 4/17/2013
5
Roll Over for
Order Info.
DSP and ARM Processors
京公网安备 11010802033920号
EEWORLD
