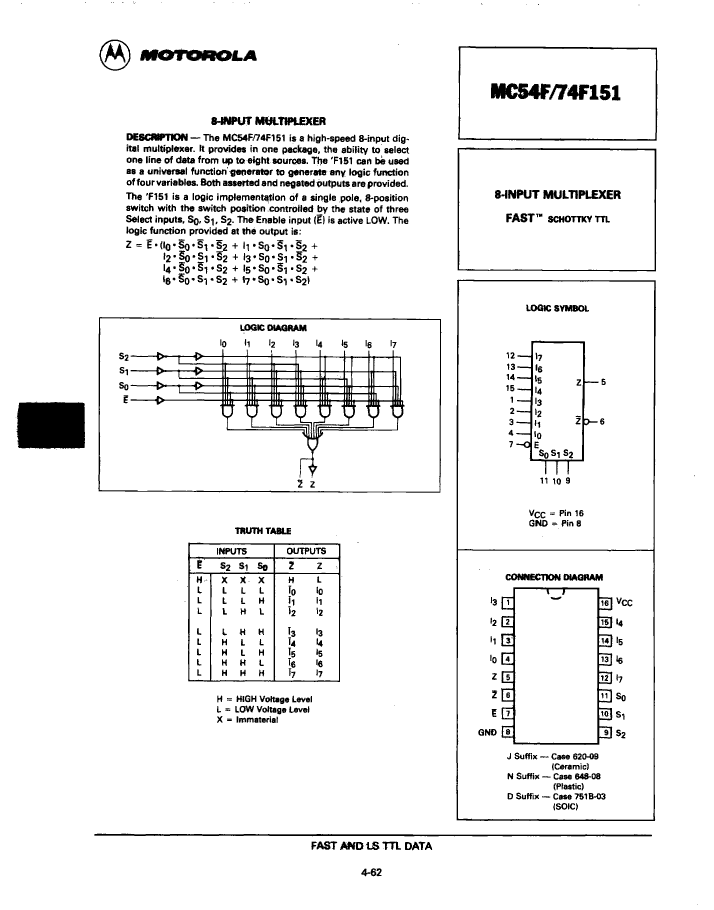

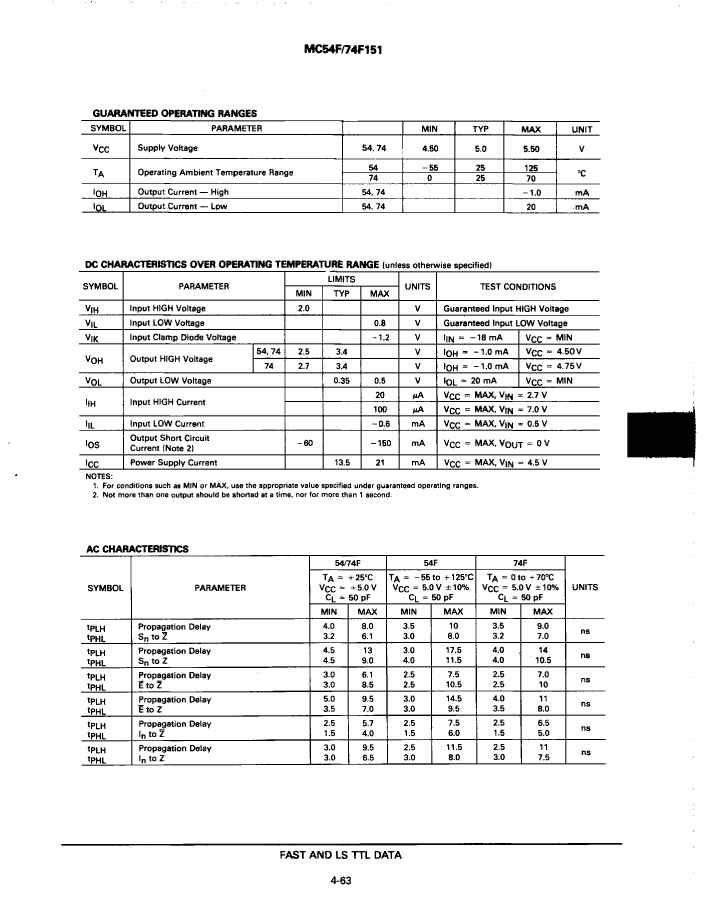

F/FAST SERIES, 8 LINE TO 1 LINE MULTIPLEXER, COMPLEMENTARY OUTPUT, PDSO16, PLASTIC, SOIC-16
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Motorola ( NXP ) |
| Parts packaging code | SOIC |
| package instruction | SOP, SOP16,.25 |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| series | F/FAST |
| JESD-30 code | R-PDSO-G16 |
| JESD-609 code | e0 |
| length | 9.9 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | MULTIPLEXER |
| MaximumI(ol) | 0.02 A |
| Number of functions | 1 |
| Number of entries | 8 |
| Output times | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | 3-STATE |
| Output polarity | COMPLEMENTARY |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP16,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| method of packing | TAPE AND REEL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Maximum supply current (ICC) | 21 mA |
| Prop。Delay @ Nom-Sup | 14 ns |
| propagation delay (tpd) | 10.5 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.75 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 3.9 mm |
| MC74F151DR2 | MC74F151DDR2 | MC74F151DD | |
|---|---|---|---|
| Description | F/FAST SERIES, 8 LINE TO 1 LINE MULTIPLEXER, COMPLEMENTARY OUTPUT, PDSO16, PLASTIC, SOIC-16 | F/FAST SERIES, 8 LINE TO 1 LINE MULTIPLEXER, COMPLEMENTARY OUTPUT, PDSO16, PLASTIC, SOIC-16 | F/FAST SERIES, 8 LINE TO 1 LINE MULTIPLEXER, COMPLEMENTARY OUTPUT, PDSO16, PLASTIC, SOIC-16 |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| Parts packaging code | SOIC | SOIC | SOIC |
| package instruction | SOP, SOP16,.25 | SOP, | SOP, |
| Contacts | 16 | 16 | 16 |
| Reach Compliance Code | unknown | unknown | unknown |
| series | F/FAST | F/FAST | F/FAST |
| JESD-30 code | R-PDSO-G16 | R-PDSO-G16 | R-PDSO-G16 |
| length | 9.9 mm | 9.9 mm | 9.9 mm |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER |
| Number of functions | 1 | 1 | 1 |
| Number of entries | 8 | 8 | 8 |
| Output times | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C |
| Output polarity | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Maximum supply current (ICC) | 21 mA | 21 mA | 21 mA |
| propagation delay (tpd) | 10.5 ns | 10.5 ns | 10.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.75 mm | 1.75 mm | 1.75 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES |
| technology | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL |
| width | 3.9 mm | 3.9 mm | 3.9 mm |
