MCM67B618AZP9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MCM67B618AZP9

MCM67B618AZP9: Description64KX18 CACHE SRAM, 9ns, PBGA119, 14 X 22 MM, 1.27 MM PITCH, PLASTIC, BGA-119; Categorystorage storage; File Size317KB，10 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MCM67B618AZP9 Overview

64KX18 CACHE SRAM, 9ns, PBGA119, 14 X 22 MM, 1.27 MM PITCH, PLASTIC, BGA-119

MCM67B618AZP9 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Parts packaging code	BGA
package instruction	BGA, BGA119,7X17,50
Contacts	119
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	9 ns
Other features	SELF-TIMED WRITE; BURST COUNTER; BYTE WRITE
I/O type	COMMON
JESD-30 code	R-PBGA-B119
JESD-609 code	e0
length	22 mm
memory density	1179648 bit
Memory IC Type	CACHE SRAM
memory width	18
Number of functions	1
Number of ports	1
Number of terminals	119
word count	65536 words
character code	64000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX18
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Encapsulate equivalent code	BGA119,7X17,50
Package shape	RECTANGULAR
Package form	GRID ARRAY
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	2.4 mm
Maximum standby current	0.095 A
Minimum standby current	4.75 V
Maximum slew rate	0.275 mA
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	BALL
Terminal pitch	1.27 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm

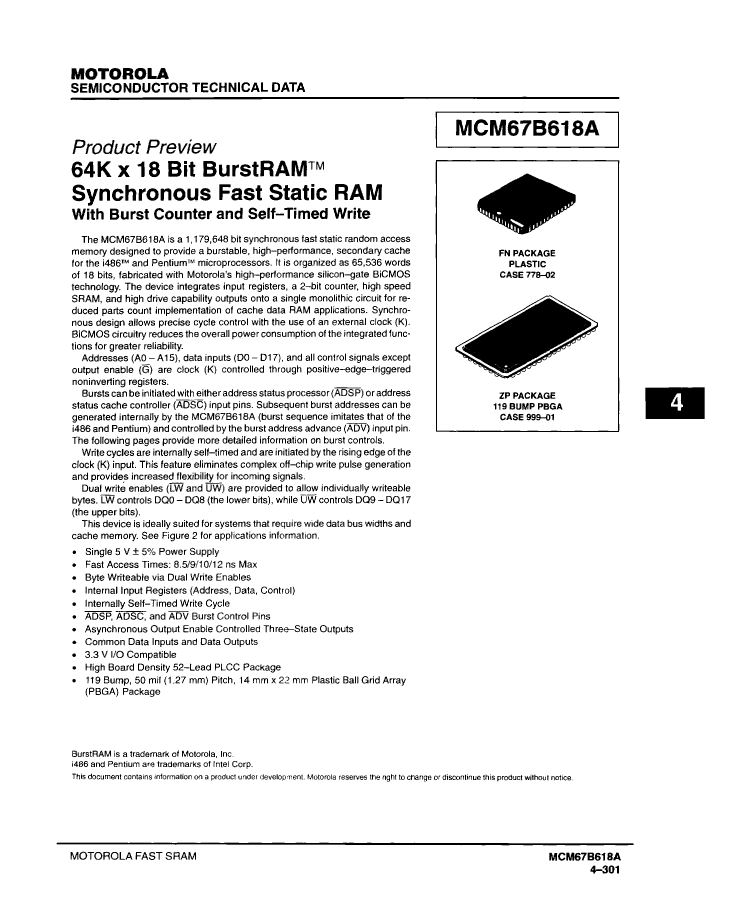

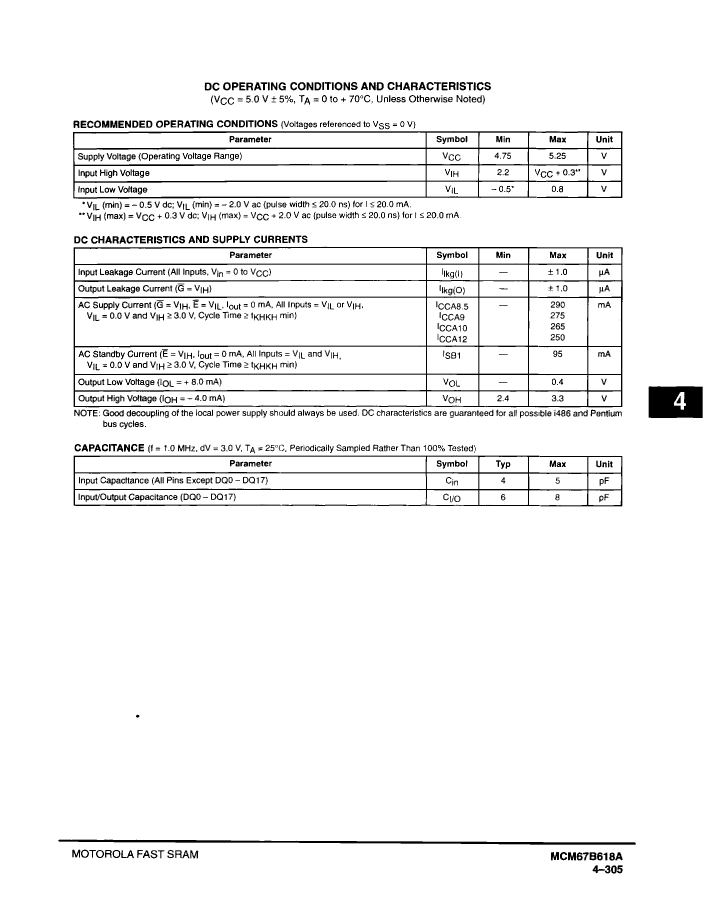

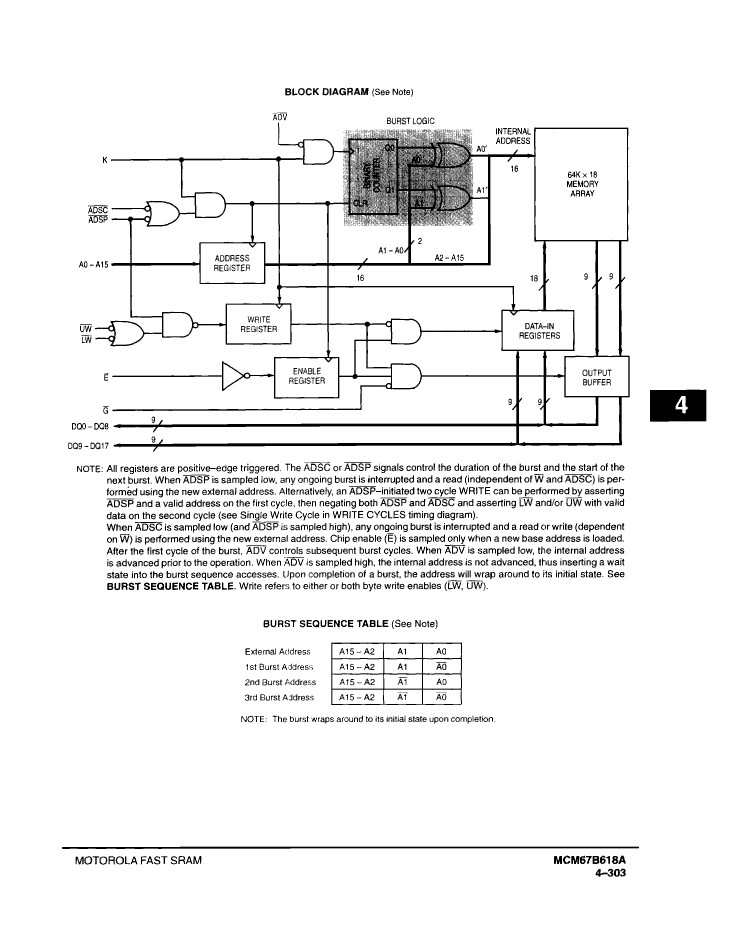

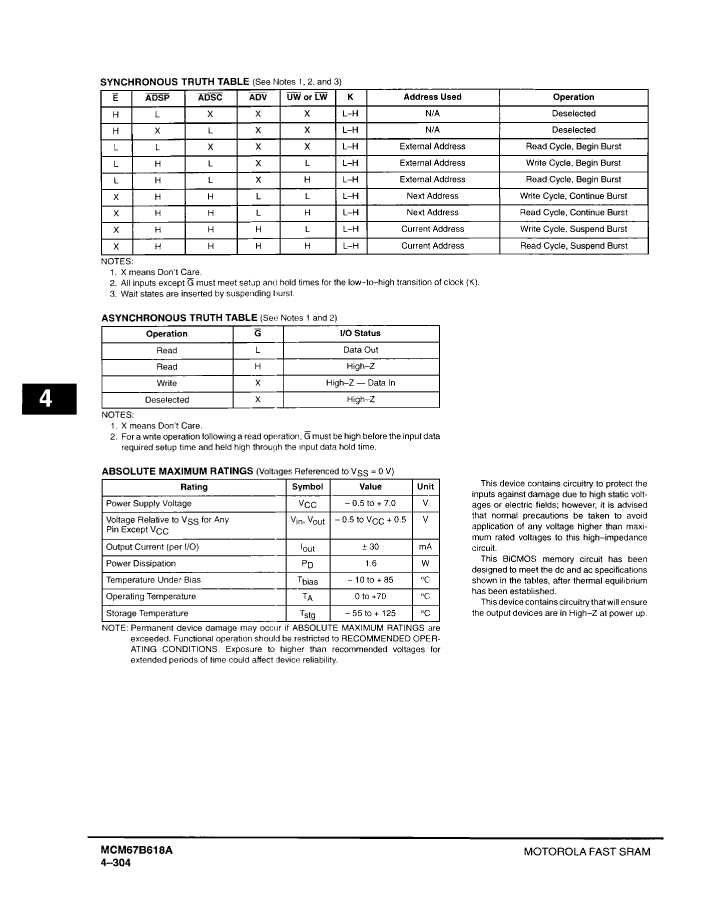

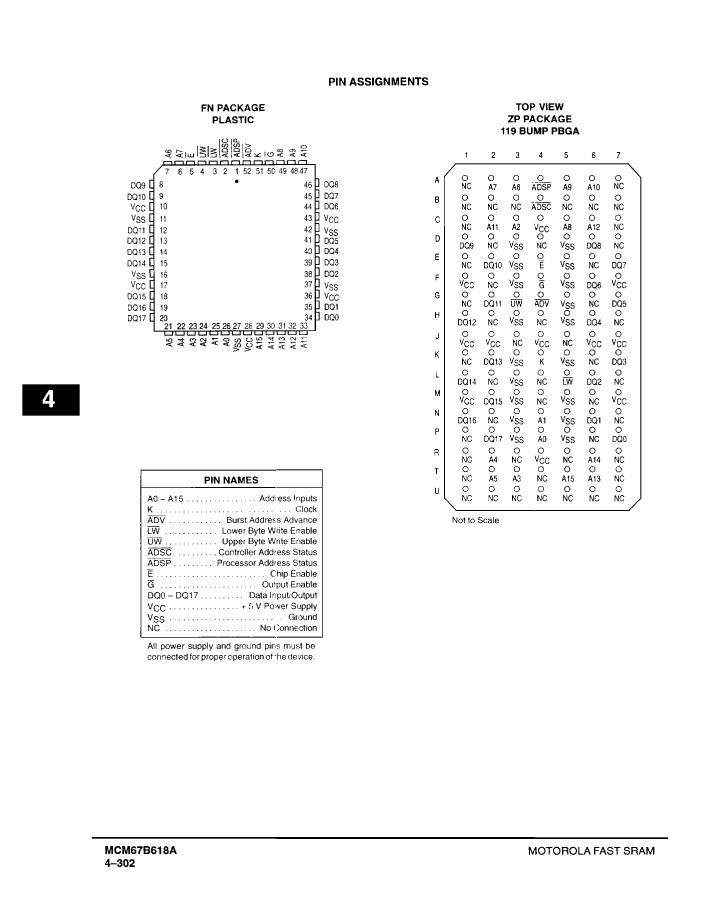

Preview

Download Datasheet

View All

MCM67B618AZP9 Related Products

	MCM67B618AZP9	MCM67B618AZP12	MCM67B618AZP8.5	MCM67B618AFN8.5
Description	64KX18 CACHE SRAM, 9ns, PBGA119, 14 X 22 MM, 1.27 MM PITCH, PLASTIC, BGA-119	64KX18 CACHE SRAM, 12ns, PBGA119, 14 X 22 MM, 1.27 MM PITCH, PLASTIC, BGA-119	64KX18 CACHE SRAM, 8.5ns, PBGA119, 14 X 22 MM, 1.27 MM PITCH, PLASTIC, BGA-119	64KX18 CACHE SRAM, 8.5ns, PQCC52, PLASTIC, LCC-52
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
Parts packaging code	BGA	BGA	BGA	LCC
package instruction	BGA, BGA119,7X17,50	BGA, BGA119,7X17,50	BGA, BGA119,7X17,50	QCCJ, LDCC52,.8SQ
Contacts	119	119	119	52
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	9 ns	12 ns	8.5 ns	8.5 ns
Other features	SELF-TIMED WRITE; BURST COUNTER; BYTE WRITE	SELF-TIMED WRITE; BURST COUNTER; BYTE WRITE	SELF-TIMED WRITE; BURST COUNTER; BYTE WRITE	SELF-TIMED WRITE; BURST COUNTER; BYTE WRITE
I/O type	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PBGA-B119	R-PBGA-B119	R-PBGA-B119	S-PQCC-J52
JESD-609 code	e0	e0	e0	e0
length	22 mm	22 mm	22 mm	19.1262 mm
memory density	1179648 bit	1179648 bit	1179648 bit	1179648 bit
Memory IC Type	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM
memory width	18	18	18	18
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	119	119	119	52
word count	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	64KX18	64KX18	64KX18	64KX18
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	BGA	BGA	BGA	QCCJ
Encapsulate equivalent code	BGA119,7X17,50	BGA119,7X17,50	BGA119,7X17,50	LDCC52,.8SQ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.4 mm	2.4 mm	2.4 mm	4.57 mm
Maximum standby current	0.095 A	0.095 A	0.095 A	0.095 A
Minimum standby current	4.75 V	4.75 V	4.75 V	4.75 V
Maximum slew rate	0.275 mA	0.25 mA	0.29 mA	0.29 mA
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	BALL	BALL	BALL	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	BOTTOM	BOTTOM	BOTTOM	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	14 mm	14 mm	14 mm	19.1262 mm
