0015921130: Description130 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size241KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0015921130 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0015921130	-	-	View	Buy Now

0015921130 Overview

130 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE

0015921130 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Is Samacsys	N
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Tin (Sn)
Contact material	PHOSPHOR BRONZE
Contact resistance	10 mΩ
Dielectric withstand voltage	700VAC V
Durability	2000 Cycles
maximum insertion force	.8896 N
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.133 inch
Termination type	SOLDER
Total number of contacts	130
Evacuation force-minimum value	.14734 N
Base Number Matches	1

Preview

Download Datasheet

View All

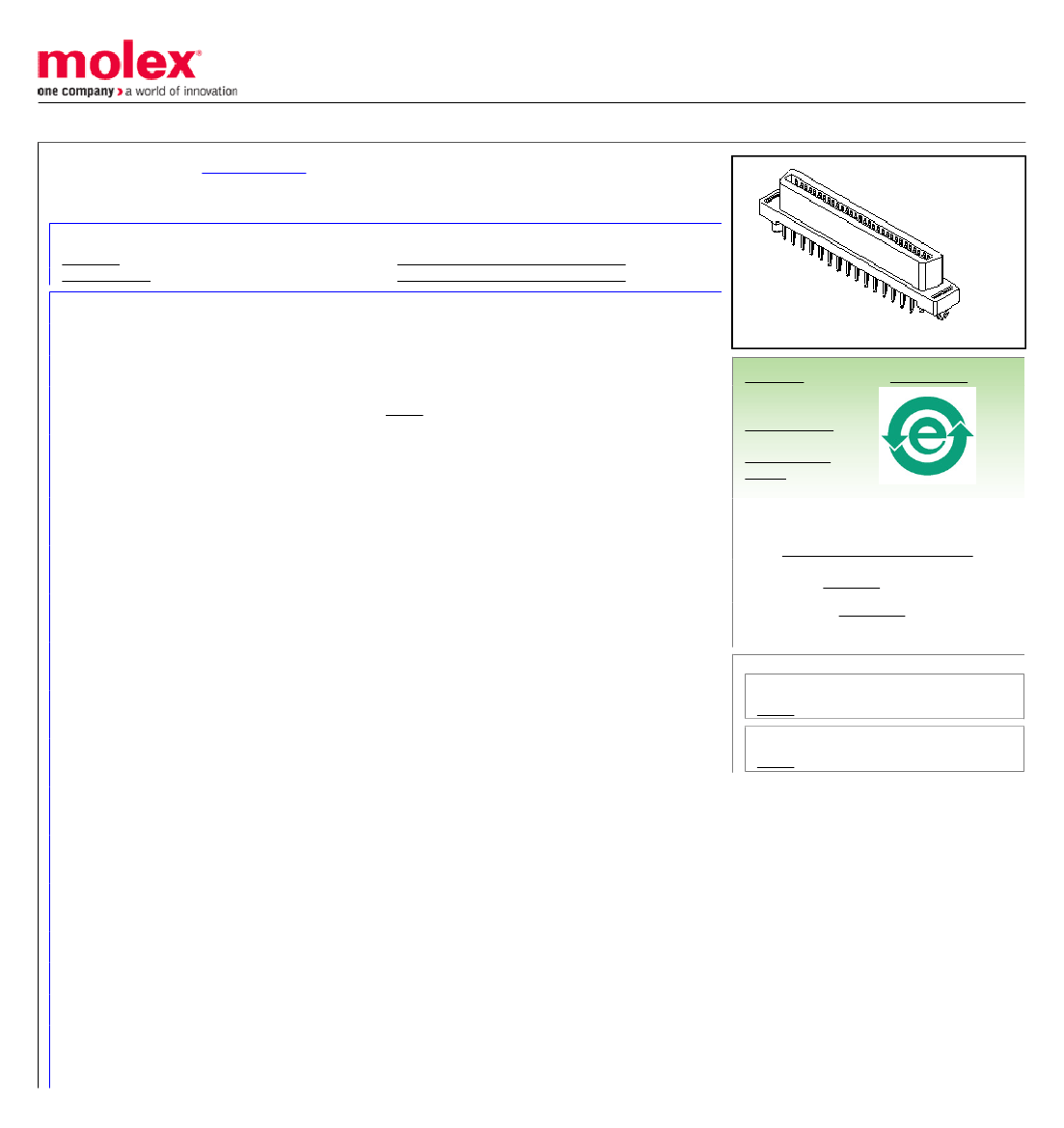

This document was generated on 04/20/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

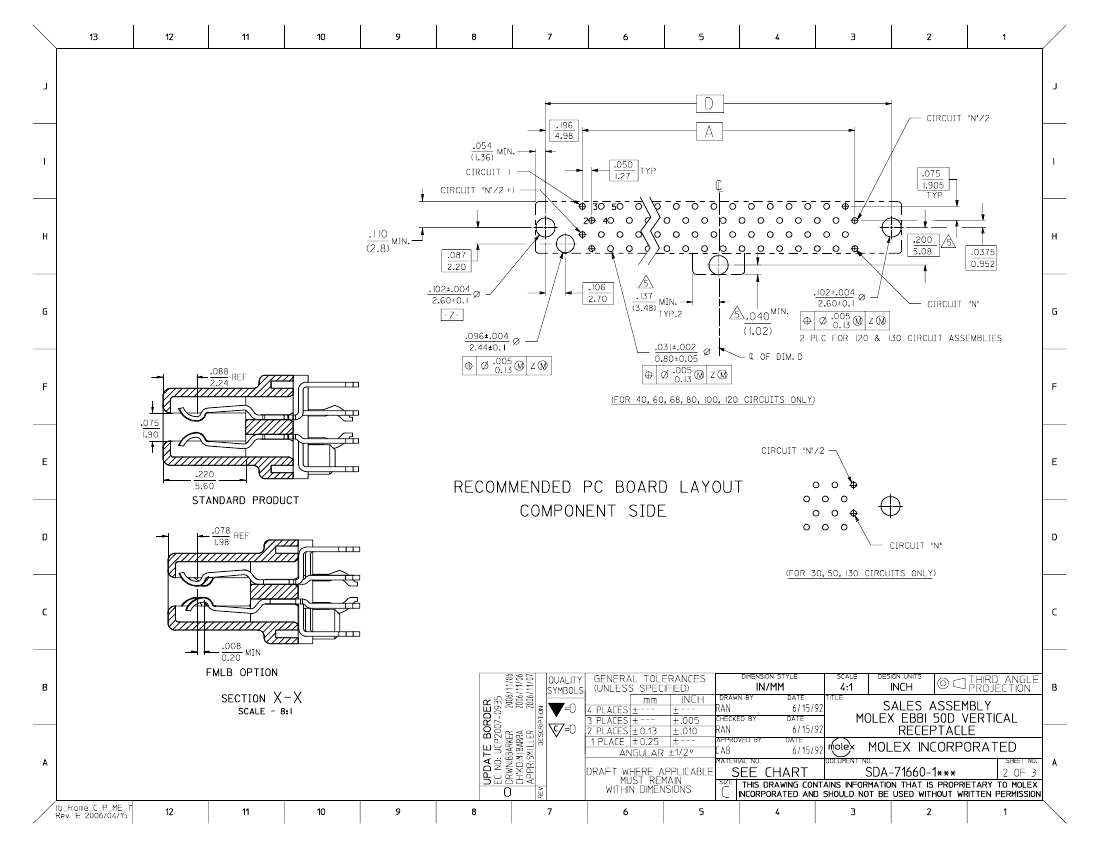

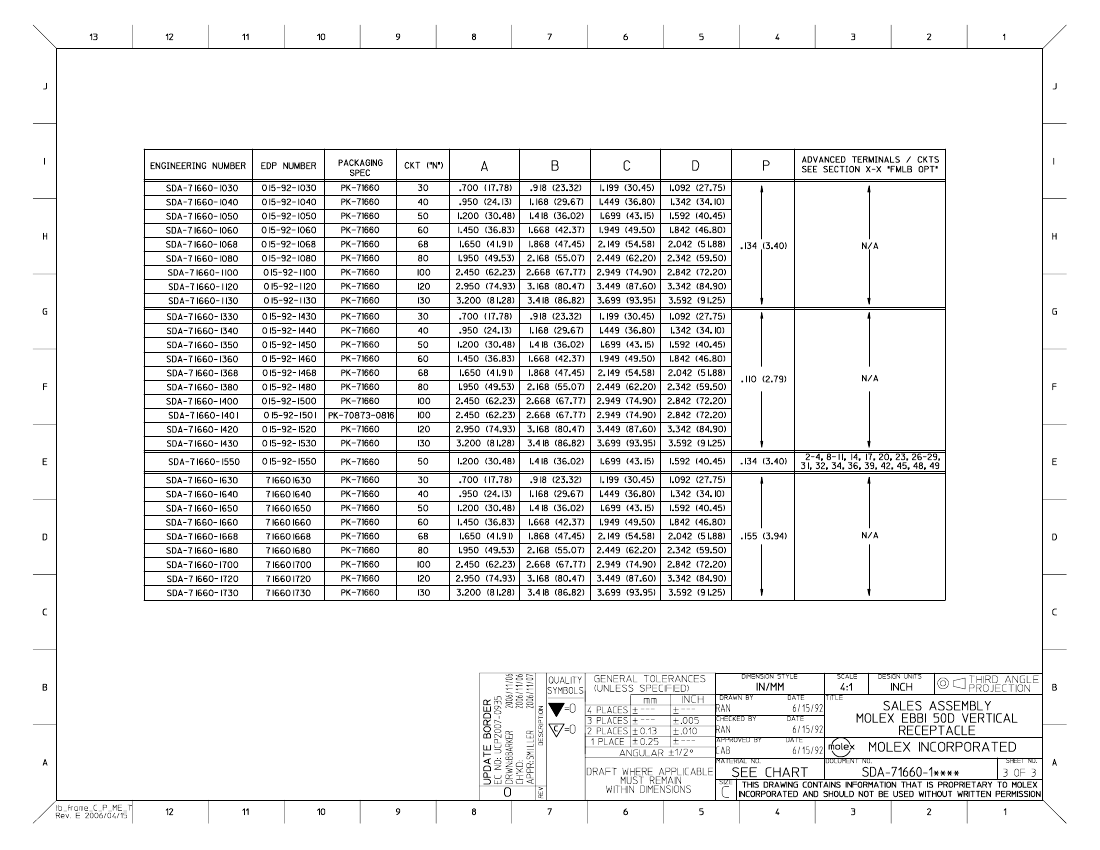

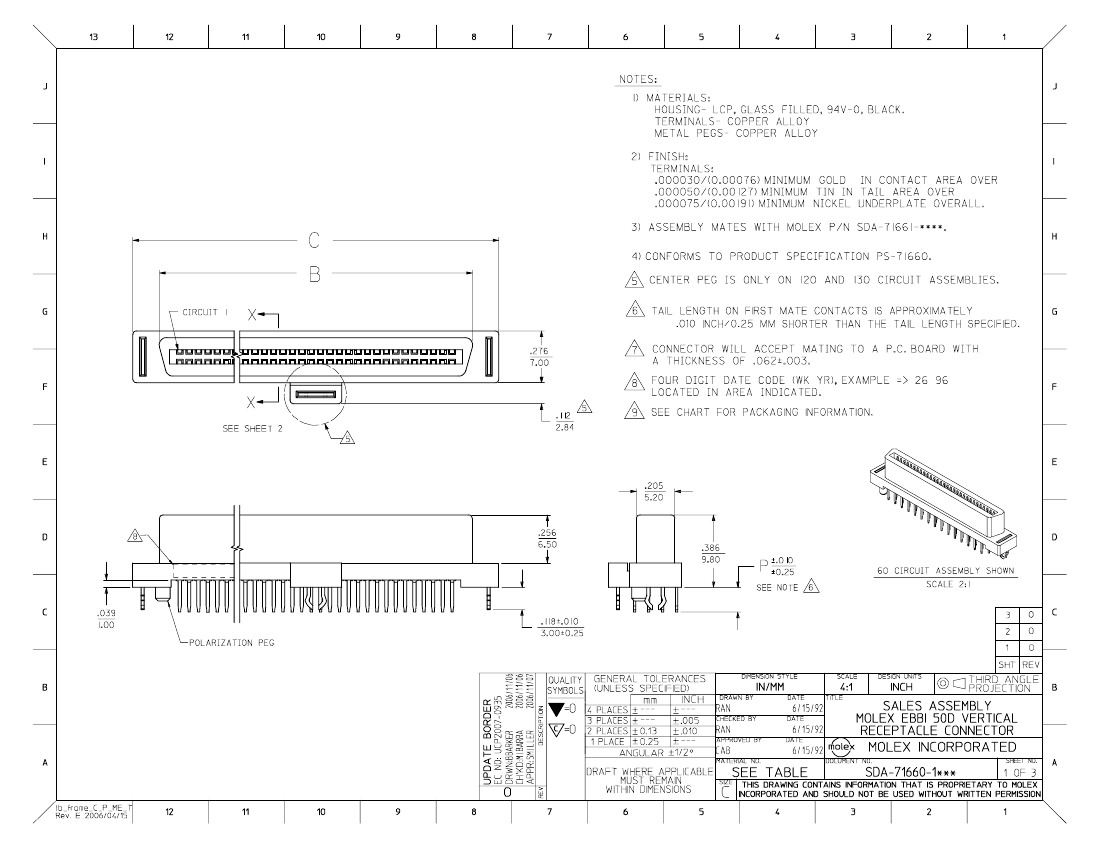

Drawing (PDF)

0015921130

Active

1.27mm (.050") Pitch EBBI™ 50D Receptacle, Vertical, 130 Circuits

Product Specification PS-71660 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

image - Reference only

Series

General

Product Family

Series

Application

Product Name

PCB Receptacles

71660

Board-to-Board

EBBI™

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Guide to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Temperature Range - Operating

Termination Interface: Style

130

Black

2,000

94V-0

Yes

Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

Vertical

0.134 In

3.40 mm

Yes

0.062 In

1.60 mm

Tray

0.050 In

1.27 mm

0.75

0.25

Yes

-40°C to +105°C

Through Hole

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

71660Series

Mates With

71661

Electrical

Current - Maximum per Contact

Voltage - Maximum

30V

Solder Process Data

Lead-free Process Capability

Process Temperature max. C

SMC & Wave Capable (TH only)

260

Material Info

0015921130 Related Products

	0015921130	015-92-1130	SDA-71660-1130	716601130
Description	130 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	130 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	130 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	1.27mm (.050) pitch ebbi? 50d receptacle, vertical, 130 circuits
