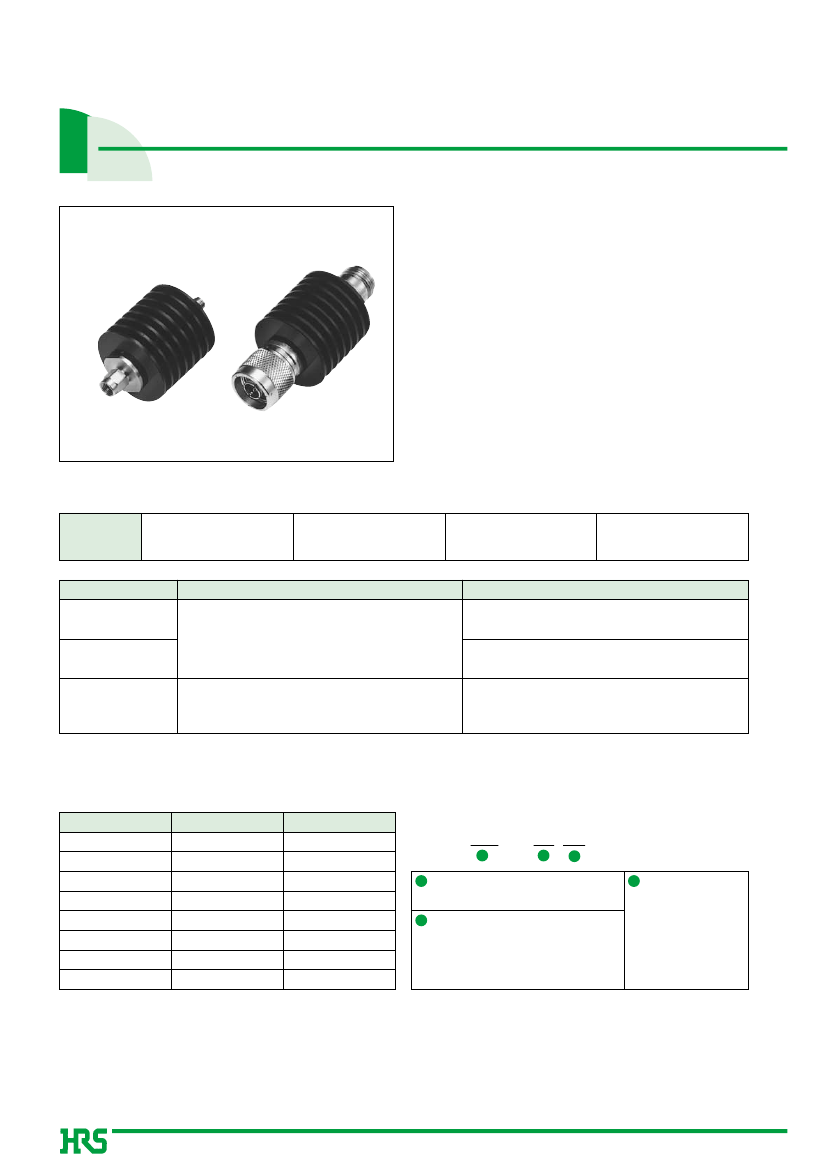

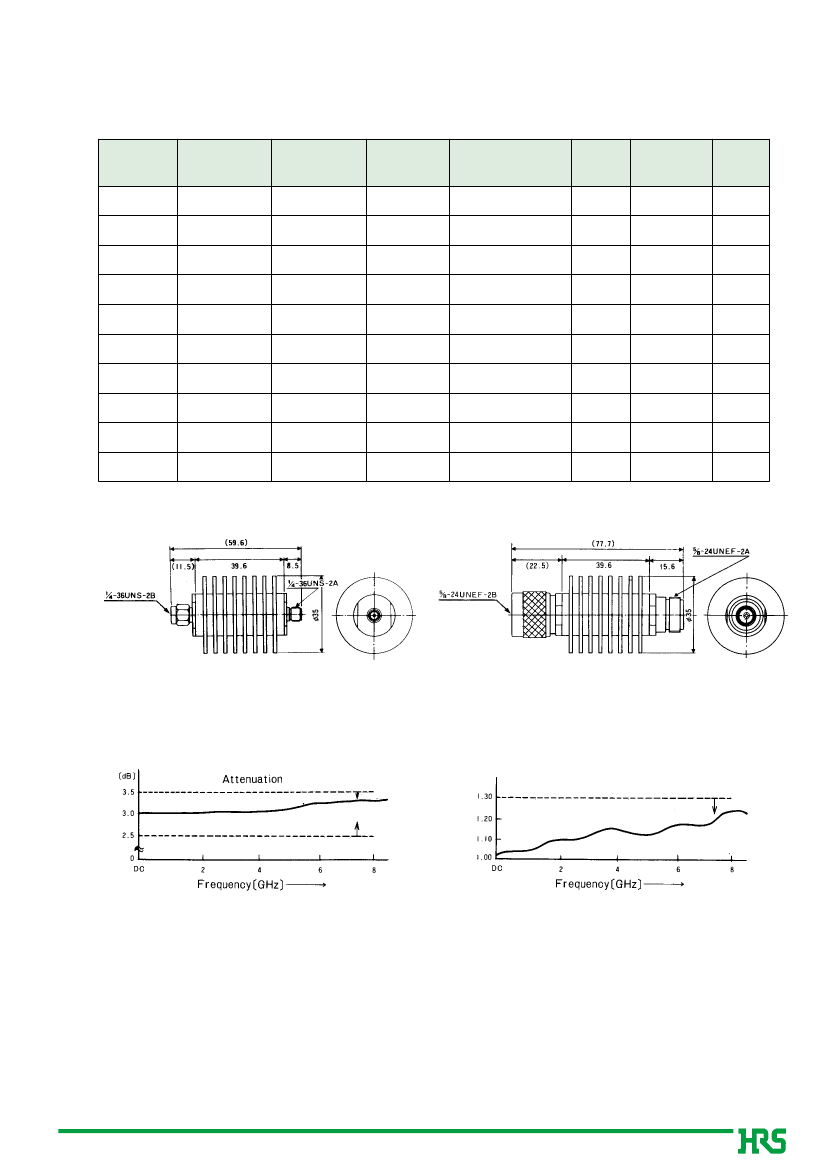

High Power Fixed Attenuators (Radiator built-in)

AT-1000 and AT-1100 Series

Features

1.Small Size and Economical

Beryllia is used for the material of the resistance

element to enable the termination to be of small

size and low cost.

2.Connectors Used

In the coupling portion, the AT-1000 Series has an

SMA type plug-jack and the AT-1100 Series has an

N type plug-jack.

3.High Reliability

These attenuators show stable characteristics for

environments of varying temperature, humidity, and

gases.

AT-1003

AT-1106

Product Specifications

Ratings

Frequency range

Characteristic impedance

Maximum Input Power

DC to 8.0 GHz

ohms

10W

Standard

No electrical discontinuity of 1 µs or more

2.Shock

No damage, cracks, or parts dislocation

Operating temperature range

Operating relative humidity

-10ç to +65ç

95% Max.

Item

1.Vibration

Conditions

Frequency of 10 to 2000 Hz, overall amplitude of 1.52 mm,

acceleration of 98 m/s

for 2 hours in each of 3 directions

Acceleration of 490 m/s

, sine half-wave waveform,

3 cycles in each of the 3 axis

Temperature: -55ç

+5ç to +35ç

+85ç

+5ç to +35ç

Time: 30

15 max.

15 max. (Minutes)

200 cycles

3.Temperature cycle

No damage, cracks, or parts dislocation

The test method conforms to MIL-STD-202.

Materials

Part

Connector Body (Note)

Insulator

Male contacts

Female contacts

Outer conductor

Coupling (Note)

Radiator

Attenuation element

Material

Stainless steel

PTFE

Brass

Beryllium copper

Aluminum

Stainless steel

Aluminum

Metal film

Finish

Passivated

----------

Ordering Information

AT - 10 01

Attenuation

01 :

1dB

3dB

10dB

20dB

03 :

10 :

20 :

Gold plating

Nickel plating

Passivated

Black alumite

----------

AT: Indicates a fixed attenuator

Indicates the Series Name (Coupling Portion)

10: SMA type plug - jack

11:

N type plug - jack

Note: Nickel plated brass is used for the body in the AT-1100 Series.

∆

CAUTION: Beryllia is used in this product. Please follow associated laws when disposing.
