MQ2N5116 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> MQ2N5116

MQ2N5116: DescriptionPower Field-Effect Transistor, TO-18, TO-18, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size40KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

MQ2N5116 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MQ2N5116	-	-	View	Buy Now

MQ2N5116 Overview

Power Field-Effect Transistor, TO-18, TO-18, 3 PIN

MQ2N5116 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1784060894
Parts packaging code	BCY
package instruction	TO-18, 3 PIN
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
JEDEC-95 code	TO-18
JESD-30 code	O-MBCY-W3
JESD-609 code	e0
Number of terminals	3
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	BOTTOM

Preview

Download Datasheet

View All

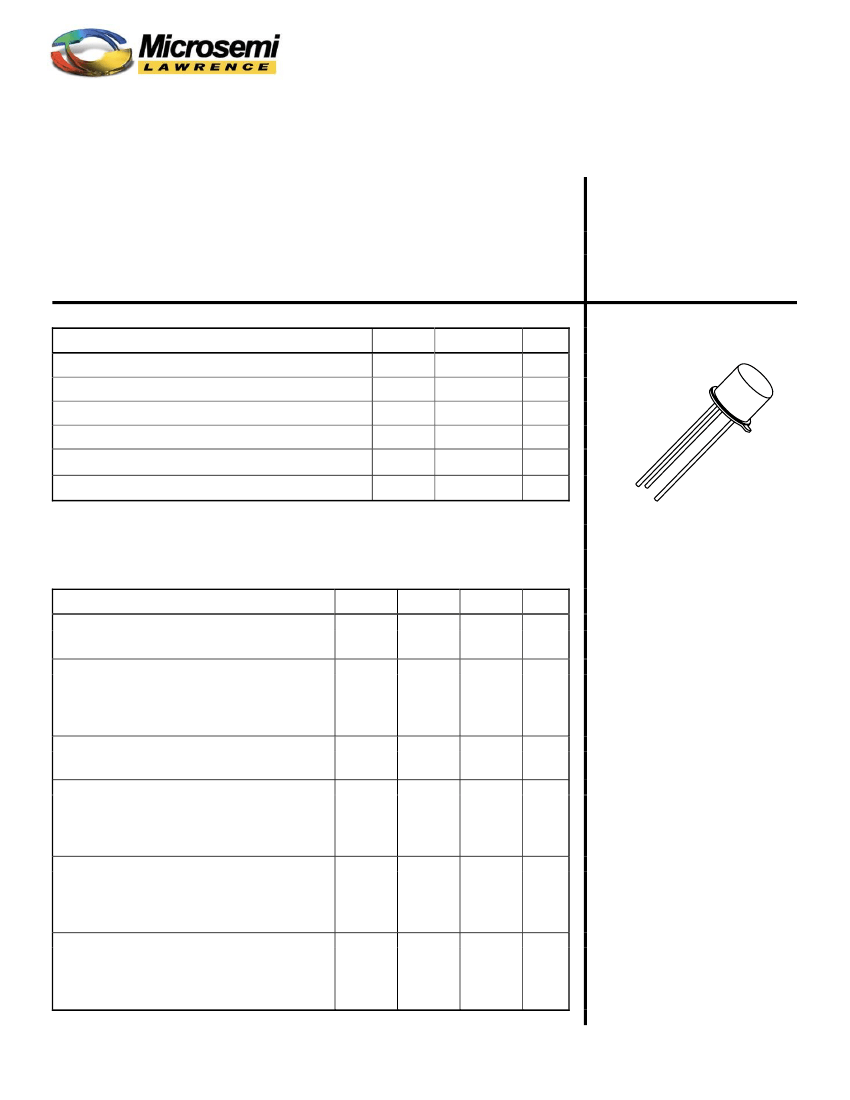

TECHNICAL DATA SHEET

6 Lake Street, Lawrence, MA 01841

1-800-446-1158 / (978) 620-2600 / Fax: (978) 689-0803

Website: http: //www.microsemi.com

P-CHANNEL J-FET

Equivalent To MIL-PRF-19500/476

DEVICES

LEVELS

2N5114

2N5115

2N5116

ABSOLUTE MAXIMUM RATINGS (T

= +25°C unless otherwise noted)

Parameters / Test Conditions

Gate-Source Voltage

(1)

Drain-Source Voltage

(1)

Drain-Gate Voltage

Gate Current

Power Dissipation

= +25°C

(2)

Symbol

stg

All Devices

0.500

-65 to +200

Unit

Vdc

mAdc

°C

MQ = JAN Equivalent

MX = JANTX Equivalent

MV = JANTXV Equivalent

Storage Temperature Range

(1) Symmetrical geometry allows operation of those units with source / drain leads interchanged.

(2) Derate linearly 3.0 mW/°C for T

> 25°C.

ELECTRICAL CHARACTERISTICS

= +25°C, unless otherwise noted)

Parameters / Test Conditions

Gate-Source Breakdown Voltage

= 0, I

= 1.0

μA

Drain-Source “On” State Voltage

= 0V dc, I

= -15mA dc

= 0V dc, I

= -7.0mA dc

= 0V dc, I

= -3.0mA dc

Gate Reverse Current

= 0, V

= 20V dc

Drain Current Cutoff

= 12V dc, V

= -15V dc

= 7.0V dc, V

= -15V dc

= 5.0V dc, V

= -15V dc

Zero Gate Voltage Drain Current

= 0, V

= -18V dc

= 0, V

= -15V dc

= 0, V

= -15V dc

Gate-Source Cutoff

= -15, I

= -1.0nA dc

= -15, I

= -1.0nA dc

= -15, I

= -1.0nA dc

Symbol

(BR)GSS

Min.

Max.

Unit

Vdc

TO-18

(TO-206AA)

2N5114

2N5115

2N5116

DS(on)

-1.3

-0.8

-0.6

Vdc

GSS

500

pAdc

2N5114

2N5115

2N5116

D(off)

-500

pAdc

2N5114

2N5115

2N5116

DSS

-30

-15

-5.0

-90

-60

-25

mAdc

2N5114

2N5115

2N5116

GS(off)

5.0

3.0

1.0

6.0

4.0

Vdc

T4-LDS-0006 Rev. 1 (063387)

Page 1 of 2

MQ2N5116 Related Products

	MQ2N5116	MQ2N5114	MQ2N5115	MV2N5114	MV2N5115	MV2N5116	MX2N5114	MX2N5116
Description	Power Field-Effect Transistor, TO-18, TO-18, 3 PIN	Power Field-Effect Transistor, TO-18, TO-18, 3 PIN	Power Field-Effect Transistor, TO-18, TO-18, 3 PIN	Power Field-Effect Transistor, TO-18, TO-18, 3 PIN	Power Field-Effect Transistor, TO-18, TO-18, 3 PIN	Power Field-Effect Transistor, TO-18, TO-18, 3 PIN	Power Field-Effect Transistor, TO-18, TO-18, 3 PIN	Power Field-Effect Transistor, TO-18, TO-18, 3 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	BCY	BCY	BCY	BCY	BCY	BCY	BCY	BCY
package instruction	TO-18, 3 PIN	TO-18, 3 PIN	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	TO-18, 3 PIN	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3
Contacts	3	3	3	3	3	3	3	3
Reach Compliance Code	compliant	unknown	compli	compliant	compliant	compli	compliant	compliant
JEDEC-95 code	TO-18	TO-18	TO-18	TO-18	TO-18	TO-18	TO-18	TO-18
JESD-30 code	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3
Number of terminals	3	3	3	3	3	3	3	3
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Objectid	1784060894	1784060892	-	1784060899	1784060900	-	1784060906	1784060908
ECCN code	EAR99	EAR99	-	EAR99	EAR99	-	EAR99	EAR99
JESD-609 code	e0	-	e4	e0	-	e0	-	e0
Terminal surface	TIN LEAD	-	GOLD OVER NICKEL	Tin/Lead (Sn/Pb)	-	TIN LEAD	-	TIN LEAD
