Ordering number:EN3150
PNP/NPN Epitaxial Planar Silicon Transistors
2SB1450/2SD2199
50V/7A Switching Applications
Features
· Surface mount type device making the following
possible.
-Reduction in the number of manufacturing pro-
cesses for 2SB1450/2SD2199-applied equipment.
-High density surface mount applications.
-Small size of 2SB1450/2SD2199-applied equip-
ment.
· Low collector-to-emitter saturation voltage.
· Highly resistant to breakdown because of wide ASO.
Package Dimensions
unit:mm
2069B
[2SB1450/2SD2199]
( ) : 2SB1450
Specifications
Absolute Maximum Ratings
at Ta = 25˚C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
ICP
PC
Tc=25˚C
1 : Base
2 : Collector
3 : Emitter
SANYO : SMP-FD
Conditions
Ratings
(–)60
(–)50
(–)6
(–)7
(–)12
1.65
40
150
–55 to +150
Unit
V
V
V
A
A
W
W
˚C
˚C
Tj
Tstg
Electrical Characteristics
at Ta = 25˚C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Collector-to-Emitter Saturation Voltage
Symbol
ICBO
IEBO
hFE1
hFE2
fT
VCE(sat)
VCB=(–)40V, IE=0
VEB=(–)4V, IC=0
VCE=(–)2V, IC=(–)1A
VCE=(–)2V, IC=(–)5A
VCE=(–)5V, IC=(–)1A
IC=(–)4A, IB=(–)0.4A
70*
30
10
(–)0.4
MHz
V
Conditions
Ratings
min
typ
max
(–)0.1
(–)0.1
280*
Unit
mA
mA
* : The 2SB1450/2SD2199 are classified by 1A h
FE
as follows :
70
Q
140
100
R
200
140
S
280
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft’s
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges,or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquaters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
O1598HA (KT)/7039MO, TS No.3150–1/4
2SB1450/2SD2199
Parameter
Collector-to-Base Breakdown Voltage
Collector-to-Emitter Breakdown Voltage
Emitter-to-Base Breakdown Voltage
Turn-ON Time
Storage Time
Fall Time
Symbol
V(BR)CBO IC=(–)1mA, IE=0
V(BR)CEO IC=(–)1mA, RBE=∞
V(BR)EBO
ton
tstg
tf
IE=(–)1mA, IC=0
See specified test circuit.
See specified test circuit.
See specified test circuit.
Conditions
Ratings
min
(–)60
(–)50
(–)6
0.2
(0.1)
0.3
(0.7)
0.9
typ
max
Unit
V
V
V
µs
µs
µs
µs
µs

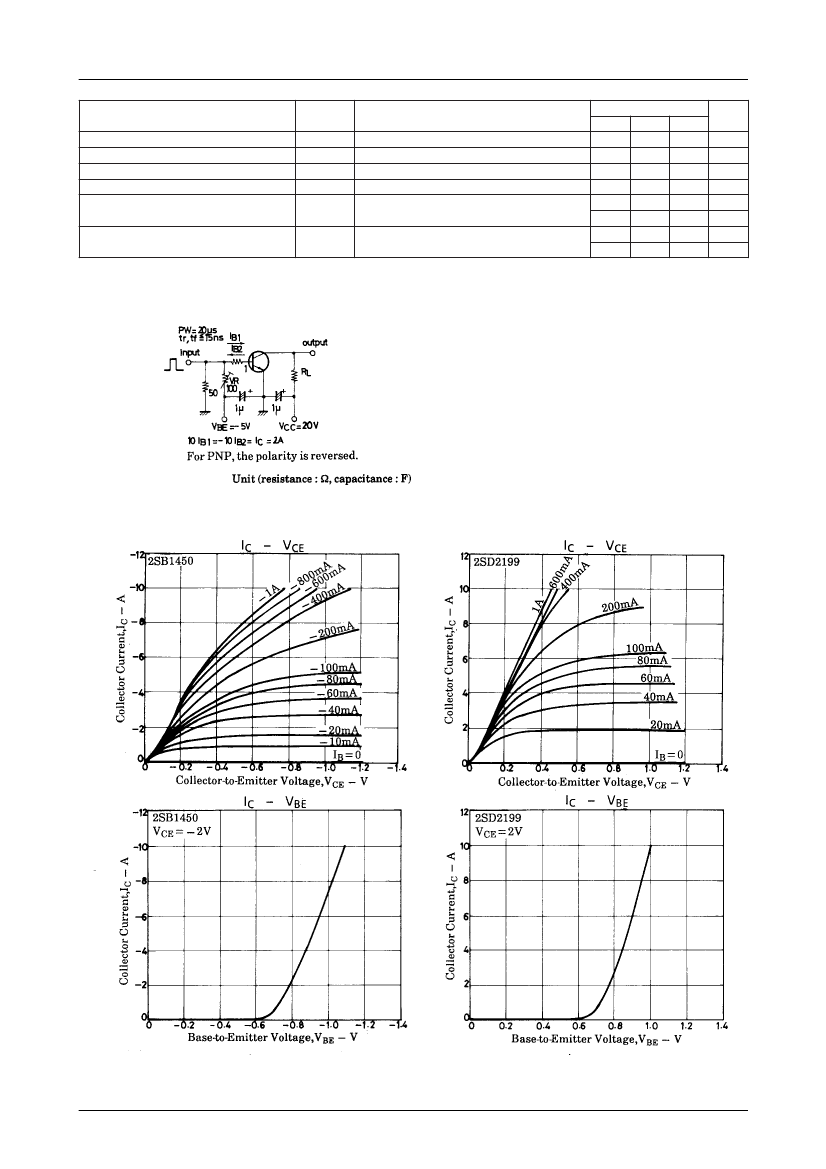

Switching Time Test Circuit
No.3150–2/4

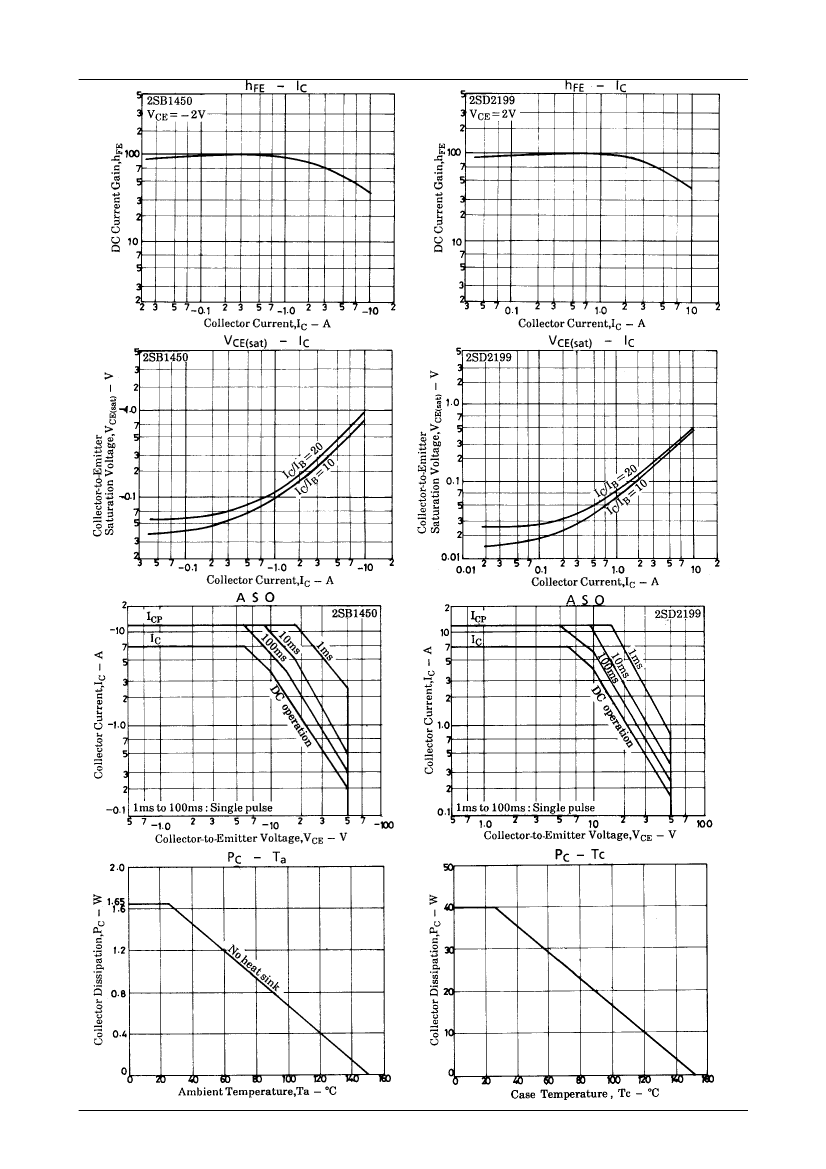

2SB1450/2SD2199
Specifications of any and all SANYO products described or contained herein stipulate the performance,
characteristics, and functions of the described products in the independent state, and are not guarantees
of the performance, characteristics, and functions of the described products as mounted in the customer's
products or equipment. To verify symptoms and states that cannot be evaluated in an independent device,
the customer should always evaluate and test devices mounted in the customer's products or equipment.
SANYO Electric Co., Ltd. strives to supply high-quality high-reliability products. However, any and all
semiconductor products fail with some probability. It is possible that these probabilistic failures could
give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire,
or that could cause damage to other property. When designing equipment, adopt safety measures so
that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective
circuits and error prevention circuits for safe design, redundant design, and structural design.
In the event that any or all SANYO products(including technical data,services) described or
contained herein are controlled under any of applicable local export control laws and regulations,
such products must not be expor ted without obtaining the expor t license from the authorities
concerned in accordance with the above law.
No part of this publication may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording, or any information storage or retrieval system,
or otherwise, without the prior written permission of SANYO Electric Co., Ltd.
Any and all information described or contained herein are subject to change without notice due to
product/technology improvement, etc. When designing equipment, refer to the "Delivery Specification"
for the SANYO product that you intend to use.
Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not
guaranteed for volume production. SANYO believes information herein is accurate and reliable, but
no guarantees are made or implied regarding its use or any infringements of intellectual property rights
or other rights of third parties.
This catalog provides information as of October, 1998. Specifications and information herein are subject
to change without notice.
PS No.3150–4/4
