381LR391M200J012 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 381LR391M200J012

381LR391M200J012: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250 V, 1000 uF, THROUGH HOLE MOUNT; CategoryPassive components capacitor; File Size209KB，3 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

381LR391M200J012 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250 V, 1000 uF, THROUGH HOLE MOUNT

381LR391M200J012 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	390 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	25 mm
dielectric materials	ALUMINUM (WET)
ESR	383 mΩ
JESD-609 code	e3
leakage current	0.83786 mA
length	25 mm
Manufacturer's serial number	381LR
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Snap-in
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	200 V
ripple current	1710 mA
series	381LR
surface mount	NO
Terminal surface	Tin (Sn)
Terminal pitch	10 mm
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

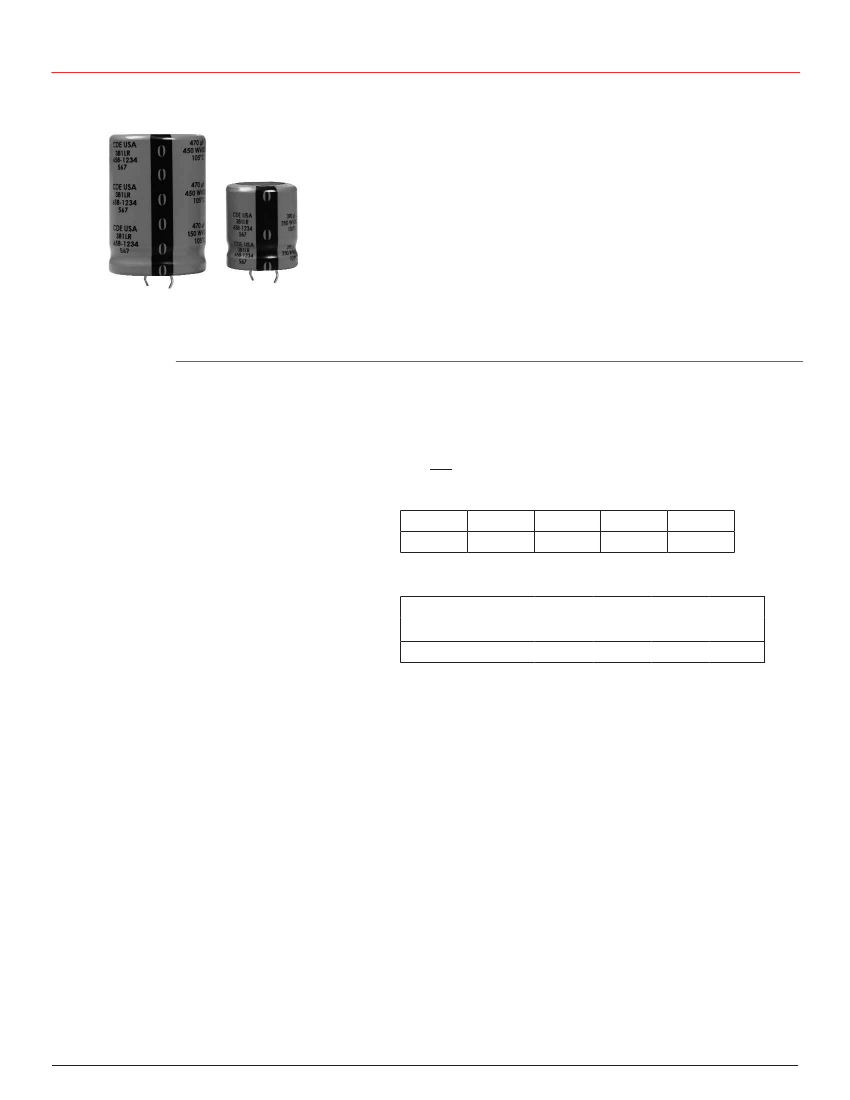

Type 381LR

105 °C Ultra-High-Ripple Snap-in

25% More Ripple Current Capability

Compared to standard 105 °C snap-ins like the Type 381L/LX

Type 381LR can handle an extra 25% ripple current or more. This

remarkable capability stems from advances in electrolyte that give

extremely low ESR values.In high ripple current applications like

motor drives you can save by using fewer capacitors.

Highlights

•

Operating Temperature:

Rated Voltage:

Capacitance:

Leakage Current:

Ripple Current Multipliers:

The right choice for motor drive bus capacitors

The right choice for UPS bus capacitors

Compare to Type 381L

Up to 2 times the ripple current

–40 °C to + 105 °C

≤

315 Vdc

–25 °C to + 105 °C

≥

350

Vdc

200 to 450 Vdc

56 µF to 2,200 µF ± 20%

≤

√

CV µA, 4 mA max, 5 minutes

Ambient Temperature

45 ºC

60 ºC

70 ºC

85 ºC

2.35

Frequency

50Hz

0.75

60 Hz

0.80

120 Hz

1.00

500 Hz

1.20

1 kHz

1.25

10 kHz

& up

1.40

2.20

2.00

1.70

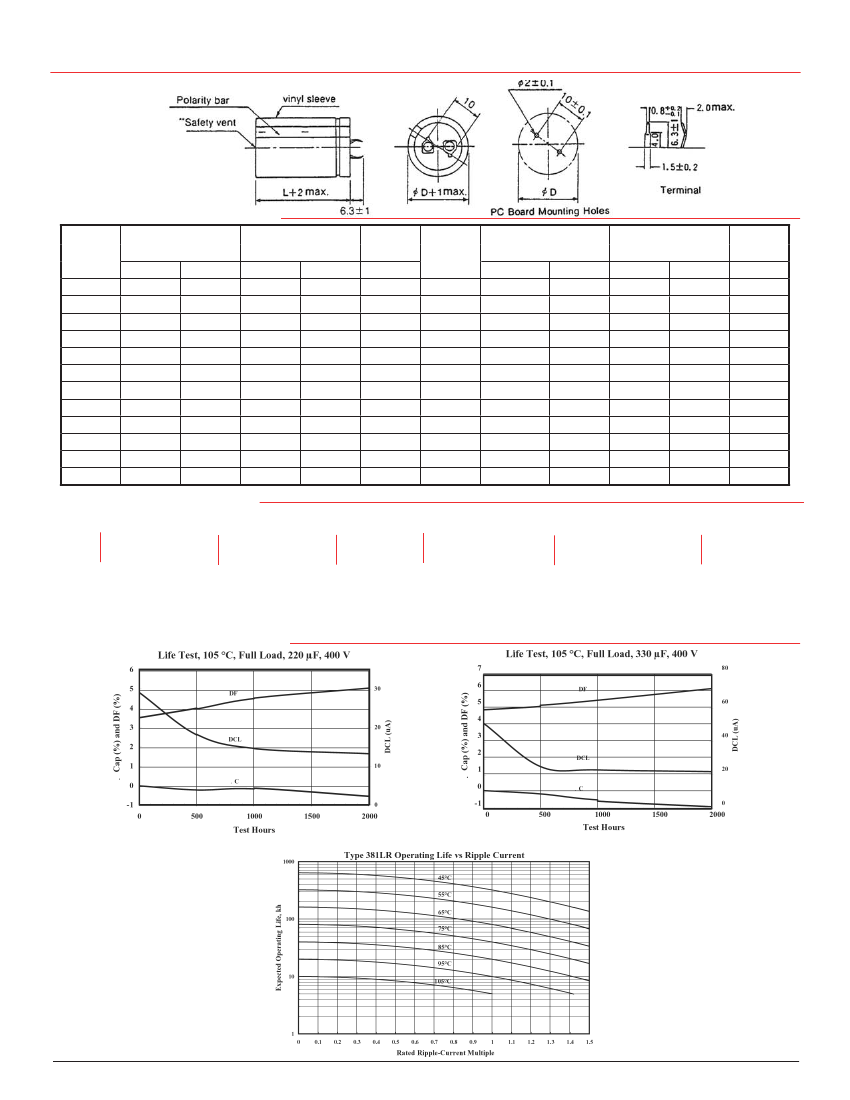

Speciﬁcations

105 ºC

1.00

EIA Ripple Life:

Load LifeTest:

Shelf Life:

Vibration:

10,000 h at 85 °C, full load per EIA IS-749

∆

Capacitance ±20%

ESR 200% of limit

DCL 100% of limit

3000 h at full load at 105 °C

∆

Capacitance 20%

ESR 200% of limit

DCL 100% of limit

1000 h at 105 °C

∆

Capacitance 20%

ESR 200% of limit

DCL 100% of limit

10 to 55 Hz, 0.06" and 10 g max, 2 h each plane

CDM Cornell Dubilier

•

140 Technology Place

•

Liberty, SC 29657

•

Phone: (864)843-2277

•

Fax: (864)843-3800

•

www.cde.com
