RN2406 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> RN2406

RN2406: DescriptionSwitching, Inverter Circuit, Interface Circuit And Driver Circuit Applications; CategoryDiscrete semiconductor The transistor; File Size264KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

RN2406 Overview

Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications

RN2406 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	SOT-23
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	BUILT-IN BIAS RESISTOR RATIO IS 10
Maximum collector current (IC)	0.1 A
Collector-based maximum capacity	6 pF
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	80
JEDEC-95 code	TO-236AB
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.4 W
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz
VCEsat-Max	0.3 V
Base Number Matches	1

Preview

Download Datasheet

View All

RN2401,RN2402,RN2403,RN2404,RN2405,RN2406

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process)

RN2401,RN2402,RN2403

RN2404,RN2405,RN2406

Switching, Inverter Circuit, Interface Circuit

And Driver Circuit Applications

With built-in bias resistors

Simplify circuit design

Reduce a quantity of parts and manufacturing process

Complementary to RN1401~1406

Unit: mm

Equivalent Circuit

Bias Resistor Values

Type No.

RN2401

RN2402

RN2403

RN2404

RN2405

RN2406

R1 (kΩ)

4.7

2.2

4.7

R2 (kΩ)

4.7

Maximum Ratings

(Ta = 25°C)

Characteristic

Collector-base voltage

Collector-emitter voltage

Emitter-base voltage

Collector current

Collector power dissipation

Junction temperature

Storage temperature range

RN2401~2406

RN2401~2404

RN2405, 2406

Symbol

CBO

CEO

EBO

stg

Rating

−50

−10

−5

−100

200

150

−55~150

JEDEC

EIAJ

TOSHIBA

Weight: 0.012g

TO-236MOD

SC-59

2-2F1A

Unit

°C

2001-06-07

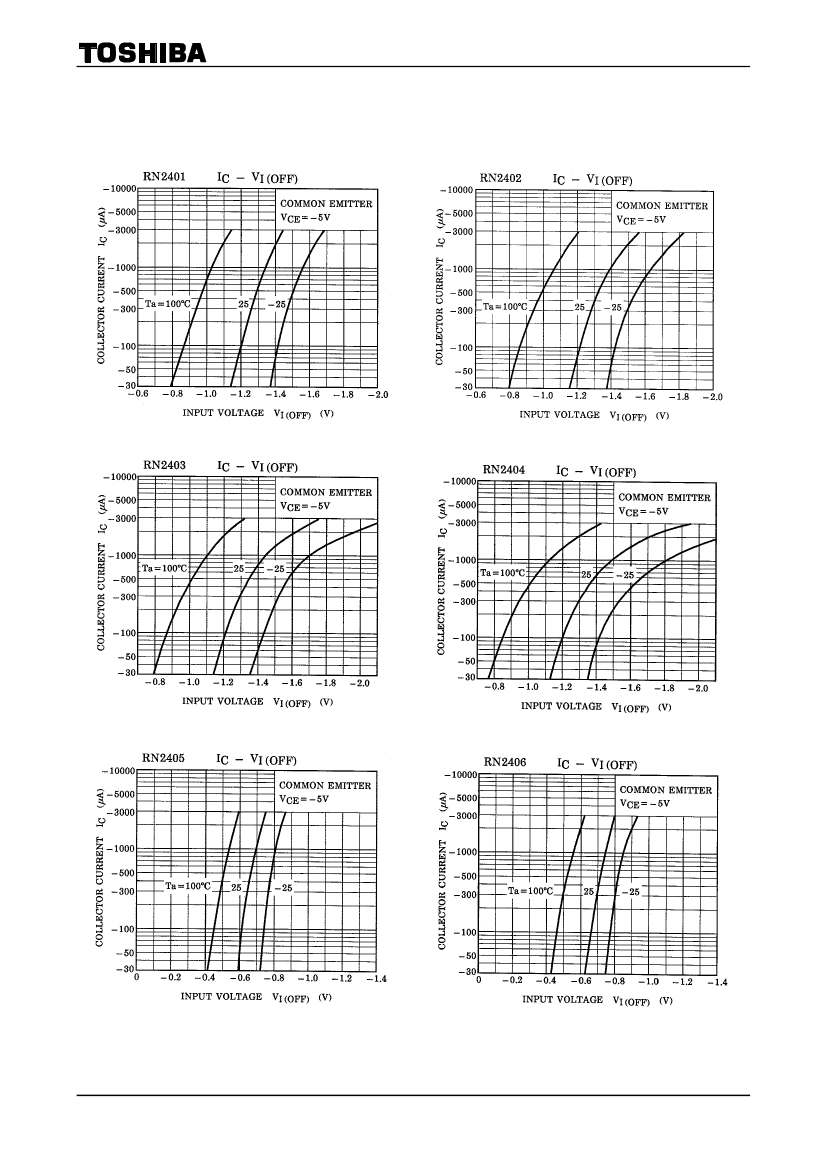

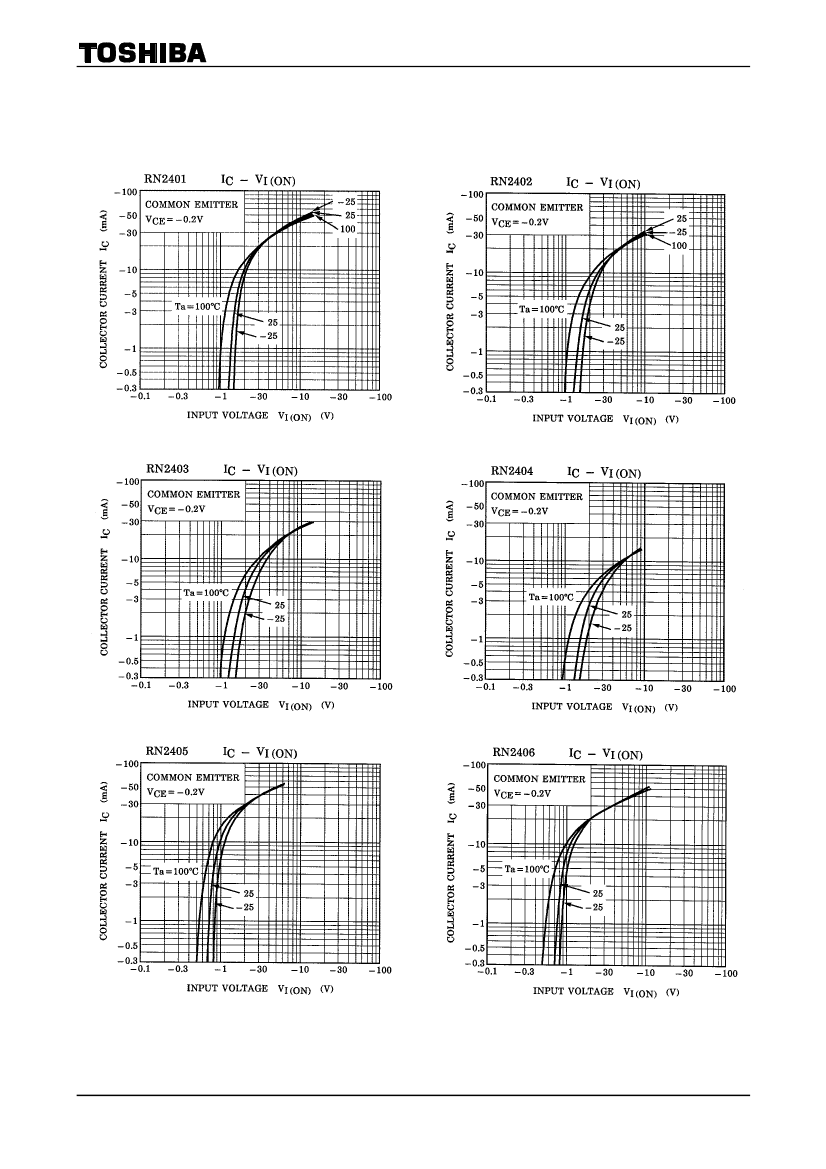

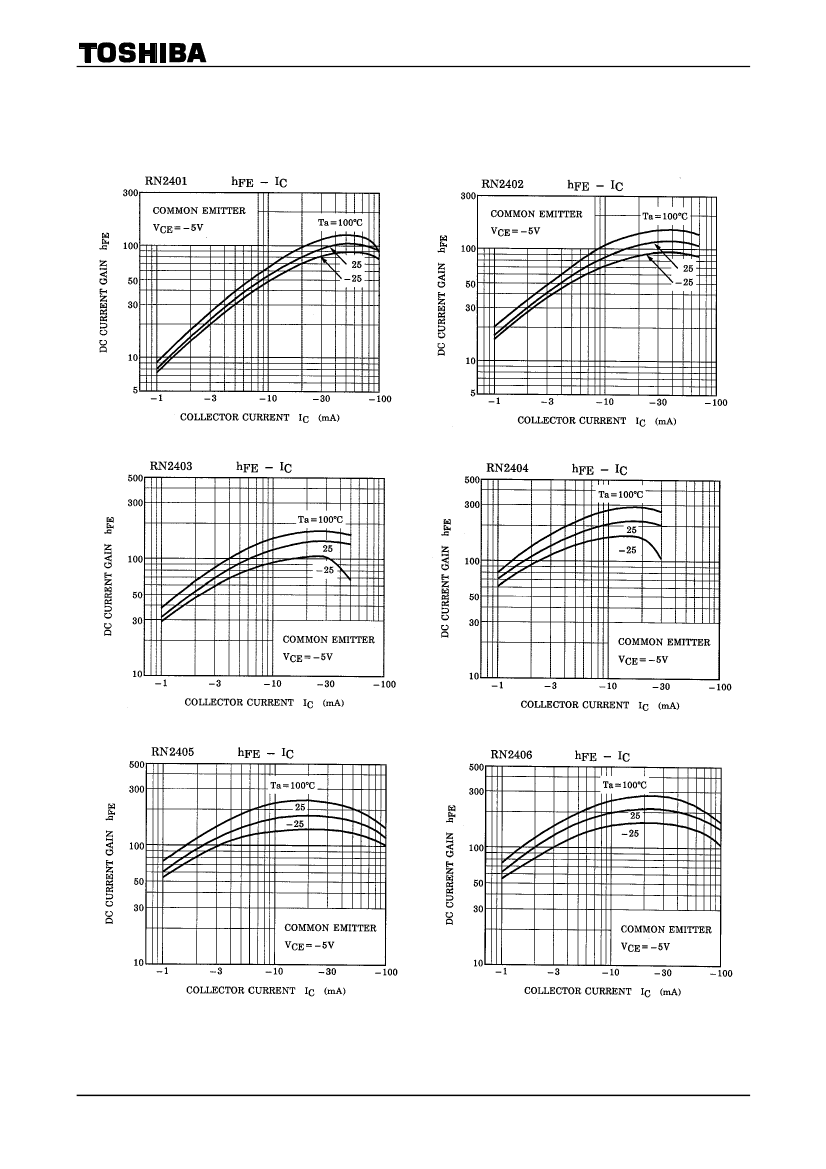

RN2406 Related Products

	RN2406	RN2401	RN2402	RN2403	RN2404	RN2405
Description	Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications	Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications	Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications	Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications	Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications	Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications
Parts packaging code	SOT-23	SOT-23	SOT-23	SOT-23	SOT-23	SOT-23
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Contacts	3	3	3	3	3	3
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	BUILT-IN BIAS RESISTOR RATIO IS 10	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BIAS RESISTOR RATIO IS 21.36
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Collector-based maximum capacity	6 pF	6 pF	6 pF	6 pF	6 pF	6 pF
Collector-emitter maximum voltage	50 V	50 V	50 V	50 V	50 V	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	80	30	50	70	80	80
JEDEC-95 code	TO-236AB	TO-236AB	TO-236AB	TO-236AB	TO-236AB	TO-236AB
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP
Maximum power dissipation(Abs)	0.4 W	0.4 W	0.4 W	0.4 W	0.4 W	0.4 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz
VCEsat-Max	0.3 V	0.3 V	0.3 V	0.3 V	0.3 V	0.3 V
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	-	1	1	1	-
