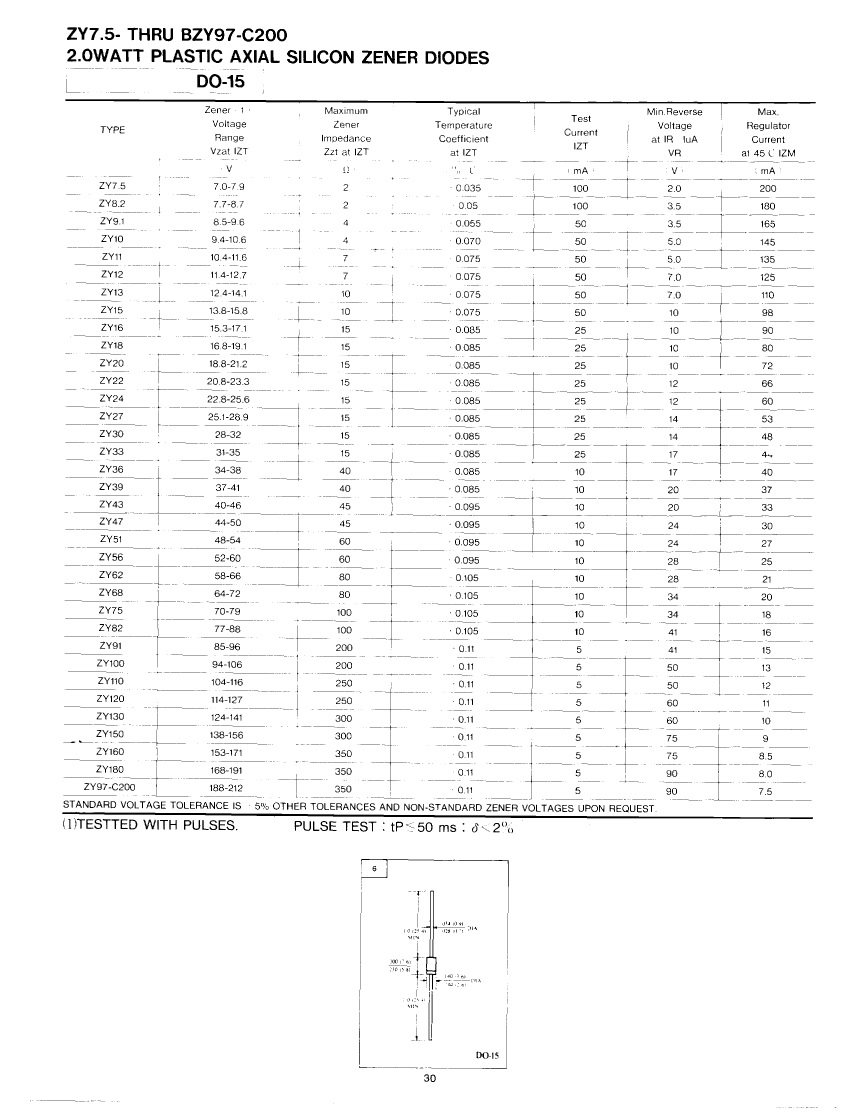

ZY8.2: DescriptionZener Diode, 8.2V V(Z), 5%, 2W, Silicon, Unidirectional, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size41KB，1 Pages; ManufacturerPromax-Johnton Electronic Corporation

Download Datasheet Parametric Compare View All

ZY8.2 Overview

Zener Diode, 8.2V V(Z), 5%, 2W, Silicon, Unidirectional, PLASTIC PACKAGE-2

ZY8.2 Parametric

Parameter Name	Attribute value
Maker	Promax-Johnton Electronic Corporation
package instruction	O-XALF-W2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	O-XALF-W2
Number of components	1
Number of terminals	2
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	2 W
Certification status	Not Qualified
Nominal reference voltage	8.2 V
Maximum reverse current	1 µA
surface mount	NO
technology	ZENER
Terminal form	WIRE
Terminal location	AXIAL
Voltage temperatureCoeff-Max	4.1 mV/°C
Maximum voltage tolerance	5%
Working test current	100 mA

Preview

Download Datasheet

View All

ZY8.2 Related Products

	ZY8.2	ZY62	ZY16	ZY82	ZY36	ZY150	ZY12	ZY33	ZY27
Description	Zener Diode, 8.2V V(Z), 5%, 2W, Silicon, Unidirectional, PLASTIC PACKAGE-2	Zener Diode, 62V V(Z), 5%, 2W, Silicon, Unidirectional, PLASTIC PACKAGE-2	Zener Diode, 16V V(Z), 5%, 2W, Silicon, Unidirectional, PLASTIC PACKAGE-2	Zener Diode, 82V V(Z), 5%, 2W, Silicon, Unidirectional, PLASTIC PACKAGE-2	Zener Diode, 36V V(Z), 5%, 2W, Silicon, Unidirectional, PLASTIC PACKAGE-2	Zener Diode, 150V V(Z), 5%, 2W, Silicon, Unidirectional, PLASTIC PACKAGE-2	Zener Diode, 12V V(Z), 5%, 2W, Silicon, Unidirectional, PLASTIC PACKAGE-2	Zener Diode, 33V V(Z), 5%, 2W, Silicon, Unidirectional, PLASTIC PACKAGE-2	Zener Diode, 27V V(Z), 5%, 2W, Silicon, Unidirectional, PLASTIC PACKAGE-2
package instruction	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2
Contacts	2	2	2	2	2	2	2	2	2
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
JESD-30 code	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2
Number of components	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	2 W	2 W	2 W	2 W	2 W	2 W	2 W	2 W	2 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	8.2 V	62 V	16 V	82 V	36 V	150 V	12 V	33 V	27 V
Maximum reverse current	1 µA	1 µA	1 µA	1 µA	1 µA	1 µA	1 µA	1 µA	1 µA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Voltage temperatureCoeff-Max	4.1 mV/°C	65.1 mV/°C	13.6 mV/°C	86.1 mV/°C	30.6 mV/°C	165 mV/°C	9 mV/°C	28.05 mV/°C	22.95 mV/°C
Maximum voltage tolerance	5%	5%	5%	5%	5%	5%	5%	5%	5%
Working test current	100 mA	10 mA	25 mA	10 mA	10 mA	5 mA	50 mA	25 mA	25 mA
