BAR63-04 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAR63-04

BAR63-04: Description50 V, SILICON, PIN DIODE; CategoryDiscrete semiconductor diode; File Size82KB，4 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BAR63-04 Overview

50 V, SILICON, PIN DIODE

BAR63-04 Parametric

Parameter Name	Attribute value
Maker	SIEMENS
Parts packaging code	SOT-23
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
application	SWITCHING
Minimum breakdown voltage	50 V
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Maximum diode capacitance	0.3 pF
Diode component materials	SILICON
Maximum diode forward resistance	2 Ω
Diode resistance test current	5 mA
Diode resistance test frequency	100 MHz
Diode type	PIN DIODE
frequency band	S BAND
JESD-30 code	R-PDSO-G3
Minority carrier nominal lifetime	0.075 µs
Number of components	2
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.25 W
Certification status	Not Qualified
Reverse test voltage	20 V
surface mount	YES
technology	POSITIVE-INTRINSIC-NEGATIVE
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

BAR 63...

Silicon PIN Diode

PIN diode for high speed switching of RF signals

Low forward resistance

Very low capacitance

For frequencies up to 3 GHz

Type

BAR 63

BAR 63-04

BAR 63-05

BAR 63-06

Marking

Ordering code

(tape and reel)

Q62702-A1036

Q62702-A1037

Q62702-A1038

Q62702-A1039

Pin configuration Package

SOT-23

C/A

C/C

A/A

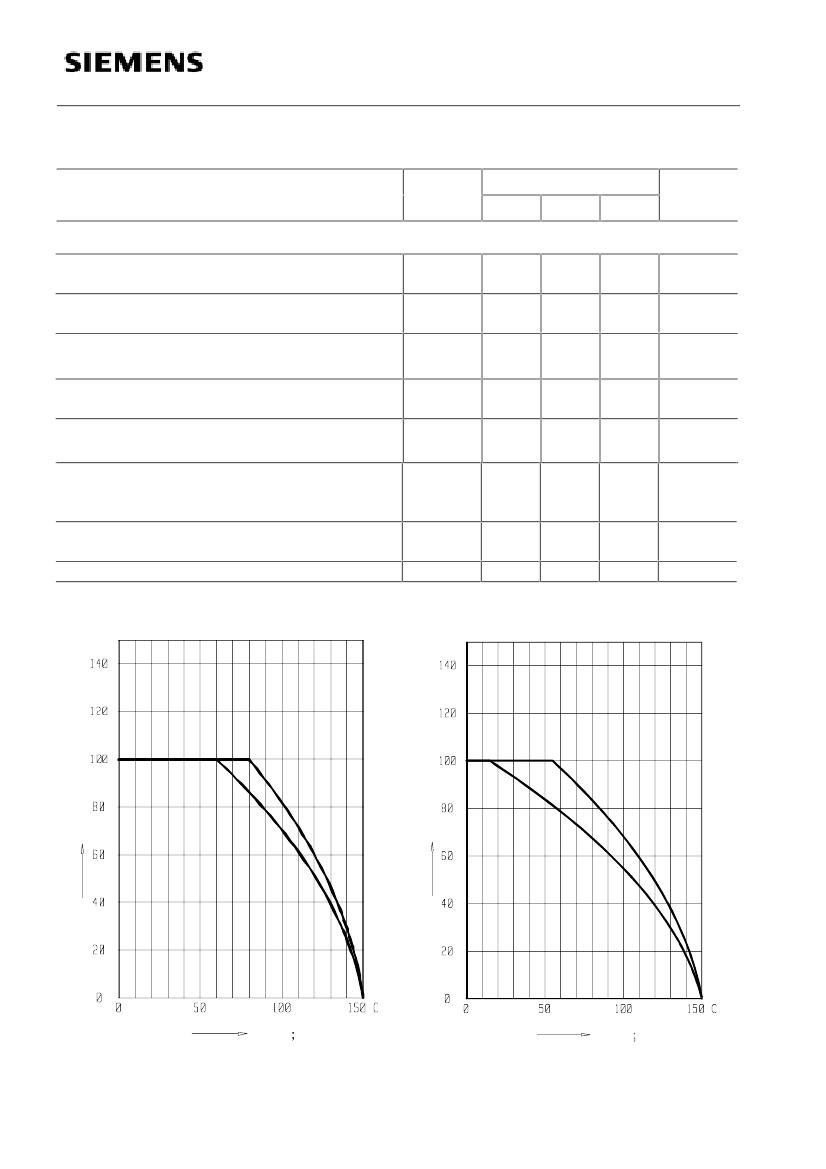

Maximum ratings

Parameter

Reverse voltage

Forward current

Total Power dissipation T

≤

80°C

BAR 63-04,-05,-06

≤

55°C

Operating temperature range

Storage temperature range

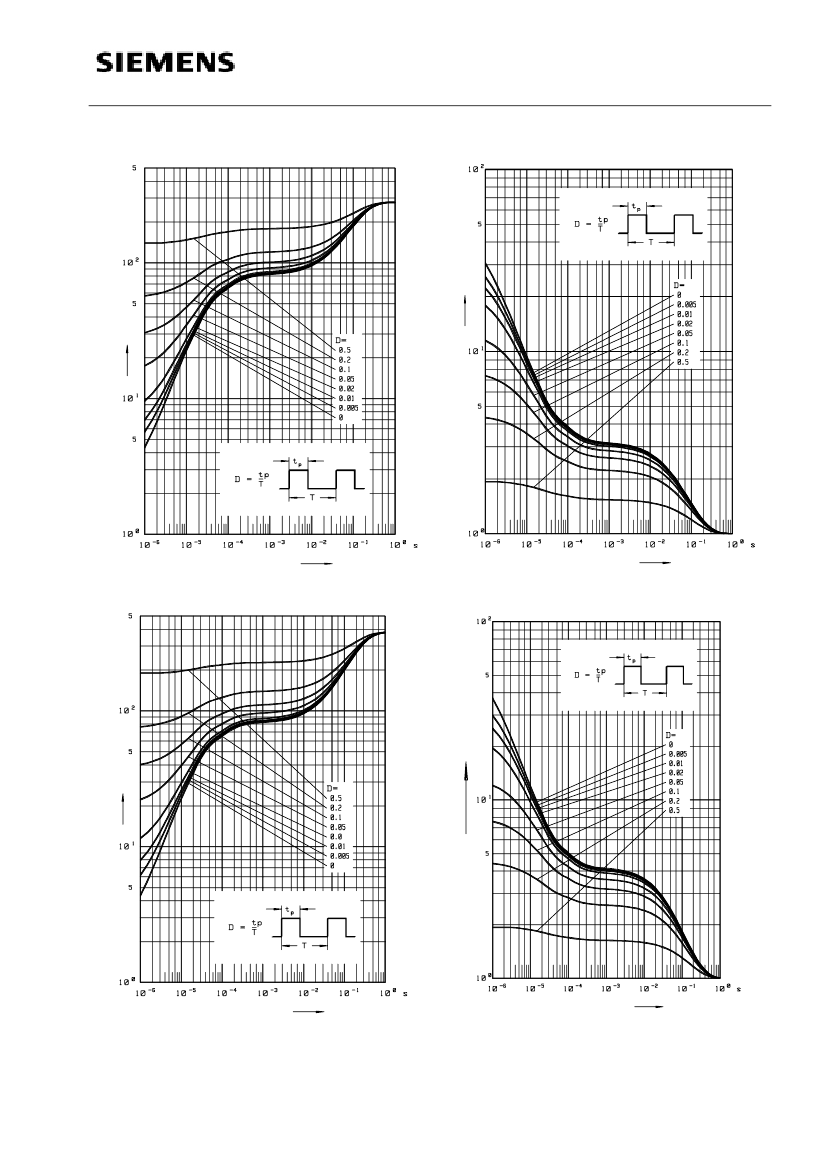

Thermal resistance

Junction-ambient

BAR63

BAR 63-04,-05,-06

Symbol

BAR 63

100

250

-55 +150°C

-55...+150°C

Unit

°C

tot

stg

th JA

≤

450

≤

540

K/W

Junction-soldering point

BAR64

BAR63-04,-05,-06

th JS

≤

280

≤

380

_________________________

1)Package mounted on alumina 15mm x 16.7mm x 0.7mm

Semiconductor Group

Edition A01, 23.02.95

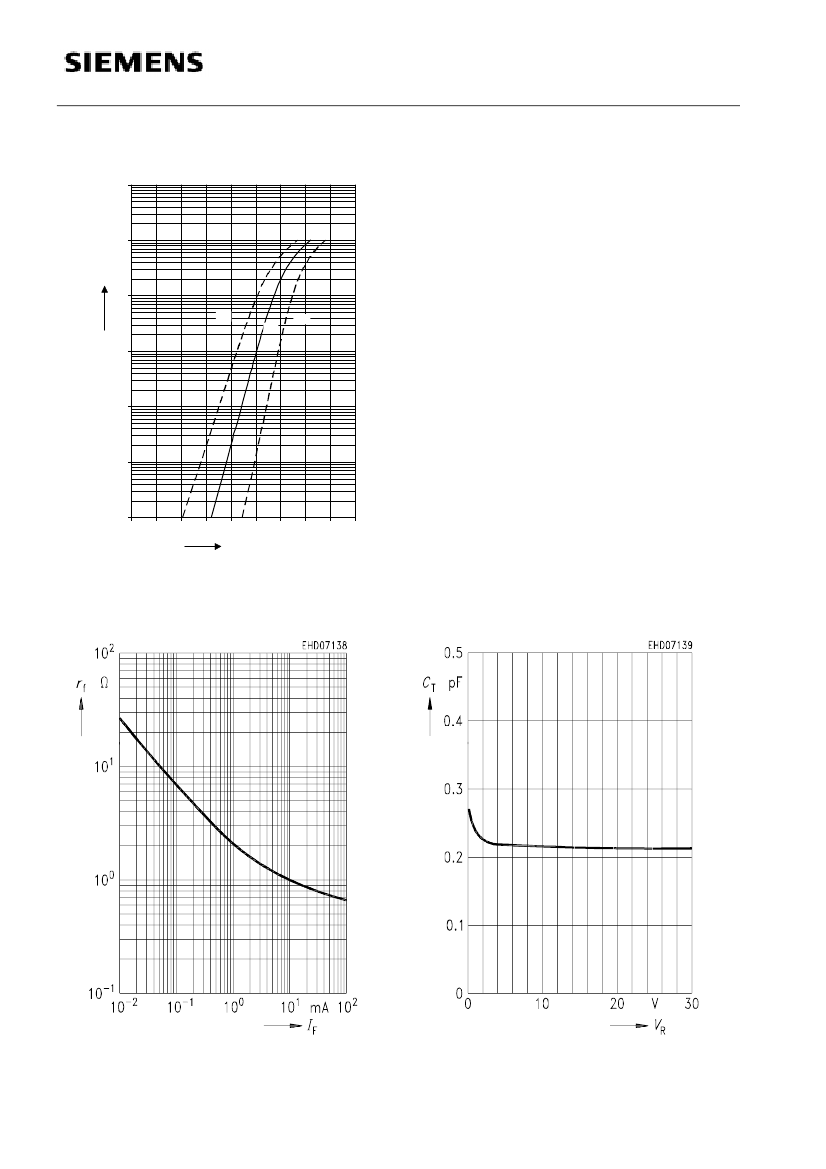

BAR63-04 Related Products

	BAR63-04	BAR63	BAR63-06	BAR63-05	Q62702-A1039	Q62702-A1038	Q62702-A1037
Description	50 V, SILICON, PIN DIODE	50 V, SILICON, PIN DIODE	50 V, SILICON, PIN DIODE	50 V, SILICON, PIN DIODE	50 V, SILICON, PIN DIODE	50 V, SILICON, PIN DIODE	50 V, SILICON, PIN DIODE
Maker	SIEMENS	SIEMENS	SIEMENS	SIEMENS	-	-	-
Parts packaging code	SOT-23	SOT-23	SOT-23	SOT-23	-	-	-
package instruction	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	-	-	-
Contacts	3	3	3	3	-	-	-
Reach Compliance Code	unknow	unknow	unknow	unknow	-	-	-
ECCN code	EAR99	EAR99	EAR99	EAR99	-	-	-
application	SWITCHING	SWITCHING	SWITCHING	SWITCHING	-	-	-
Minimum breakdown voltage	50 V	50 V	50 V	50 V	-	-	-
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SINGLE	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	-	-	-
Maximum diode capacitance	0.3 pF	0.3 pF	0.3 pF	0.3 pF	-	-	-
Diode component materials	SILICON	SILICON	SILICON	SILICON	-	-	-
Maximum diode forward resistance	2 Ω	2 Ω	2 Ω	2 Ω	-	-	-
Diode resistance test current	5 mA	5 mA	5 mA	5 mA	-	-	-
Diode resistance test frequency	100 MHz	100 MHz	100 MHz	100 MHz	-	-	-
Diode type	PIN DIODE	PIN DIODE	PIN DIODE	PIN DIODE	-	-	-
frequency band	S BAND	S BAND	S BAND	S BAND	-	-	-
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	-	-	-
Minority carrier nominal lifetime	0.075 µs	0.075 µs	0.075 µs	0.075 µs	-	-	-
Number of components	2	1	2	2	-	-	-
Number of terminals	3	3	3	3	-	-	-
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	-	-	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	-	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	-
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-	-	-
Maximum power dissipation	0.25 W	0.25 W	0.25 W	0.25 W	-	-	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	-	-
Reverse test voltage	20 V	20 V	20 V	20 V	-	-	-
surface mount	YES	YES	YES	YES	-	-	-
technology	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE	-	-	-
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	-	-	-
Terminal location	DUAL	DUAL	DUAL	DUAL	-	-	-
