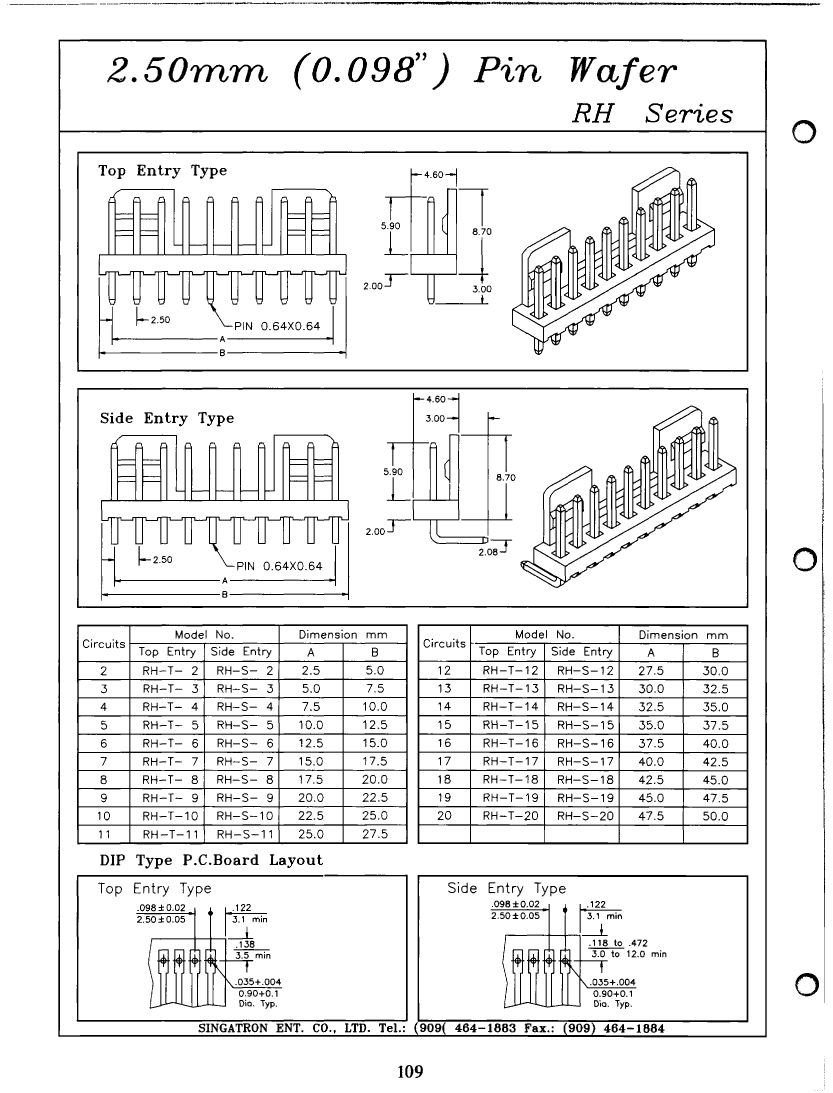

RH-S-6 datasheet, PDF - EEWORLD Datasheet

RH-S-6: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking Mech, Receptacle; CategoryThe connector The connector; File Size90KB，2 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric View All

RH-S-6 Overview

Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking Mech, Receptacle

Parameter Name	Attribute value
Maker	Singatron Enterprises Co
Reach Compliance Code	compli
ECCN code	EAR99
Other features	SIDE ENTRY
body width	0.181 inch
subject depth	0.424 inch
body length	0.591 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON CU
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	RH
Plug contact pitch	0.098 inch
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	90 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	6
