PACIFIC DISPLAY DEVICES

LCD Component Data Sheet

Model Number: 24064-02

240 x 64 Dot

Graphic LCD Assembly

With T6963C Toshiba Graphic LCD Controller

EL Panel, LED Backlight Options

CONTENTS

GENERAL INFORMATION

1.1

1.2

1.3

1.4

1.5

1.6

1.7

1.8

Product Overview

Part Options and Numbering System

Absolute Maximum Ratings

Circuit Block Diagram

Mechanical Characteristics

Input Signal Function

LCM Power, Contrast Control and Bias

LCD Dimensions

ELECTRICAL / OPTICAL CHARACTERISTICS

2.1

2.2

2.3

2.4

2.5

2.6

DC Electrical Characteristics

AC Electrical Characteristics

Optical Characteristics

LED Backlight Characteristics

EL Panel Backlight Characteristics

CCFL Panel Backlight Characteristics

LCD CONTROLLER CHARACTERISTICS

3.1

3.2

3.3

3.4

LCD Controller Display and Control Functions (T6963)

LCD Controller Command List

LCD Controller Character Code map

Application Circuits

RELIABILITY

PRECAUTIONS FOR USING LCD MODULES

139 Avenida Victoria – Suite 100 – San Clemente, CA – 92672

Tel: 949-361-8957 – Fax: 949-361-9158 – Web: www.pacificdisplay.com

SPECIFICATIONS FOR LIQUID CRYSTAL DISPLAY MODULE

MODEL NO: 24064-02

1. GENERAL INFORMATION

1.1 Product Overview

•

240 x 64 dot matrix LCD

•

STN (Super Twisted Nematic) or FSTN (Film compensated Super Twisted Nematic) Technology

•

T-6963 (or equivalent) Graphics Controller IC w/ 32K SRAM.

•

Multiplex drive : 1/64 duty, 1/9 bias

•

LCD Module Service Life: 100,000 hours minimum

1.2 Part Options and Numbering System

24064

-02

-SL

-F

-ST

-ELED -GY

-6

-V-TC

Custom Option Designator:

•

(-02) T-6963 Controller Option

•

(-27) Same – w/ White LED

Operating Mode:

•

(-SL) STN Silver / Gray

•

(-GR) STN Green

•

(-BN) STN Blue Negative Image

•

(-FC) FSTN Black & White Image

Rear Polarizer Options:

•

(-F) Transflective

•

(-M) Transmissive

•

(-R) Reflective (No Backlight)

Operating Temperature:

•

(-ST) Standard (0 to +50 ºC)

•

(-ET) Extended (-20 to +70 ºC)

•

(-XET) Extended (-30 to +75 ºC) FSTN Only

Backlight Options:

•

(-ELED) Edge Lit LED Backlight

•

(-ELP) EL Panel Backlight

Backlight Coloration Options:

•

(-WH) ELED / ELP – White

•

(-GY) LED - Green/Yellow

•

(-AM) LED - Amber

•

(-BG) ELP – Blue Green

Viewing Angle:

•

(-6) 6 o’clock

•

(-12) 12 0’clock

Options:

•

(-V) Built in internal negative voltage generator (Vee)

•

(-TC) Built in internal Temperature Compensation circuitry

Pacific Display Devices

05.22.2006

SPECIFICATIONS FOR LIQUID CRYSTAL DISPLAY MODULE

MODEL NO: 24064-02

1.3 Absolute Maximum Ratings

Parameter

Supply voltage for logic

Supply voltage for LCD

Input voltage

Standard Operating temperature

Standard Storage temperature

Extended Operating temperature

Extended Storage temperature

Extended Operating temperature

Extended Storage temperature

Soldering Temp

Symbol

– V0

TOP (-ST)

TST (-ST)

TOP (-ET)

TST (-ET)

TOP (-XET)

TST (-XET)

Tsolder

Min

-0.3

-10

-20

-30

-40

260

Max

7.0

30.0

+0.3

Unit

ºC

Notes

FSTN Only

1.4 Circuit Block Diagram

1.5 Mechanical Characteristics

Item

Module size (W×H×T)

Viewing area (W×H)

Active area (W×H)

Number of dots

Dot size (W×H)

Dot pitch (W×H)

Contents

180.0 x 65.0 x 10.0 Max (Reflective / ELP Backlight)

180.0 x 65.0 x 16.0 Max (LED Backlight)

132.0 x 39.0

127.16 x 33.88

240 x 64

0.49 x 0.49

0.53 x 0.53

Unit

dots

Pacific Display Devices

05.22.2006

SPECIFICATIONS FOR LIQUID CRYSTAL DISPLAY MODULE

MODEL NO: 24064-02

1.6 Input Signal Function

Connector P1

Pin No.

Symbol

VSS

VDD

C/D

RESET

DB0

DB1

DB 2

DB 3

DB 4

DB 5

DB 6

DB 7

VOUT

Level

5.0V

---

H/L

---

H/L

-15V

Description

Frame ground

Ground

Supply voltage for logic

Input voltage for LCD

Write signal

Read signal

Chip enable signal

H : Instruction signal, L : Data signal

No connection

Reset signal

Data bit 0

Data bit 1

Data bit 2

Data bit 3

Data bit 4

Data bit 5

Data bit 6

Data bit 7

Font select signal ( H : 6 x 8 dots, L : 8 x 8 dots )

Output voltage for LCD

Backlight Power Pads

Pin No.

Symbol

SLA

SLK

Level

4.2V

Side light anode

Side light cathode

Description

1.7 LCM Power, Contrast Control and Bias

VDD

Vout

VSS

VR:

20Kohm

Contrast Adj

LCM

LED / ELP

Backlight

*Note : Only the unit with the optional DC-to-DC Converter is built in has Vout available

Backlight

Power

Pacific Display Devices

05.22.2006

SPECIFICATIONS FOR LIQUID CRYSTAL DISPLAY MODULE

MODEL NO: 24064-02

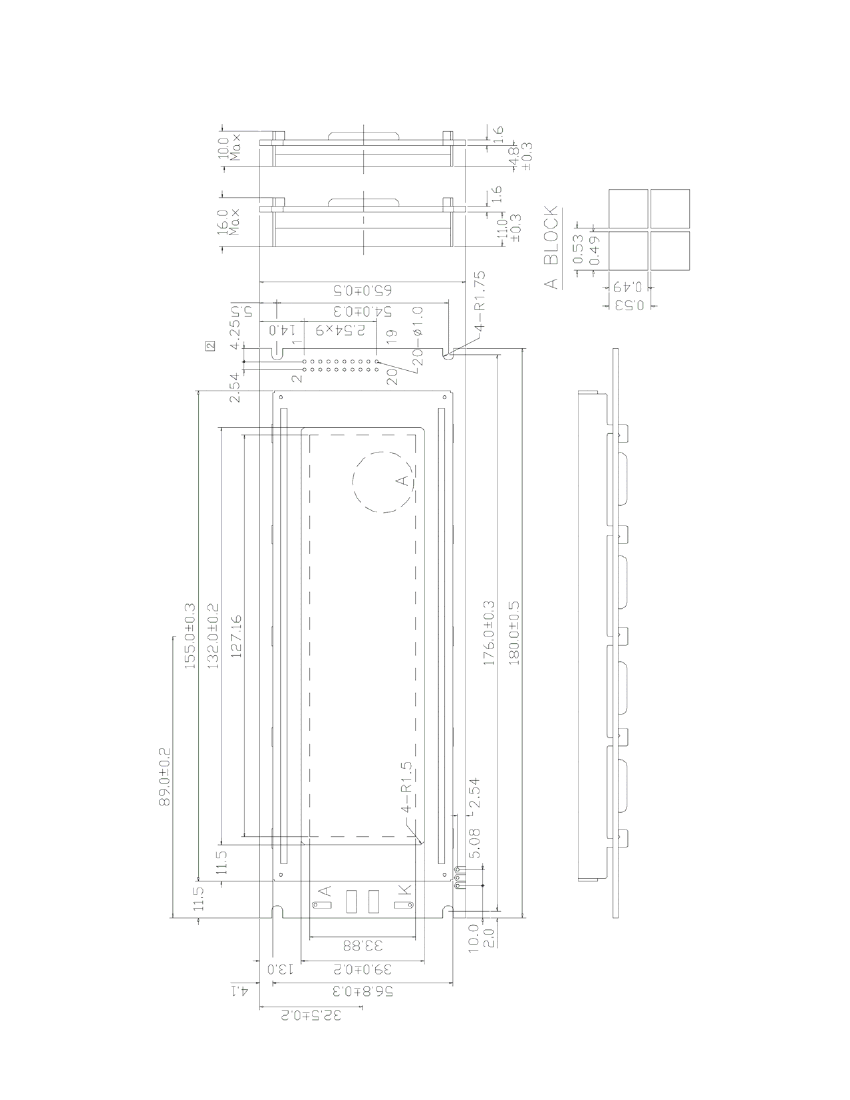

1.8 LCM Dimensions

Pacific Display Devices

05.22.2006

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
