Board Connector, 28 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Guide Pin, Black Insulator, Plug
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Harwin |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Board mount options | HOLE .086-.098 |
| body width | 0.219 inch |
| subject depth | 0.22 inch |
| body length | 1.496 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 25 mΩ |
| Contact style | RND PIN-SKT |
| Durability | 500 Cycles |
| maximum insertion force | 2.78 N |
| Insulation resistance | 100000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED POLYPHENYLENE SULPHIDE |

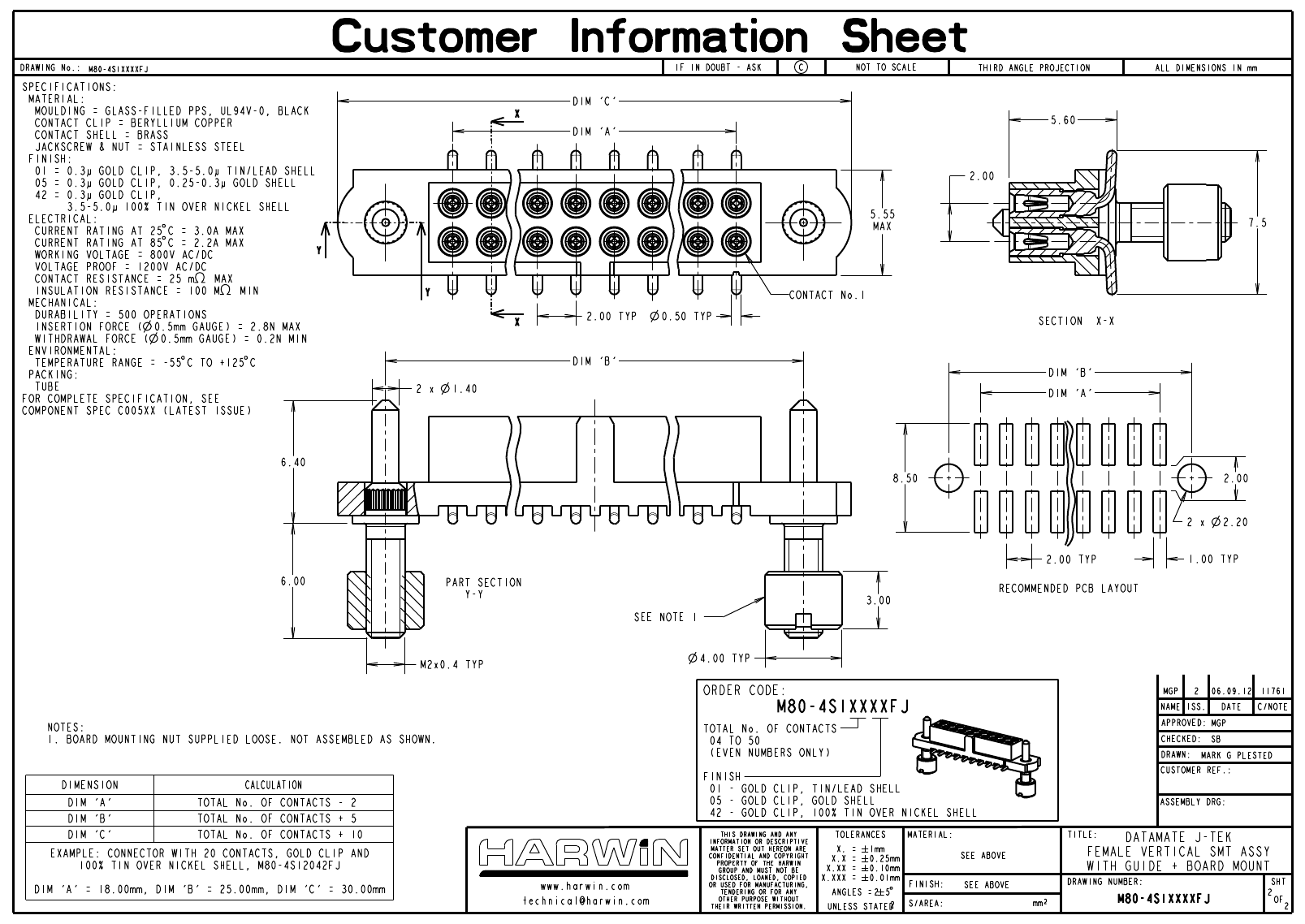

| Manufacturer's serial number | M80-4S1 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Installation option 1 | GUIDE PIN |
| Installation option 2 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 3.2258 mm |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 3 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 2.0066 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 28 |
| Evacuation force-minimum value | .1946 N |
