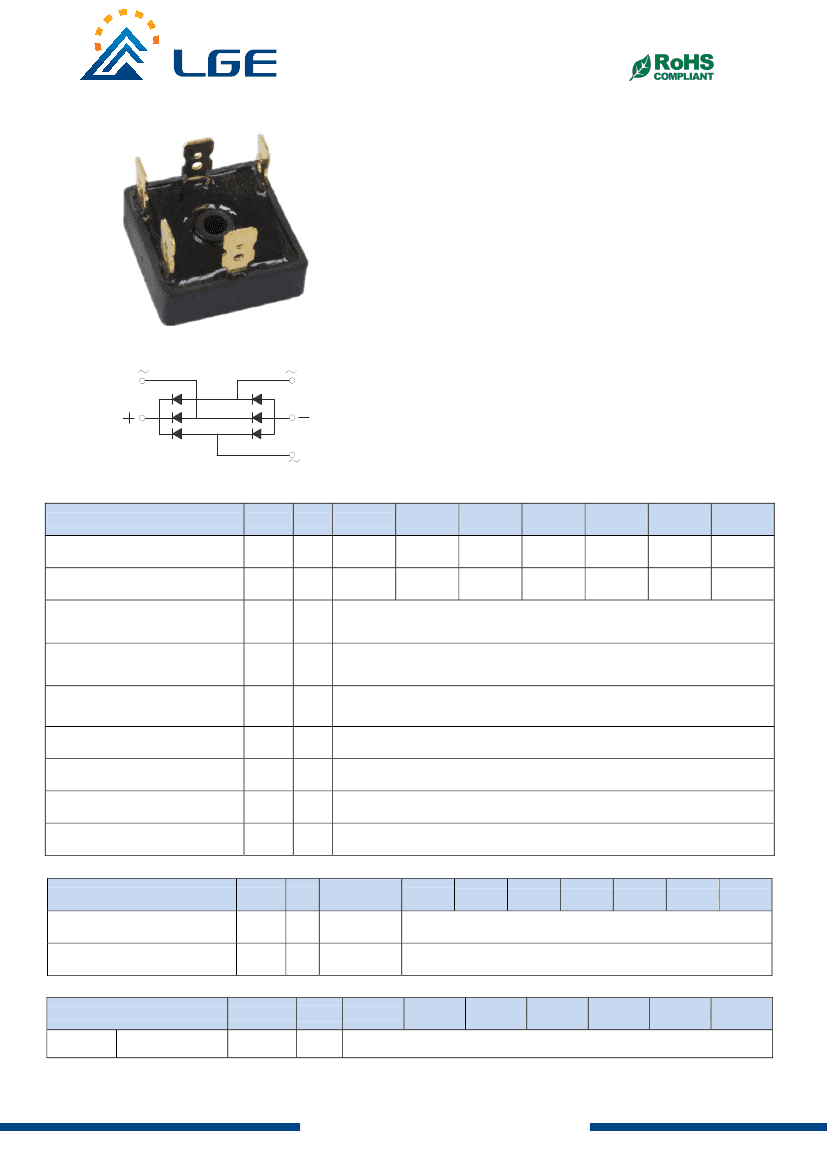

MT3504 THRU MT3516

Three Phase Bridge Rectifiers

‐

● UL recognition, file #E230084

● Glass passivated chip

● High surge current capability

● Low thermal resistance

● Solder dip 275 °C max. 7 s, per JESD 22-B106

Features

General purpose use in AC/DC bridge full

wave rectification for power supply, home

appliances, office equipment, industrial

automation applications.

Typical Applications

Mechanical Data

●

Package:

Molding compound meets UL 94 V-0

flammability rating, RoHS-compliant

●

Terminals:

Tin plated leads, solderable

per J-STD-002 and JESD22-B102

■

Maximum Ratings

(Ta=25℃ Unless otherwise specified)

PARAMETER

Device marking code

Repetitive Peak Reverse Voltage

Average Rectified Output Current

@60Hz sine wave, R-load, With

heatsink, Tc=55℃

Surge(Non-repetitive)Forward Current

@60Hz Half- sine Wave, 1 cycle,

Ta=25℃

Current Squared Time

@1ms≤t≤8.3ms Tj=25℃, Rating

of per diode

Storage Temperature

Junction Temperature

Dielectric Strength, Terminals to case,

AC 1 minute

Mounting Torque

VRRM

SYMBOL UNIT

MT3504

400

MT3506

600

MT3508

800

MT3510

1000

MT3512

1200

MT3514

1400

MT3516

1600

IFSM

Tstg

Vdis

TOR

400

℃

kg·cm

660

-55~+150

-55 ~+150

2.5

■

Electrical Characteristics

(Ta=25℃ Unless otherwise specified)

PARAMETER

Maximum instantaneous forward

voltage drop per diode

Maximum DC reverse current at

rated DC blocking voltage per diode

SYMBOL UNIT

VFM

IRRM

TEST

CONDITIONS

IFM=17.5A

MT3504 MT3506

MT3508

MT3510 MT3512 MT3514

1.2

MT3516

μA VRM=VRRM

■

Thermal Characteristics

(Ta=25℃ Unless otherwise specified)

PARAMETER

Thermal

Resistance

Between junction and

case, With heatsink

SYMBOL

J-C

UNIT

℃/W

MT3504

MT3506

MT3508

MT3510

1.3

MT3512

MT3514

MT3516

Revision:20170701-P1

www.lgesem i

mail:lge@lgesemi.com
