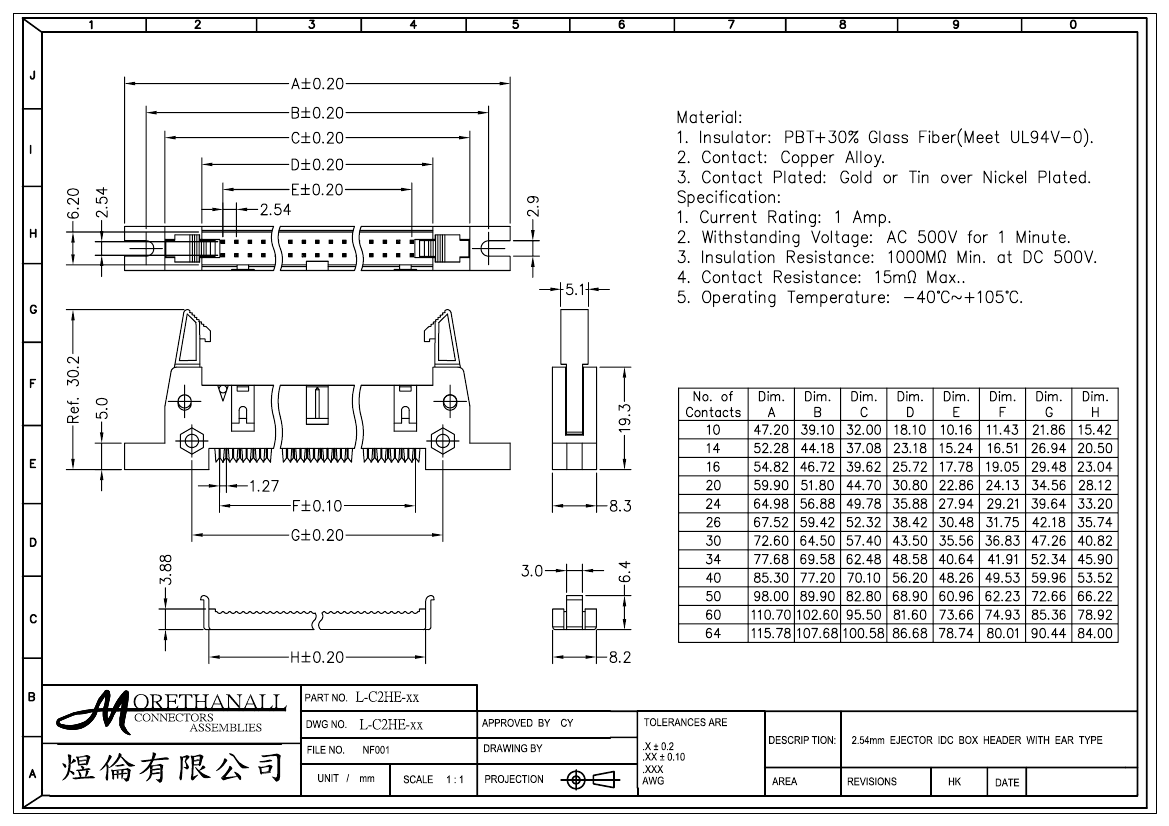

Preview

L-C2HE-26: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch & Eject, Receptacle; CategoryThe connector The connector; File Size132KB，1 Pages; ManufacturerMorethanall Co., Ltd.; Websitehttp://www.morethanall.com

Download Datasheet Parametric Compare View All

L-C2HE-26 Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch & Eject, Receptacle

L-C2HE-26 Parametric

Parameter Name	Attribute value
Maker	Morethanall Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH EAR TYPE
body width	0.327 inch
subject depth	0.76 inch
body length	2.658 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	L-C2HE
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
polarization key	POLAR PIN POSITION
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Termination type	IDC
Total number of contacts	26

Preview

Download Datasheet

View All

L-C2HE-26 Related Products

	L-C2HE-26	L-C2HE-40	L-C2HE-34	L-C2HE-50	L-C2HE-60	L-C2HE-24	L-C2HE-20
Description	Board Connector, 26 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch & Eject, Receptacle	Board Connector, 40 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch & Eject, Receptacle	Board Connector, 34 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch & Eject, Receptacle	Board Connector, 50 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch & Eject, Receptacle	Board Connector, 60 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch & Eject, Receptacle	Board Connector, 24 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch & Eject, Receptacle	Board Connector, 20 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch & Eject, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	WITH EAR TYPE	WITH EAR TYPE	WITH EAR TYPE	WITH EAR TYPE	WITH EAR TYPE	WITH EAR TYPE	WITH EAR TYPE
body width	0.327 inch	0.327 inch	0.327 inch	0.327 inch	0.327 inch	0.327 inch	0.327 inch
subject depth	0.76 inch	0.76 inch	0.76 inch	0.76 inch	0.76 inch	0.76 inch	0.76 inch
body length	2.658 inch	3.358 inch	3.058 inch	3.858 inch	4.358 inch	2.558 inch	2.358 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	L-C2HE	L-C2HE	L-C2HE	L-C2HE	L-C2HE	L-C2HE	L-C2HE
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
polarization key	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	26	40	34	50	60	24	20
Maker	Morethanall Co., Ltd.	Morethanall Co., Ltd.	Morethanall Co., Ltd.	Morethanall Co., Ltd.	-	-	-
